Description

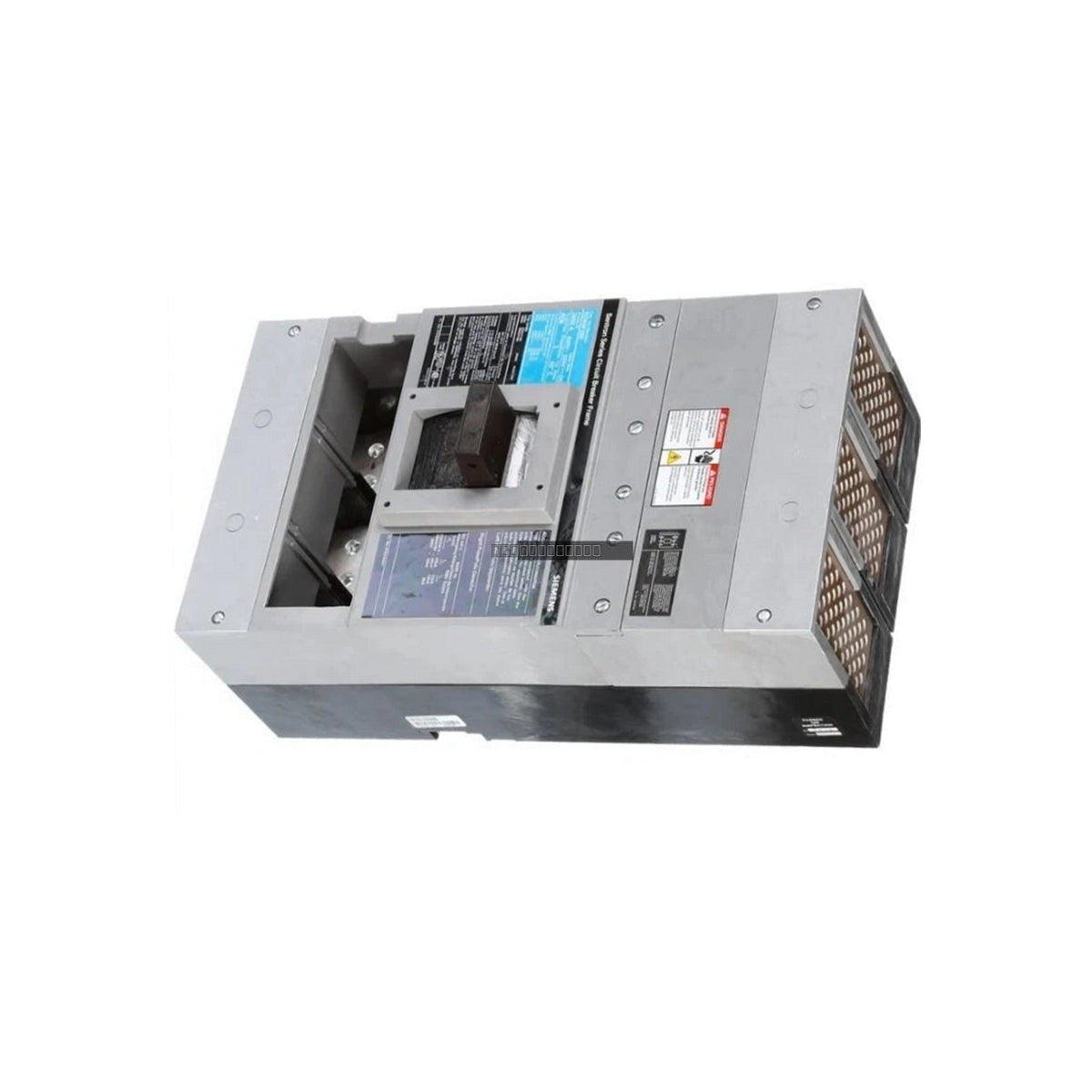

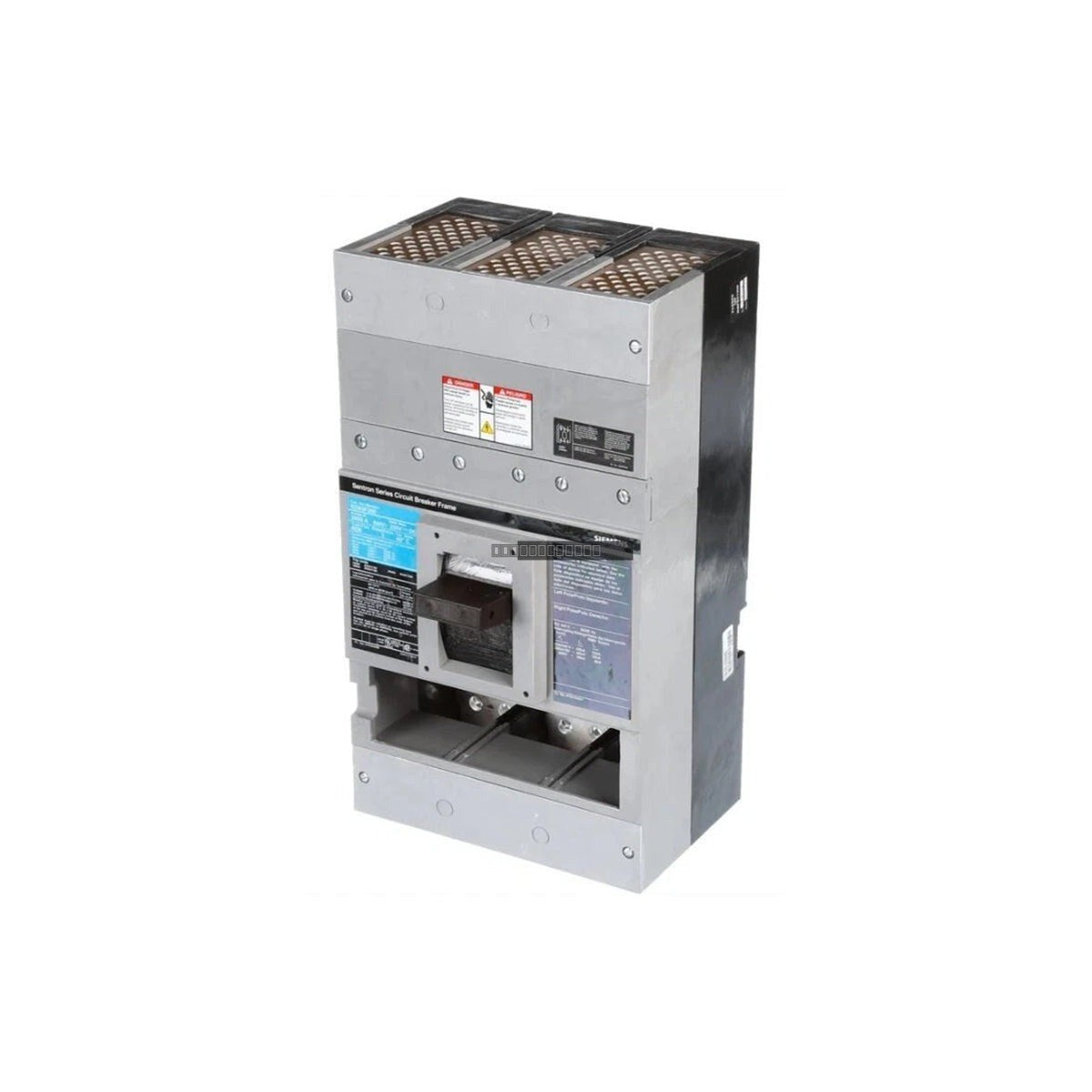

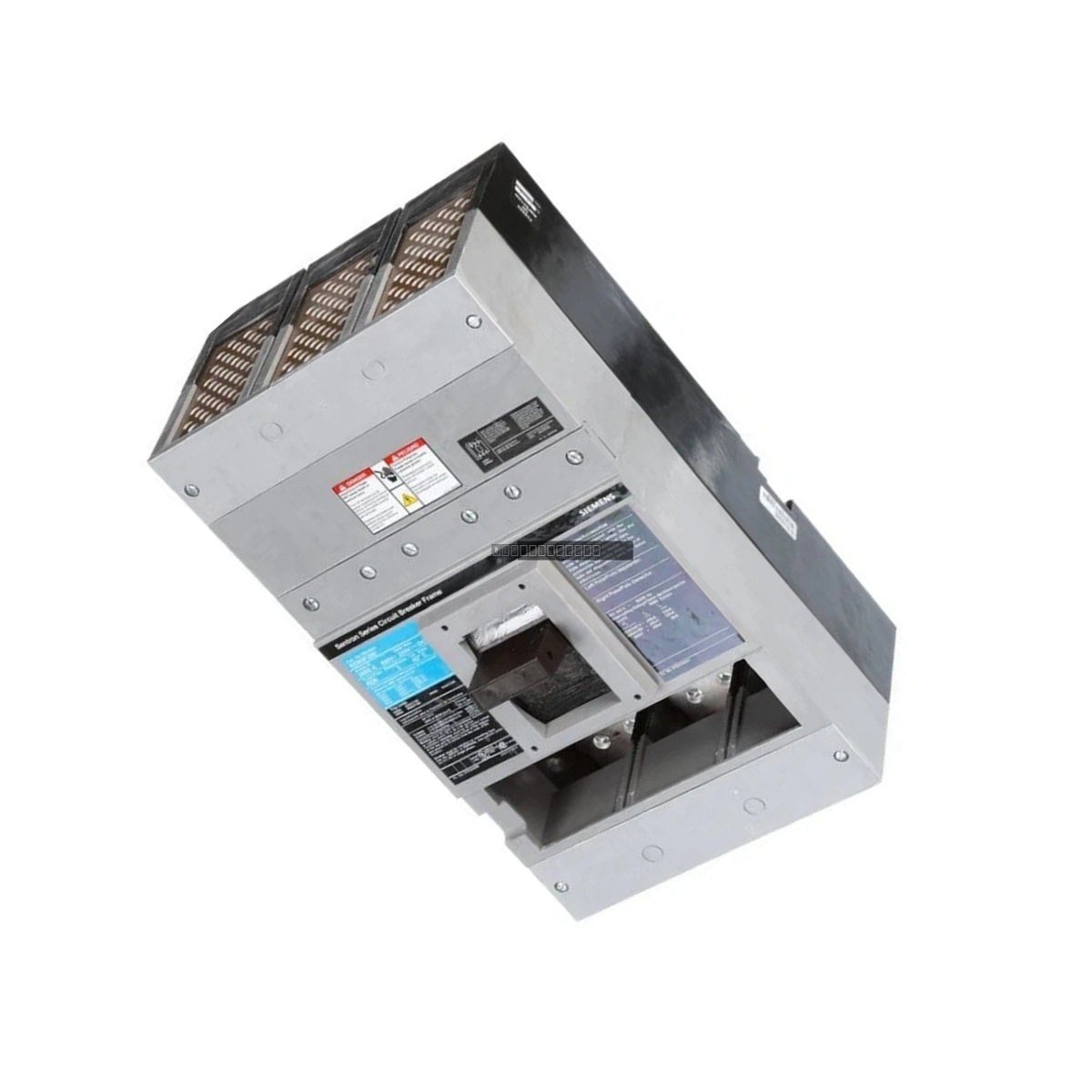

The Siemens RD63F200 is a structural frame component designed for the RD6 series circuit breaker systems. This frame supports a 3-pole configuration rated for 600V and 2000A, providing the necessary housing and mounting interface for high-capacity industrial power distribution applications.
Features
- Designed specifically for Siemens RD6 series circuit breakers
- 3-pole configuration for standard industrial power distribution
- Rated for 600V and 2000A service
- Robust construction for secure mounting and alignment of internal breaker components
Applications
This frame is intended for use in heavy-duty electrical switchgear, distribution panels, and power management systems where high-amperage protection is required. It serves as the primary mounting chassis for the RD6 circuit breaker assembly.
Technical Specifications
| Model | RD63F200 |
| Manufacturer | Siemens |
| Poles | 3 |
| Voltage Rating | 600V |
| Current Rating | 2000A |
| Tariff Code | 8536200020 |
Installation Guidelines
- Ensure the installation environment is free from excessive vibration and moisture.
- Verify that the mounting surface is capable of supporting the weight of the frame and the associated circuit breaker assembly.
- Power must be disconnected from the entire distribution system before attempting to install or replace the frame.
- Ensure proper alignment of the busbar connections to prevent overheating or arcing during operation.
- Use appropriate torque settings for all mounting bolts as specified in the primary Siemens RD6 technical manual.
FAQ
What is the primary function of the RD63F200?
The RD63F200 acts as the structural frame for a 3-pole, 2000A Siemens RD6 circuit breaker, providing the mechanical support and alignment required for the breaker to function within a switchgear cabinet.
Is this frame compatible with other series?
No, this frame is specifically engineered for the RD6 series. It is not intended for use with other Siemens breaker lines.
