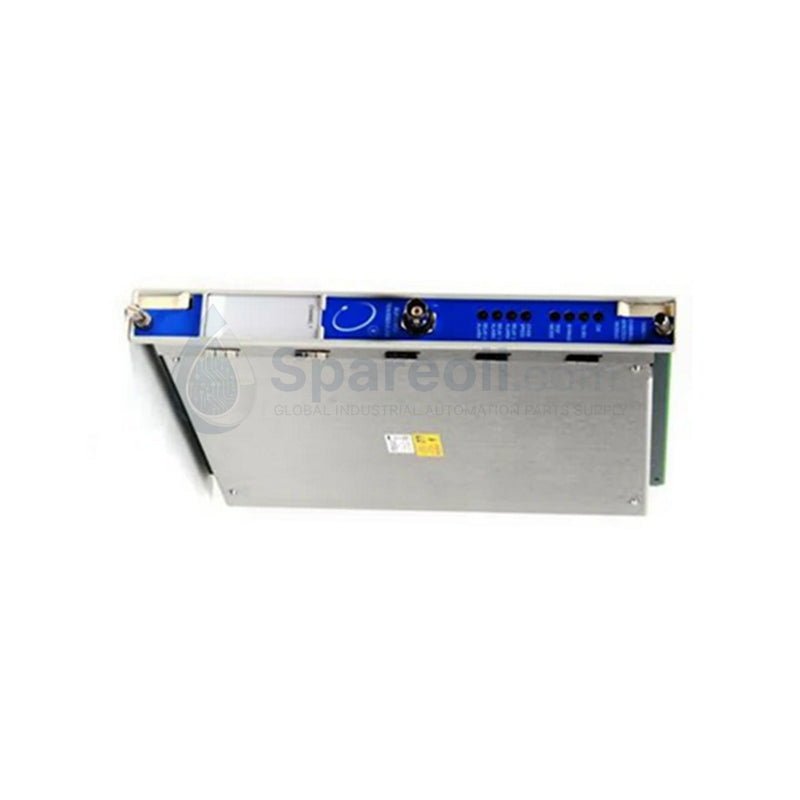

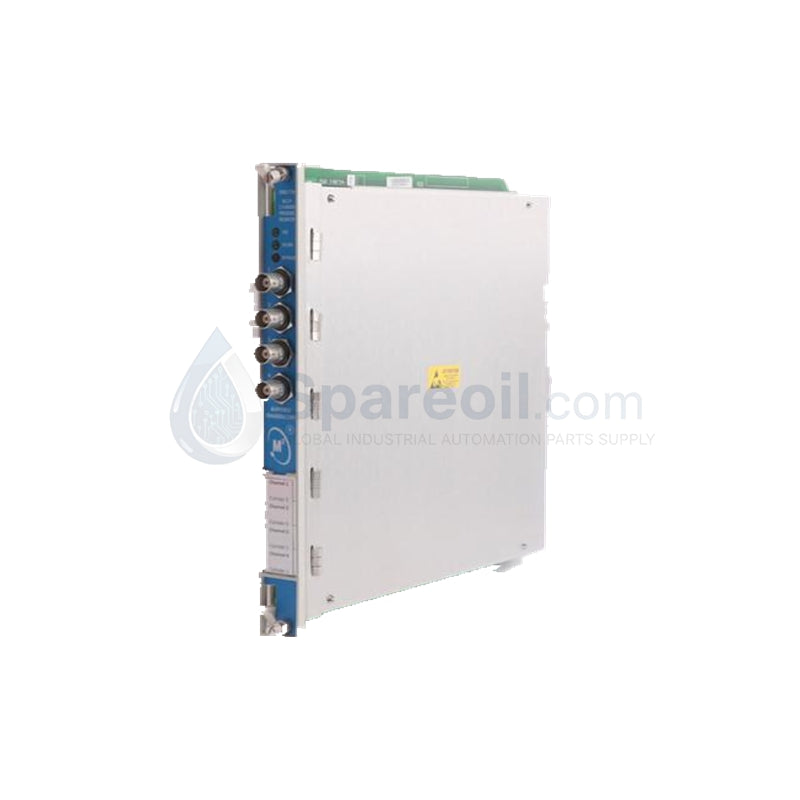

Reciprocating Machinery Monitor | 140734-08 Bently Nevada

Reciprocating Machinery Monitor | 140734-08 Bently Nevada

Availability: 10 left in stock

Product Overview The Bently Nevada 3500/72M (Part Number 140734-08) serves as a high-performance Reciprocating Dynamic Pressure Monitor within the 3500 Machinery Protection System. This...

SKU: 140734-08

Manufacturer: Bently Nevada
Product No.: 140734-08
Product Type: Machinery Protection Systems
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Bently Nevada 3500/72M (Part Number 140734-08) serves as a high-performance Reciprocating Dynamic Pressure Monitor within the 3500 Machinery Protection System. This four-channel module accepts signals from dynamic pressure transducers and processes them to evaluate the performance and mechanical integrity of reciprocating compressors and combustion turbines. It identifies pressure-related anomalies such as cylinder leaks, valve malfunctions, and combustion instabilities. We supply this module as 100% Brand New and Original in Factory Packing, providing the high-speed data acquisition necessary for advanced machinery diagnostics.

Technical Specifications

Attribute	Specification Value
Model Number	3500/72M
Part Number	140734-08
Input Channels	4 Independent Channels
Input Types	Dynamic Pressure Transducers (Charge or Voltage)
Frequency Response	0.1 Hz to 30 kHz (Sensor dependent)
Signal Processing	Peak-to-Peak Pressure, Rod Drop, and Impact
Scale Factor	Configurable via 3500 Rack Software
Accuracy	±1% of Full Scale
Operating Temp	0°C to +60°C (32°F to +140°F)
Storage Temp	–40°C to +85°C (–40°F to +185°F)
Mounting	3500 System Rack Slot
Weight	0.9 kg

Engineering Advantages

High-Speed Transient Detection: The 3500/72M utilizes specialized sampling rates to capture fast pressure transients in reciprocating cylinders. It detects microscopic pressure fluctuations that indicate cracked valves or worn piston rings before they cause a full system trip.
Combustion Stability Monitoring: In gas turbine applications, the module tracks dynamic pressure pulsations in the combustion chamber. This monitoring prevents Lean Blow Out (LBO) and flashback conditions, protecting the turbine hot section from thermal stress and mechanical fatigue.
Advanced Rod Drop Logic: The 140734-08 supports rod drop measurements to monitor rider band wear on reciprocating compressors. It integrates the pressure data with shaft position to provide an accurate assessment of piston clearances during operation.
Seamless Backplane Synchronization: The module shares data across the 3500 rack backplane, allowing for time-correlated analysis with vibration and speed data. This holistic view enables maintenance teams to distinguish between process-related pressure spikes and mechanical vibration faults.
Rugged EMI Protection: Bently Nevada builds the 140734-08 with high-grade shielding to reject interference from nearby industrial equipment. This ensures that the low-voltage signals from pressure transducers remain accurate and noise-free.

FAQs

Can the 3500/72M monitor centrifugal vibration?

No. The 3500/72M is specifically optimized for dynamic pressure and reciprocating machinery parameters. For standard centrifugal vibration monitoring (radial or axial), you should use the 3500/42M Proximitor Seismic Monitor.
Is this module compatible with all 3500 series racks?

Yes. The 140734-08 installs into any standard full-size or mini-rack in the 3500 series. However, you must ensure your Rack Interface Module (RIM) and configuration software support the M-series firmware.
Does this unit include the I/O module?

The 140734-08 refers to the main monitor module. Depending on your field wiring requirements (Internal Terminations or External Terminations), you may need a specific rear I/O module to complete the installation.
What is the condition of the stock?

We guarantee that this part is 100% Brand New and Original. It ships in the original factory-sealed box with all factory documentation, ensuring compliance with your plant's reliability standards.
