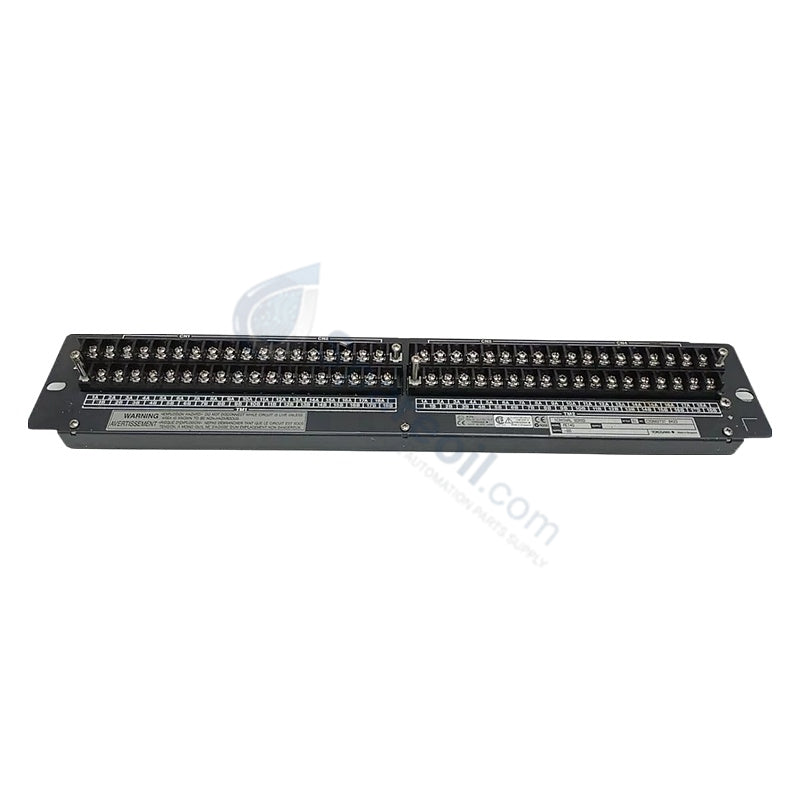

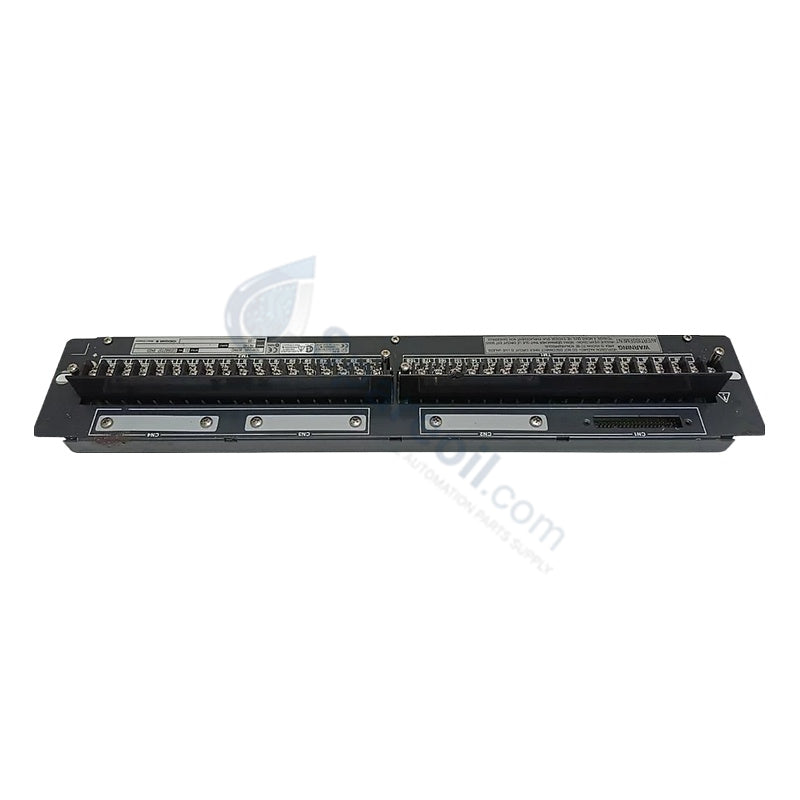

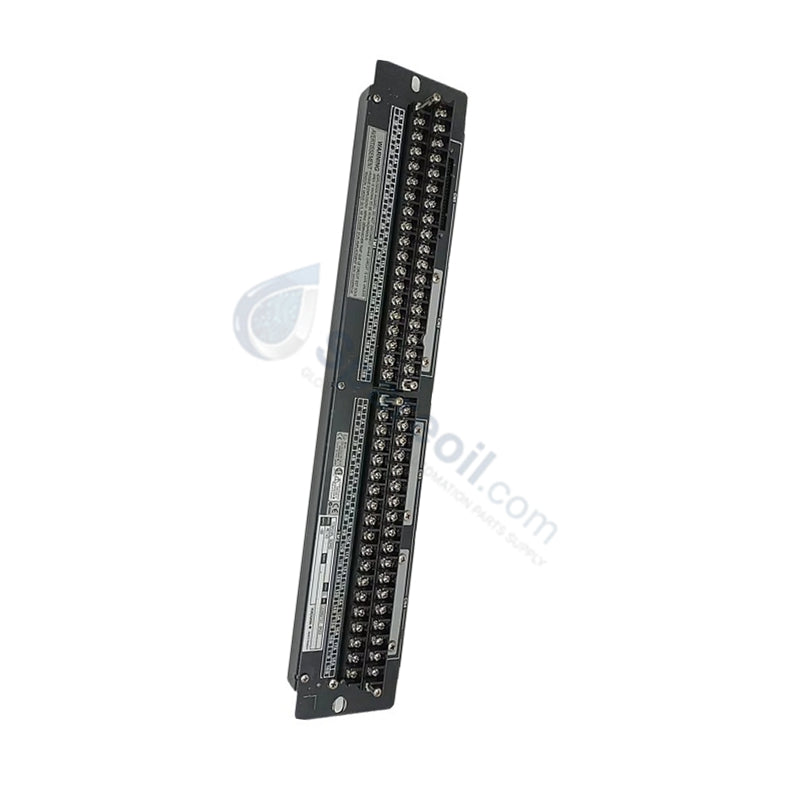

Yokogawa SAED5D ADV Terminal Board

The Yokogawa SAED5D, also cataloged as the SAED5D Digital Signal Terminal Board, operates as a dedicated hardware component for field wiring termination within ADV-series I/O infrastructure platforms.

Layout Configuration Selection: Layout 1

Hardware Specifications

Parameter Specification
Model SAED5D
Brand Yokogawa Electric Corporation
Origin Japan
Weight 0.3 kg
Dimensions 32.8 x 119.9 x 130 mm
Operating Temp 0 to +60 deg C
Power Consumption Passive device (Determined by connected I/O loading)
Number of Channels 32 digital I/O channels
Terminal Type M4 screw terminals
Compatible I/O Modules ADV151, ADV551, ADV161, ADV561
Compatible Cables AKB331, AKB337
Rated Voltage 24 VDC (+/- 10%)
Insulation Resistance 100 MOhm or higher at 500 VDC
Withstanding Voltage 500 VAC for 1 minute
Storage Temperature -20 to +70 deg C
Humidity Range 5 to 95% RH (non-condensing)

Process Control & DCS Instrumentation Technical Attributes

This discrete termination hardware establishes point-to-point interface links between field wiring circuits and processing modules, supporting channel-to-channel isolation parameters. The board architecture integrates dual-redundant routing matrices, enabling continuous data connectivity through dual AKB-series cables hooked into parallel ADV modules. By utilizing robust physical insulation substrates rated for 500 VDC, the terminal interface arrests stray common-mode currents and blocks cross-talk noise propagation from corrupting adjacent 24 VDC loop pathways.

Frequently Asked Questions

Q: Does this hardware require independent power supply connections for execution?

A: No. The terminal board operates strictly as a passive electrical termination unit, drawing zero standalone power; all operational current metrics depend entirely on the active ADV-series I/O modules and downstream loops.

Q: How does the unit maintain data stream integrity if a communication link fails?

A: The board physical layout supports dual-redundancy terminal structures. If one interconnecting AKB cable or I/O module experiences an interruption, the parallel redundant cable path immediately sustains the continuous data block stream without switching delays.

Field Installation Guidelines

  • Chassis Panel Mounting: Secure the assembly structure inside the main marshalling enclosure using standard DIN-rail or fixed wall fastening, verifying the 32.8 x 119.9 x 130 mm physical boundaries match design blueprints.
  • Screw Terminal Connections: Terminate field discrete lines using the built-in M4 screw terminals. Apply the manufacturer-specified torque limit to eliminate loose terminal resistance while avoiding strip damage.
  • Cable Interface Management: Lock the dedicated AKB331 or AKB337 multi-conductor system cables into the integrated connectors on the board rear, applying the mechanical strain-relief brackets.
  • Grounding Framework: Wire the baseplate grounding stud directly to the process cabinet functional earth bus. Maintain separation between low-power logic signals and high-current electrical cables to inhibit EMI induction.
