140XTS00206 Schneider Electric Modicon Quantum Datasheet & Technical Manual

Schneider Electric 140XTS00206 Modicon Quantum CableFast System Cable

Schneider Electric 140XTS00206 Modicon Quantum CableFast System Cable

Availability: 94 left in stock

Schneider Electric 140XTS00206 Modicon Quantum CableFast System Cable Configured for impedance matching and physical connection in Modicon Quantum networks, the...

SKU: 140XTS00206

Manufacturer: Schneider
Product No.: 140XTS00206
Product Type: Connection Cables
Product Origin: France
Payment:T/T, Western Union
Weight: 700g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

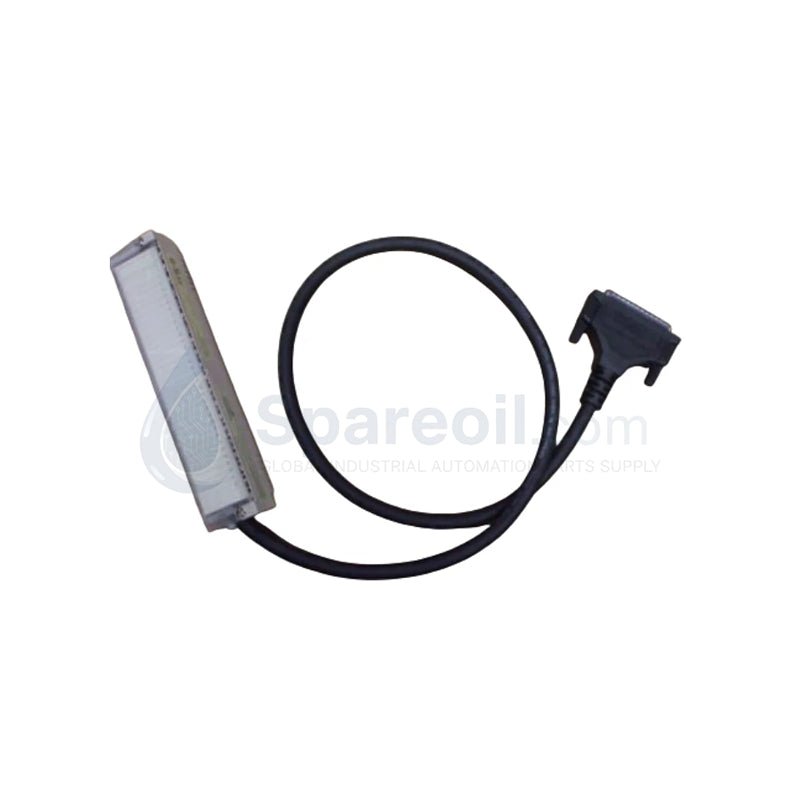

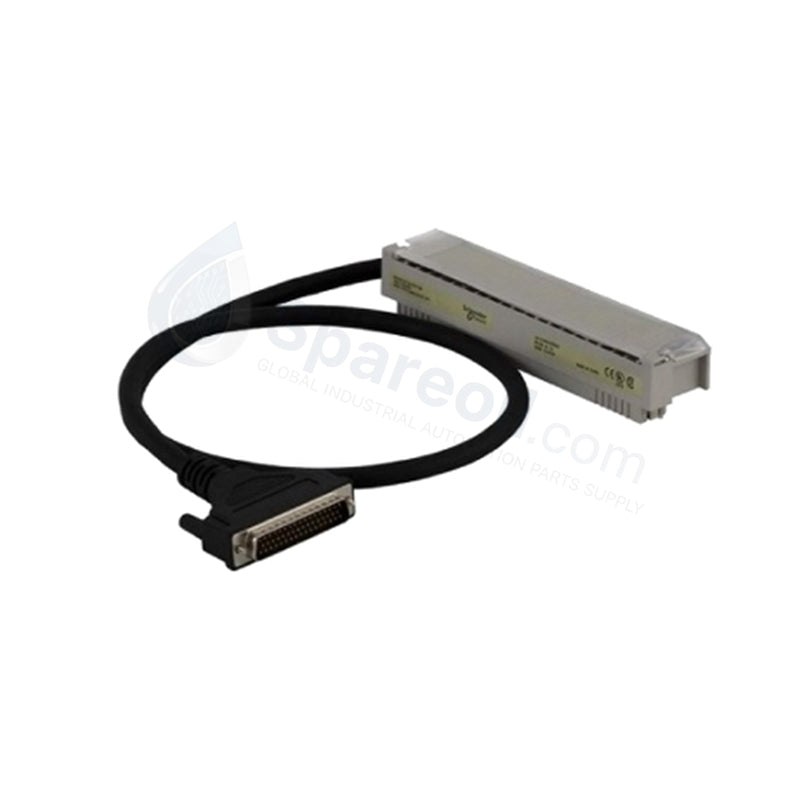

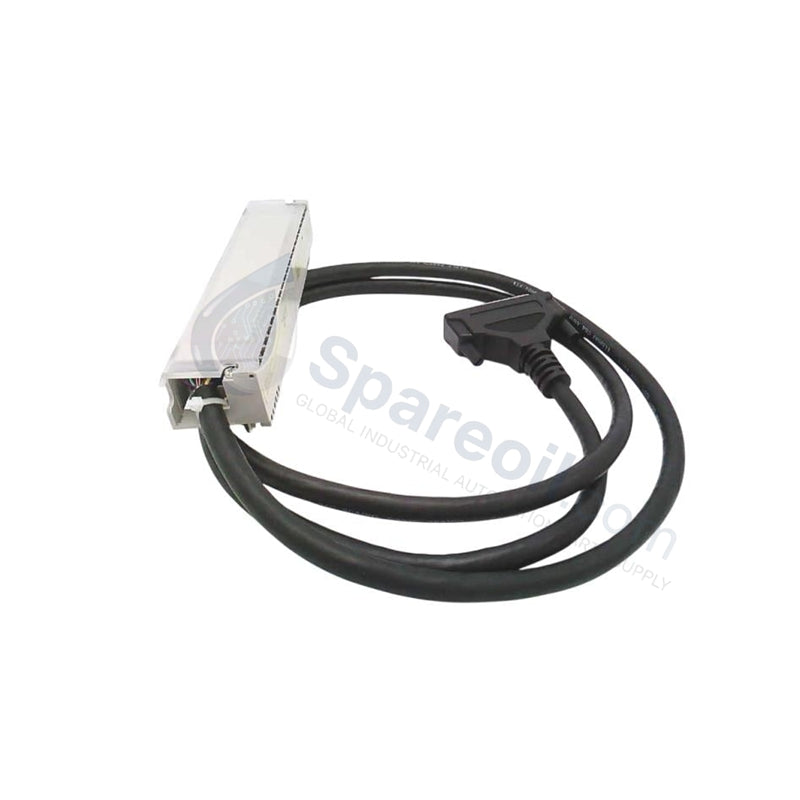

Schneider Electric 140XTS00206 Modicon Quantum CableFast System Cable

Configured for impedance matching and physical connection in Modicon Quantum networks, the Schneider Electric 140XTS00206 (140XTS00206 CableFast System Cable) provides direct physical and electrical execution. This pre-terminated connection assembly routes discrete or analog signals from Quantum field modules to termination panels without signal deterioration. By utilizing standard pinning architecture, the hardware eliminates single-wire landing faults and maintains predictable loop impedance across the backplane interface.

Hardware Specifications

Parameter	Specification
Model	140XTS00206
Brand	Schneider Electric
Origin	France
Weight	0.70 kg (1.54 lbs)
Dimensions	1.8 m (5.91 ft) cable length
Operating Temp	0 to 60 deg C
Power Consumption	Passive (No internal power draw)
Cable Type	Terminated CableFast assembly
Electrical Connection 1	1 x Compatible Quantum I/O block connector
Electrical Connection 2	1 x 50-pin SUB-D connector
Color	Black
Enclosure Protection	IP20 equivalent when mated

Deterministic Industrial Networks and I/O Density Scaling

This Schneider Electric connectivity component stabilizes physical signal pathways to ensure uncorrupted data flow across high-speed industrial networks. The integrated 50-pin SUB-D connector layout supports expanded I/O density scaling by grouping high-density wiring into a single structured branch. Because variable loop resistances degrade high-frequency signals, the factory-molded connectors enforce uniform impedance matching to prevent waveform reflection. Additionally, the assembly maintains complete compatibility with existing Quantum backplane installations during legacy system migrations.

Frequently Asked Questions

Q: How does this pre-terminated cable assembly affect overall I/O loop resistance?

A: The factory-molded 1.8 m conductor paths provide a fixed, low-ohmic resistance that prevents signal voltage drops across high-density connection points.

Q: Can technicians deploy this assembly in applications requiring continuous high-vibration exposure?

A: The cable functions reliably under vibration profiles up to 3 gn, provided you engage the mechanical screw locks on the 50-pin SUB-D connector side securely.

Q: Does the standard black outer jacket provide protection against ambient moisture condensation?

A: The jacket isolates the internal copper conductors under standard operating parameters, but you must keep the installation within the 95% non-condensing relative humidity specification.

Field Installation Guidelines

Engineers must disconnect all power sources from the target target Modicon Quantum rack before beginning the cable installation process. Align the dedicated Quantum I/O block connector with the front receiver slots of the installed module housing. Press the connector housing firmly inward until the retention clips engage completely with the module body.

Route the flexible black cable body through isolated low-voltage wire ducts inside the enclosure panel. You must separate these signal wires from three-phase AC drive cables or high-inductive switching circuits to prevent inductive cross-talk.

Secure the opposite end to the 50-pin SUB-D mating connector on the terminal interface block. Tighten both retaining screws on the SUB-D shell to a standard torque specification to prevent loose mechanical connections from disrupting the signal logic loops.
