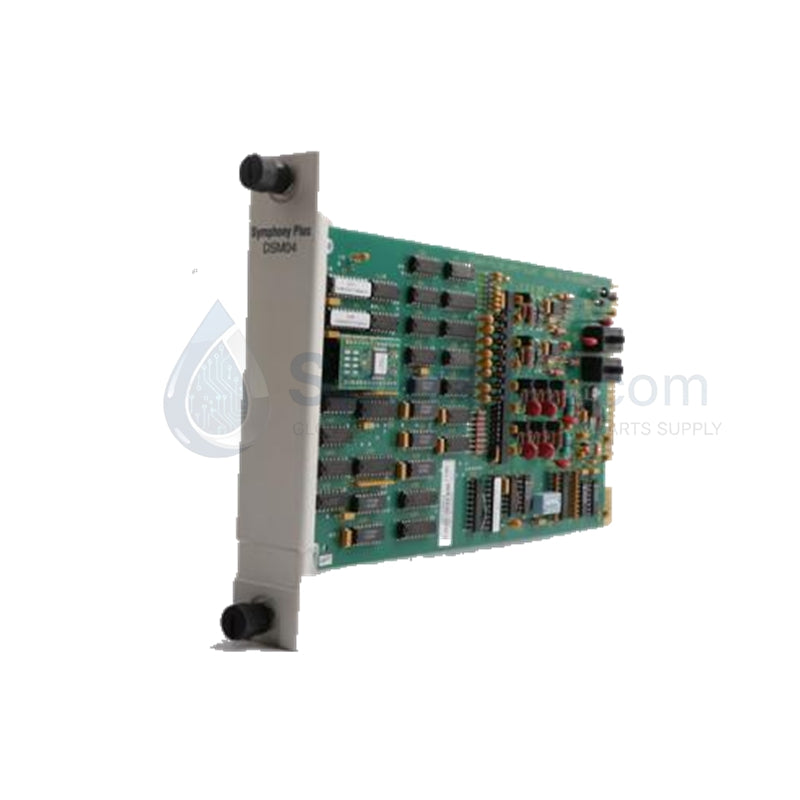

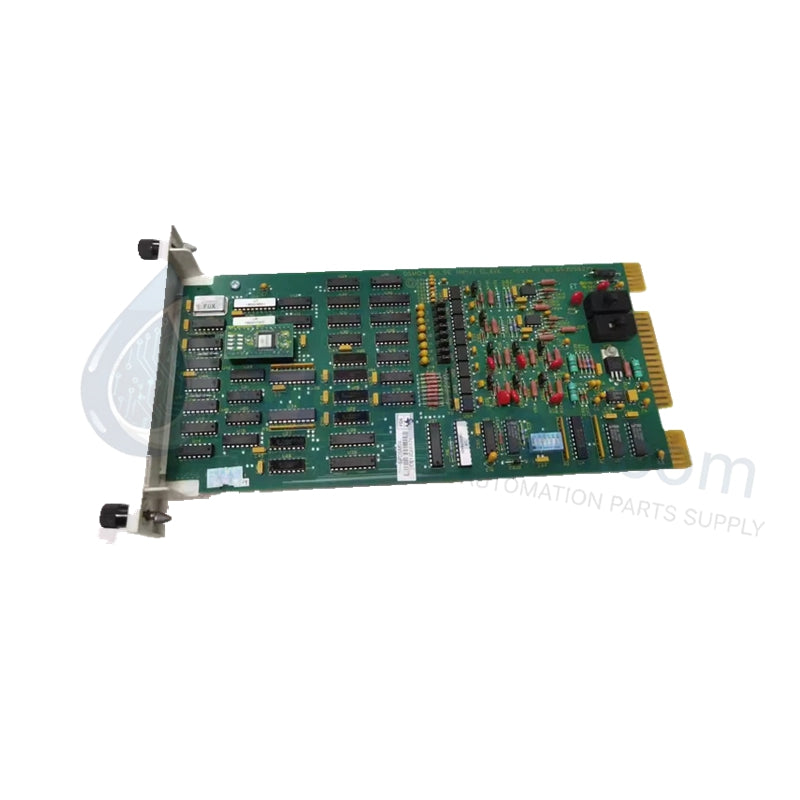

ABB SPDSM04 Harmony Rack High-Speed Pulse Input Card

Configured for high-frequency pulse signal acquisition in Symphony Plus Harmony Rack architectures, the ABB SPDSM04 (SPDSM04 Pulse Input I/O Module) provides direct physical/electrical execution. This 8-channel hardware component counts and processes high-speed digital pulses ranging from 0 to 50 kHz generated by turbine speed sensors, flow meters, or industrial counters.

Hardware Specifications

Parameter Specification
Model SPDSM04
Brand ABB
Origin USA / Europe
Weight 0.75 kg
Dimensions 358.14 mm x 271.78 mm x 71.12 mm
Operating Temp 0 to +60 deg C
Power Consumption Supplied via Harmony Rack Backplane
Product Type Pulse Input I/O Module
System Compatibility Symphony Plus HR Series (Harmony Rack)
Channel Count 8 Independent Channels
Signal Frequency Range 0 to 50 kHz
Channel Type Digital Input (DI)
Protection Level IP20 (Requires cabinet installation)
WEEE Category Category 5 (Small Equipment)
Customs Tariff No. 85389081

Industrial Control & Drive Backplane Characteristics

The high-speed accumulation circuit routes incoming pulse streams through internal counters that communicate over the local bus using backplane bus communication velocity licences. This mechanism guarantees that high-frequency data up to 50 kHz updates the controller memory without lag, preserving the timing margins needed for deterministic networks. The module ensures complete firmware flash compatibility with legacy Symphony Plus blocks, allowing users to increase I/O density scaling across the subplane without encountering bus-level clock jitter or data synchronization errors.

Frequently Asked Questions

Q: Can the SPDSM04 module be hot-swapped while the turbine speed monitoring loop is active?

A: No, removing the SPDSM04 under live conditions will immediately break the pulse telemetry loop. In turbine speed applications, this will cause an abrupt loss of speed feedback, forcing the associated controller into a fault state or triggering an unintended emergency trip sequence.

Q: What is the maximum voltage threshold supported by the pulse input channels?

A: The input channels are designed for standard industrial digital pulses. When utilizing dry contacts or open-collector sensors, the field wiring must match the specified 24 VDC wetting voltage levels, and internal opto-couplers isolate the backplane logic from field-side electrical transients.

Q: How are channel-specific counting errors or sensor failures monitored by the system?

A: The module executes real-time hardware diagnostics that check input signal state transitions. If a channel experiences a signal frequency that exceeds the 50 kHz physical limit or fails a diagnostic check, the system sets an error bit in the I/O status word and passes it to the controller over the backplane bus.

Field Installation Guidelines

Align the module with the top and bottom card guides of the assigned Harmony Rack chassis slot, and slide it inward until the backplane connectors seat firmly. Secure the front-panel fastening screws to establish electrical ground continuity with the cabinet structure. Field signaling lines for 50 kHz pulse inputs must utilize twisted-pair cabling with independent shields for each channel to suppress cross-talk. Terminate all cable shields at a single point on the enclosure ground bus bar; do not tie shields to ground at the field sensor enclosure to eliminate circulating ground loop currents. Route high-frequency pulse cables through separate wiring channels, maintaining a minimum distance of 100 mm from AC power conductors.
