4000103-520 Triconex Cable Assembly Datasheet & Technical Manual

TN8187069-006 Triconex 4000103-520 PLC Cable Assembly

TN8187069-006 Triconex 4000103-520 PLC Cable Assembly

Availability: 10 left in stock

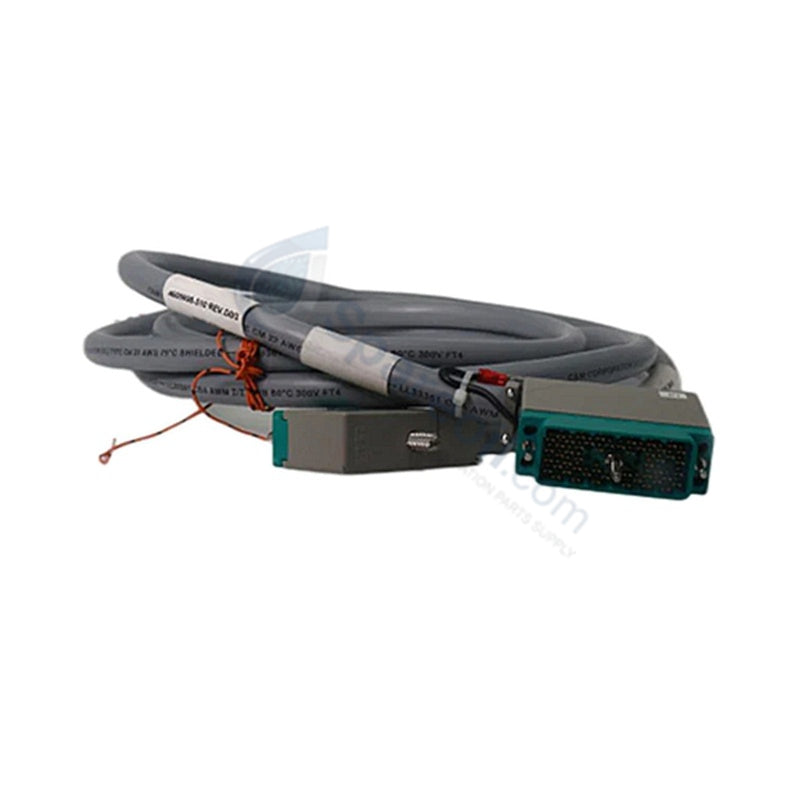

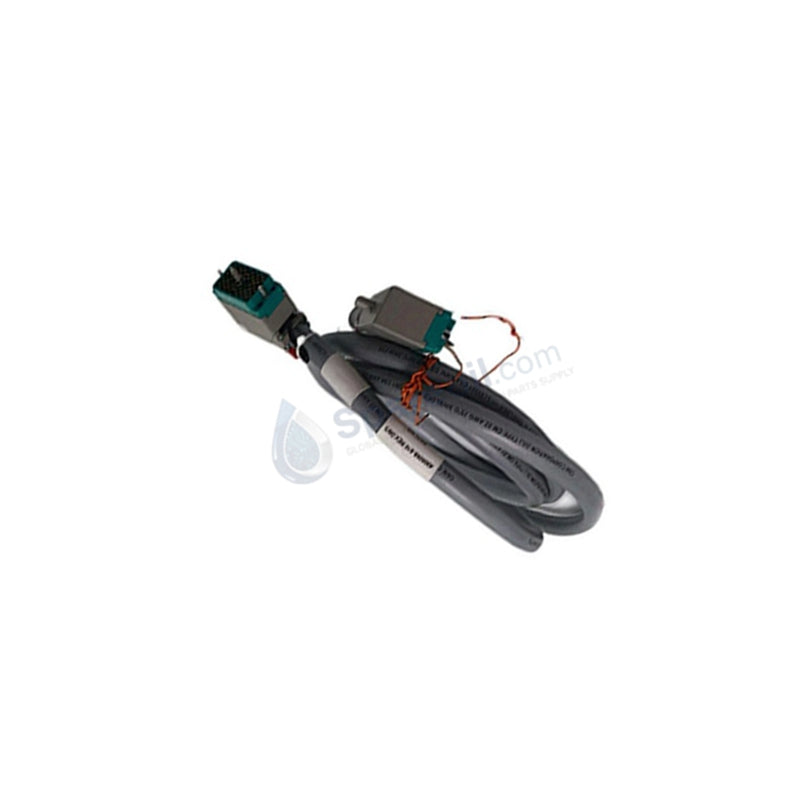

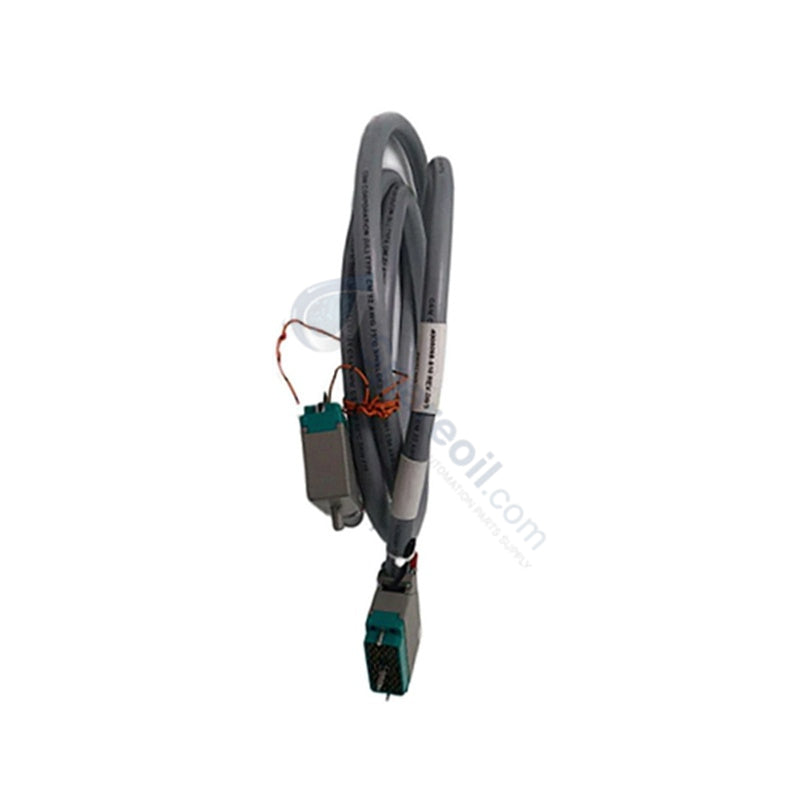

Triconex TN8187069-006 Communication Cable Assembly The Triconex TN8187069-006, also cataloged as the 4000103-520 Industrial Communication Cable Assembly, operates as a...

SKU: TN8187069-006 4000103-520

Manufacturer: Triconex
Product No.: TN8187069-006 4000103-520
Product Type: Cable Assemblies
Product Origin: USA
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Triconex TN8187069-006 Communication Cable Assembly

The Triconex TN8187069-006, also cataloged as the 4000103-520 Industrial Communication Cable Assembly, operates as a dedicated hardware component for high-integrity connectivity within Triconex safety instrumented system networks. Configured to bridge Triconex SIS modules directly to Level 2 network switches, the assembly eliminates the need for intermediate CF9 switches by providing direct physical and electrical execution. The assembly routes critical data streams under harsh environmental conditions, maintaining continuous line diagnostic visibility across the internal safety bus infrastructure.

Hardware Specifications

Parameter	Specification
Model	TN8187069-006 / 4000103-520
Brand	Triconex
Origin	United States
Weight	0.2 kg to 0.5 kg (configuration dependent)
Dimensions	160 x 100 x 45 mm (packaged footprint)
Operating Temp	-40 to +90 deg C
Cable Type	High-grade copper conductors with Teflon insulation
Wire Gauge	14 AWG / 24 AWG 7-strand core options
Max Current Capacity	6 A
Voltage Rating	300 V to 1500 V AC/DC bounds
Dielectric Strength	3000 V
Flexibility Life	750,000 flex cycles
System Compatibility	Triconex 3000 SIS Systems

Triple Modular Redundancy (TMR) Support & Security Integration

The cable assembly is engineered to interface with triple modular redundancy (TMR) platforms, ensuring that the redundant data paths from independent logic solvers are routed without signal skew or impedance mismatches. The assembly structure supports fault-tolerant Ethernet integration, enabling real-time diagnostic coverage by maintaining hardware-level pathway isolation. Physical shielding layout and balanced internal capacitance (50 pF/m) suppress electromagnetic interference (EMI) and cross-talk, protecting the underlying 2oo3 voting architectures from external noise injection while supporting built-in firewall functions for downstream cyber protection.

Frequently Asked Questions

Q: Does the hot-swap capability of the Triconex SIS rack extend to this cable assembly?

A: Yes, the cable architecture supports direct online extraction and replacement without causing a system shutdown or dropping active network nodes. The integrated connectors ensure that shielding ground contacts make first and break last during live insertion sequences.

Q: How does the cable construction accommodate tight bending radiuses inside dense marshaling cabinets?

A: The cable utilizes a 7-strand core configuration coupled with high-durability Teflon insulation. This mechanical combination allows the assembly to survive up to 750,000 continuous flex cycles while maintaining a total outer diameter of approximately 9.5 mm without suffering conductor fatigue.

Q: What are the primary diagnostic limitations regarding internal resistance tracking?

A: The assembly provides predictable electrical characteristics with an internal conductor resistance of less than 0.05 to 0.4 Ohms/km depending on the wire gauge variant, and an insulation resistance exceeding 100 MΩ. Significant deviations in loop impedance are instantly flagged by the module diagnostic layers as a line fault.

Field Installation Guidelines

Align the polarized communication keyways of the cable plug with the matching receptacle on the Triconex module interface, pushing firmly until the outer locking ring fully engages.
Route the assembly along dedicated communication brackets, avoiding right-angle bends by maintaining a minimum bend radius of at least ten times the overall cable diameter.
Keep the cable runs physically separate from high-voltage AC motor lines and power switching conduits to mitigate the risks of induced electromagnetic noise.
Verify that the cable outer jacket is free from nicks or physical stress points that could compromise the 3000 V dielectric strength layer.
Secure the integrated drain wire directly to the system low-impedance copper instrument grounding rail to establish a continuous electrostatic shield barrier.
