3000510-510 Triconex Termination Control Board

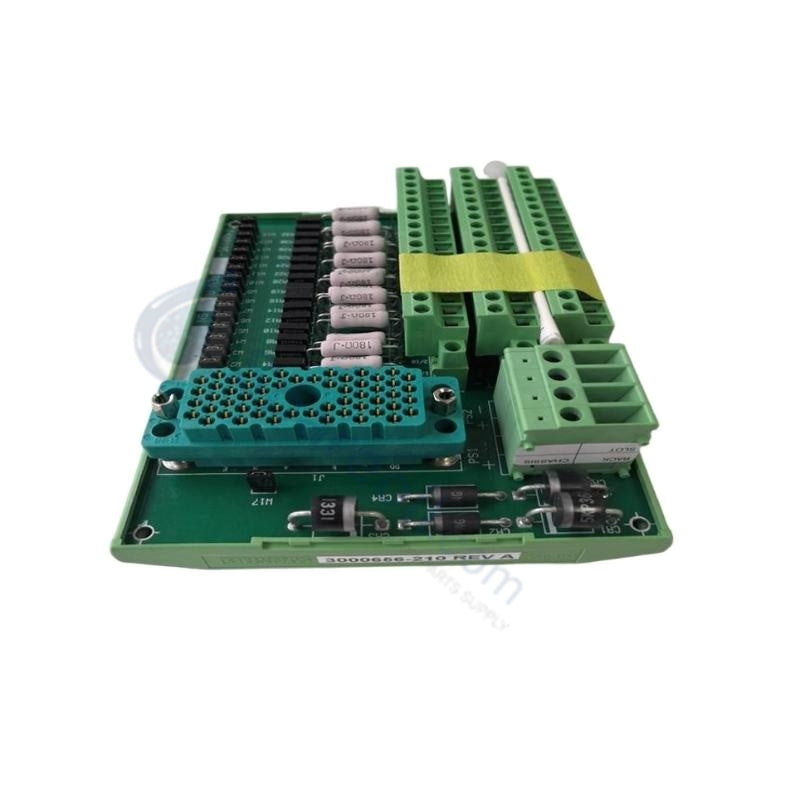

Triconex 3000510-510 Termination Assembly Backplane Board

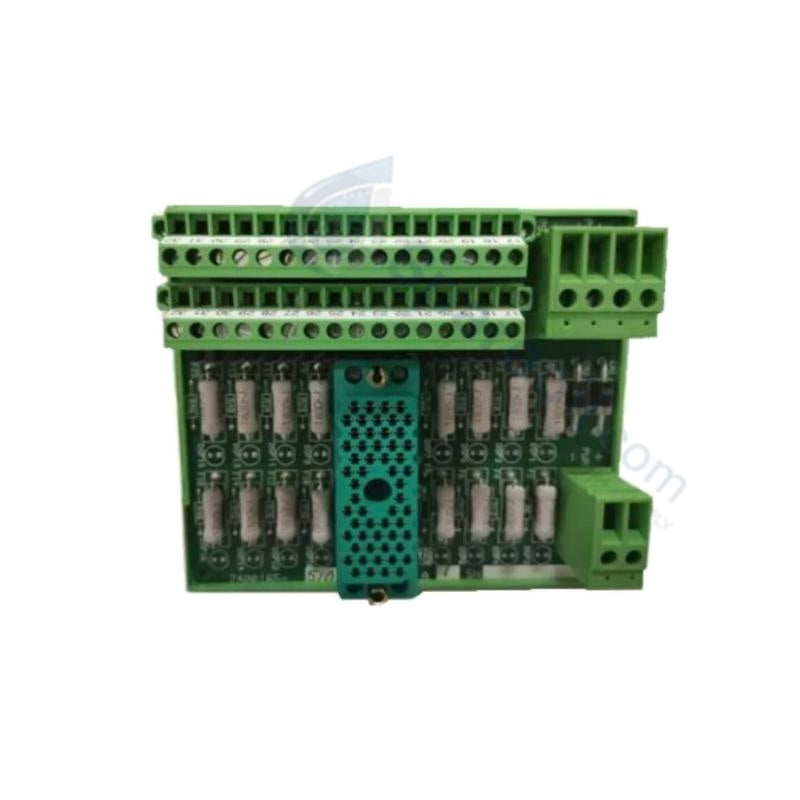

Triconex 3000510-510 Termination Assembly Backplane Board

Availability: 10 left in stock

Triconex 3000510-510 Termination Control Board Configured for high-availability signal routing and backplane interconnection in Tricon v10/v11 systems, the Triconex 3000510-510...

SKU: 3000510-510

Manufacturer: Triconex
Product No.: 3000510-510
Product Type: Terminal Panel Assemblies
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Triconex 3000510-510 Termination Control Board

Configured for high-availability signal routing and backplane interconnection in Tricon v10/v11 systems, the Triconex 3000510-510 (3000510-510 Terminal Panel / Backplane Assembly) provides direct physical/electrical execution. Also designated under manufacturing code 7400165-510, this hardware component routes differential field telemetry and distributes isolated internal voltage rails directly to execution module slots without introducing processing delay.

Hardware Specifications

Parameter	Specification
Model	3000510-510 (Internal Ref: 7400165-510)
Brand	Triconex (Schneider Electric)
Origin	USA
Weight	0.5 kg (Terminal panel component only)
Dimensions	Standard multi-slot design interface matrix
Operating Temp	-40 deg C to +70 deg C
Storage Temp	-40 deg C to +85 deg C
Power Consumption	2 W maximal baseline board draw
Voltage Requirements	24 VDC external loop supply / 5 VDC and +/-12 VDC subsystem rails
Slot Capacity	Multi-slot matching architecture (Up to 18 module positions supported on combined chassis arrays)
Bus Subsystem	Redundant high-speed backplane tracks supporting TMR data voting
Connector Interfaces	D-Sub 9 Pin diagnostic connections alongside gold-plated high-density pin arrays
Enclosure Rating	IP66 equivalent barrier validation when housed inside certified matching frames
Certifications	IEC 61131-2, ATEX, CSA, FM

High Reliability Safety Control (SIS) Technical Attributes

The backplane structure enforces structural signal isolation parameters explicitly designed to sustain triple modular redundancy (TMR) 2oo3 architecture processes across the full physical frame. The printed circuit configuration embeds individual track pathways that provide galvanic isolation boundaries between adjacent I/O slots, isolating high-voltage field faults and stopping cross-talk propagation across the main processor bus lines. This trace configuration establishes the deterministic path for real-time fault isolation vectors, enabling full fail-safe state execution variables to trigger instantly without dropping peripheral operations during dynamic system runtime.

Frequently Asked Questions

Q: How does the assembly manage line impedance fluctuations when swapping out a live communication module?

A: The gold-plated pin matrix establishes contact connections in a staggered sequence, letting ground connections bind first to secure system reference potential before routing active 24 VDC logic signals.

Q: What are the primary backplane limits regarding cross-talk suppression between high-density analog loops and discrete pulse trains?

A: Galvanic isolation barriers built into the multi-layer circuit layout separate power supply tracks from logic paths, holding high-frequency signal coupling between neighboring slot distributions below baseline measurement limits.

Q: Does the 3000510-510 board enforce particular hardware revision limits before allowing hot-swapping operations?

A: Yes, safety procedures mandate that the connected module firmware aligns with the system baseline validation limits defined in the active Triconex configuration environment to prevent internal bus mismatches.

Field Installation Guidelines

Mount the termination assembly securely inside the industrial control rack using the predefined frame alignment screws, making sure the interface aligns perfectly with adjacent slot rails to prevent localized pin strain. Secure all perimeter grounding terminals directly to the cabinet main copper ground bar utilizing a low-impedance conductor of proper gauge.

Field engineers must layout all incoming multi-core field telemetry lines, high-frequency communication links, and low-voltage digital loop wires inside separate, grounded metallic conduits away from high-power distribution lines and AC phase cables. Inspect all gold-plated connector headers for debris or oxidation before engaging modules into the slots. Ensure adequate cooling clearance exists around the structural housing to keep surrounding temperatures within the specified -40 deg C to +70 deg C limits before introducing power to the interface.
