Schneider Electric TSXBLY01 Modicon Premium Terminal Block The Schneider Electric TSXBLY01, also cataloged as the TSXBLY01 Terminal Block, operates as...

SKU: TSXBLY01

Manufacturer: Schneider
Product No.: TSXBLY01
Product Type: Terminal Blocks
Product Origin: France
Payment:T/T, Western Union
Weight: 100g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

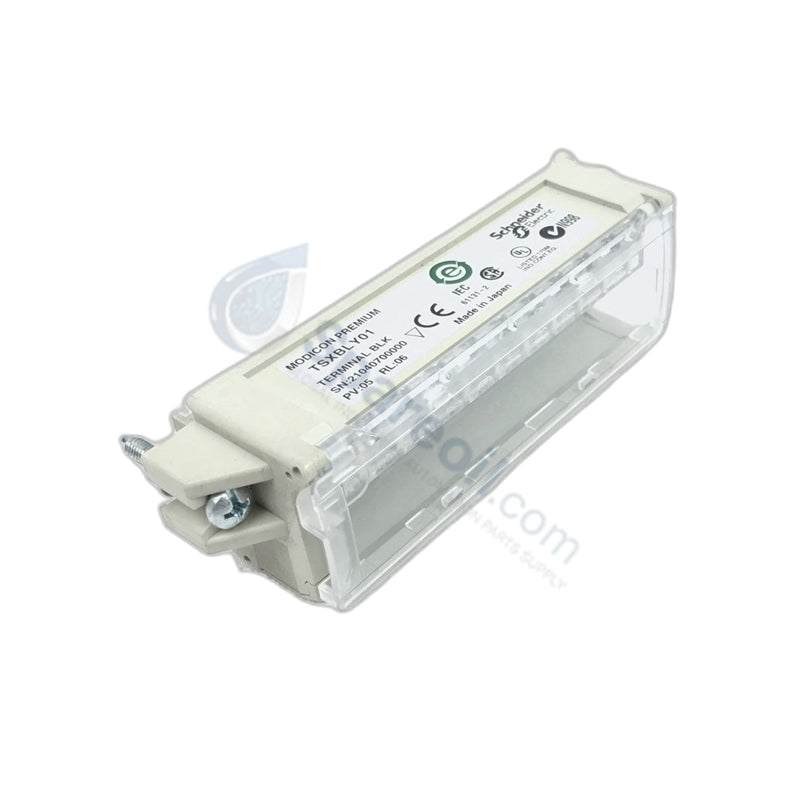

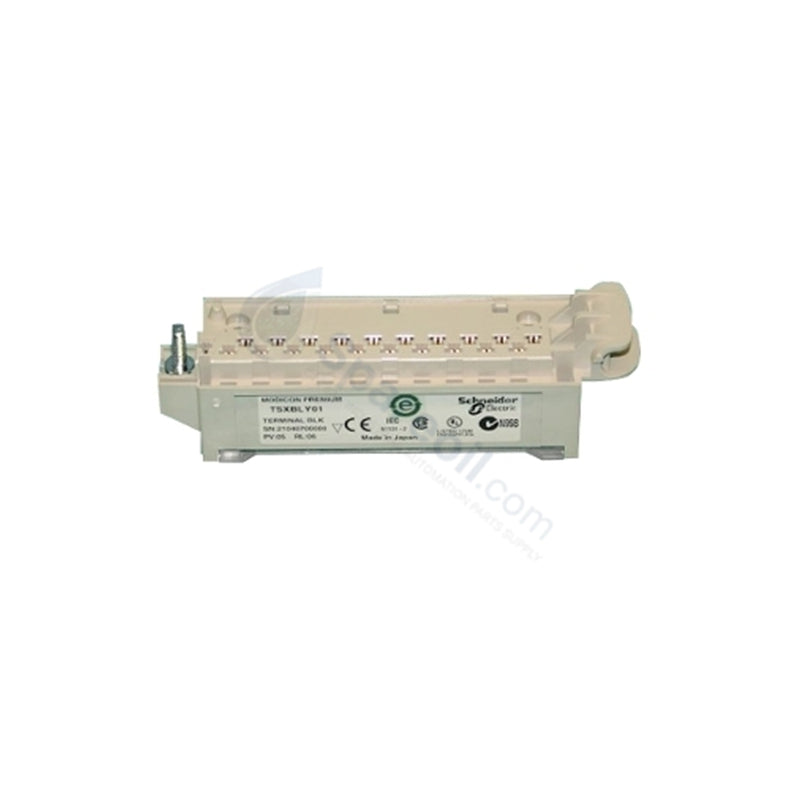

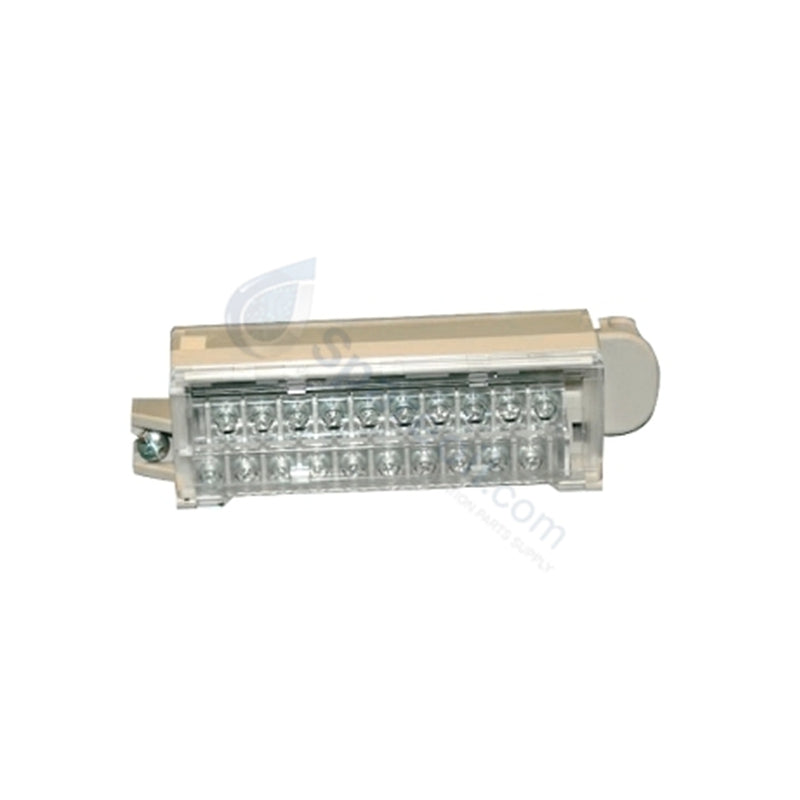

Schneider Electric TSXBLY01 Modicon Premium Terminal Block

The Schneider Electric TSXBLY01, also cataloged as the TSXBLY01 Terminal Block, operates as a dedicated hardware component for physical wiring termination within Modicon Premium Automation platform networks.

Hardware Specifications

Parameter	Specification
Model	TSXBLY01
Brand	Schneider Electric
Origin	France
Weight	0.1 kg (0.2 lb)
Product Type	Screw connection terminal block
Compatibility	TSXAEY414, TSXASY410, Discrete I/O modules
Number of Ways	20 ways
Connection Type	Screw terminals

Backplane Bus Communication Velocity and PLC Interface

The TSXBLY01 interfaces directly with Modicon Premium analog and discrete I/O modules, sustaining physical layer connectivity without degrading backplane bus communication velocity. The 20-way screw matrix maintains rigid physical contact points to prevent signal attenuation across discrete and analog channels. Firmware flash compatibility resides entirely within the host I/O module (such as the TSXAEY414 or TSXASY410), meaning this passive terminal block requires no active firmware synchronization or configuration software parameters during system deployment.

Frequently Asked Questions

Q: Can the TSXBLY01 terminal block be inserted or removed under power (hot-swapped)? A: No. External field power to the connected discrete or analog I/O loops must be de-energized before removing or installing the terminal block to prevent transient electrical arcs or unintended state execution on the I/O channels.

Q: Does the TSXBLY01 require specific firmware configuration in EcoStruxure Control Expert or Unity Pro? A: No. The TSXBLY01 is a passive mechanical termination component. Software configuration is strictly restricted to the host I/O module (e.g., TSXAEY414), while the terminal block functions transparently without addressing.

Field Installation Guidelines

Mounting Stability: Secure the terminal block onto the front interface of the designated Modicon Premium I/O module using the integrated fastening screws. Tighten the screws to the specified torque limit to prevent loose connections during high-vibration operation.
Wiring Conductors: Strip field wiring insulation according to standard industrial practices. Insert the bare conductor fully into the designated slot of the 20-way screw matrix, ensuring no loose strands bridge adjacent terminals.
Shielding Ground Continuity: For analog applications (e.g., when paired with the TSXAEY414), ensure all instrumentation shielded cables terminate at the designated functional ground bar within the enclosure to minimize electromagnetic interference.
