TSXSCYCM6030 Schneider Modbus Serial Cable

TSXSCYCM6030 Schneider Modbus Serial Cable | New & Original Stock

Availability: 94 left in stock

Schneider Electric TSXSCYCM6030 Modicon Premium Modbus Communication Cable The Schneider Electric TSXSCYCM6030, also cataloged as the TSXSCYCM6030 Cable for Isolated...

SKU: TSXSCYCM6030

Manufacturer: Schneider
Product No.: TSXSCYCM6030
Product Type: Schneider Modicon Premium
Product Origin: France
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

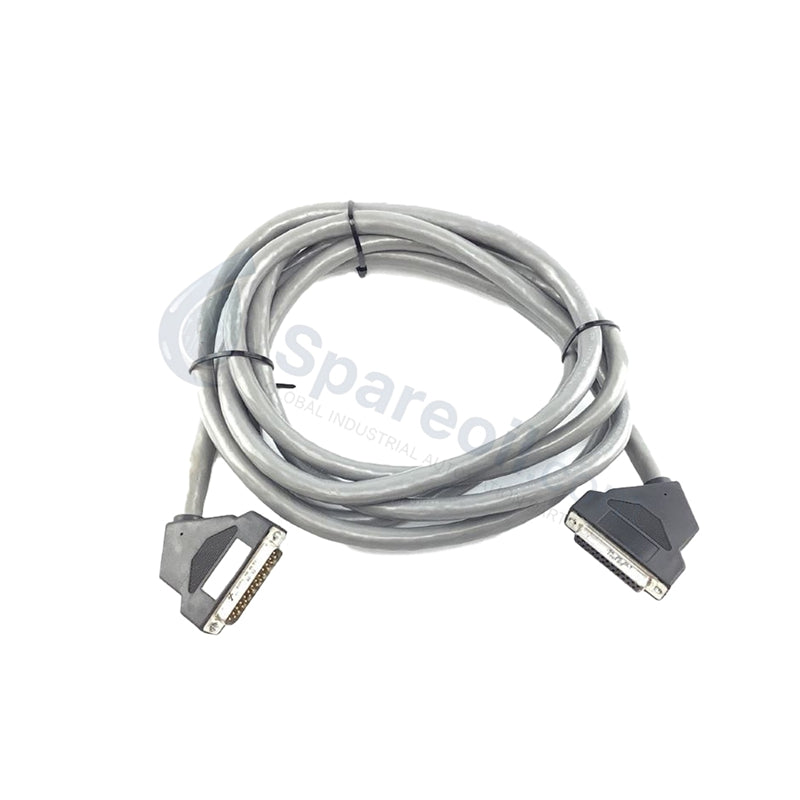

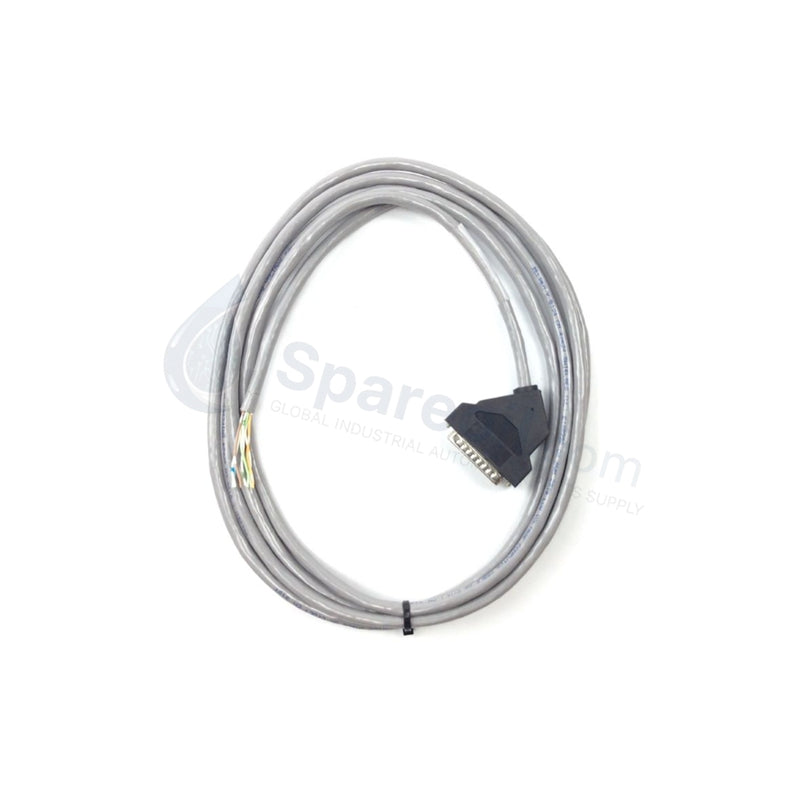

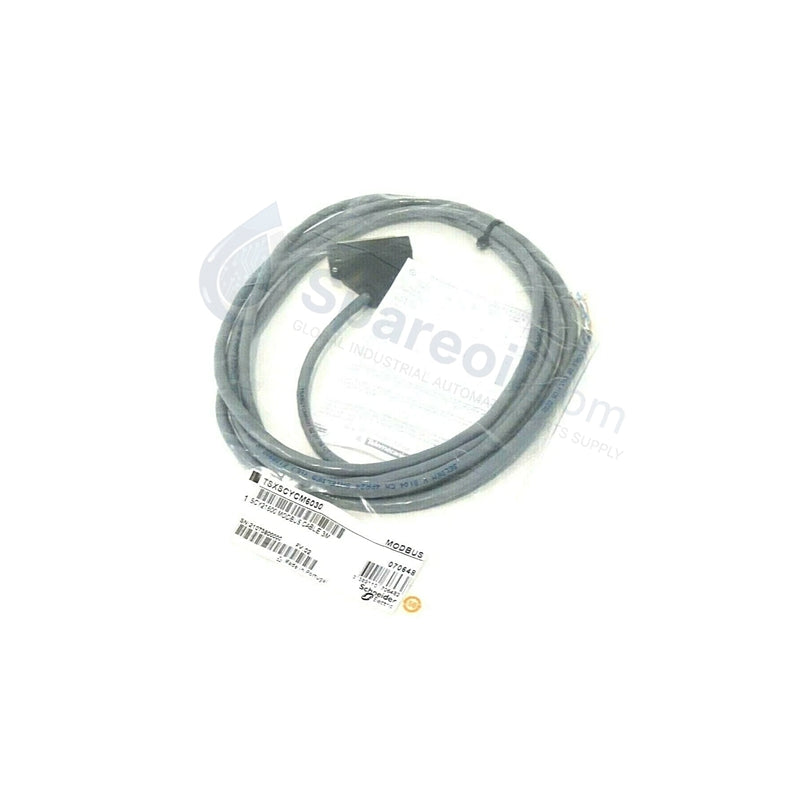

Schneider Electric TSXSCYCM6030 Modicon Premium Modbus Communication Cable

The Schneider Electric TSXSCYCM6030, also cataloged as the TSXSCYCM6030 Cable for Isolated RS422/485 Tap Link, operates as a dedicated hardware component for differential physical layer data routing within Modicon Premium PLC system networks. This 3-meter assembly bridges a host serial communication card or processor module directly to a multi-point T-junction box distribution network. By providing mechanical line connection and optimized electromagnetic screening, this cable establishes a robust physical infrastructure for multi-drop serial networks without introducing impedance disruptions or signal attenuation across the common communication bus.

Hardware Specifications

Parameter	Specification
Model	TSXSCYCM6030
Brand	Schneider Electric (Modicon)
Origin	France
Weight	1.0 kg (2.20 lbs)
Dimensions	3.0 m (Physical cable length)
Operating Temp	0 to 60 deg C
Power Consumption	Passive component (0.0 W power consumption)
Network Interface	Modbus Protocol
Communication Type	Multi-point / multi-drop serial communication
Electrical Formats	Isolated RS422 / RS485 differential signaling
Data Rate Limit	Up to 19.2 kbps continuous transmission
Cable Destination	Connects to a standard Modbus T-junction box
Storage Temperature	-25 to 70 deg C
Relative Humidity	95 percent relative humidity non-condensing
IP Degree of Protection	IP20 (with all connector locking screws fully engaged)
Certifications	CE, UL, CSA, IEC 61131-2

Multi-Point Serial Bus Topology and Data Frame Synchronization

This serial cable assembly maintains transmission consistency across multi-point network topologies by isolating the differential line drivers from fluctuating ground loops. The internal construction couples fine-stranded copper pairs wrapped in a high-coverage braided shield and aluminum foil matrix, maintaining low signal distortion up to the maximum 19.2 kbps data rate limit. When running master-slave or token-passing routines over an RS485 physical layer, the tinned copper shielding system channels high-frequency noise from external sources away from the active signal pairs. This design safeguards the data frame structure and ensures error-free register updates across multiple field instruments attached to the T-junction box.

Frequently Asked Questions

Q: How many slave instruments can be multi-dropped from a single processor line when using this cable and a T-junction box?

A: The TSXSCYCM6030 cable provides the primary tap connection from the processor to the first junction node. Following standard RS485 electrical rules and Modbus protocol constraints, the network can support up to 32 standard load transceiver nodes on a single physical segment without deploying line repeaters.

Q: Can this cable be shortened or spliced to adapt to non-standard junction terminal configurations?

A: No. Cutting or manually splicing the cable alters its factory characteristic impedance and compromises the continuity of the double-shielded copper wrap. This can lead to increased signal reflection and data packet loss during high-speed communication cycles.

Q: Given that Modicon Premium is a legacy platform, what is the modern equivalent for this serial interface?

A: For future-proof architectures, Schneider Electric recommends migrating application code and hardware to the modern Ethernet-based Modicon M580 PAC system. Field networks can transition to Modbus TCP protocols, or deploy dedicated serial-to-Ethernet network gateways to communicate with existing RS485 devices.

Field Installation Guidelines

Connector Engagement: Align the connector pins perfectly with the processor port, push the housing straight in, and secure both thumb retention screws to establish a solid ground shield contact.
Shield Grounding Practice: Terminate the cable integrated shield drain wire to the local enclosure master ground bar using a low-impedance grounding saddle to dissipate noise away from the PLC rack.
Bending Radius Constraints: Ensure that the cable path preserves a minimum static bending radius of 60 mm inside wire ways to avoid stretching the internal twisted copper pairs.
Conduit Separation Rules: Do not route this low-voltage Modbus communication cable through the same wire trays or conduits as high-power 400 V AC power lines or variable frequency drive (VFD) motor outputs; maintain a minimum separation distance of 200 mm.
