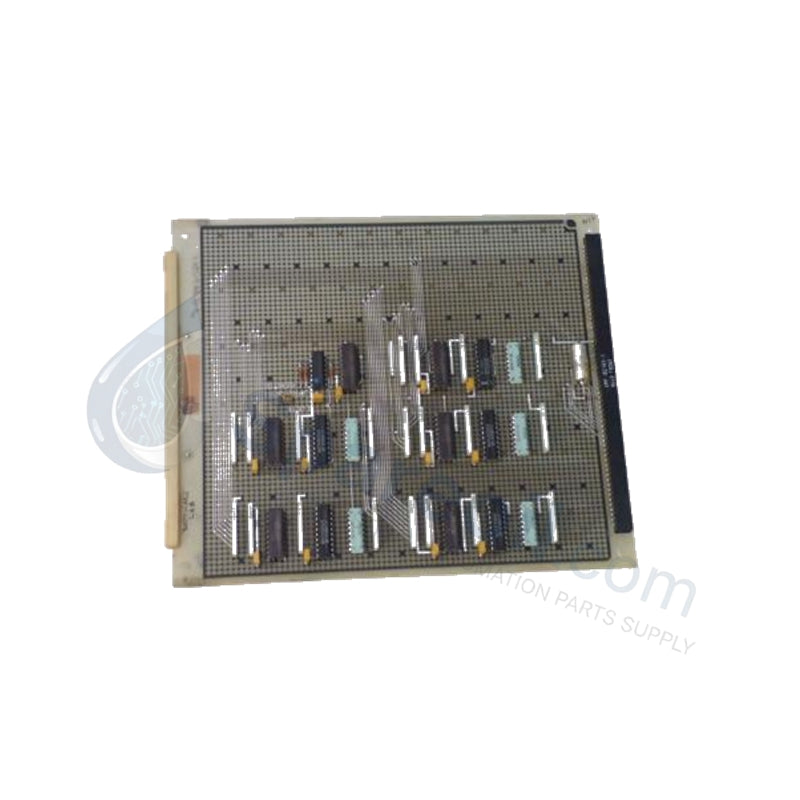

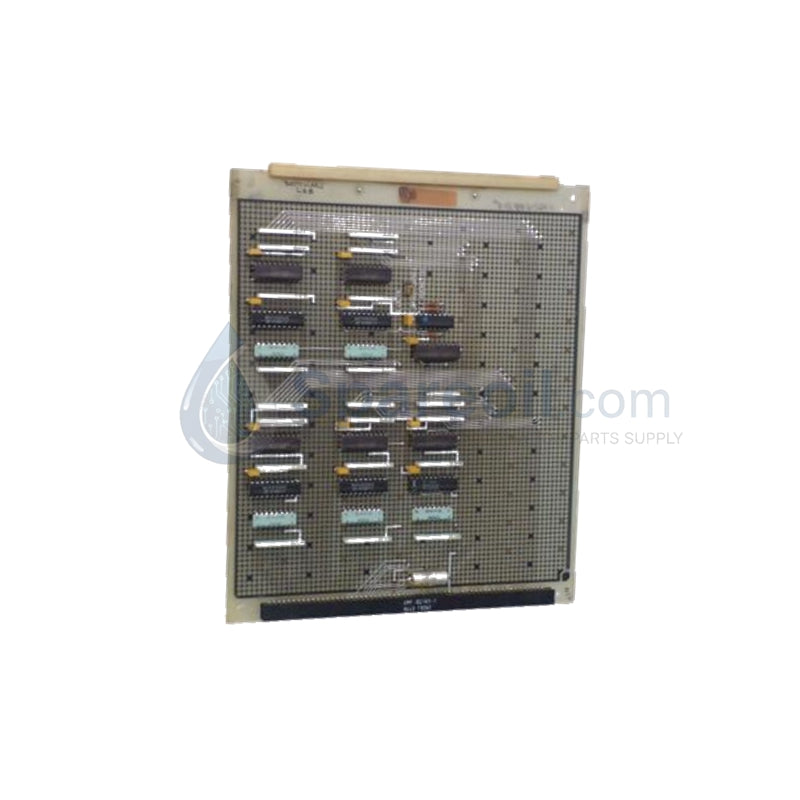

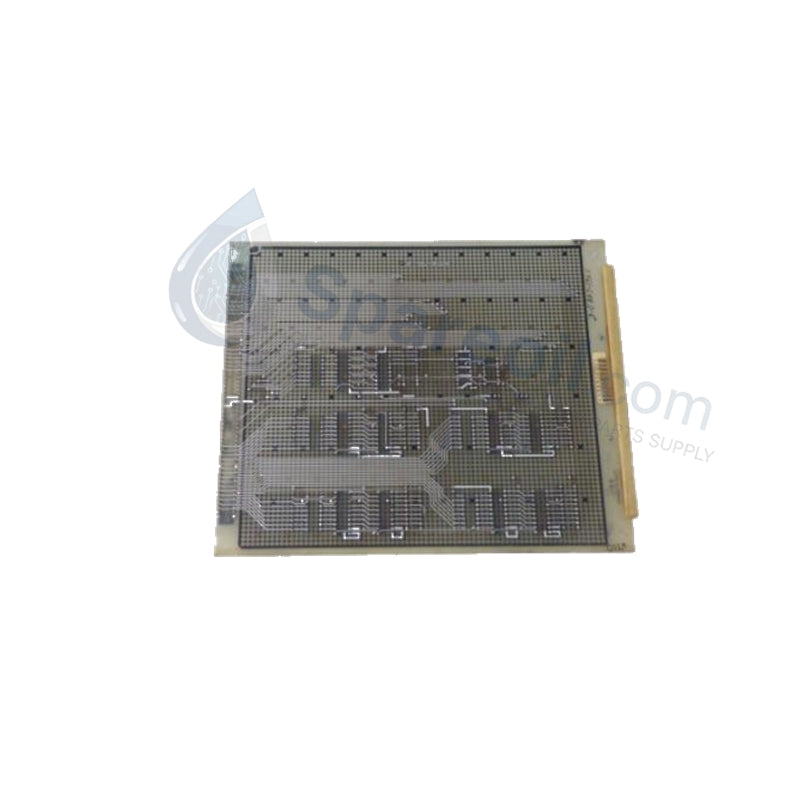

Woodward 5461-648 Transceiver Module Field Terminal NEW

Availability: 10 left in stock

Product Details Product Overview The Woodward 5461-648 functions as a high-integrity Field Terminal Transceiver Module within the MicroNet™ control system...

SKU: 5461-648

Manufacturer: Woodward
Product No.: 5461-648
Product Type: RS-485 Communication
Product Origin: USA
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Details

Product Overview

The Woodward 5461-648 functions as a high-integrity Field Terminal Transceiver Module within the MicroNet™ control system architecture. This module facilitates critical bidirectional data exchange between field-mounted devices and the central control unit. By utilizing the RS-485 protocol, the 5461-648 ensures high-speed, accurate communication for turbine control, compressors, and large-scale industrial machinery. We offer this unit as 100% Brand New, original stock, engineered to maintain the connectivity of your safety-critical networks.

Technical Specifications

Attribute	Specification Details
Model Number	5461-648 (Revision F)
Manufacturer	Woodward, Inc. (Country of Origin: USA)
System Compatibility	Woodward MicroNet™ Field Terminal Architecture
Communication Interface	RS-485 (Transmit and Receive)
Ingress Protection	IP67 (Dust-tight and Waterproof)
Operating Temperature	–40°C to +85°C
Power Supply	24 VDC
Dimensions	15.9 cm x 8.9 cm x 6.3 cm
Weight	0.3 kg (Net Weight)

Engineering Advantages

The 5461-648 Transceiver solves the complex problem of maintaining data integrity across long cable runs in hazardous industrial environments. Its design provides specific mechanical and electrical benefits to on-site engineers.

Extreme Environment Durability: The IP67-rated enclosure protects internal circuitry against high-pressure water jets and abrasive dust. This allows for direct installation near rotating machinery or in outdoor environments without requiring additional protective shielding.
Thermal Resilience: Unlike standard commercial transceivers, this module operates flawlessly between –40°C and +85°C. This wide thermal window prevents signal drift or communication dropouts during extreme cold starts or high-heat operations in desert or offshore climates.
High-Speed Bidirectional Data Flow: The RS-485 interface supports robust, multi-drop networking. This reduces the total wiring complexity by allowing multiple field devices to communicate over a single twisted pair while maintaining the low latency required for real-time turbine governing.
Compact Integration: The 15.9 cm x 8.9 cm footprint enables installation in confined field terminal boxes or narrow cabinet frames. This helps engineers maximize space within the control room or local junction blocks.

FAQs

What differentiates Revision F from earlier versions of the 5461-648?

Revision F includes updated internal transceiver components that enhance signal clarity and rejection of electromagnetic interference (EMI). While typically backward compatible, it offers superior reliability in modern high-noise environments.
Is the 5461-648 suitable for outdoor mounting?

Yes. Thanks to its IP67 protection rating, the module survives exposure to moisture and dust. However, we recommend using appropriate cable glands and sealed enclosures to maintain the overall integrity of the field terminal connection.
Does this module support half-duplex or full-duplex communication?

The module primarily utilizes the RS-485 standard, which engineers typically configure for half-duplex bidirectional communication. This allows for reliable data polling and response cycles between the MicroNet processor and distributed I/O devices.
Can I use a 24V power supply from a third-party manufacturer?

While the 5461-648 accepts standard 24 VDC, Woodward recommends using regulated, industrial-grade power supplies that meet CE and UL requirements to ensure the module operates within the specified voltage tolerances.
