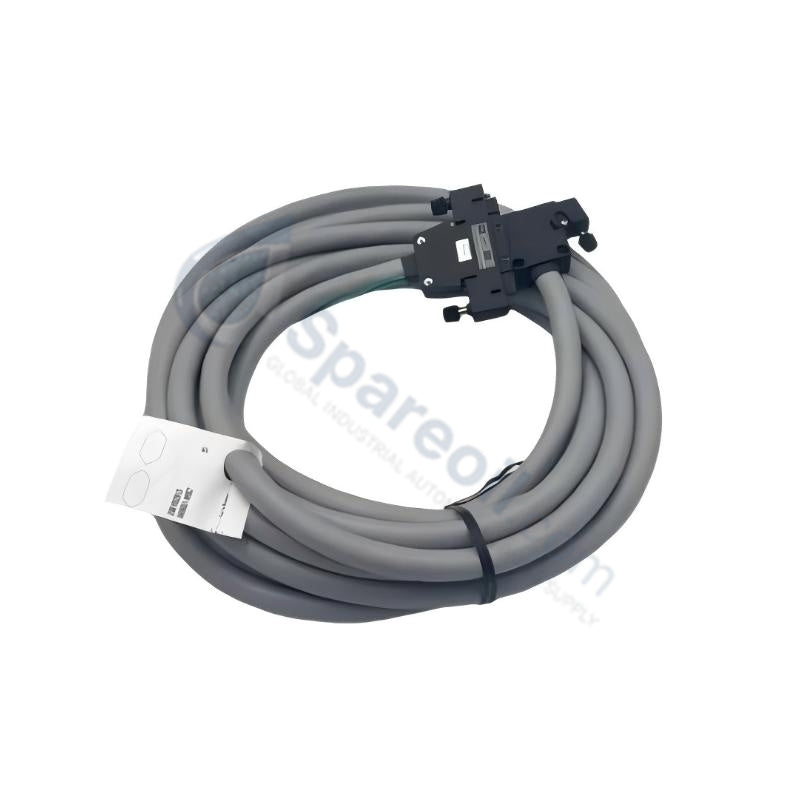

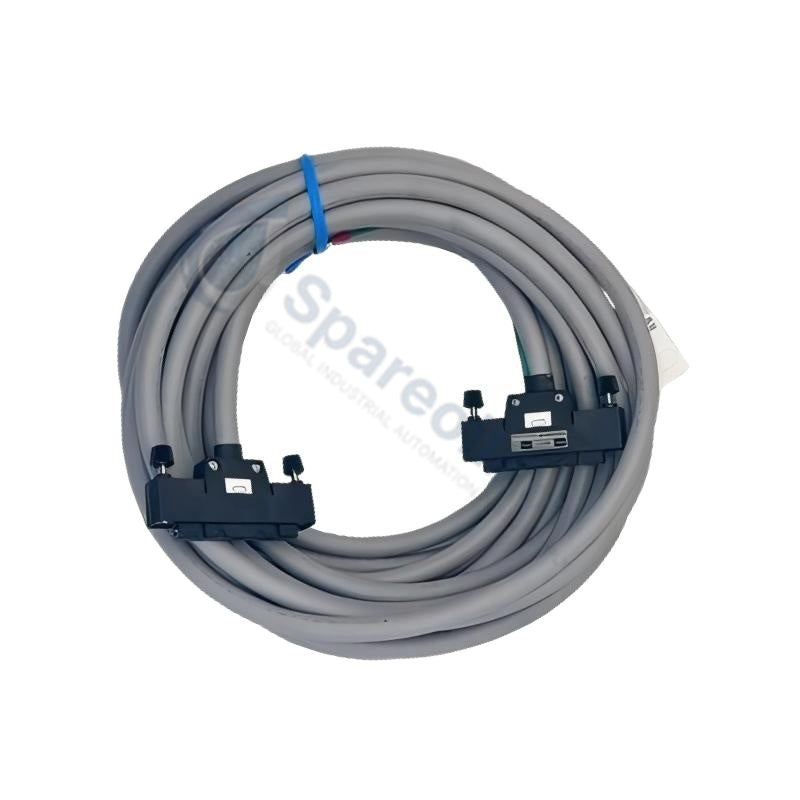

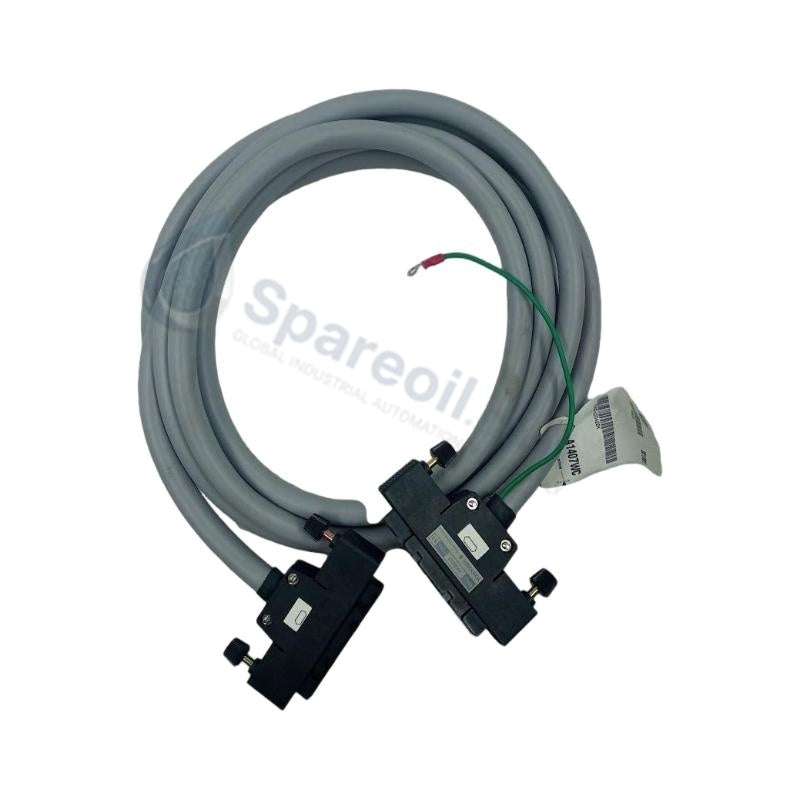

The YOKOGAWA AKB331-M010, also cataloged as the AKB331 Signal Cable, operates as a dedicated hardware component for interconnecting I/O modules and terminal boards within CENTUM VP, CS 3000, and ProSafe-RS control system networks.
The catalog suffix syntax for the YOKOGAWA AKB331-M010 defines physical and electrical cable specifications:
| Parameter | Specification |
|---|---|
| Model | AKB331-M010 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 1.5 kg |
| Dimensions | Standard 10 m assembly length |
| Operating Temp | 0 to 55 deg C |
| Power Consumption | Passive physical conductor |
| Connector Type | Dual 50-pin to 50-pin multi-conductor assembly |
| Cable Length | 10 m |
| Storage Temp | -20 to 70 deg C |
| System Isolation | Shielded assembly for noise suppression |
Yokogawa safety and DCS architectures depend on physical shielding integrity to isolate discrete and analog signals against external electromagnetic interference. The multi-conductor assembly establishes dedicated point-to-point pin pathways between I/O cards (such as SDV144 or SAT145) and marshaling terminal blocks. Grounded overall braided shielding maintains channel isolation, suppressing cross-talk and preventing high-frequency industrial noise from corrupting low-voltage signal communication loops across long panel-to-panel cable runs.
Q: Can this cable assembly be hot-swapped or disconnected while the connected I/O module remains energized?
A: No. Technicians must deactivate output loops or isolate field power prior to disconnecting 50-pin multi-pin assemblies to avoid accidental grounding of active control signals or triggering system diagnostic faults.
Q: What is the maximum allowable bend radius for routing this 10-meter assembly inside marshalling cabinets?
A: Field engineers should adhere to standard industrial cabling practices, maintaining a minimum bend radius of at least 10 times the outer cable diameter to prevent mechanical stress on internal copper conductors and pin solder joints.
Align the 50-pin connector keyways with the mating header on the target module or terminal board. Press the connector firmly into place until the side latches or locking screws are fully secured to prevent vibration-induced loosening over time.
Route the 10 m cable bundle through dedicated low-voltage wiring trays, maintaining a separation distance of at least 300 mm from high-voltage AC power distribution lines. Ensure the cable outer shield drain wire connects directly to the cabinet earth bus bar to provide a low-impedance path for induced noise dissipation.
