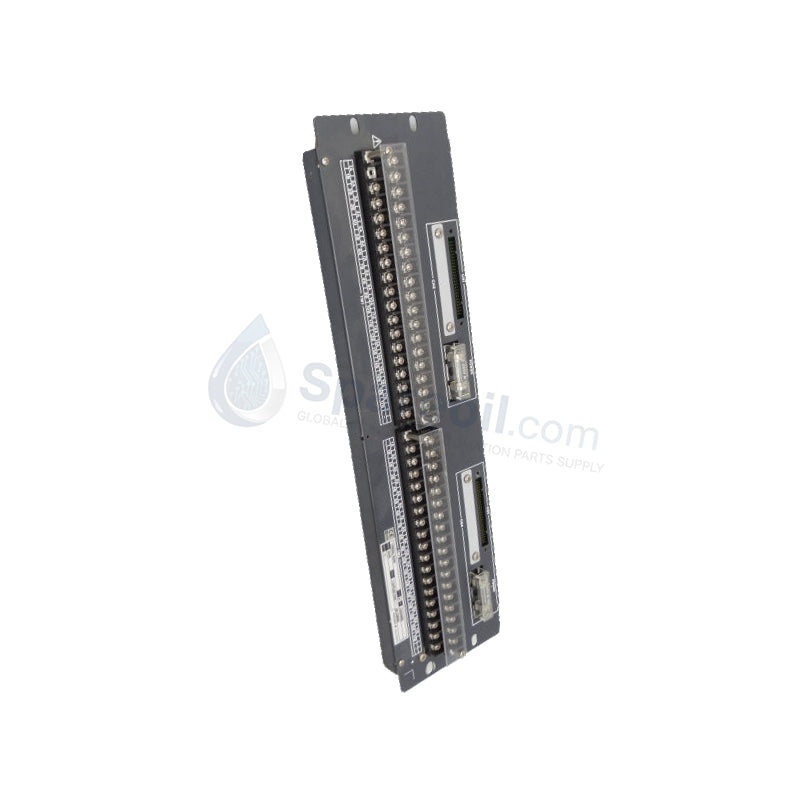

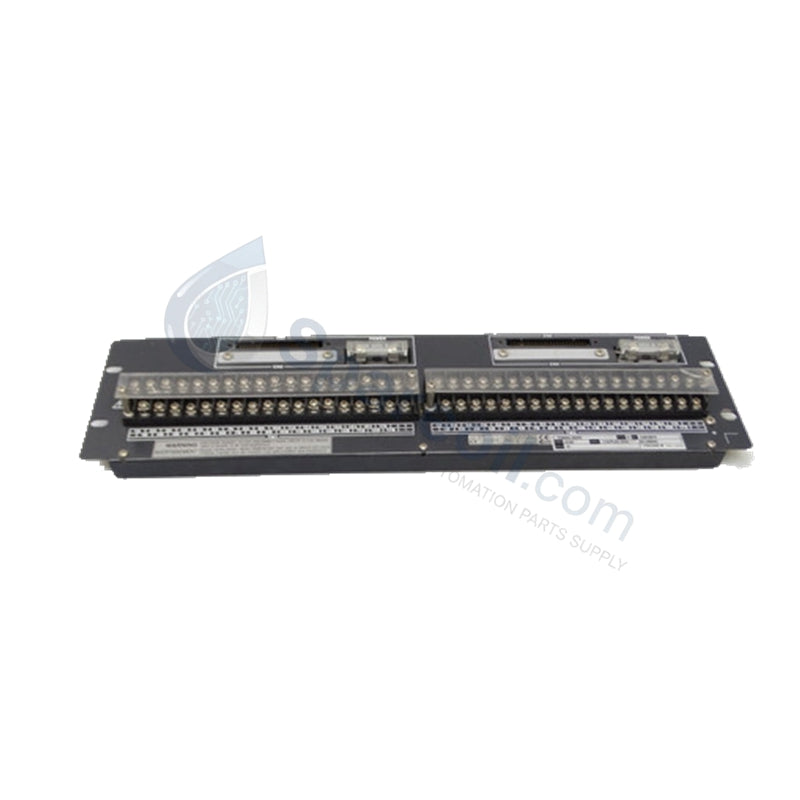

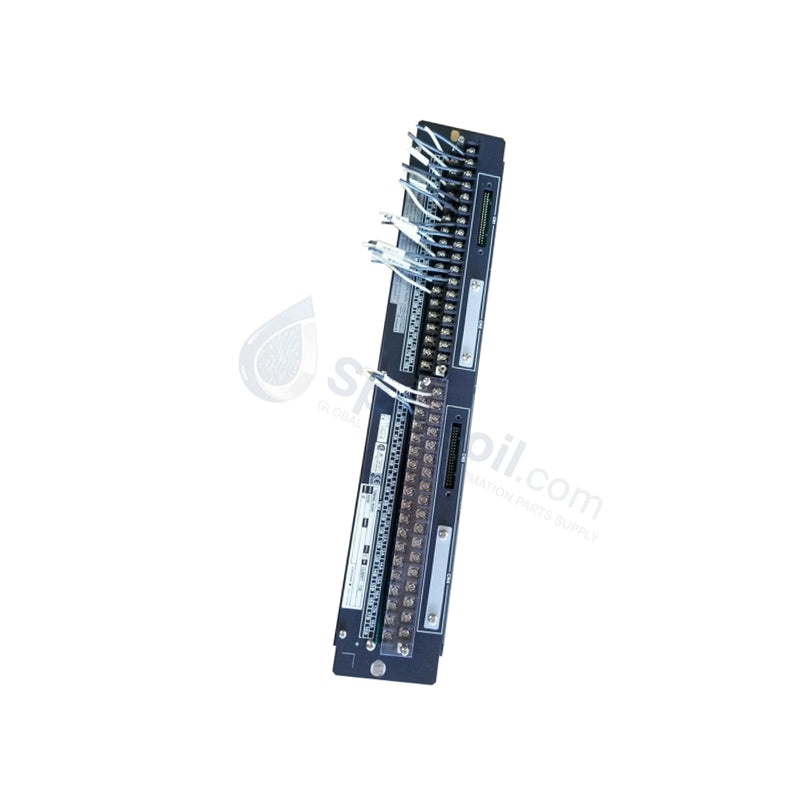

Yokogawa SED4D-11 S1 32-Channel Terminal Board Original

Availability: 99 left in stock

Product Details The Yokogawa SED4D-11 serves as a high-density Digital I/O Terminal Board designed for the CENTUM VP and CS 3000 Distributed...

SKU: SED4D-11

Manufacturer: Yokogawa
Product No.: SED4D-11
Product Type: Digital I/O Modules
Product Origin: Japan
Payment:T/T, Western Union
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Details

The Yokogawa SED4D-11 serves as a high-density Digital I/O Terminal Board designed for the CENTUM VP and CS 3000 Distributed Control Systems (DCS). This module interfaces critical digital signals from field devices—such as switches, sensors, and actuators—directly to the control system. We provide this unit as 100% brand new and original, ensuring a secure, organized, and robust connection point for your industrial automation requirements.

Product Overview

The SED4D-11 functions as a bridge between the field environment and the DCS backbone. It converts 24 VDC digital inputs and outputs into system-readable data while providing essential optical isolation. This isolation protects the sensitive internal logic of the CENTUM station from field-side electrical surges and noise. With its high-density channel configuration, the SED4D-11 minimizes the physical footprint required in control cabinets and simplifies complex wiring architectures in refineries, power plants, and manufacturing facilities.

Part Number Breakdown

Yokogawa SED4D series modules utilize specific coding to define hardware revisions:

SED4D: Base model for the Digital I/O Terminal Interface.
-11: Designates the specific circuit configuration and terminal arrangement.
S1: Indicates the hardware style and revision for modern DCS backplane compatibility.

Technical Specifications

Attribute	Specification Details
Manufacturer	Yokogawa Electric Corporation
Model Number	SED4D-11 (Style S1)
Function	Digital Input/Output Interface
Channel Density	16 to 32 Channels (Module Dependent)
Signal Type	24 VDC Digital I/O
Isolation	Optical Isolation (Field-to-System)
Power Supply	5 VDC via Backplane / 24 VDC Field Side
Operating Temperature	0°C to +60°C
Dimensions	130 mm (H) x 30 mm (W) x 100 mm (D)
Weight	0.25 - 0.5 kg

Engineering Advantages

Optical Isolation Protection: The module incorporates high-speed optical isolators. This feature prevents ground loops and blocks high-voltage transients from traveling from field instruments to the main controller, significantly increasing system reliability.
High-Density Wiring Efficiency: By consolidating up to 32 digital channels into a single compact board, the SED4D-11 reduces the number of terminal strips required in the cabinet. This design saves expensive rail space and simplifies the overall cable management strategy.
Enhanced Maintenance Visibility: Clear, permanent markings identify every connection point on the board. This allows technicians to perform rapid loop checks and troubleshoot field wiring issues without constantly referring to complex wiring diagrams.
Deterministic Signal Response: The SED4D-11 handles rapid signal transitions with minimal latency. This ensures that safety interlocks and high-speed alarms trigger the control logic in real-time, which is vital for safety-critical applications.
Rugged Industrial Durability: Built to withstand continuous 24/7 operation, the board performs reliably in temperatures up to 60°C. The robust terminal screws ensure gas-tight connections that resist loosening in high-vibration industrial environments.

FAQs

Does the SED4D-11 support both input and output signals?

Yes. The SED4D-11 is a versatile Digital I/O board. Depending on your DCS configuration and the specific parent module used, it can interface 24 VDC inputs from field sensors or drive 24 VDC outputs to field actuators.

How do I install the SED4D-11 S1?

The module features a plug-and-play design for the CENTUM VP backplane. Ensure the station is powered down or follow "Hot Swap" protocols if your specific rack supports them. Firmly seat the module and tighten the terminal screws to the specified torque for optimal signal integrity.

What cabling is recommended for field wiring?

We recommend using twisted-pair industrial control cable (typically 18–22 AWG depending on distance) with ferrules to prevent fraying at the terminal block. Ensure that field power (24 VDC) is appropriately fused before connecting to the board.

Can I replace an older SED4D model with the -11 S1 version?

The SED4D-11 S1 is generally backward compatible with many CENTUM CS 3000 configurations. However, you must verify the specific pinout and I/O mapping in your engineering station software before finalizing the replacement to ensure seamless signal addressing.
