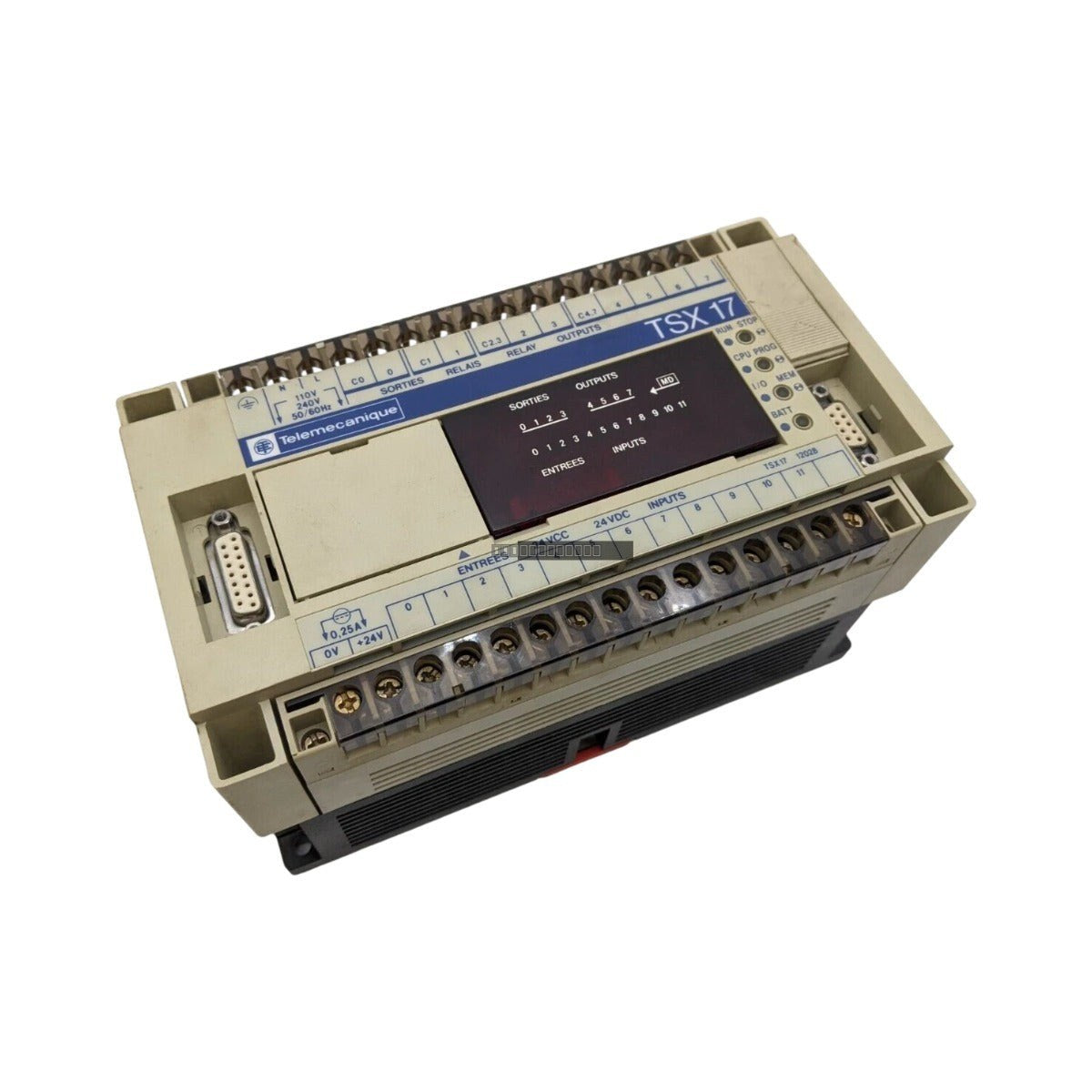

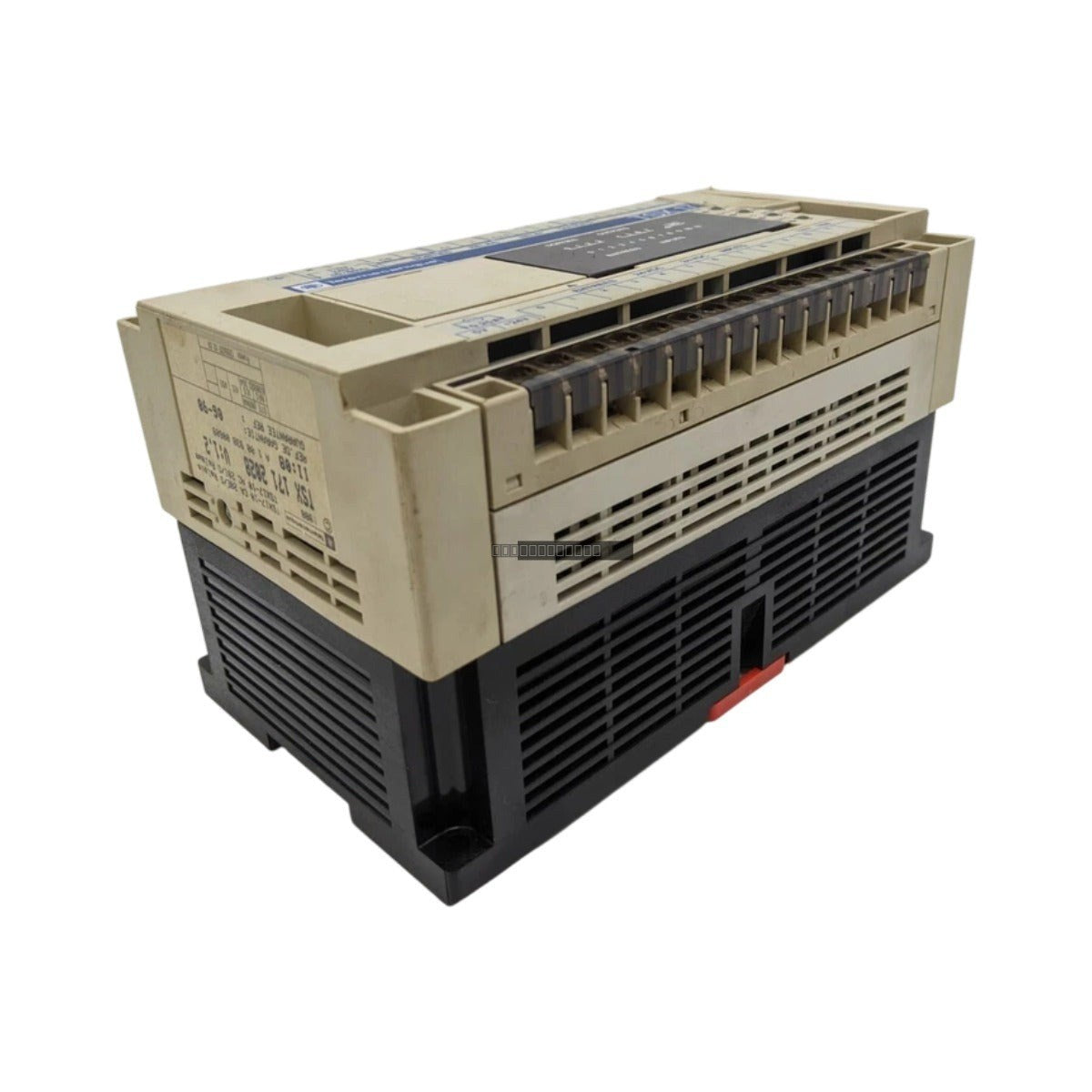

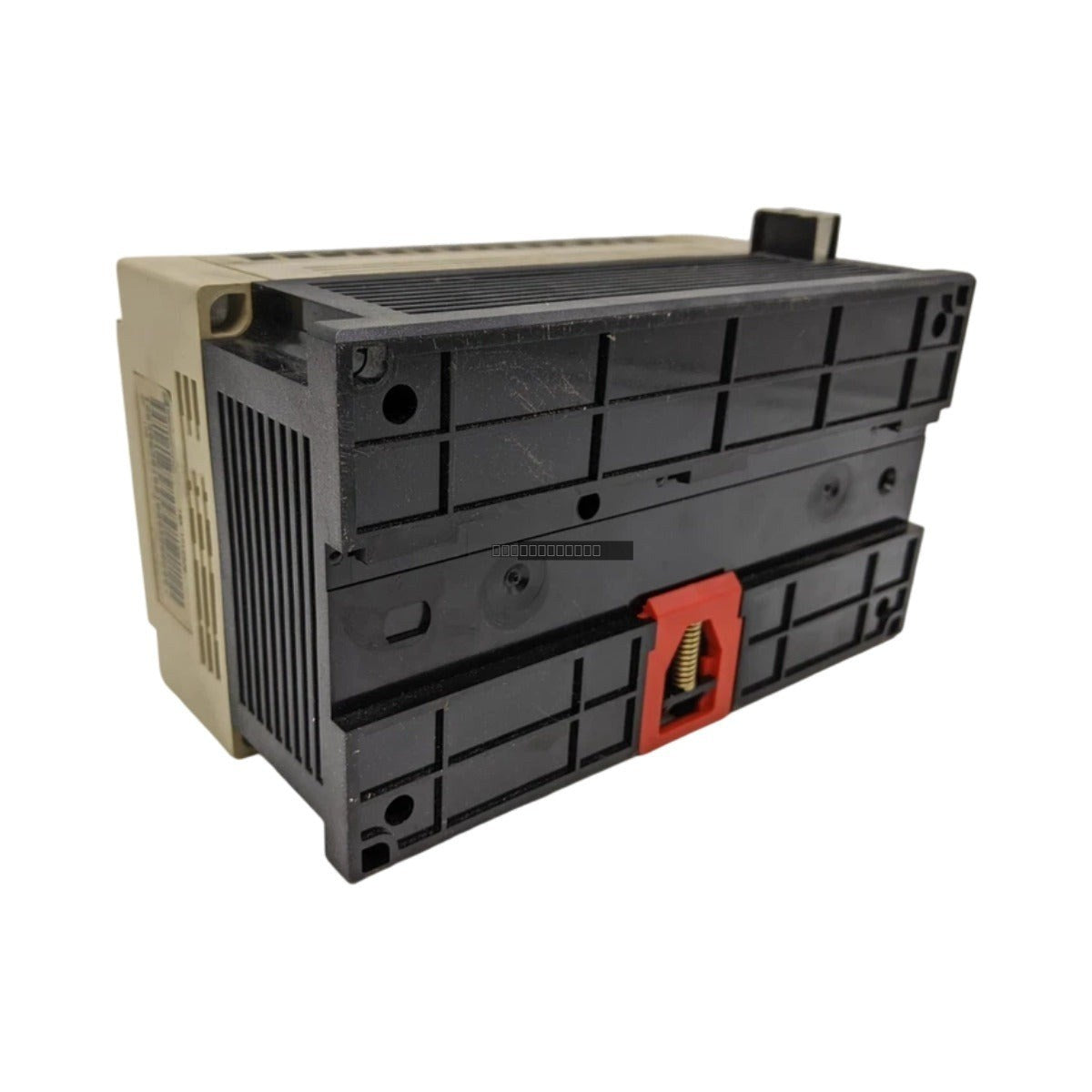

Schneider TSX1712028 Telemecanique PLC Controller

Schneider Telemecanique TSX1712028 Programmable Logic Controller

التوفر: 0 متوفر في المخزون

Product OverviewThe Schneider Telemecanique TSX1712028 is a compact, self-contained programmable logic controller (PLC) designed for the TSX 17 series platform....

رمز المنتج: TSX1712028

Manufacturer: Schneider
Product No.: TSX1712028
Product Type: Programmable Logic Controller
Product Origin: France
Payment:T/T, Western Union
Weight: 1600g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Product Overview

The Schneider Telemecanique TSX1712028 is a compact, self-contained programmable logic controller (PLC) designed for the TSX 17 series platform. This unit integrates processing capabilities with fixed I/O, making it suitable for localized automation tasks in industrial environments, including pumping stations, conveyor control, and auxiliary cooling systems. By consolidating logic execution and I/O management into a single housing, the TSX1712028 reduces the need for complex external bus interconnections, thereby increasing system reliability in demanding operational settings.

Features

Integrated 20-point I/O configuration: 12 discrete inputs and 8 relay outputs.
Direct AC power supply operation (100-240 V AC) for simplified installation.
Electromechanical relay outputs capable of handling mixed AC and DC circuit loads.
On-board LED indicators for immediate status monitoring and diagnostic support.
High-speed Boolean instruction processing, rated at 3.5 microseconds per instruction.
Integrated serial interface for direct programming and configuration.

Applications

This controller is commonly utilized in standalone industrial automation applications where space is limited and high reliability is required. Typical use cases include small-scale machine control, process monitoring in mining and petroleum sectors, and the management of auxiliary power plant sub-systems.

Technical Specifications

Model	TSX1712028
Brand	Schneider Electric (Telemecanique)
Supply Voltage	100-240 V AC (50/60 Hz)
Power Consumption	30 VA max
Discrete Inputs	12 Channels (24 V DC)
Relay Outputs	8 Channels (Normally Open)
Max Switching Voltage	240 V AC / 30 V DC
Max Relay Current	2.0 A per point
Operating Temperature	0 to 55 deg C
Storage Temperature	-25 to 70 deg C

Installation Guidelines

Ensure the controller is mounted in a well-ventilated enclosure to maintain operating temperatures within the 0 to 55 deg C range.
Verify that the AC power supply is within the specified 100-240 V AC range before connection.
Use appropriate surge protection for relay outputs when driving inductive loads to prevent contact degradation.
Maintain proper grounding of the chassis to minimize electromagnetic interference (EMI).
Always disconnect power before inserting or removing any wiring or communication cables to prevent electrical damage.
Handle with standard ESD precautions to protect internal logic components.

FAQ

What is the primary function of the TSX1712028?
It is a base PLC unit designed for standalone control of discrete I/O in industrial automation, providing both the CPU and the physical interface for field devices.

Does this unit require an external power supply?
No, it operates directly on 100-240 V AC line power.

Can the relay outputs handle both AC and DC?
Yes, the electromechanical relay outputs are designed to switch both AC and DC voltages within the specified limits of 240 V AC or 30 V DC.
