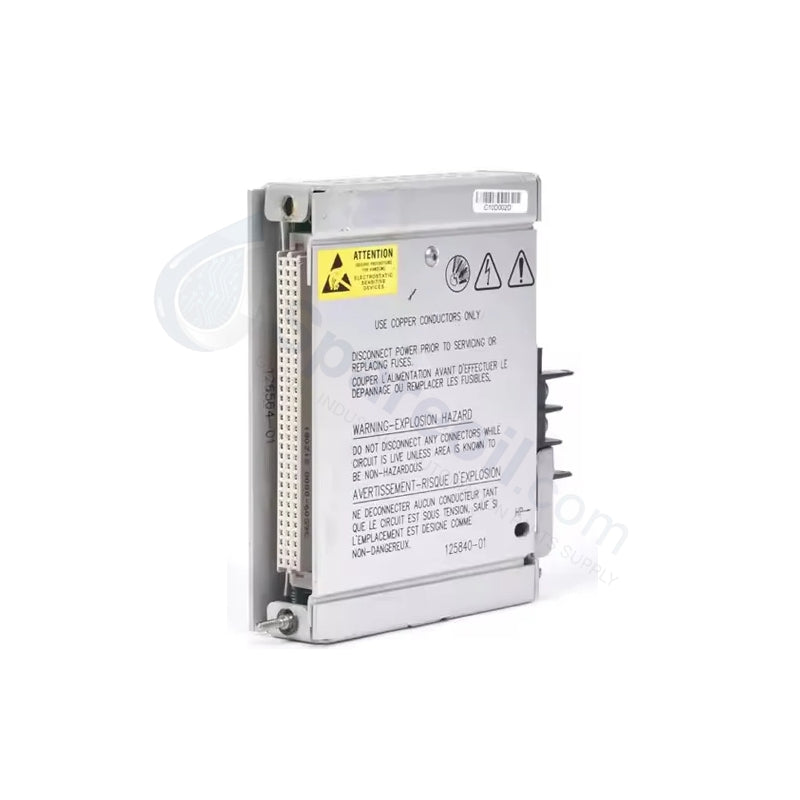

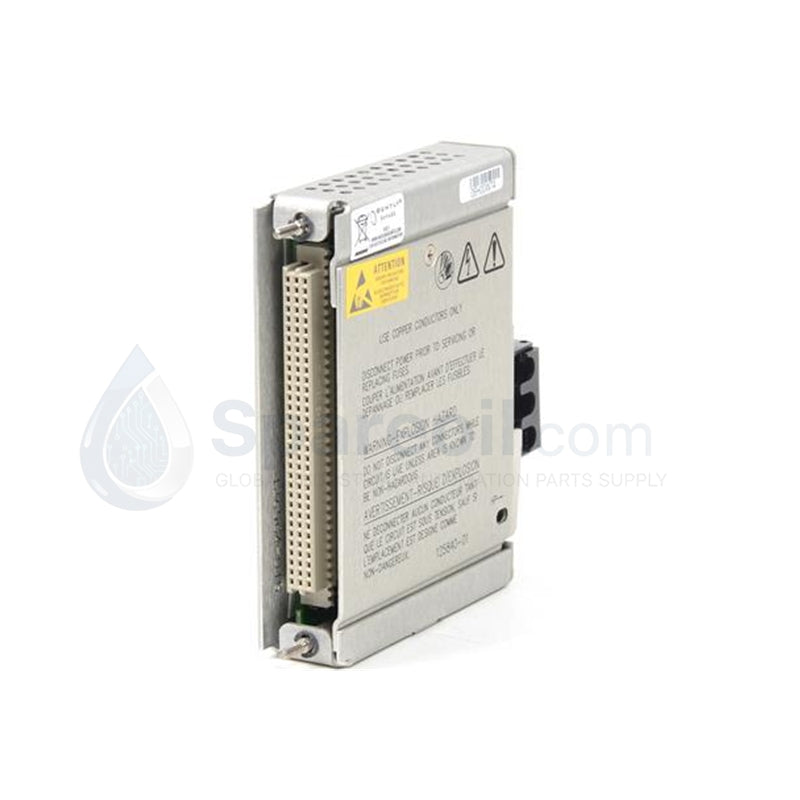

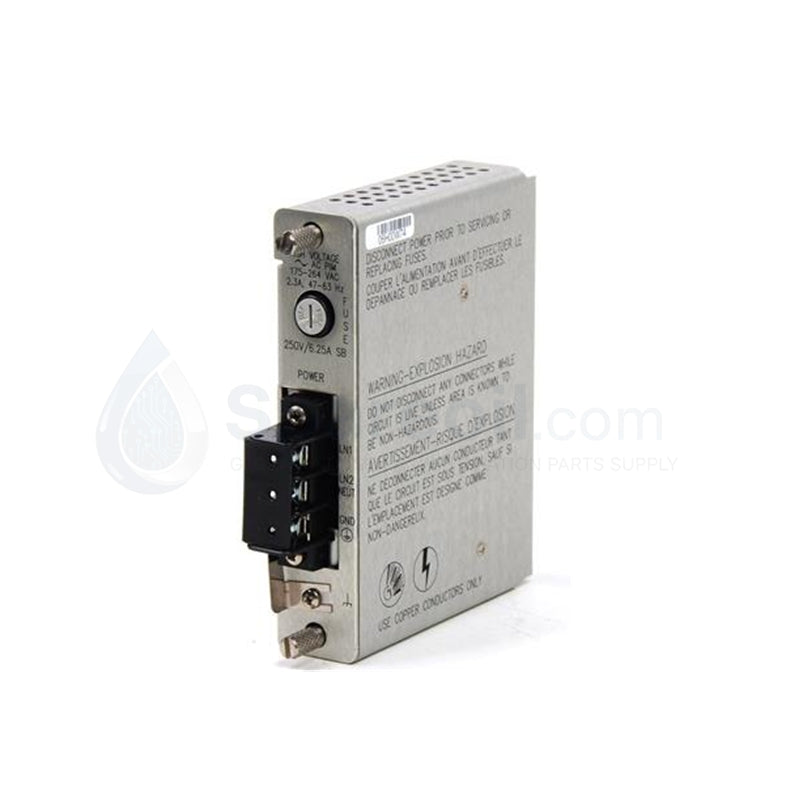

Bently Nevada 125840-01 3500/15 Power Input Module

Configured for high-voltage line filtering and power distribution in the 3500 Machinery Protection System, the Bently Nevada 125840-01 (3500/15 Power Input Module) provides direct physical/electrical execution of mains power handling. The rear-access card accepts raw High Voltage AC mains power, executing localized electrical noise filtration and transient surge attenuation before routing the stabilized power to the corresponding front-facing internal power supply modules. It seats directly into the rear upper or lower power slots of the 3500/05 chassis backplane interface.

Hardware Specifications

Parameter	Specification
Model	3500/15
Brand	Bently Nevada
Origin	USA
Part Number	125840-01
Product Type	High Voltage AC Power Input Module (PIM)
Input Voltage Range	175 to 250 V AC RMS
Input Frequency	47 to 63 Hz
Form Factor	Half-height rear module
Weight	1.39 kg
Dimensions	13.0 cm x 24.4 cm x 2.5 cm
Operating Temp	-30 to +65 deg C
Storage Temp	-40 to +85 deg C
Power Consumption	Determined by total loaded backplane draw
Relative Humidity	95% non-condensing

Transducer Signal Integrity & Cross-Talk Suppression

The hardware architecture of this module provides structural common-mode rejection for incoming high-voltage line noise. By establishing precise potential reference planes, the module prevents high-frequency grid harmonics from corrupting the internal DC rails responsible for eddy-current probe scaling and proximity sensor bias. This high-dielectric isolation is optimized for rotor dynamics monitoring, ensuring that voltage fluctuations on the primary grid do not induce artifical jitter or signal variations within the sensitive vibration measurement loops. Furthermore, localized shielding on the card maintains cross-talk suppression between redundant power channels, stabilizing the continuous gap voltage validation (-10 VDC targets) required for continuous machine protection.

Frequently Asked Questions

Q: Can the 125840-01 rear module be disconnected while the front-facing power supply is under load?

A: No. Disconnecting the rear power input module while energized will drop the source voltage to the associated front power supply module. If the chassis lacks a second, fully operational redundant power supply pair on a separate circuit, system shutdown will occur.

Q: Does this high-voltage power input module support a mixed configuration with a low-voltage DC input card?

A: Yes. The 3500/05 rack architecture allows dual-redundant configurations where one slot uses a high-voltage AC PIM and the adjacent half-height slot utilizes a low-voltage DC PIM to enable independent primary and backup source paths.

Q: What mechanisms protect the internal monitoring rack from external high-voltage line surges?

A: The module contains integrated metal oxide varistors (MOVs) and specialized high-potential line filters configured to clamp overvoltage conditions and dissipate high-energy transients safely to the chassis ground rail.

Field Installation Guidelines

Verify that all primary AC mains supply wires are fully de-energized and locked out before attempting installation or wire termination on the rear block.
Ensure all terminal blocks are fastened firmly to avoid thermal build-up and contact resistance under continuous high-voltage operation.
Bond the main chassis ground terminal directly to the plant instrument earth network using a low-impedance conductor to maximize surge suppression efficacy.
Align the card edge guide pins with precision before inserting the module into the rear slot to avoid structural bending of the backplane connectors.
