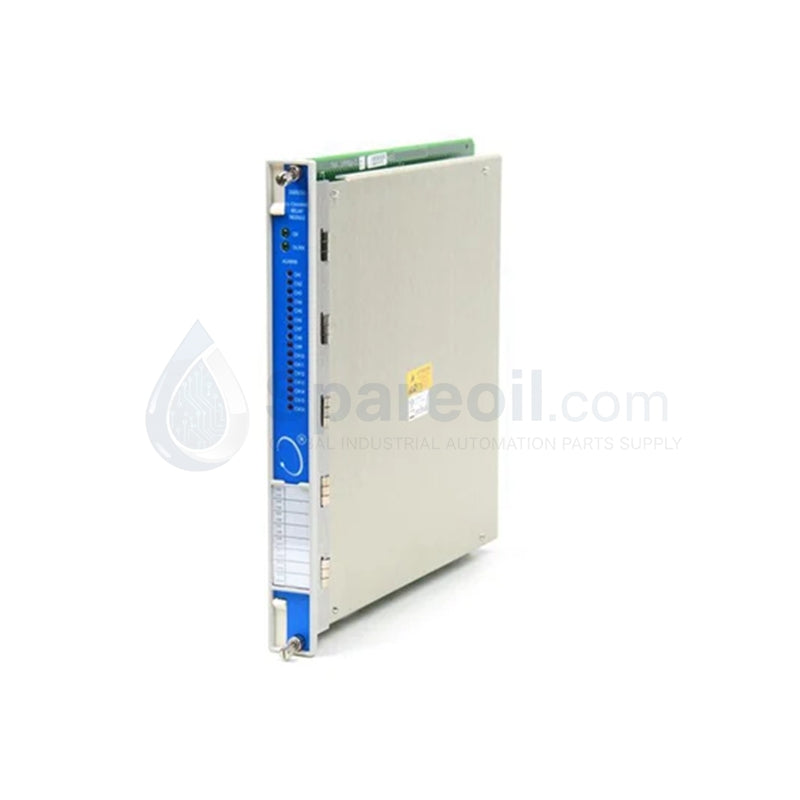

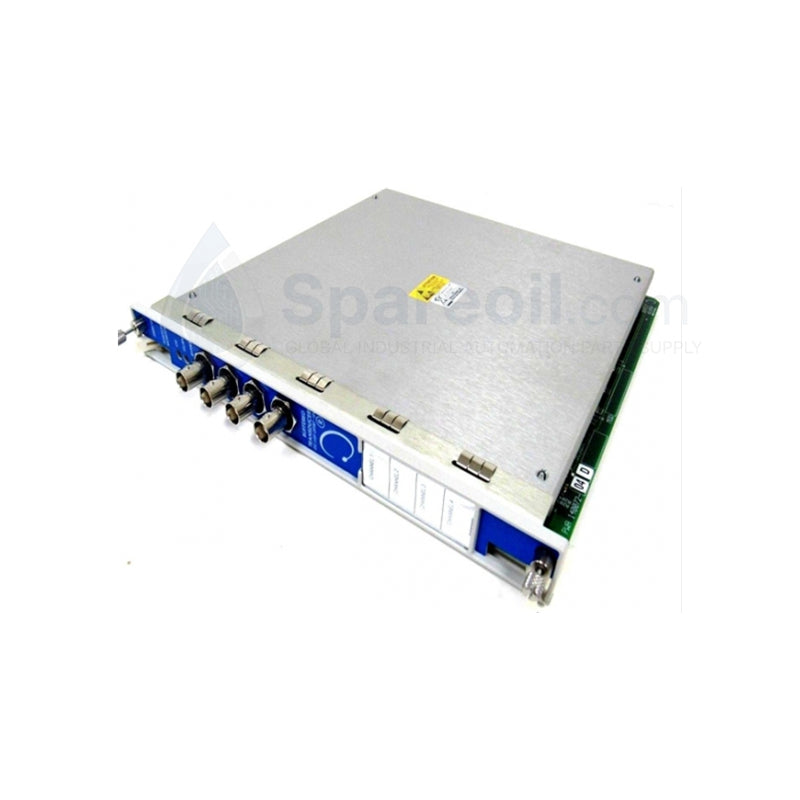

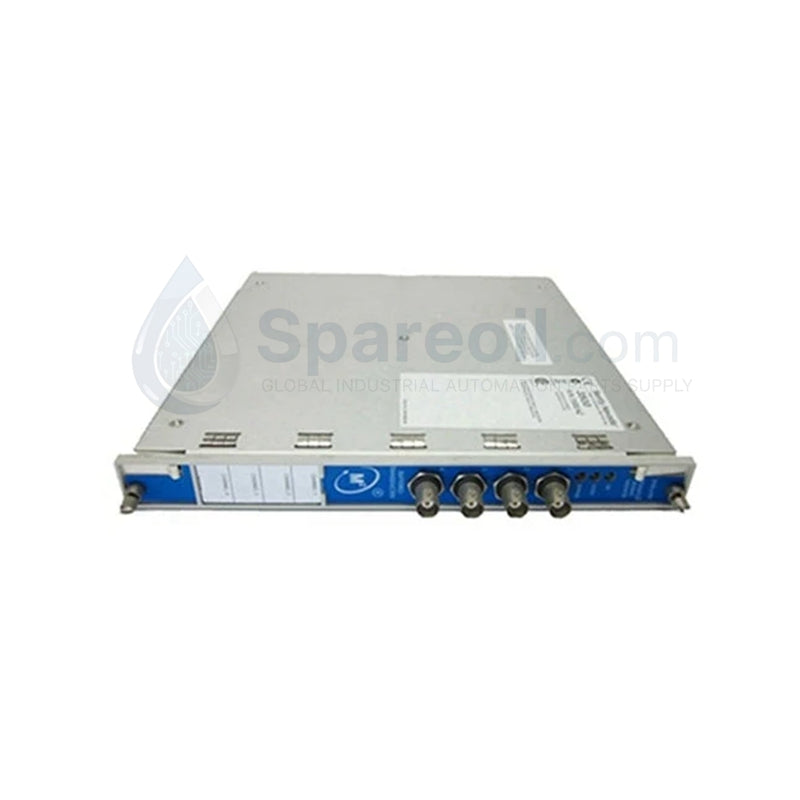

Bently Nevada 140072-04 3500/45 Position Monitor Module

The Bently Nevada 140072-04, also cataloged as the 3500/45 Position Display / Monitor Module, operates as a dedicated hardware component for high-precision shaft position data acquisition within 3500 Series Machinery Protection System platforms. Configured to monitor axial thrust and differential expansion, the hardware accepts inputs from Proximity Transducer systems to track mechanical clearances. It provides 4-20 mA analog continuous outputs alongside discrete digital programmable relays to execute autonomous machine-level interlocks.

Hardware Specifications

Parameter Specification
Model 140072-04 (3500/45)
Brand Bently Nevada
Origin USA
Weight Standard 3500 single-slot monitor weight configuration
Dimensions Standard 3500 rack single-slot module form factor
Operating Temp -40 to +85 deg C
Power Consumption 85 to 265 VAC (Universal Input), 47 to 63 Hz
Input Channels 4 independent physical channels
Input Signal Type Proximity Transducer Signals
Output Configuration 4-20 mA analog loops and programmable digital relay contacts
Data Conversion 24-bit A/D conversion resolution
System Accuracy +/-1% of full-scale range (typical)
Relative Humidity 10% to 95% non-condensing

Eddy-Current Probe Scaling and Gap Voltage Validation

The 140072-04 demands precise eddy-current probe scaling to convert analog electrical transitions into physical engineering units. The internal processing firmware performs real-time gap voltage validation against standard -10 VDC targets to ensure the proximity sensors remain biased within their linear calibration range. This validation prevents false trips or missed events during rapid changes in rotor dynamics. Onboard cross-talk suppression circuitry minimizes capacitive and inductive noise injection between adjacent transducer lines routed through the same physical conduit.

Frequently Asked Questions

Q: Can the 140072-04 module be hot-swapped within the 3500 system rack without removing system power?

A: Yes. The 3500/45 module architecture supports hot-swapping under power. However, the associated bypass switches on the rack must be engaged prior to removal to avoid initiating accidental downstream relay logic or emergency machinery trips.

Q: What physical indicators represent a transducer circuit failure versus an internal module fault?

A: The module front panel incorporates dedicated OK/NOT OK status LEDs for each channel. An individual channel LED extinguishing indicates a transducer fault, line open, or out-of-bounds gap voltage validation, while a system failure causes the module main OK LED to transition state.

Q: Is the 4-20 mA analog loop output isolated from the internal rack backplane power?

A: Yes. The 4-20 mA analog outputs feature galvanic isolation from the internal backplane logic supply, preventing field ground loops from degrading the 24-bit A/D conversion accuracy of the primary transducer signals.

Field Installation Guidelines

  • Module Alignment: Insert the module into the designated slot of the standard 3500 chassis frame, ensuring the rear card edge alignment rails mate perfectly with the backplane connectors before tightening the front panel thumbscrews.
  • Transducer Shielding: Terminate the outer shields of all proximity probe cables at the chassis earth ground bus terminal only. Maintain shield continuity through any intermediate junction boxes without connecting the shield to the local machine case.
  • Separation of Wiring: Route the 4-20 mA analog output and digital relay wiring through separate, dedicated conduits isolated from high-voltage motor control circuits and high-current power distribution paths.
  • Conduit Engagement: Where external connections enter terminal housings, maintain strict adherence to industrial standards, utilizing exactly 5 threads of engagement for NPT conduit connections to secure the environmental seal rating.
