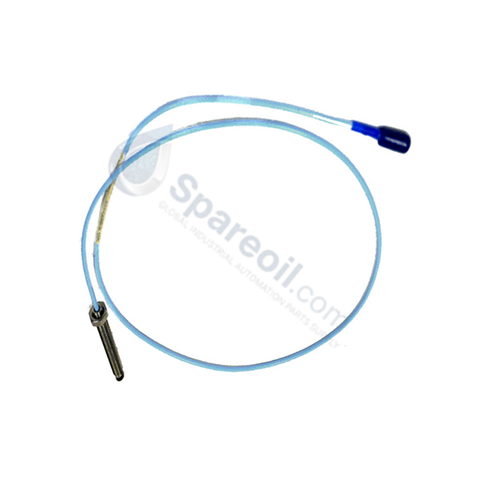

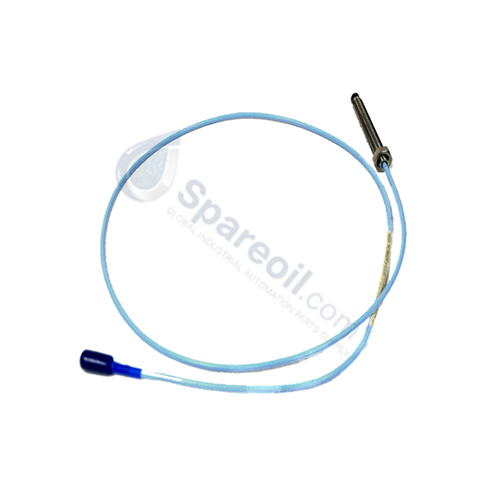

The Bently Nevada 330103-00-03-10-02-CN, also cataloged as the 330103 Proximity Probe, operates as a dedicated hardware component for vibration and displacement monitoring within 3300 XL Transducer System platforms. The passive instrument utilizes high-frequency radio frequency modulation to capture spatial gap changes between the unarmored 8 mm probe face and a moving conductive metal shaft, transferring raw voltage data to a remote monitor interface without physical contact.
Suffix Breakdown & Model Matrix
- 330103: Base component index for the 3300 XL 8 mm proximity probe configuration featuring an M10 x 1 metric thread structure without armor.
- -00: Unthreaded length option, indicating 0 mm of smooth barrel.
- -03: Overall case length option, indicating a 30 mm total threaded housing depth.
- -10: Total length option, establishing a 1.0 metre (3.3 feet) integrated cable path.
- -02: Miniature coaxial ClickLoc connector matched with a standard electrical cable core.
- -CN: Agency approval option, designating combined ATEX, IECEx, and regional Chinese NEPSI hazardous location certifications.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330103-00-03-10-02-CN |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | Approx. 0.35 kg |
| Dimensions | 8 mm probe tip diameter, 30 mm case length, M10 x 1 metric thread |
| Operating Temp | -51 deg C to +177 deg C |
| Power Consumption | Passive component driven via external Proximitor loop supply |
| Thread Type | M10 x 1 metric thread |
| Cable Assembly | Unarmored standard coaxial construction |
| Connector Type | ClickLoc miniature coaxial interface |
Mechanical Monitoring & TSI Technical Attributes
The probe driver requires strict matching to a verified target metallurgy to sustain linear eddy-current probe scaling accuracy across the measured spectrum. During mechanical commissioning, field engineers must execute a gap voltage validation protocol, adjusting the physical depth of the metric body until the quiescent DC level measures exactly -10 VDC at the geometric center of the linear calibration envelope. Proper physical alignment tracks real-time rotor dynamics under high velocity while filtering thermal errors. Cross-talk suppression is maintained via continuous internal coaxial shielding braid, mitigating electrical interference when multiple probe channels route through close-proximity machine penetrations.
Frequently Asked Questions
Q: What specific installation parameter must be maintained regarding the -CN suffix approval?
A: The -CN suffix requires adherence to specific hazardous area wiring standards enforced by ATEX, IECEx, and NEPSI, meaning the loop must include a certified intrinsic safety barrier and a matching certified Proximitor Sensor.
Q: Can this unarmored standard cable withstand continuous friction inside a metal conduit?
A: No. Unarmored standard cables are susceptible to mechanical wear from friction. If heavy pulling or constant structural abrasion is expected, an armored cable configuration or dedicated protective conduit tracking must be utilized.
Q: How does a fluid layer on the probe tip modify the output signal?
A: The polyphenylene sulfide (PPS) tip is non-conductive. Standard non-conductive lubricating oils do not alter the high-frequency eddy-current path; however, conductive fluid ingress at the coaxial junction will cause immediate calibration failure.
Field Installation Guidelines
- Clean out the M10 x 1 metric threaded mounting port completely, verifying that the bore is clear of metal shavings, burrs, or grease.
- Advance the 30 mm stainless steel case into the threaded penetration by hand to prevent cross-threading or tip scoring.
- Apply a digital voltmeter to the Proximitor Sensor terminal blocks to capture the live output potential during depth adjustment.
- Rotate the probe body until the gap voltage validation registers the nominal baseline of -10 VDC, indicating the correct spatial linear region.
- Secure the structural locknut tightly against the machine face to fix the calibrated gap, and secure the ClickLoc connector using self-fusing insulation wrap to isolate the loop from structural grounding points.
