The Bently Nevada 330103-00-05-10-02-CN, also cataloged as the 330103 Proximity Probe, operates as a dedicated hardware component for physical displacement measuring within 3300...

SKU: 330130-00-05-10-02-CN

Manufacturer: Bently Nevada
Product No.: 330130-00-05-10-02-CN
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

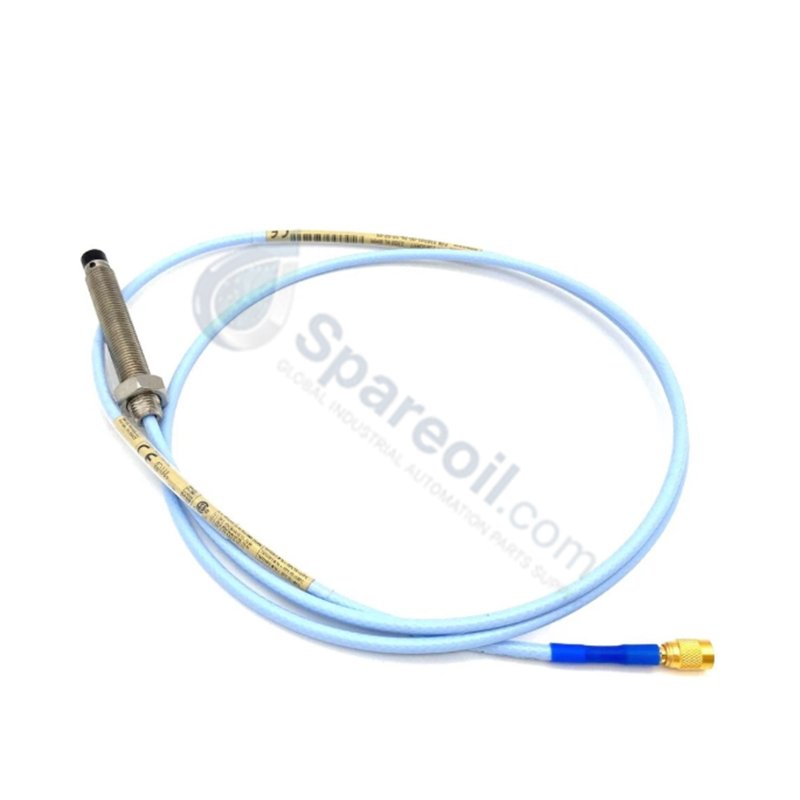

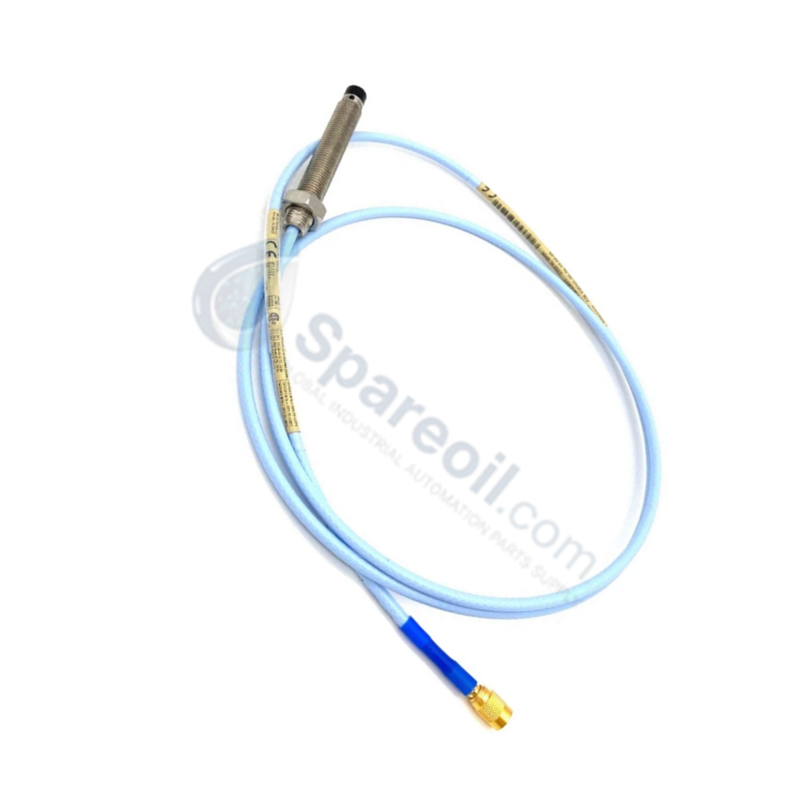

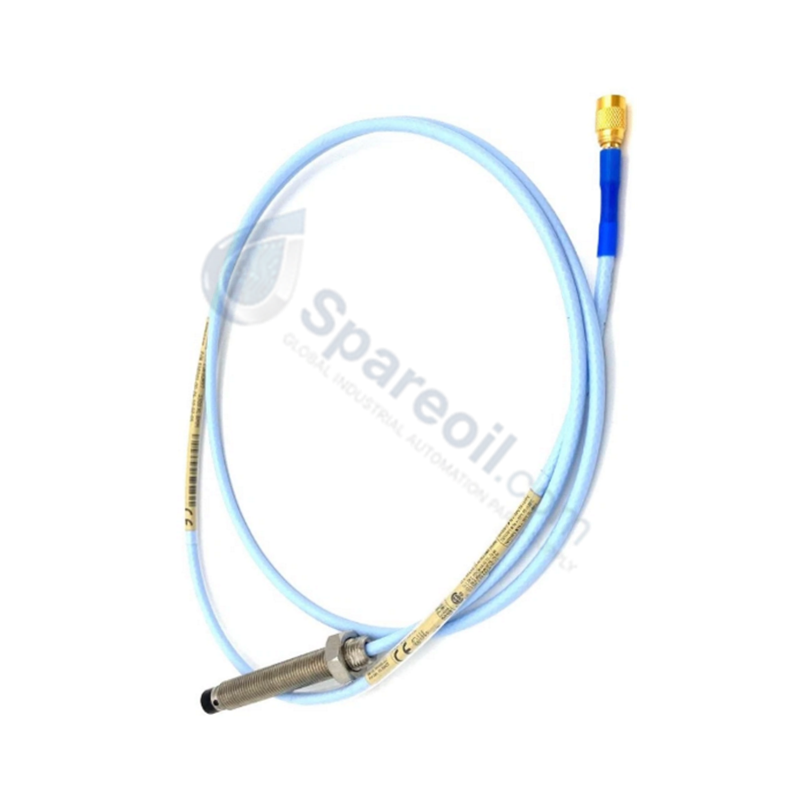

The Bently Nevada 330103-00-05-10-02-CN, also cataloged as the 330103 Proximity Probe, operates as a dedicated hardware component for physical displacement measuring within 3300 XL Proximity Transducer System platforms.

Suffix Breakdown & Model Matrix

330103: 3300 XL 8 mm Proximity Probe Base Model (Standard Threads)
-00: Unthreaded Length Option (0 mm)
-05: Overall Case Length Option (50 mm)
-10: Total Length Option (1.0 meter / 3.3 feet)
-02: Miniature coaxial ClickLoc connector, standard cable
-CN: Approvals country-specific compliance

Hardware Specifications

Parameter	Specification
Model	330103-00-05-10-02-CN
Brand	Bently Nevada
Origin	USA
Weight	0.323 kg
Dimensions	Threaded case length 50 mm, total length 1.0 meter
Operating Temp	-51 deg C to +177 deg C nominal
Power Consumption	Passive sensor configuration (driven by external Proximitor loop)
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Pressure Sealing	Viton O-ring differential pressure seal between tip and case
Connector Type	Miniature coaxial ClickLoc connector

Mechanical Monitoring & TSI Technical Attributes

The 330103 transducer architecture utilizes eddy-current probe scaling to convert targeted shaft distance variations into repeatable electrical signals. System verification require precise gap voltage validation targeting a -10 VDC baseline, aligning the 8 mm sensor tip at the geometric center of its calibrated linear span when facing a standard 4140 steel target. The miniature coaxial ClickLoc termination provides high-integrity cross-talk suppression and maintains shield continuity. This grounding framework protects the raw proximity loop output against high-frequency fields generated by dynamic rotor dynamics before the physical modulation reaches the Proximitor input interface.

Frequently Asked Questions

Q: Is the pressure seal between the probe tip and case verified at the factory?

A: No. The internal Viton O-ring is designed to withstand differential pressure, but standard hardware units are not pressure tested prior to shipment unless explicitly certified via a custom testing request.

Q: What is the technical requirement of the -CN suffix on this module assembly?

A: The -CN suffix designates country-specific regulatory approval compliance, meaning the hardware conforms to specific regional directives detailed in the companion Field Notification Letter.

Q: Can this 1.0 meter probe be interfaced directly to a monitor without an extension cable?

A: No. The proximity loop requires a precise electrical length of either 5.0 meters or 9.0 meters. A matching 3300 XL extension cable must be placed in series to maintain proper impedance and system tuning.

Field Installation Guidelines

Ensure the machinery train is isolated and zero-energy states are verified. Inspect the shaft observation target path to confirm it is free from machining grooves, pitting, or residual magnetic runout.
Advance the threaded probe body into the mounting bracket or sleeve housing, ensuring the integral lead cable remains free of torsional twist or mechanical strain.
Power the associated Proximitor loop and attach a digital multimeter to its terminal block. Adjust the probe depth configuration until the live gap voltage validation displays exactly -10.0 VDC.
Secure the primary counter-locknut firmly against the sleeve surface to lock the thread engagement against structural displacement caused by machine case resonance.
Couple the miniature ClickLoc coaxial link to the extension cable terminal line until an explicit mechanical lock is established. Wrap the connection point with oil-resistant self-fusing tape to eliminate moisture or debris ingress.
