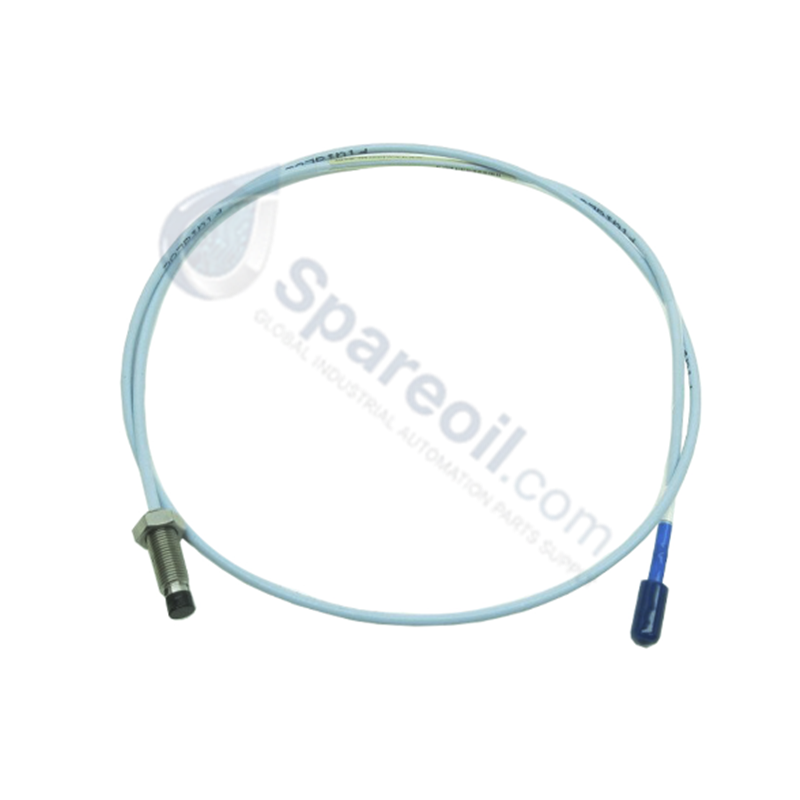

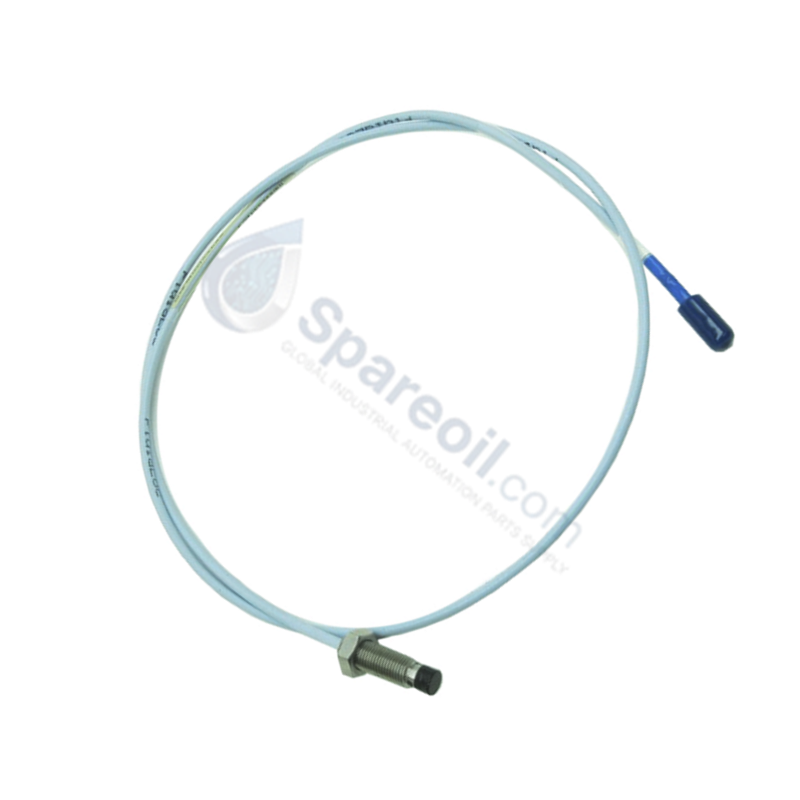

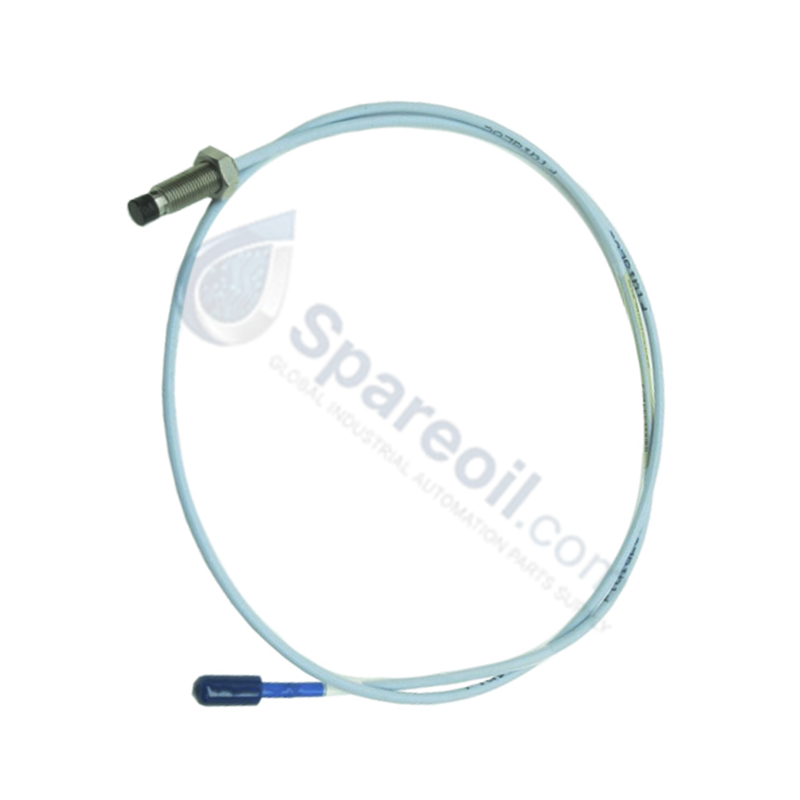

Configured for eddy-current displacement and vibration sensing in 3300 XL Proximity Transducer System platforms, the Bently Nevada 330103-00-07-10-02-00 (330103 Proximity Probe) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

Option Slot Configured Code Technical Definition
Unthreaded Length Option 00 0 mm
Overall Case Length Option 07 70 mm
Total Length Option 10 1.0 meter (3.3 feet)
Connector Option 02 Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option 00 Not required

Hardware Specifications

Parameter Specification
Model 330103-00-07-10-02-00
Brand Bently Nevada
Origin U.S.A
Probe Tip Diameter 8 mm
Unthreaded Length 0 mm
Overall Case Length 70 mm
Total Length 1.0 meter (3.3 feet)
Connector Type Miniature coaxial ClickLoc connector
Cable Type Standard cable
Operating Temp -51 to +177 deg C
Power Consumption Passive sensor driven by external Proximitor interface
Dimensions M10 x 1 threaded body
Weight 0.323 kg (Net), 1.5 kg (Shipping weight)

Eddy-Current Probe Scaling and Rotor Dynamics

The 3300 XL 8 mm proximity probe utilizes eddy-current probe scaling to convert physical gap distances into proportional electrical voltage. When paired with a compatible 3300 XL Proximitor Sensor, the system allows precise gap voltage validation with a nominal target of -10 VDC at the center of the linear range. This electrical configuration minimizes cross-talk suppression issues when multiple probes are installed in close physical proximity along the machine casing. The resulting high-frequency signal output enables accurate profiling of rotor dynamics, including dynamic shaft vibration, position, and axial thermal growth.

Frequently Asked Questions

Q: How is the gap voltage validation target verified during field setup?

A: A digital multimeter must be connected to the "OUT" and "COM" terminals of the corresponding Proximitor Sensor. The probe body is then adjusted mechanically within its mounting fixture until the output registers the standard -10 VDC target, centering it in the linear scaling range.

Q: What are the operating consequences if the total cable length option is altered by field splicing?

A: Splicing or changing the physical length of the 1.0-meter integrated cable modifies the tuned electrical impedance of the RF loop. This directly distorts the eddy-current probe scaling, inducing significant measurement calibration deviations in machinery rotor dynamics profiling.

Field Installation Guidelines

  • Mechanical Torque Thresholds: Thread the M10 x 1 probe body into the indicator bracket using a calibrated torque tool. Do not exceed standard industrial limits for 8 mm tips to prevent mechanical failure of the internal copper coils.
  • Coaxial Connector Contamination Control: Ensure the miniature coaxial ClickLoc connector interface is completely free of water, mechanical oil, or dust. Apply specified sealing boots or self-fusing electrical insulation tape over the junction.
  • Cable Bend Curvature Limits: Route the standard non-armored cable with a bend radius that complies with industrial routing limits. Severe crimps or sharp bends damage the internal shielding wire layers and cause electronic signaling noise.
  • Target Surface Flatness: The shaft observation path must be free of surface scoring, pitting, or localized metallurgical variations to prevent electrical runout errors from corrupting the dynamic vibration log.
