330103-00-16-10-02-05 Bently Nevada Proximity Probe Datasheet & Technical Manual

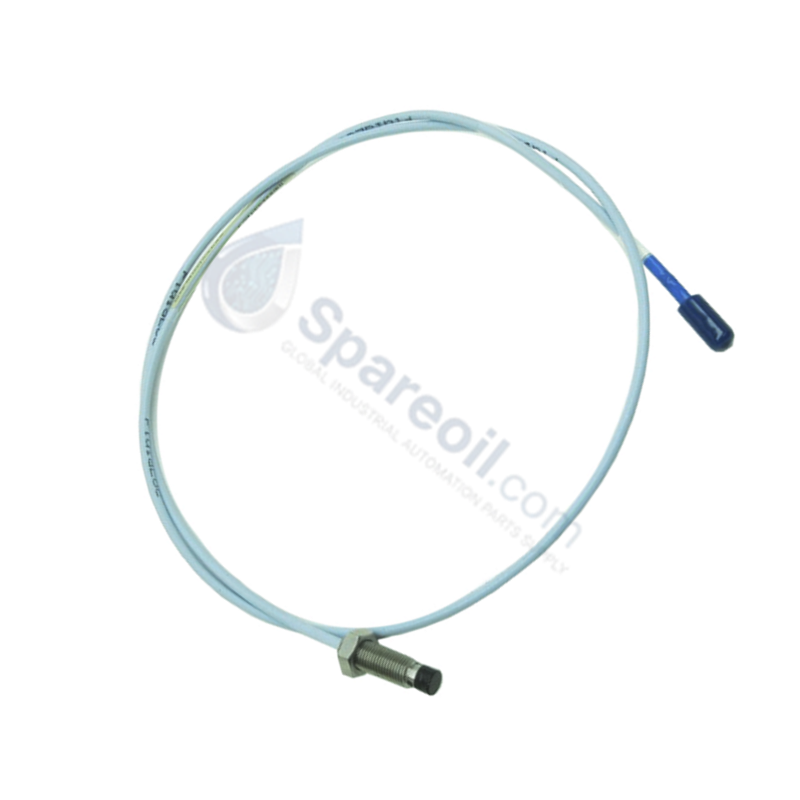

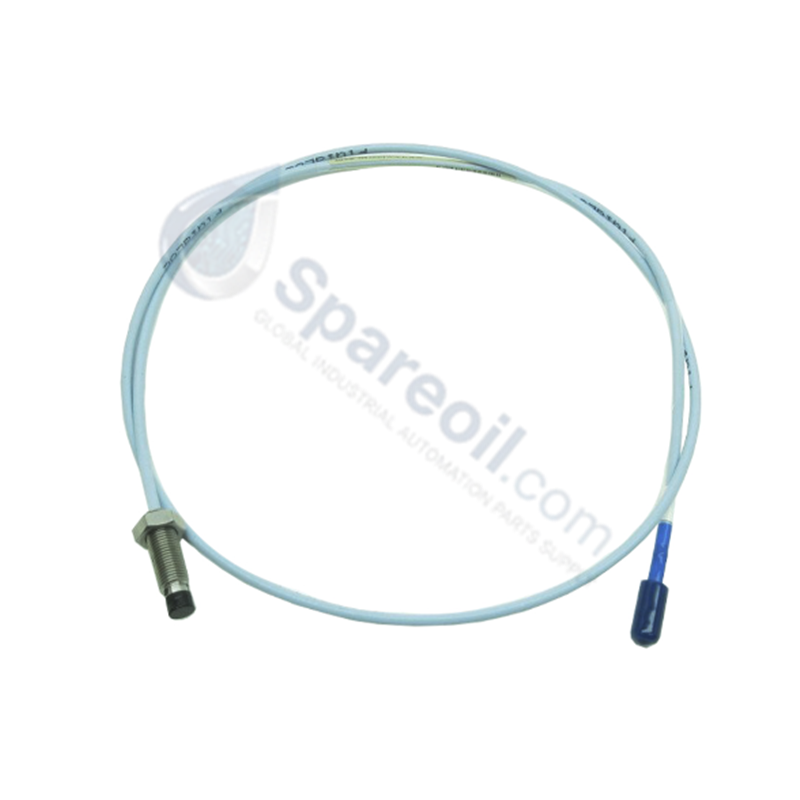

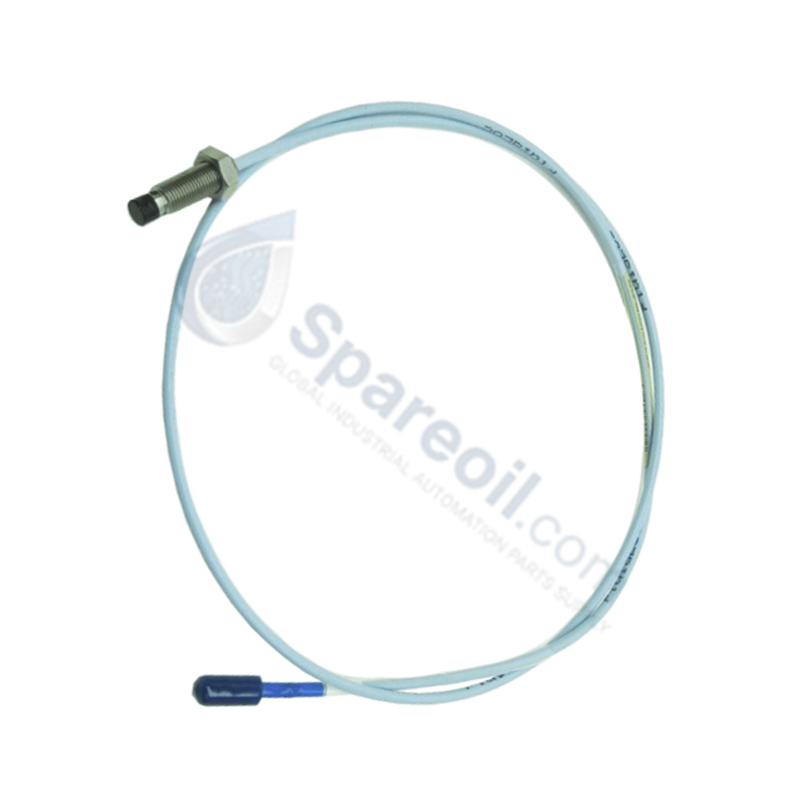

330103-00-16-10-02-05 | Bently Nevada | 3300 XL Proximity Probe

330103-00-16-10-02-05 | Bently Nevada | 3300 XL Proximity Probe

Availability: 10 left in stock

The Bently Nevada 330103-00-16-10-02-05, also cataloged as the 330103 Proximity Probe, operates as a dedicated hardware component for proximity and...

SKU: 330103-00-16-10-02-05

Manufacturer: Bently Nevada
Product No.: 330103-00-16-10-02-05
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 120g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Bently Nevada 330103-00-16-10-02-05, also cataloged as the 330103 Proximity Probe, operates as a dedicated hardware component for proximity and vibration sensing within 3300 XL machinery monitoring platforms. The hardware executing the physical displacement verification translates mechanical rotor dynamics into proportional voltage deviations via high-frequency eddy-current probe scaling circuits.

Suffix Breakdown & Model Matrix

Suffix Code	Option Description	Technical Parameter
330103	Base Product Type	3300 XL 8 mm Proximity Probe
-00	Unthreaded Length Option	00 = 0 mm
-16	Overall Case Length Option	16 = 160 mm
-10	Total Length Option	10 = 1.0 meter (3.3 feet)
-02	Connector and Cable-Type Option	02 = Miniature coaxial ClickLoc connector, standard cable
-05	Agency Approval Option	05 = CSA, ATEX, IECEx Approvals

Hardware Specifications

Parameter	Specification
Model	330103-00-16-10-02-05
Brand	Bently Nevada
Origin	USA
Weight	2 kg (Shipping Weight)
Dimensions	8 mm probe tip diameter, 160 mm overall case length
Operating Temp	-51 deg C to +177 deg C nominal parameters
Power Consumption	Passive component supplied via Proximitor Sensor loop
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Pressure Sealing	Viton O-ring differential pressure seal between tip and case

Gap Voltage Validation and Cross-Talk Suppression

Physical implementation of the 8 mm eddy-current probe requires strict gap voltage validation (-10 VDC targets) during mechanical positioning to align the sensor within its linear operation spectrum. This voltage calibration secures the optimal quiescent baseline against the target shaft, mitigating measurement distortion under high-speed rotor dynamics. Furthermore, installing multi-channel probe arrays demands adherence to precise geometric spacing constraints to guarantee cross-talk suppression and eliminate magnetic field interference between adjacent sensor loops.

Frequently Asked Questions

Q: Does the 330103-00-16-10-02-05 proximity probe require field calibration during installation?

A: No. The internal components are engineered for full interchangeability, which eliminates the requirement for physical field calibration matching.

Q: What are the consequences of altering the integrated 1.0-meter cable length?

A: Modifying the physical cable length changes the total loop capacitance and electrical length, which directly compromises the eddy-current probe scaling and shifts the nominal voltage calibration.

Field Installation Guidelines

Mount the probe body securely into a rigid, non-vibrating bracket to isolate the assembly from structural resonance. Maintain appropriate physical clearance between the 8 mm tip and surrounding conductive metals to prevent peripheral eddy-current tracking errors. Connect the probe to the extension cable using the miniature coaxial ClickLoc connector, ensuring the junction is locked completely to prevent signal loss. Route all field cabling through grounded metal conduit, separating the low-voltage sensor lines from high-power AC lines to prevent electrical noise coupling.
