330104-00-05-50-11-00 Bently Nevada Displacement Sensor

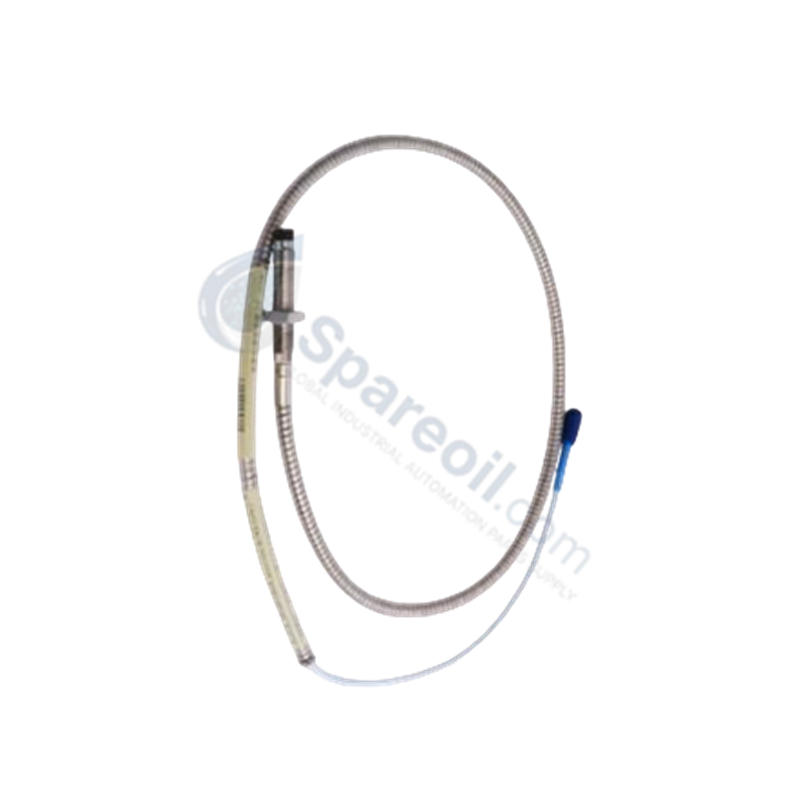

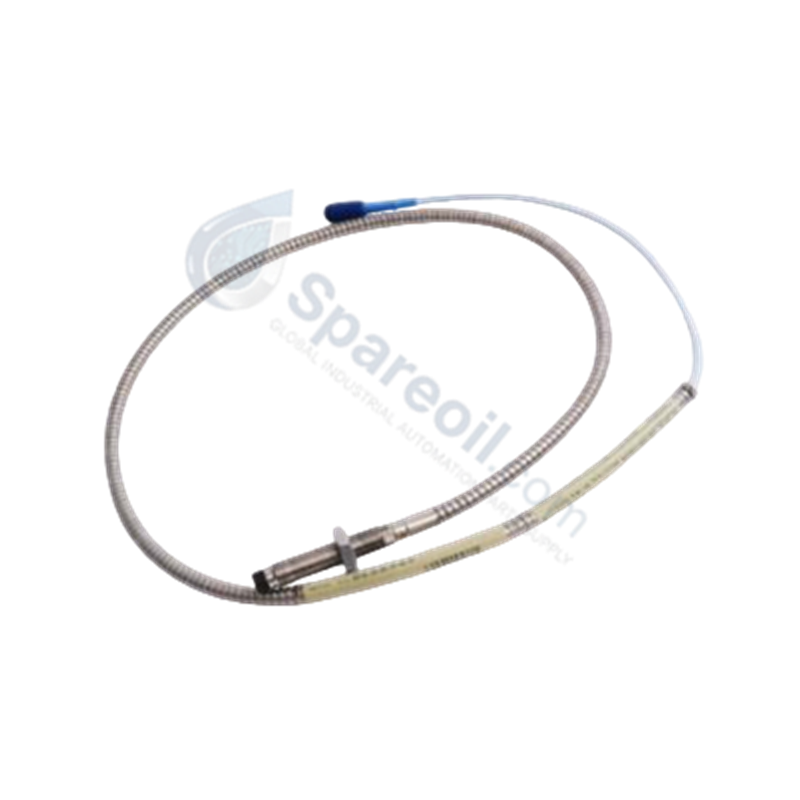

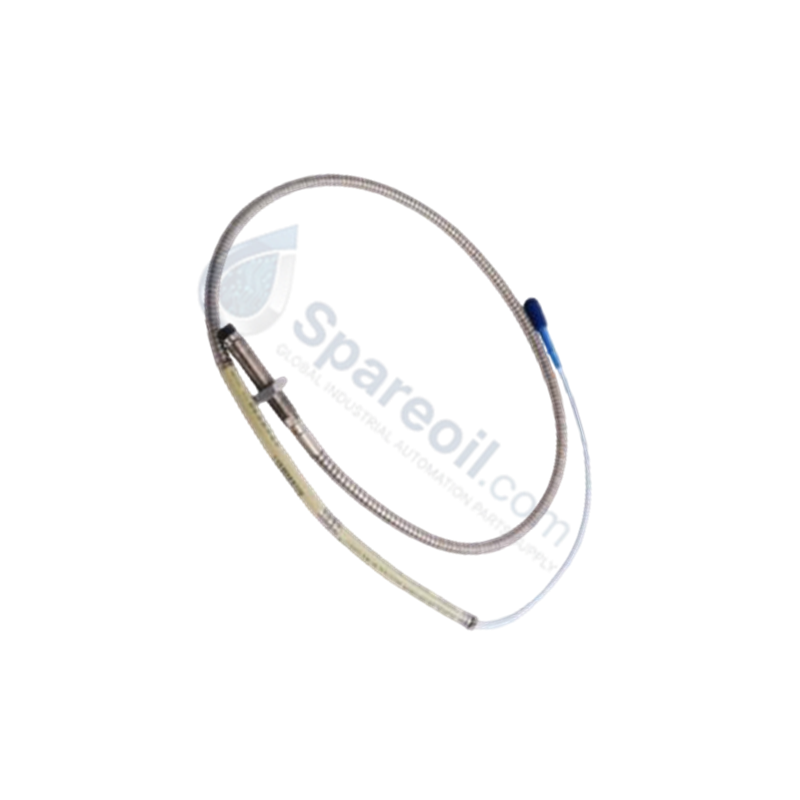

330104-00-05-50-11-00 | Bently Nevada | 3300 XL 8 mm Proximity Probe

330104-00-05-50-11-00 | Bently Nevada | 3300 XL 8 mm Proximity Probe

Availability: 10 left in stock

The Bently Nevada 330104-00-05-10-02-00, also cataloged as the 330104 Proximity Probe, operates as a dedicated hardware component for non-contacting displacement...

SKU: 330104-00-05-50-11-00

Manufacturer: Bently Nevada
Product No.: 330104-00-05-50-11-00
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Bently Nevada 330104-00-05-10-02-00, also cataloged as the 330104 Proximity Probe, operates as a dedicated hardware component for non-contacting displacement measurement within the 3300 XL 8 mm Proximity Transducer System. The component tracks dynamic shaft movement and static position parameters by monitoring eddy current variations relative to a conductive target material, transmitting high-frequency analog signals directly to a designated Proximitor Sensor.

Suffix Breakdown & Model Matrix

Code	Option Category	Technical Configuration
330104	Base Model	3300 XL 8 mm Proximity Probe (M10 x 1 Metric Thread)
00	Unthreaded Length	0 mm (Fully threaded case)
05	Overall Case Length	50 mm
50	Total Length	5.0 Metres (16.4 feet)
11	Connector/Cable	ClickLoc connector with connector protector and armor
00	Agency Approval	Not required / Standard

Hardware Specifications

Parameter	Specification
Model	330104-00-05-50-11-00
Brand	Bently Nevada
Origin	U.S.A.
Probe Tip Diameter	8.0 mm
Linear Range	2.0 mm (80 mils)
Nominal Scale Factor	7.87 V/mm (200 mV/mil)
Cable Impedance	75 Ohm nominal
Tip Material	Polyphenylene sulfide (PPS)
Armor Material	Flexible Stainless Steel (SST)
Operating Temp	-51 to +177 deg C
Power Consumption	Determined by external Proximitor loop
Dimensions	M10 x 1 thread, 50 mm case length, 5.0 m total length
Weight	2.0 kg (Shipping weight)

Eddy-Current Probe Scaling & Calibration

The system relies on calibrated eddy-current probe scaling to ensure linear response over the entire 2.0 mm detection range. During deployment, a critical gap voltage validation must be executed; setting the initial physical proximity to establish a -10 VDC target voltage centers the output within the linear spectrum. This precise geometric placement stabilizes the loop against rotor dynamics fluctuations and establishes the required boundary conditions for internal cross-talk suppression when adjacent probes are arrayed in close radial proximity on the same machine plane.

Frequently Asked Questions

Q: Can this 5.0-meter probe be coupled with a standard extension cable?

A: No. This probe features a total length of 5.0 metres and must interface directly with a 5.0-meter Proximitor Sensor without intermediate extension cabling. Adding an extension cable alters the 75 Ohm loop impedance and invalidates the nominal scale factor calibration.

Q: What specific ingress protection does the Option 11 connector protector provide?

A: The factory-installed connector protector provides physical and chemical isolation for the gold-plated ClickLoc interface against splash oils, moisture, and particulate matter typical of bearing housings. It does not support permanent fluid submersion.

Q: What targets are compatible with the factory-calibrated scale factor?

A: The standard scale factor of 7.87 V/mm assumes an AISI 4140 electric steel target. Using alternative target materials with different magnetic permeabilities or electrical conductivities requires recalibration of the receiver loop.

Field Installation Guidelines

Torque Limitations: When mounting the M10 x 1 threaded housing into the machine port, do not exceed the structural limit of 33.9 N-m (300 in-lb) to prevent distortion of the probe tip or casing.
Armor and Cable Routing: Maintain a minimum bend radius of 25.4 mm (1.0 inch) along the flexible stainless steel armor to avoid crimping or fracturing the internal 75 Ohm coaxial core.
Isolation and Grounding: The coaxial outer shield must maintain insulation from the machine case ground along the entire run. Grounding must terminate strictly at the Proximitor Sensor end within the designated instrument enclosure.
