330104-00-08-50-12-00 Bently Nevada Proximity Probe

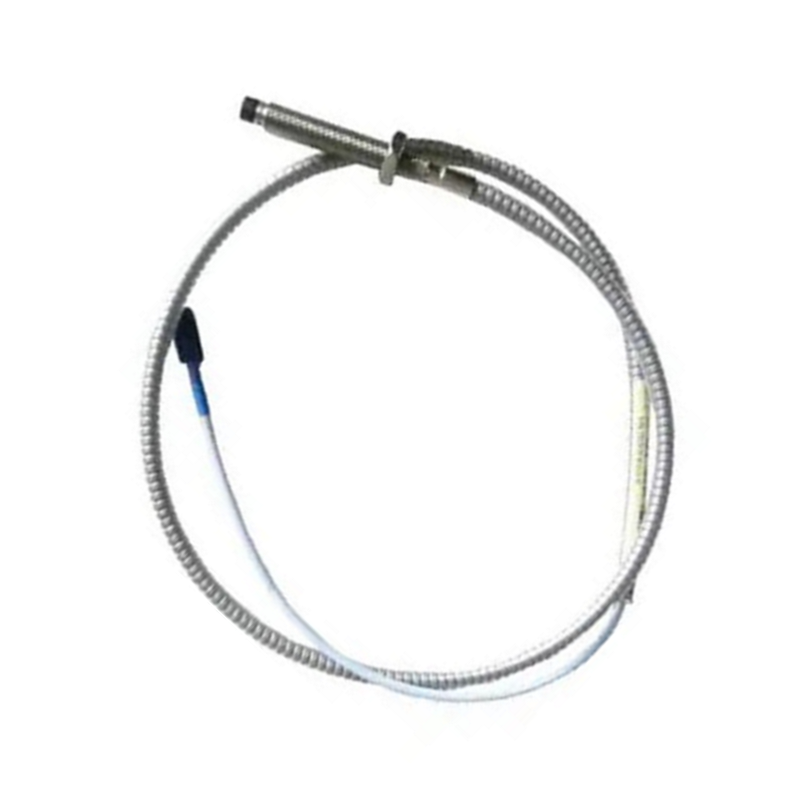

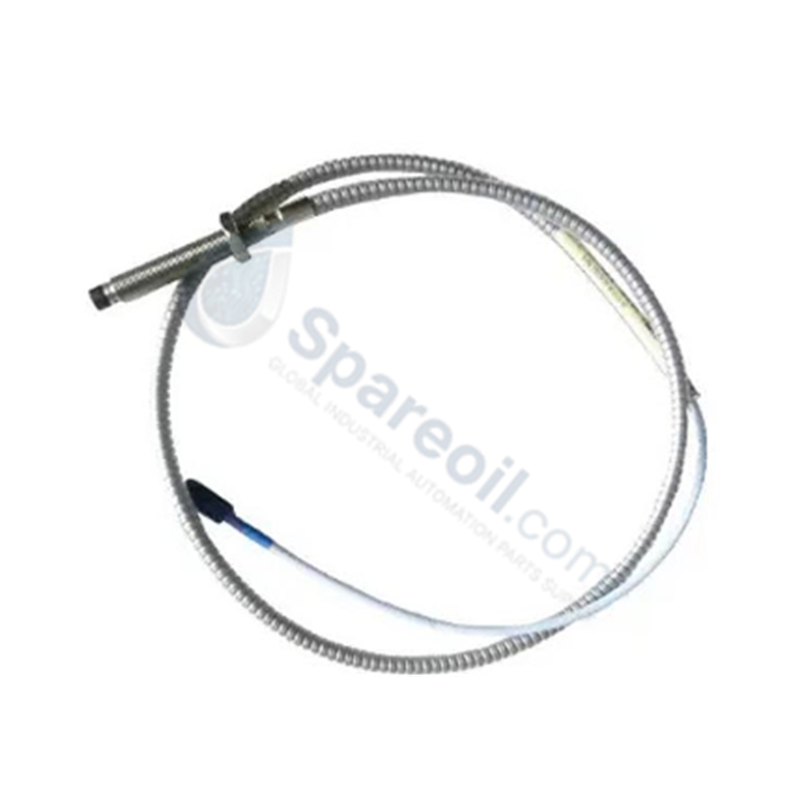

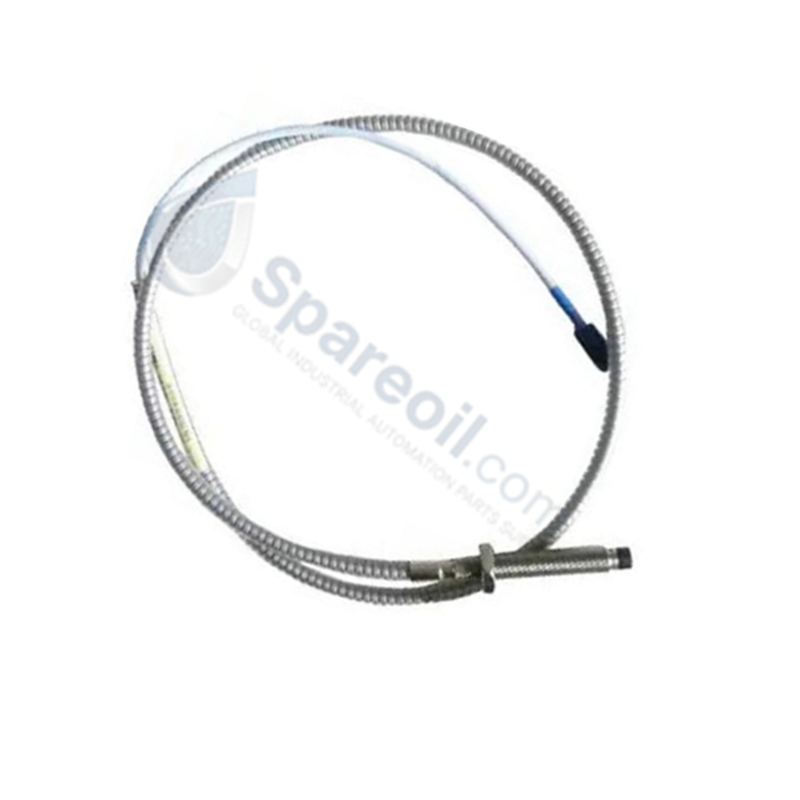

330104-00-08-50-12-00 | Bently Nevada | 3300 XL 8 mm Proximity Probe

330104-00-08-50-12-00 | Bently Nevada | 3300 XL 8 mm Proximity Probe

Availability: 10 left in stock

Configured for non-contacting shaft displacement tracking in 3300 XL Machinery Protection Systems, the Bently Nevada 330104-00-08-10-02-00 (330104 Proximity Probe) provides...

SKU: 330104-00-08-50-12-00

Manufacturer: Bently Nevada
Product No.: 330104-00-08-50-12-00
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Configured for non-contacting shaft displacement tracking in 3300 XL Machinery Protection Systems, the Bently Nevada 330104-00-08-10-02-00 (330104 Proximity Probe) provides direct physical/electrical execution. The instrument introduces a high-frequency radio frequency field onto a moving conductive shaft target to capture mechanical changes, transferring raw gap impedance modulations over an integrated coaxial transmission line to an external matching Proximitor Sensor.

Suffix Breakdown & Model Matrix

Code	Option Category	Technical Configuration
330104	Base Model	3300 XL 8 mm Proximity Probe (3/8-24 UNF standard thread)
00	Unthreaded Length	0 mm
08	Overall Case Length	80 mm
50	Total Length	5.0 meters (16.4 feet)
12	Connector and Cable-Type	Miniature coaxial ClickLoc connector, FluidLoc cable
00	Agency Approval	Not required

Hardware Specifications

Parameter	Specification
Model	330104-00-08-50-12-00
Brand	Bently Nevada
Origin	U.S.A.
Probe Tip Diameter	8 mm
Cable Infrastructure	FluidLoc moisture-resistant coaxial line
Operating Temp	-51 to +177 deg C
Power Consumption	Passive element (excited by external Proximitor loop supply)
Dimensions	80 mm case length, 5.0 meters total system length
Weight	2.0 kg shipping weight

Gap Voltage Validation (-10 VDC Targets)

Field deployment requires systematic gap voltage validation to anchor the probe within its calibrated linear measurement envelope. During the physical threading process, engineers must adjust the mechanical insertion depth of the 80 mm case relative to the target surface while tracing the electrical output. Aligning the sensor tip to achieve a baseline output of exactly -10 VDC establishes the physical center of the linear calibration span, optimizing signal accuracy for monitoring raw rotor dynamics and enforcing cross-talk suppression against adjacent active measurement channels.

Frequently Asked Questions

Q: What technical protection does the FluidLoc cable option provide compared to standard coaxial lines?

A: The option 12 FluidLoc cable features an internal sealing matrix designed to block the capillary migration of process liquids, oil, or moisture through the cable jacket interior if the outer sheath sustains mechanical punctures.

Q: Can this 5.0-meter probe loop be cut or field-spliced to shorten the installation path?

A: No. Coaxial cables for proximity transducers are strictly matched to specific loop electrical lengths. Cutting or field-splicing the lead alters the tuned circuit impedance and invalidates the scale factor of the system.

Field Installation Guidelines

Thread Tightening Limits: Secure the probe case within its mounting port using a calibrated torque wrench, restricting mechanical load to a maximum of 33.9 N-m (300 in-lb) to prevent housing distortion.
Cable Pathway Routing Constraints: Route the 5.0-meter FluidLoc lead with care to maintain a minimum structural bend radius of 25.4 mm (1.0 inch) to preserve internal dielectric geometries.
Electrical Ground Isolation: The outer metallic body of the miniature coaxial ClickLoc connector joint must be isolated from the machine structure. Do not ground the cable shield at the machine casing; routing loops must reference the instrument rack enclosure ground exclusively.
