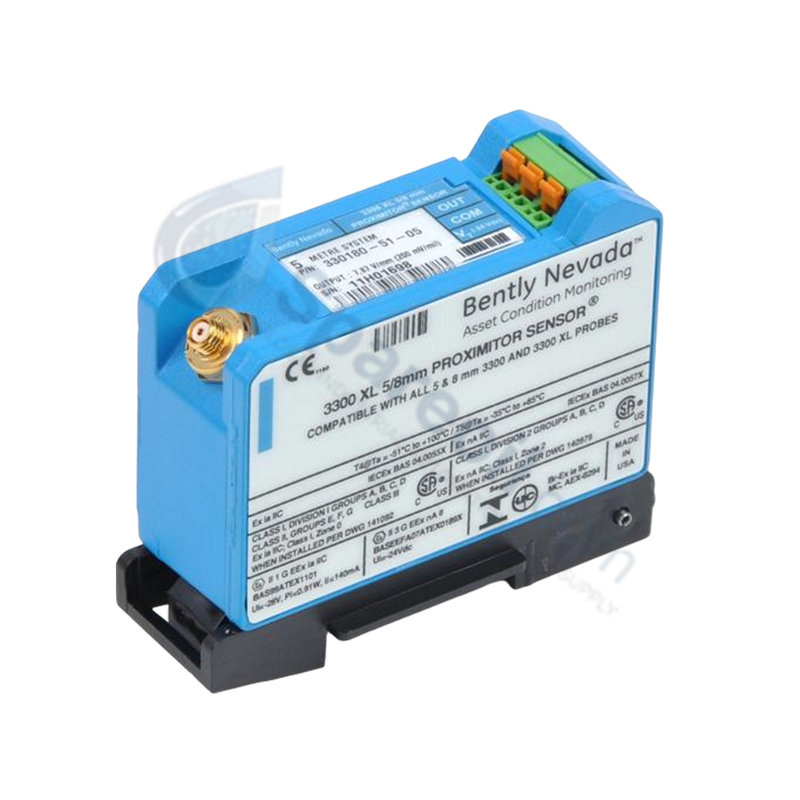

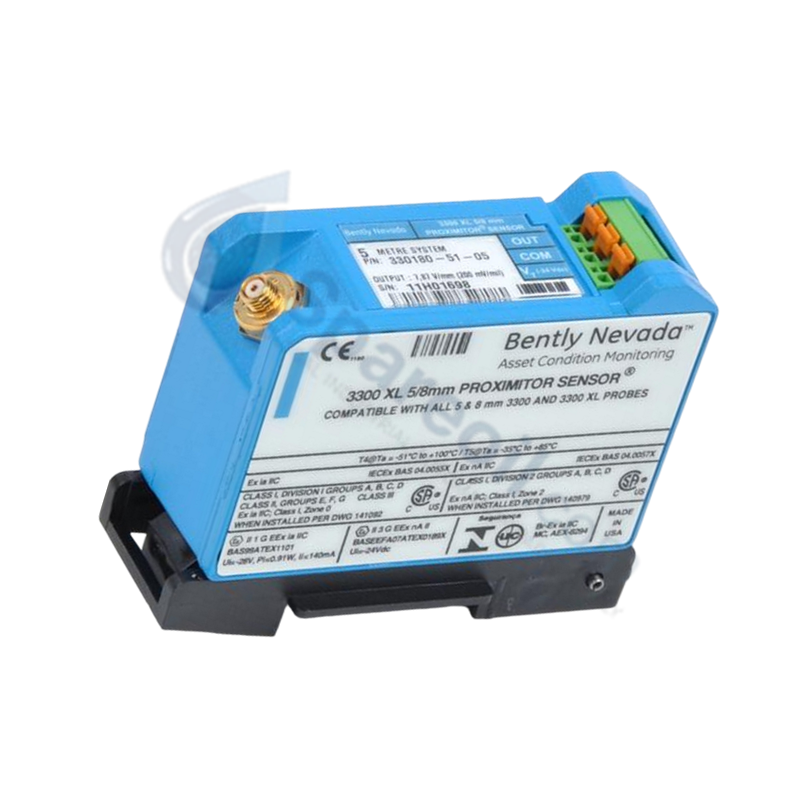

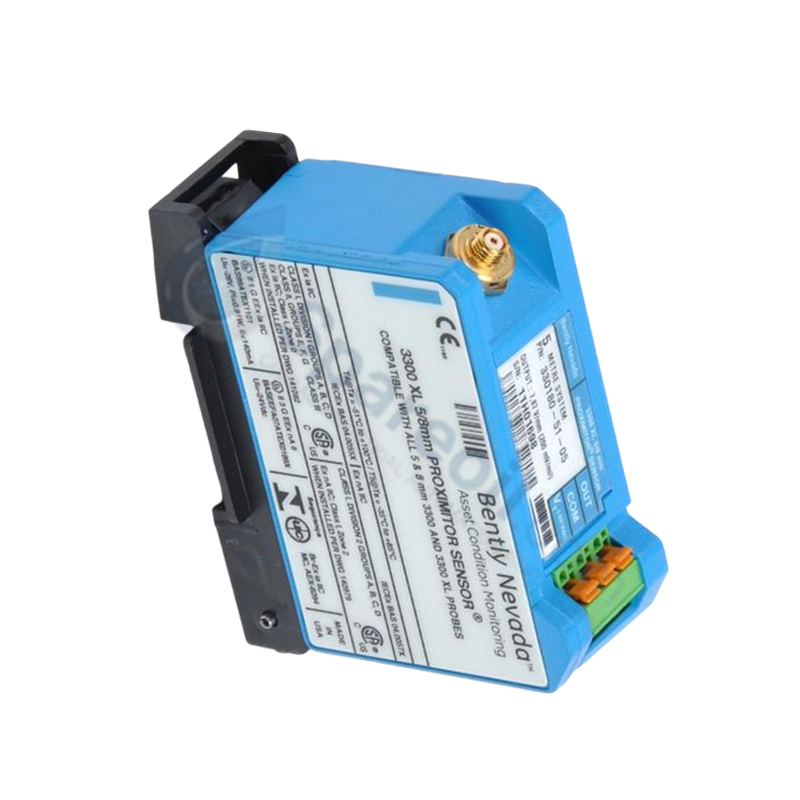

Configured for signal conditioning in vibration monitoring platforms, the Bently Nevada 330180-51-05 (330180 Proximitor Sensor) provides direct physical signal translation for non-contacting proximity probes.

Hardware Specifications

Parameter Specification
Model 330180-51-05
Brand Bently Nevada
Origin USA
Weight 0.5 kg (estimated per series standard)
Dimensions 8.13 cm x 6.12 cm x 6.35 cm
Operating Temp -51 deg C to +100 deg C
Power Consumption 12 mA maximum
Linear Range 0.25 mm to 2.3 mm (nominal)

Eddy-Current Probe Scaling and Rotor Dynamics

The 330180-51-05 utilizes an internal high-frequency oscillator to drive the proximity probe, generating a linear output voltage proportional to the gap between the probe tip and the target material. The system scale factor is set to 7.87 mV/µm (200 mV/mil). During commissioning, gap voltage validation is performed to confirm a -10 VDC target at the mid-linear range, which is required for accurate rotor dynamics interpretation. To ensure signal purity and avoid measurement errors, cross-talk suppression is maintained by adhering to minimum physical separation distances between adjacent probe installations to prevent interference from overlapping electromagnetic fields.

Frequently Asked Questions

Q: Does the -10 VDC target voltage apply regardless of the probe diameter?

A: Yes. For standard 3300-series 8 mm and 5 mm systems, the -10 VDC target at the center of the linear range remains the required benchmark for proper system calibration.

Q: Can the 330180-51-05 be installed in environments where hazardous gas is present?

A: Yes, provided the installation complies with the requirements specified in the CSA, ATEX, and IECEx certifications indicated by the 05 suffix. All wiring must follow local explosion-proof installation standards.

Field Installation Guidelines

  1. Secure the Proximitor Sensor to a grounded DIN-rail. Ensure the mounting provides a low-impedance electrical path to the system common for EMI protection.
  2. Verify that coaxial connections are hand-tightened. Avoid the use of tools that may over-torque or strip the connector threads.
  3. Keep coaxial cable runs separated from AC power lines or motor variable frequency drive (VFD) cables to prevent induced noise.
  4. Check the integrity of the coaxial shield connection at the monitor termination point to avoid ground loop current paths.
  5. Perform a cold-loop test before energizing the system to confirm the probe-to-target gap is within the specified linear operating range.
