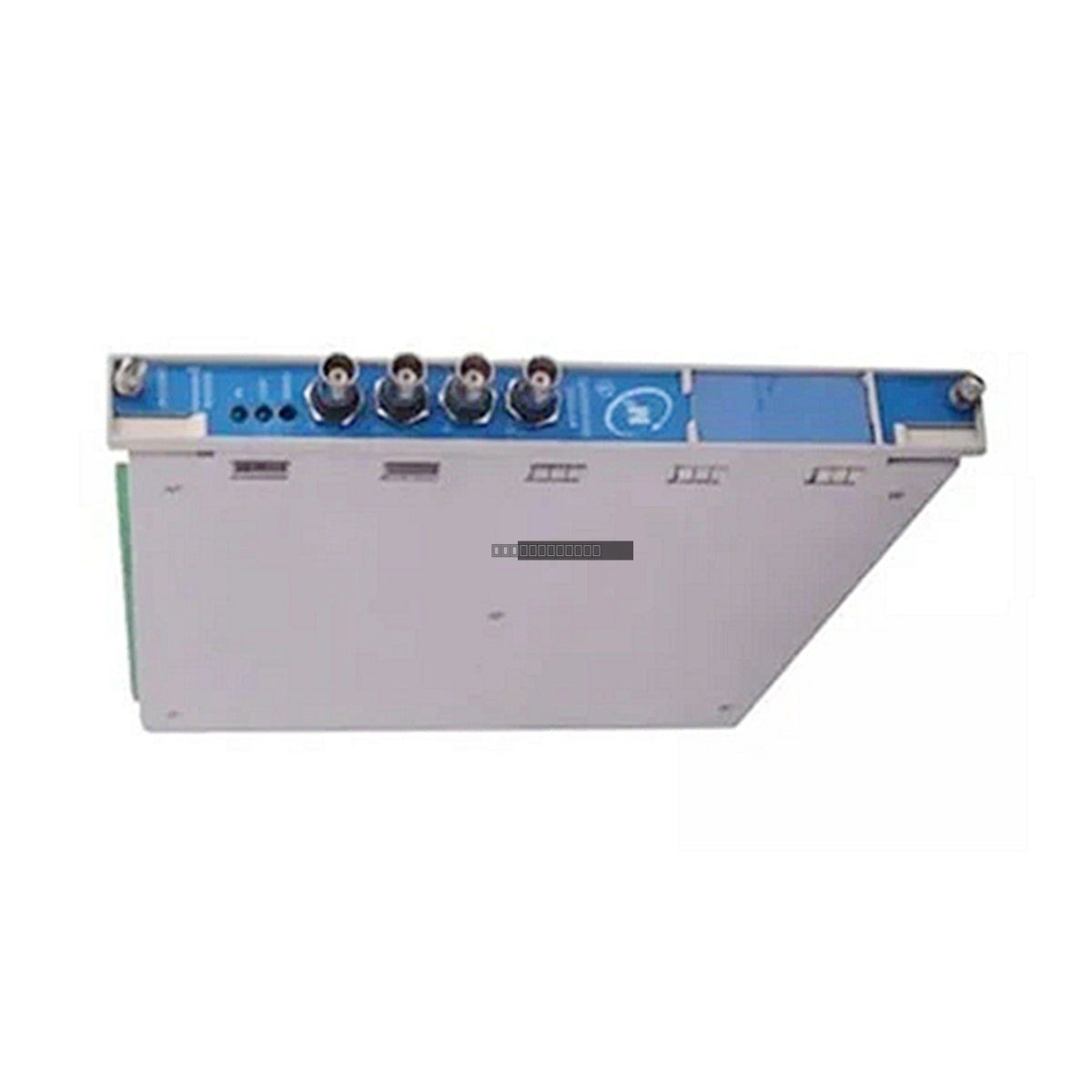

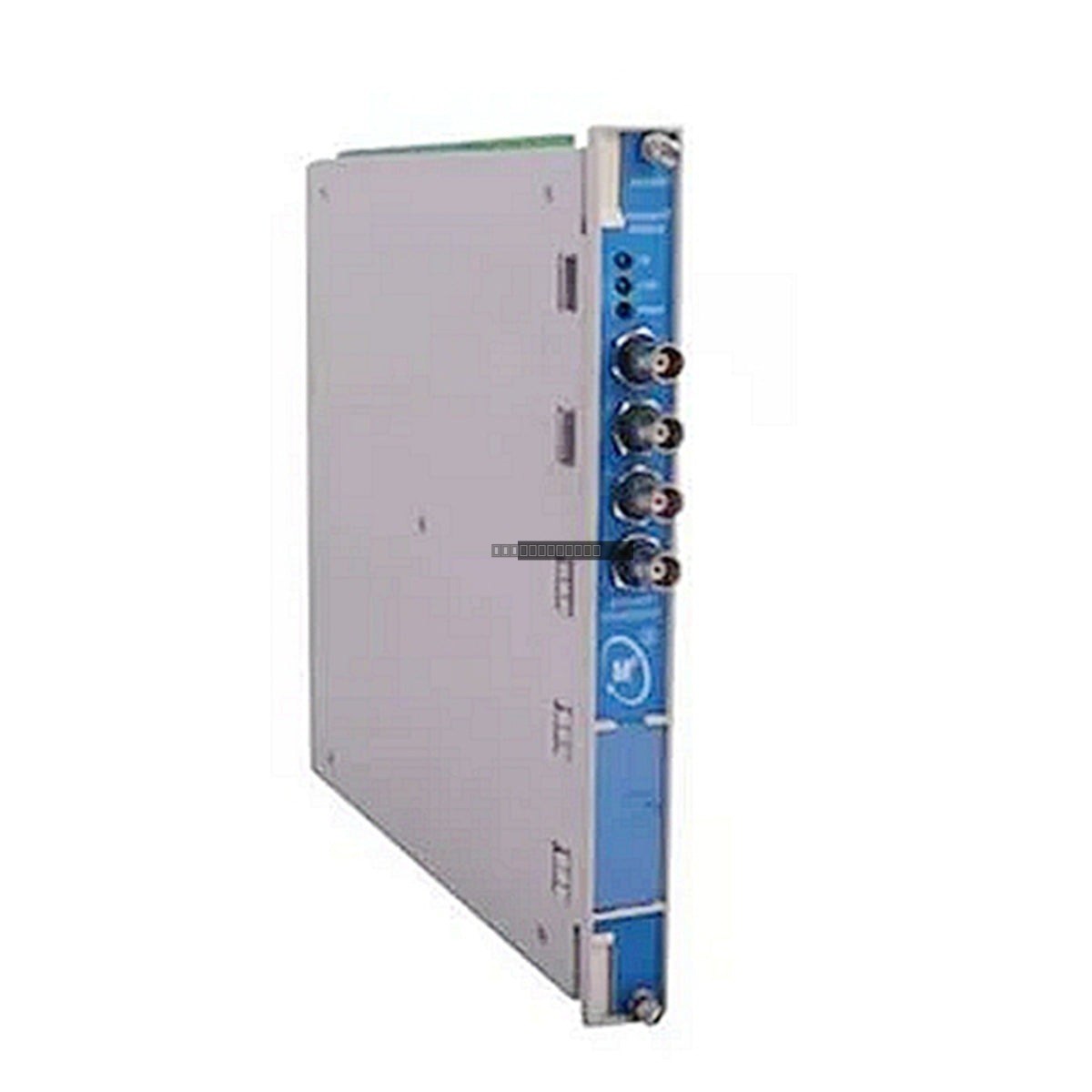

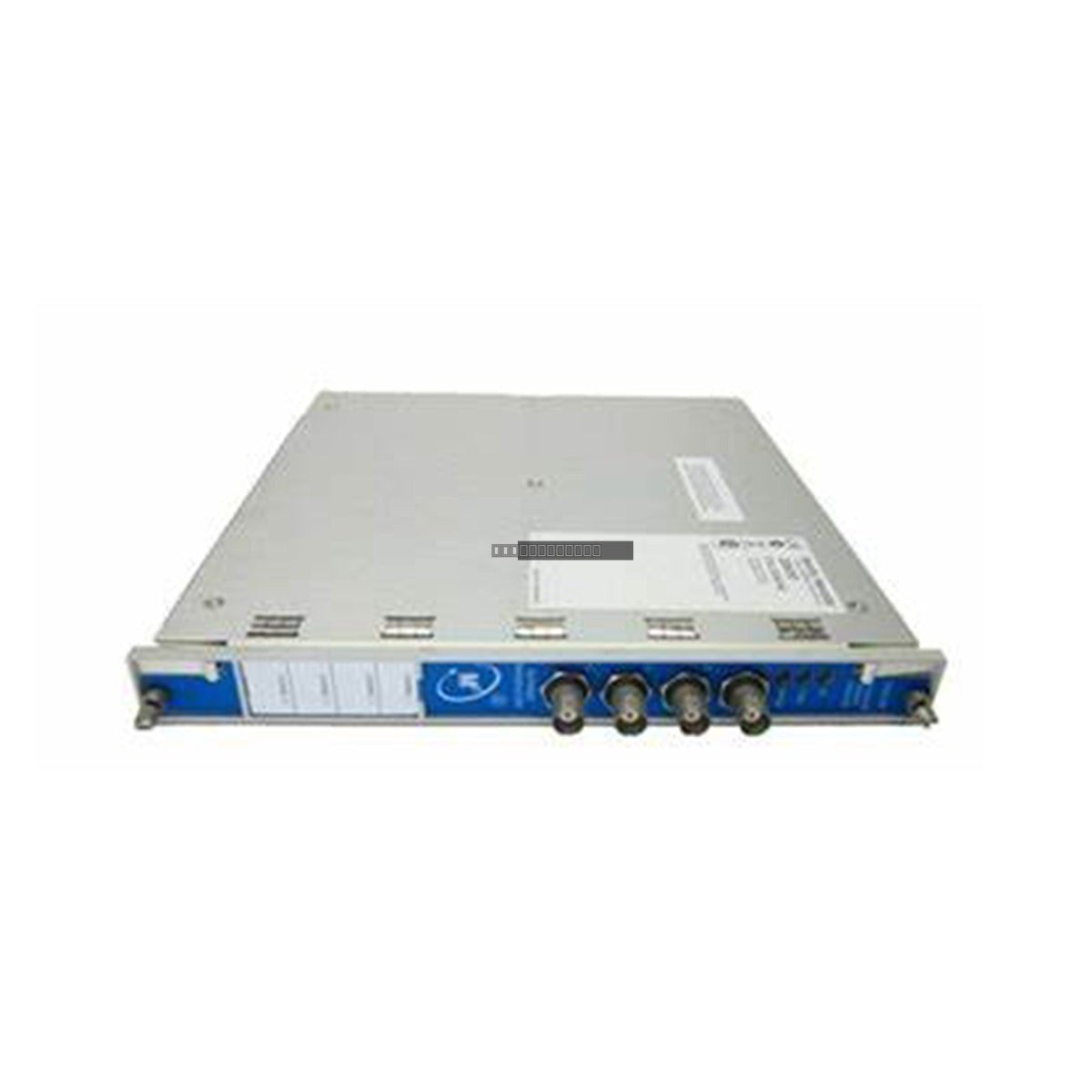

Bently Nevada 143488-01 3500/40 Proximitor Monitor

Availability: 5 left in stock

DescriptionThe Bently Nevada 143488-01 is a critical component of the 3500/40 Proximitor Monitor series, engineered to provide high-precision signal conditioning...

SKU: 143488-01

Manufacturer: Bently Nevada
Product No.: 143488-01
Product Type: Proximitor Monitor Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Bently Nevada 143488-01 is a critical component of the 3500/40 Proximitor Monitor series, engineered to provide high-precision signal conditioning for proximity transducer systems. This module processes input signals from sensors to generate accurate vibration and position measurements, which are then evaluated against user-defined alarm setpoints to ensure the integrity of rotating machinery.

Features

Four independent channels for simultaneous monitoring of proximity probes.
Compatible with standard Bently Nevada proximity transducer systems.
Programmable alert and danger alarm thresholds for each channel.
Full integration with the 3500 rack system, supporting configuration via standard software.
Buffered transducer outputs provided via front-panel coaxial connectors with built-in short-circuit protection.
Supports a wide range of measurements including radial vibration, thrust position, eccentricity, differential expansion, and REBAM.

Applications

This monitor is essential for industrial protection and condition monitoring in rotating equipment, including steam and gas turbines, centrifugal compressors, fans, and pumps. It is designed for environments requiring continuous, reliable machinery diagnostics.

Technical Specifications

Model	143488-01
Series	3500/40
Operating Temperature	-30 to +65 degC
Storage Temperature	-40 to +85 degC
Relative Humidity	95%, non-condensing
Power Consumption	7.7 W typical
Input Impedance	10 kOhm
Sensitivity (Vib/Thrust/Ecc)	100 mV/mil or 200 mV/mil
Sensitivity (Diff Expansion)	10 mV/mil or 20 mV/mil
Sensitivity (REBAM)	1000 mV/mil or 2000 mV/mil

Installation Guidelines

Ensure the 3500 rack power is disconnected before inserting or removing the module.
Use ESD-safe handling procedures to prevent damage to sensitive electronic components.
Verify that the module is fully seated in the rack slot to ensure proper backplane connection.
Route signal cabling away from high-voltage AC lines or high-EMI sources to maintain signal integrity.
Ensure that all coaxial cable connections are secure and properly shielded.

FAQ

Is the 143488-01 compatible with all Bently Nevada proximity probes?
The module is designed for standard Bently Nevada proximity transducer systems. Please verify the specific probe sensitivity requirements against the module's configurable settings.

How do I configure the alarm setpoints?
Alarm thresholds are managed through the Bently Nevada 3500 Rack Configuration Software, which allows for individual channel programming.
