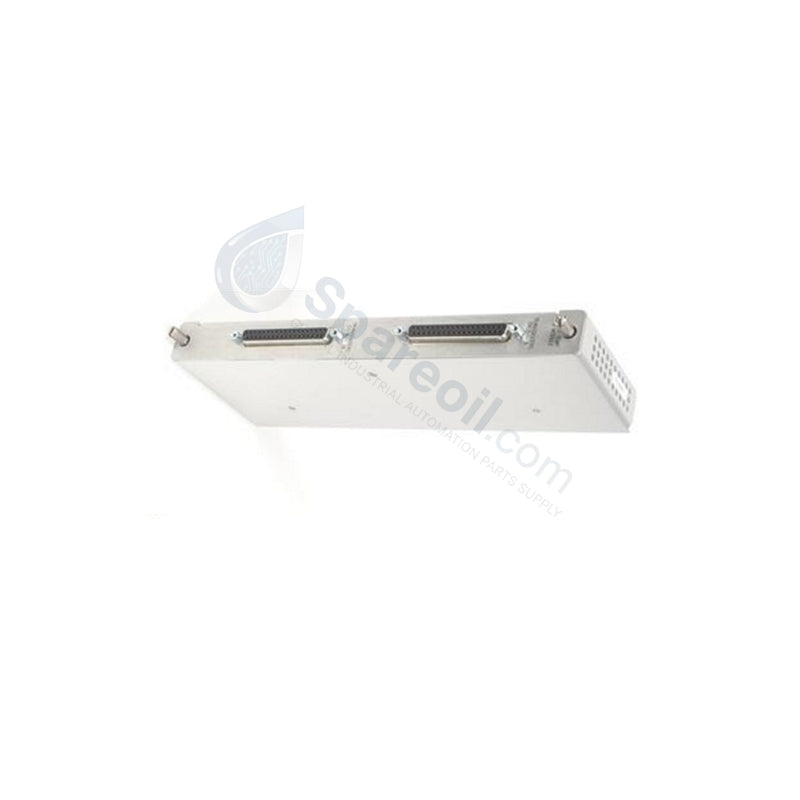

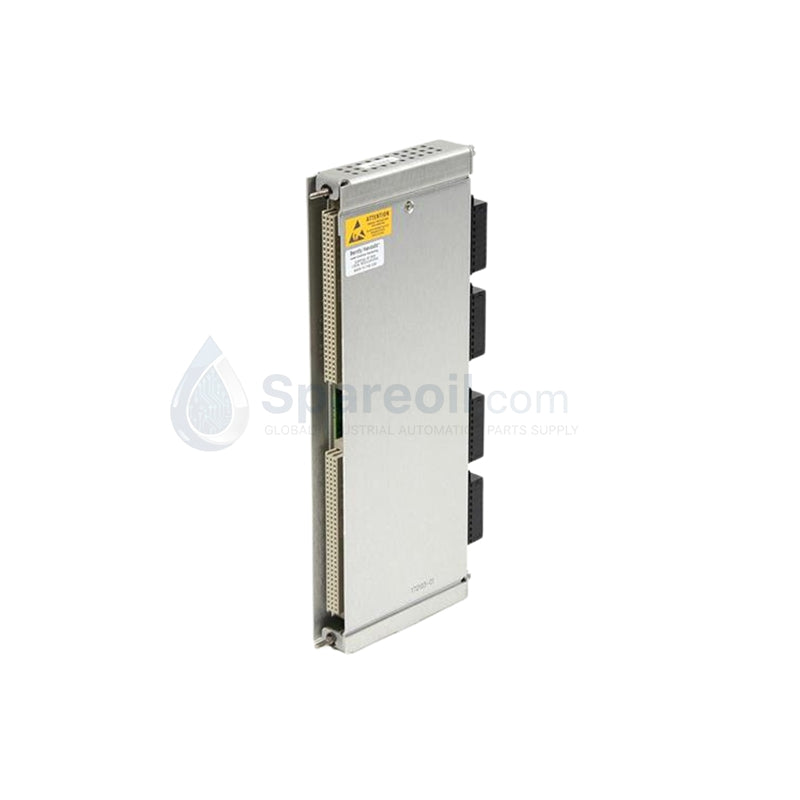

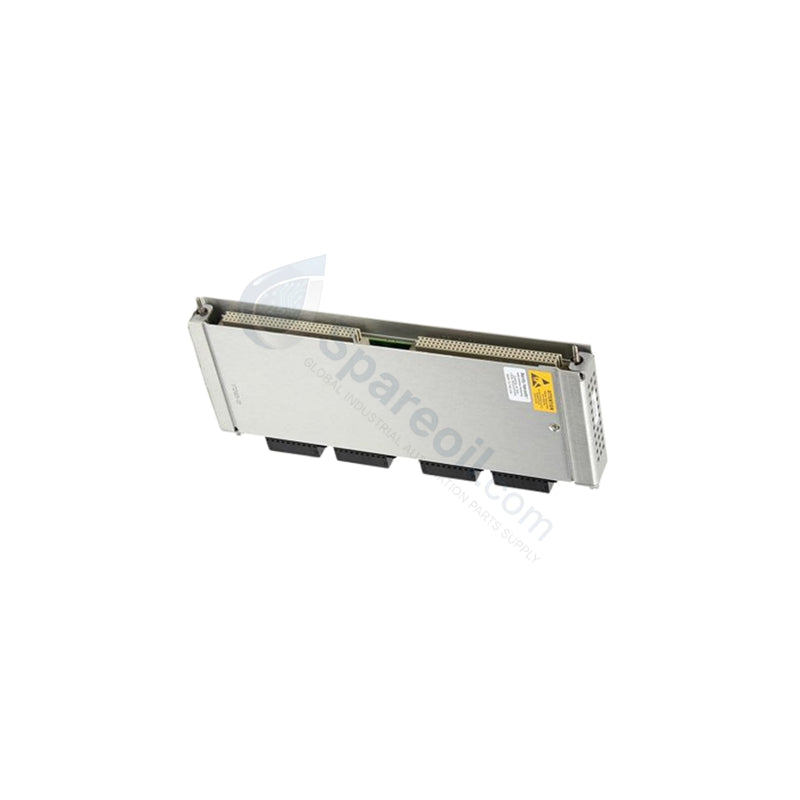

Bently Nevada 3500/65 172103-01 RTD/Isolated TC I/O Module

3500/65 Bently Nevada 172103-01 I/O Module Datasheet Manual

3500/65 Bently Nevada 172103-01 I/O Module Datasheet Manual

Availability: 10 left in stock

Bently Nevada 3500/65 172103-01 Temperature Monitor I/O Module Configured for high-density temperature data acquisition in the 3500 Machinery Protection System,...

SKU: 3500/65 172103-01

Manufacturer: Bently Nevada
Product No.: 3500/65 172103-01
Product Type: Temperature Monitoring Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Bently Nevada 3500/65 172103-01 Temperature Monitor I/O Module

Configured for high-density temperature data acquisition in the 3500 Machinery Protection System, the Bently Nevada 172103-01 (3500/65 Temperature Monitor I/O Module) provides direct physical/electrical execution. This 16-channel hardware component interfaces field-mounted Resistance Temperature Detectors (RTDs) and isolated-tip Thermocouples (TCs) to transmit real-time thermal measurements across the passive rack backplane.

Hardware Specifications

Parameter	Specification
Model	3500/65 (Part Number: 172103-01)
Brand	Bently Nevada (Baker Hughes)
Origin	USA
Weight	0.45 kg
Dimensions	241.3 mm x 24.4 mm x 99.1 mm
Operating Temp	-30 to +65 deg C
Power Consumption	Logic power supplied via main rack backplane
Channel Density	16 independent channels
Input Signal Types	3-wire/4-wire RTDs (Pt100, Cu10, Ni120); Isolated-tip TCs (Types J, K, T, E, R, S, B)
Isolation	500 Vrms galvanic isolation (Channel-to-Chassis)
A/D Conversion	16-bit resolution
Accuracy	Within +-1 deg C typical
Update Rate	All 16 channels updated within 250 ms

Machinery Monitoring & Thermal Signal Interfacing

The 16-channel architecture relies on cold junction compensation (CJC) algorithms managed at the termination block to maintain measurement linearity across varying ambient conditions. Proper signal conditioning requires precise configuration within the rack software interface to scale specific sensor coefficients. To prevent high-frequency electrical noise from corrupting low-voltage thermocouple microvolt readings, the module incorporates internal cross-talk suppression and a 500 Vrms galvanic isolation barrier, preventing ground loop currents from propagating across adjacent channels during continuous scanning cycles.

Frequently Asked Questions

Q: Does the 172103-01 I/O module support hot-swap procedures during active rack operation?

A: No. Rear I/O modules do not support hot-swapping while power is applied to the 3500 backplane. Rack power must be isolated prior to removing or inserting this module to prevent transient electrical spikes from damaging the internal 16-bit A/D conversion circuitry or the front-plane monitor card.

Q: How does the module handle a field sensor open-circuit fault?

A: The module executes continuous internal self-diagnostics. If an open circuit is detected on any of the 16 channels, the specific channel status transitions to NOT OK, inhibiting associated alarm logic to prevent a false machinery trip while broadcasting a fault code to the Rack Interface Module.

Field Installation Guidelines

Chassis Alignment and Mechanical Securing: Slide the module into the designated rear card slots of the 3500 rack. Ensure the multi-pin connector aligns with the front monitor card interface before applying seating pressure. Tighten both fastening screws completely to secure the mechanical ground connection to the chassis frame.
Transducer Cable Shielding: Terminate all RTD and Thermocouple cable shields at the dedicated instrumentation ground rail inside the marshalling enclosure. Do not connect the shields at both ends, as ground potential differences will introduce circulating currents that degrade the 16-bit measurement accuracy.
Wiring Configurations for Noise Mitigation: Route low-voltage signal wires through dedicated, grounded steel conduits. Maintain distinct separation between temperature sensor leads and high-power AC lines or variable frequency drive conductors to prevent capacitive noise injection from disrupting the 250 ms update cycle.
Thermal Management Limits: Verify that cabinet cooling loops maintain localized temperatures below the +65 deg C operating ceiling. Ensure that vertical convection clearances remain unobstructed across the 3500 rack assembly.
