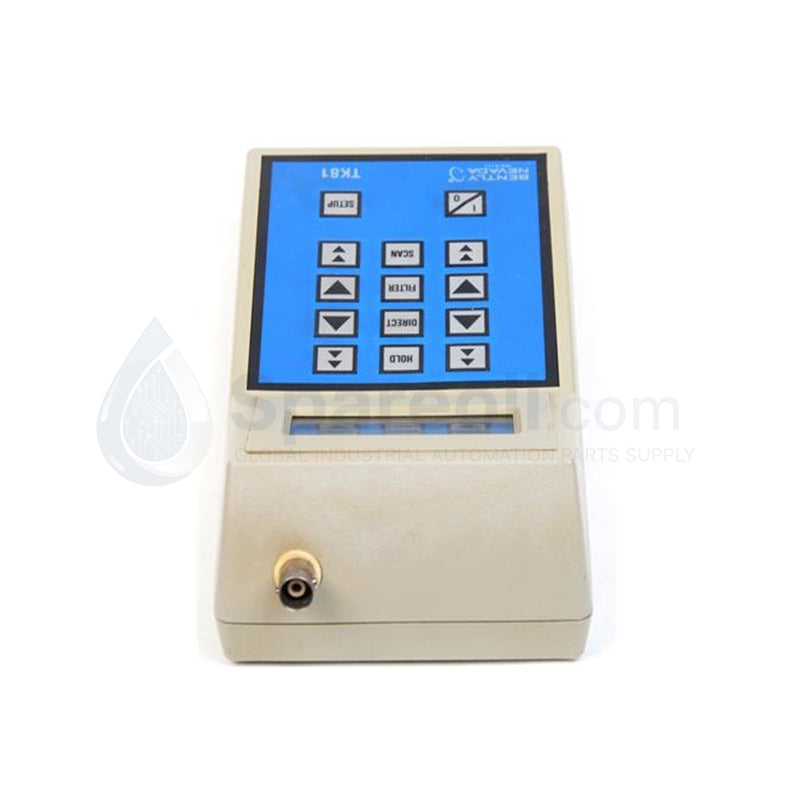

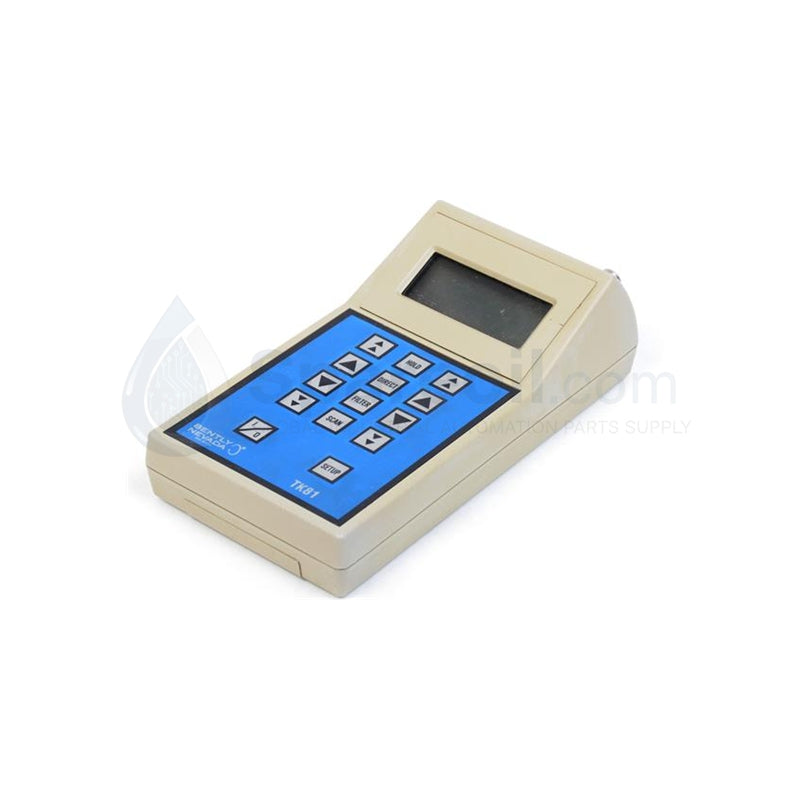

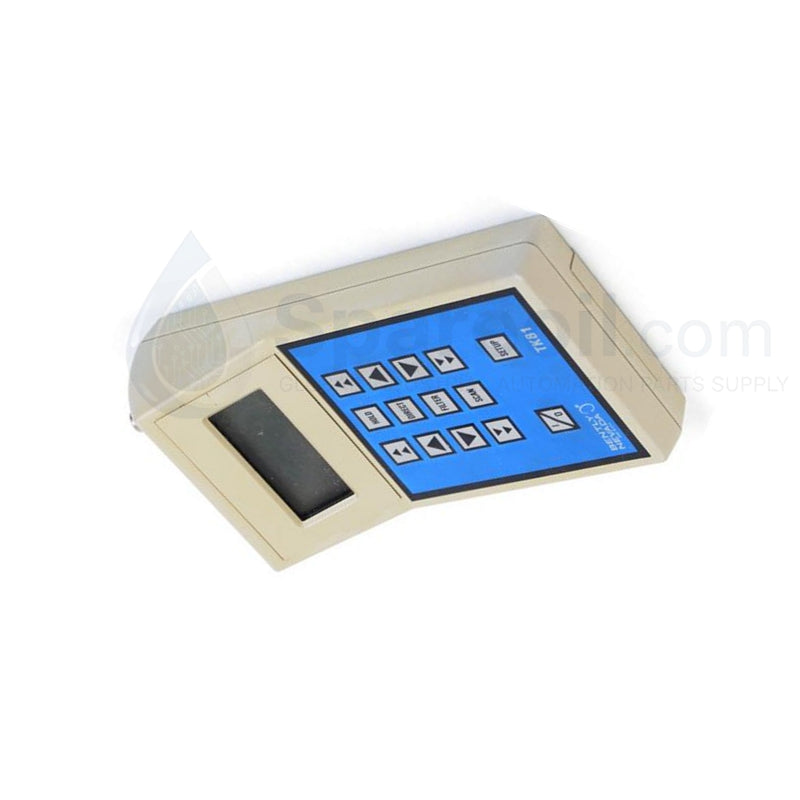

Bently Nevada TK81 80466-02 Vibration Measurement Meter

The Bently Nevada 80466-02, also cataloged as the TK81 Tunable Filter Vibration Measurement Meter, operates as a dedicated hardware component for localized frequency isolation and vibration analysis within rotating machinery diagnostic systems. This portable equipment conditions voltage vectors transmitted from external seismic, velocity, or proximity transducers. It isolates specific mechanical vibration signatures across a selectable frequency spectrum, outputting filtered analog waveforms via buffered terminal paths for localized oscilloscope verification or spectrum processing.

Hardware Specifications

Parameter Specification
Model TK81
Brand Bently Nevada
Origin United States
Weight 1.0 kg
Dimensions 50 cm x 50 cm x 50 cm
Operating Temp 0 to 50 deg C
Power Consumption 15 W maximum (220 VAC power requirements)
Part Number 80466-02
Input Impedance 95 kohm
Display Type 4-line x 16-character backlit LCD
Reference Output 30 Hz calibration signal
Measurement Units Metric and English (Velocity, Displacement, Acceleration)
Signal Interface Buffered analog output terminal
Enclosure Rating Industrial-grade robust housing

Eddy-Current Probe Scaling and Rotor Dynamics Calibration

The measurement electronics utilize internal conversion circuits that correspond to standard eddy-current probe scaling configurations to analyze dynamic shaft behaviors. During data collection loops, the component validates the gap voltage verification parameters against a -10 VDC target baseline to confirm the linear positioning of proxymitor sensors relative to the shaft surface. This verification sequence suppresses low-frequency electrical runout vectors, allowing precision observation of rotor dynamics profiles. Internal filtering arrays maintain cross-talk suppression metrics between adjacent orthogonal transducers, preventing signal overlapping when mapping orbital vibration paths on multi-bearing turbomachinery trains.

Frequently Asked Questions

Q: How is the internal measurement calibration verified while performing field diagnostics away from a laboratory benchmark?

A: The hardware integrates a fixed 30 Hz reference output frequency circuit. Technicians route this stable analog signal internally or via external jumpers to the input processing channels to verify the accuracy of the transducer scaling matrices and filter attenuation parameters prior to machinery inspection.

Q: What are the electrical isolation constraints when linking the buffered output terminal to external oscilloscopes?

A: The buffered signal output path features internal short-circuit protection circuits that isolate the core measurement processing unit from external electrical faults. Connecting a grounded oscilloscope or digital signal analyzer to the buffered terminal does not distort the parallel data stream or alter the calibration parameters of the input loops.

Q: Can this instrument interpret raw data directly from eddy-current proximity probes without external drivers?

A: No. The internal 95 kohm input impedance is designed to interface with buffered outputs from external Proximitor sensors or vibration transmitters. It requires pre-conditioned voltage or current signals from an intermediate driver module to perform frequency filtering and peak-to-peak displacement calculations.

Field Installation Guidelines

  • Inspect the physical interface cable pins for contamination or deformation prior to coupling external transducers to the primary signal input port.
  • Verify the gap voltage validation parameters read within the nominal linear window before initiating frequency filtering sweeps to prevent waveform clipping.
  • Route the flexible transducer leads away from local high-voltage AC electric motor casings to minimize the introduction of electromagnetic line noise.
  • Maintain complete axial alignment when applying handheld magnetic transducer blocks to the machine bearing housing to avoid transverse signal errors.
  • Secure the 220 VAC charging or power line to an isolated, surge-protected outlet grid when operating the instrument for extended continuous data logging periods.
