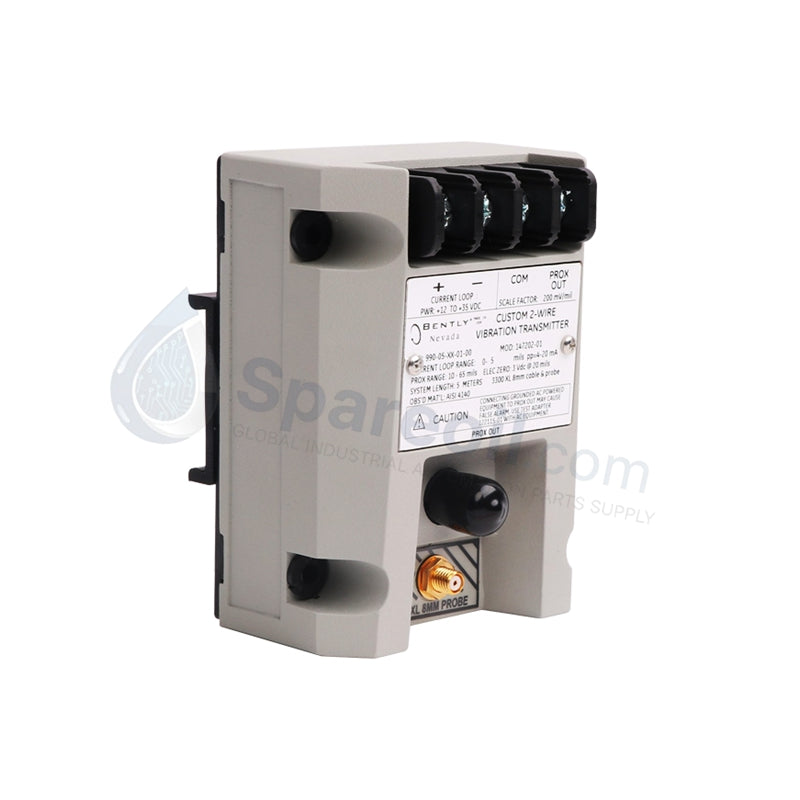

Bently Nevada 990-04-XX-01-00 Vibration Transmitter

The Bently Nevada 990-04-XX-01-00, also cataloged as the 147202-01 Vibration Transmitter, operates as a dedicated hardware component for converting eddy-current sensor signals into linearized 4-20 mA outputs within machinery monitoring platforms.

Hardware Specifications

Parameter Specification
Model 990-04-XX-01-00 (147202-01)
Brand Bently Nevada
Origin Consult Documentation
Weight 0.54 kg
Dimensions 7.6 cm x 10.2 cm x 6.3 cm
Operating Temp -35 deg C to +85 deg C
Power Consumption 12 to 35 V DC (Loop-powered)
Output Signal 4-20 mA DC
Frequency Response 5 Hz to 6,000 Hz

Mechanical Monitoring and TSI Characteristics

The Bently Nevada 990 series transmitter performs real-time eddy-current probe scaling to ensure vibration amplitudes align with established machine health baselines. Operators must perform gap voltage validation, targeting -10 VDC at the probe interface, to guarantee linear sensor performance. The transmitter circuitry provides cross-talk suppression, which mitigates interference between adjacent probes in dense installations. When monitoring rotating equipment, the device maintains data fidelity relevant to rotor dynamics, supporting detection of sub-synchronous or synchronous vibration components.

Frequently Asked Questions

Q: Does the transmitter require a separate Proximitor for signal conditioning? A: No, the 990 transmitter integrates the signal processing functions typically found in a standalone Proximitor, allowing for a direct sensor-to-control-system interface.

Q: How does the system length affect the configuration? A: The transmitter supports configurable 5 m or 7 m total system lengths, which the user must specify to ensure proper impedance matching and signal calibration.

Field Installation Guidelines

  1. Inspect the 3300 NSv proximity probe tip and extension cables for physical damage before connecting them to the transmitter.
  2. Mount the transmitter housing on a standard DIN-rail or bulkhead surface, ensuring the enclosure remains securely grounded to minimize electrical noise.
  3. Verify the loop-powered 12 to 35 V DC supply voltage at the transmitter terminals prior to finalizing the 4-20 mA loop connection.
  4. Utilize a digital multimeter to confirm the probe gap voltage matches the -10 VDC target before initializing the full-scale vibration monitoring sequence.
