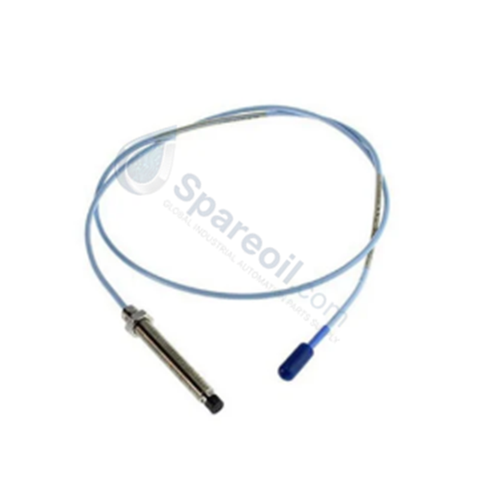

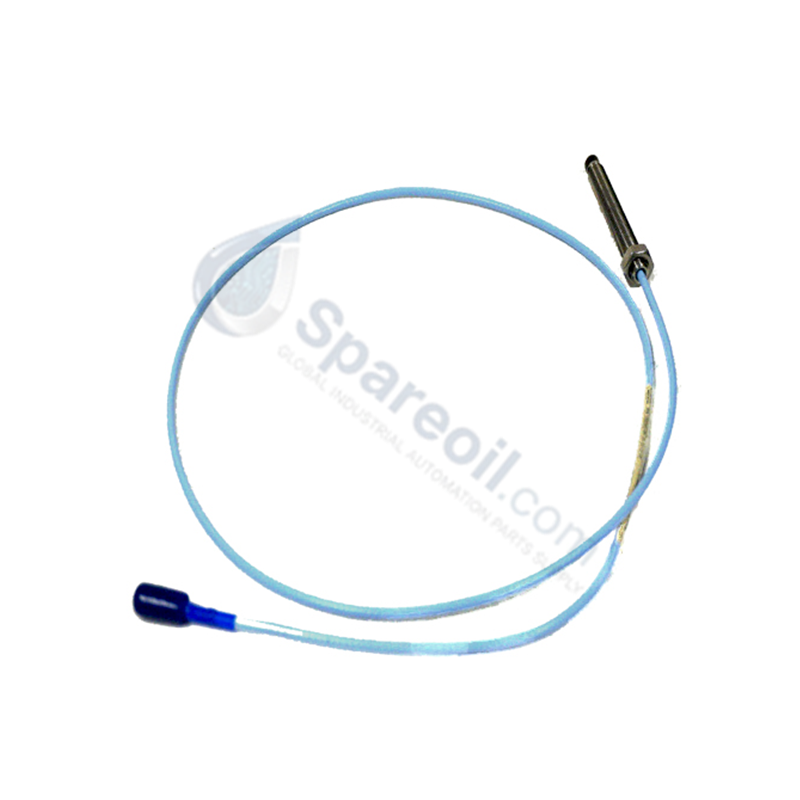

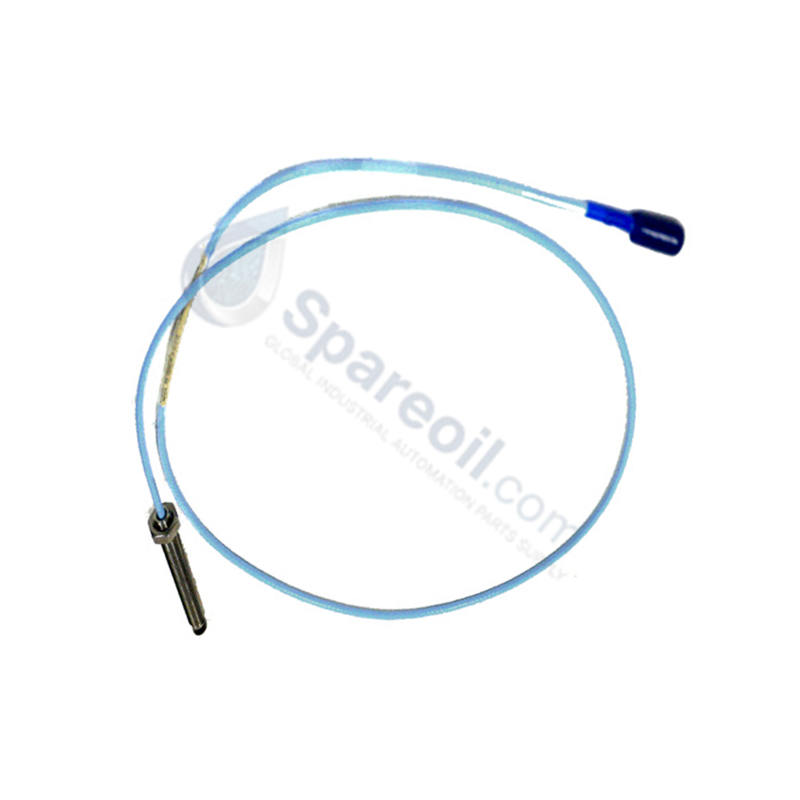

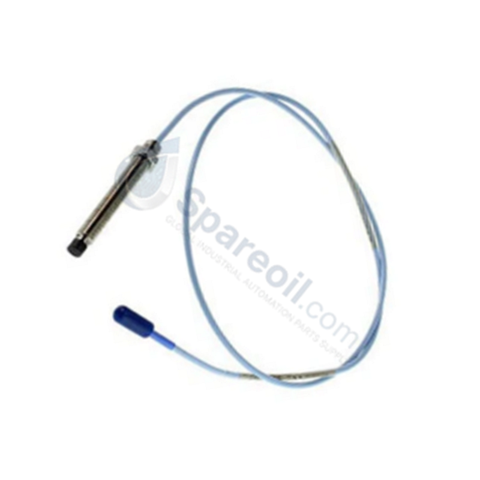

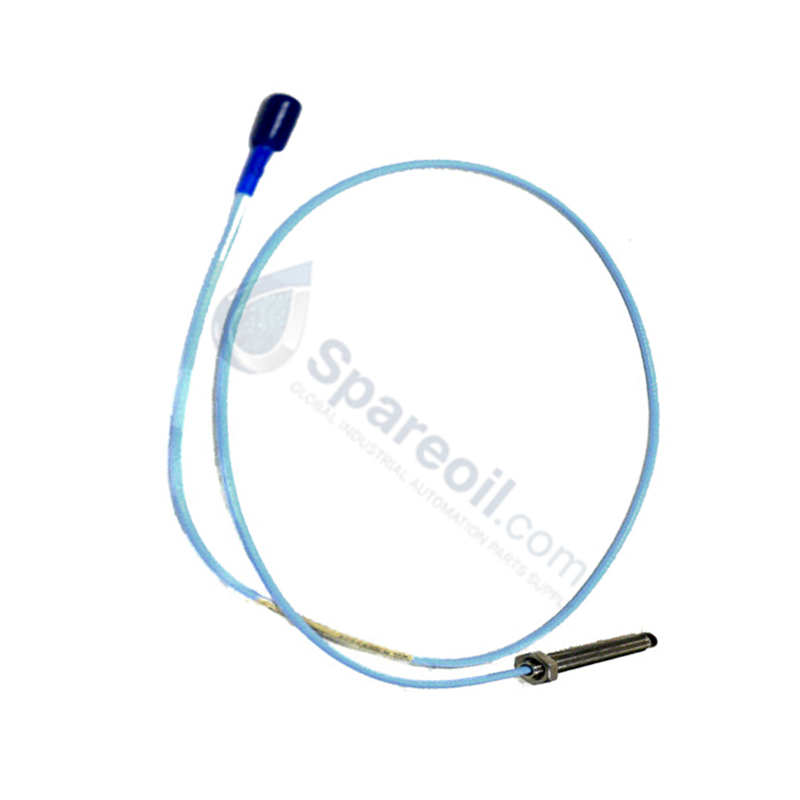

The Bently Nevada 330103-00-06-10-02-00, also cataloged as the 330103 Proximity Probe, operates as a dedicated hardware component for eddy-current displacement and vibration sensing within 3300 XL Proximity Transducer System platforms.

Suffix Breakdown & Model Matrix

Option Slot Configured Code Technical Definition
Unthreaded Length Option 00 0 mm
Overall Case Length Option 06 60 mm
Total Length Option 10 1.0 meter (3.3 feet)
Connector and Cable Type Option 02 Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option 00 Not required

Hardware Specifications

Parameter Specification
Model 330103-00-06-10-02-00
Brand Bently Nevada
Origin United States
Probe Diameter 8 mm
Unthreaded Length 0 mm
Overall Case Length 60 mm
Total Length 1.0 meter (3.3 feet)
Connector Type Miniature coaxial ClickLoc connector
Cable Type Standard cable
Operating Temp -51 to +177 deg C
Power Consumption Passive component (driven by external Proximitor Sensor)
Weight 0.25 kg
Dimensions M10 x 1 threaded body

Eddy-Current Probe Scaling and Rotor Dynamics

The 3300 XL 8 mm proximity probe utilizes eddy-current probe scaling to convert physical gap distances into proportional electrical voltage. When paired with a compatible 3300 XL Proximitor Sensor, the system allows precise gap voltage validation with a nominal target of -10 VDC at the center of the linear range. This electrical configuration minimizes cross-talk suppression issues when multiple probes are installed in close physical proximity along the machine casing. The resulting high-frequency signal output enables accurate profiling of rotor dynamics, including dynamic shaft vibration, position, and axial thermal growth.

Frequently Asked Questions

Q: What is the primary function of gap voltage validation during installation?

A: Gap voltage validation ensures that the physical distance between the probe tip and the target shaft is mechanically positioned at the exact center of the linear operational range, targeting a nominal output of -10 VDC from the Proximitor Sensor.

Q: How is cross-talk suppression maintained when deploying multiple 330103 units?

A: Cross-talk suppression requires adhering to strict minimum center-to-center mechanical spacing guidelines between adjacent probe heads to prevent the high-frequency eddy-current magnetic fields from overlapping and introducing measurement artifacts into the rotor dynamics data.

Q: Can the 1.0-meter integrated cable be shortened or spliced in the field?

A: No. The physical length of the coaxial cable is a calibrated constituent of the internal tuned RF circuit. Splicing or modifying the length changes the system impedance, nullifies factory calibration curves, and disrupts the eddy-current probe scaling accuracy.

Field Installation Guidelines

  • Torque Limits: Apply correct engineering torque when mounting the M10 x 1 threaded body into the machine case. Exceeding recommended industrial limits can induce mechanical stresses and distort internal sensor coils.
  • Coaxial Shield Integrity: The miniature coaxial ClickLoc connector must be clean and free of oil or water. Utilize appropriate weatherproofing sleeves or self-fusing insulation tape to secure the connection inside the local terminal box.
  • Cable Bend Radius: Ensure that the standard extension cable routes with a bend radius that strictly respects industrial routing limitations. Sharp creases disrupt internal shielding characteristics and induce signaling noise.
  • Target Material Preparation: The observed shaft surface must be smooth, free of mechanical scoring, and chemically consistent to prevent localized electrical runout from degrading the rotor dynamics signal.
