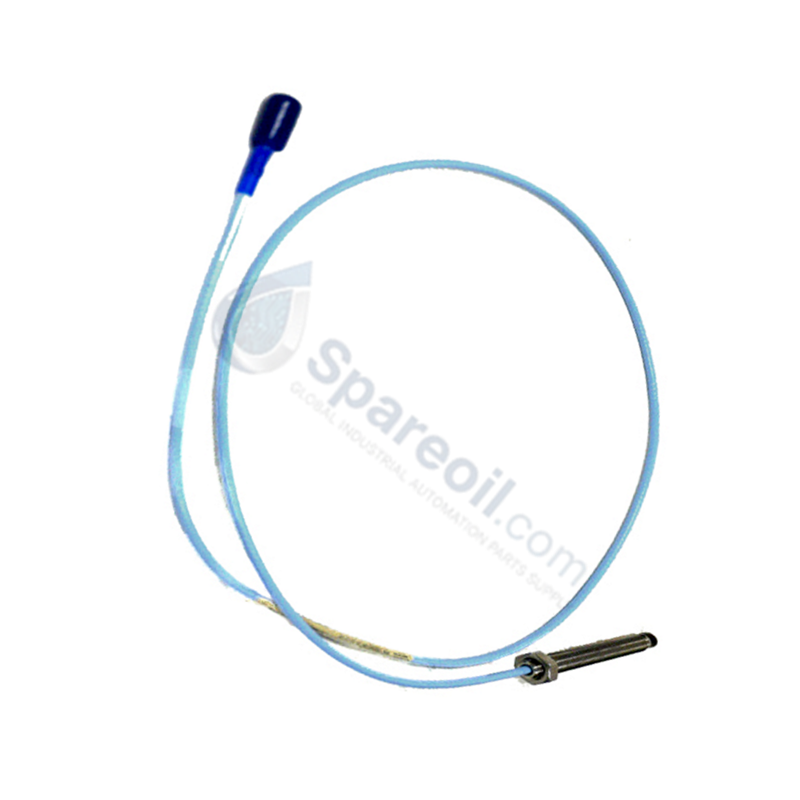

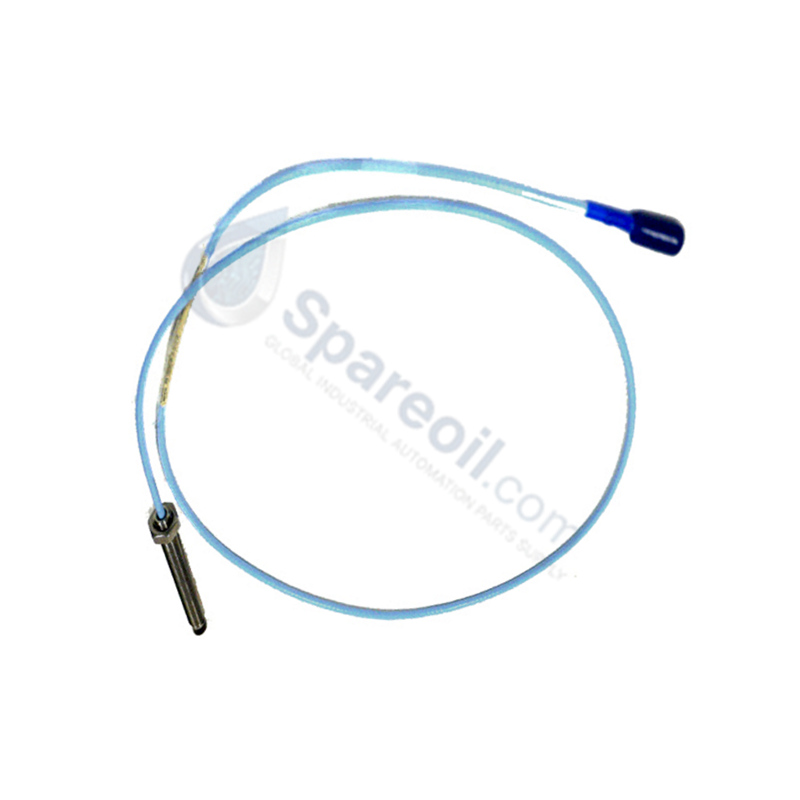

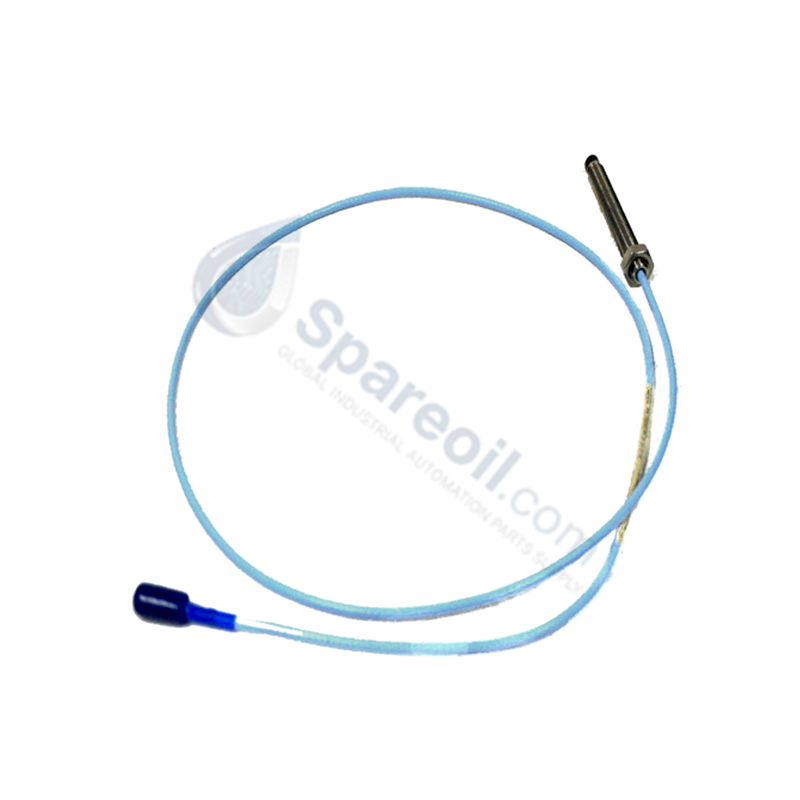

Bently Nevada 330103-00-10-10-02-CN 3300 XL Proximity Probes

Bently Nevada 330103-00-10-10-02-CN 3300 XL Proximity Probes

Availability: 10 left in stock

The Bently Nevada 330103-00-10-10-02-CN, also cataloged as the 330103 Proximity Probe, operates as a dedicated hardware component for eddy-current displacement...

SKU: 330103-00-10-10-02-CN

Manufacturer: Bently Nevada
Product No.: 330103-00-10-10-02-CN
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Bently Nevada 330103-00-10-10-02-CN, also cataloged as the 330103 Proximity Probe, operates as a dedicated hardware component for eddy-current displacement and vibration sensing within 3300 XL Proximity Transducer System platforms.

Suffix Breakdown & Model Matrix

Option Slot	Configured Code	Technical Definition
Unthreaded Length Option	00	0 mm
Overall Case Length Option	10	100 mm
Total Length Option	10	1.0 meter (3.3 feet)
Connector and Cable-Type Option	02	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	CN	Approvals country specific

Hardware Specifications

Parameter	Specification
Model	330103-00-10-10-02-CN
Brand	Bently Nevada
Origin	U.S.A.
Probe Tip Diameter	8 mm
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Pressure Sealing	Viton O-ring differential pressure tip-to-case seal
Unthreaded Length	0 mm
Overall Case Length	100 mm
Total Length	1.0 meter (3.3 feet)
Connector Type	Miniature coaxial ClickLoc connector
Cable Type	Standard cable
Operating Temp	-51 to +177 deg C
Power Consumption	Passive hardware element driven by Proximitor Sensor
Dimensions	M10 x 1 threaded body
Weight	0.323 kg (Net), 1.5 kg (Shipping Weight)

Eddy-Current Probe Scaling and Rotor Dynamics

The 3300 XL 8 mm proximity probe utilizes eddy-current probe scaling to convert physical gap distances into proportional electrical voltage. When paired with a compatible 3300 XL Proximitor Sensor, the system allows precise gap voltage validation with a nominal target of -10 VDC at the center of the linear range. This electrical configuration minimizes cross-talk suppression issues when multiple probes are installed in close physical proximity along the machine casing. The resulting high-frequency signal output enables accurate profiling of rotor dynamics, including dynamic shaft vibration, position, and axial thermal growth.

Frequently Asked Questions

Q: How is the gap voltage validation target verified under static machine conditions?

A: Connect a digital multimeter to the terminal outputs of the associated Proximitor Sensor. Rotate the probe body along the M10 x 1 threads until the multimeter registers the standard -10 VDC target baseline, indicating the probe is positioned at the exact electrical center of the eddy-current probe scaling.

Q: What are the electrical consequences of field-shortening the 1.0 meter integrated standard cable?

A: Trimming or splicing the integrated coaxial cable modifies the calibrated high-frequency impedance of the RF loop circuit. This change alters the factory-tuned eddy-current probe scaling profile and invalidates any subsequent rotor dynamics monitoring metrics.

Field Installation Guidelines

Mechanical Torque Constraints: Secure the AISI 303/304 stainless steel probe body into the bracket using a calibrated torque tool. Do not exceed standard engineering torque limits for 8 mm tips to prevent mechanical failure of the PPS tip or internal coil assembly.
Coaxial Connector Isolation: Ensure the miniature coaxial ClickLoc connection point is clean and completely free of oil, moisture, or particulate matter. Seal the junction using specialized connector boots or self-fusing electrical insulation tape.
Cable Bend Curvature Limits: Route the integrated standard cable along the machine structures while respecting minimum bend radius regulations. Avoid sharp kinks or compression points that could degrade the internal RF shielding layers.
Target Track Surface Condition: Verify that the shaft target track area is mechanically smooth and compositionally uniform to minimize electrical runout signals from corrupting the dynamic vibration log.
