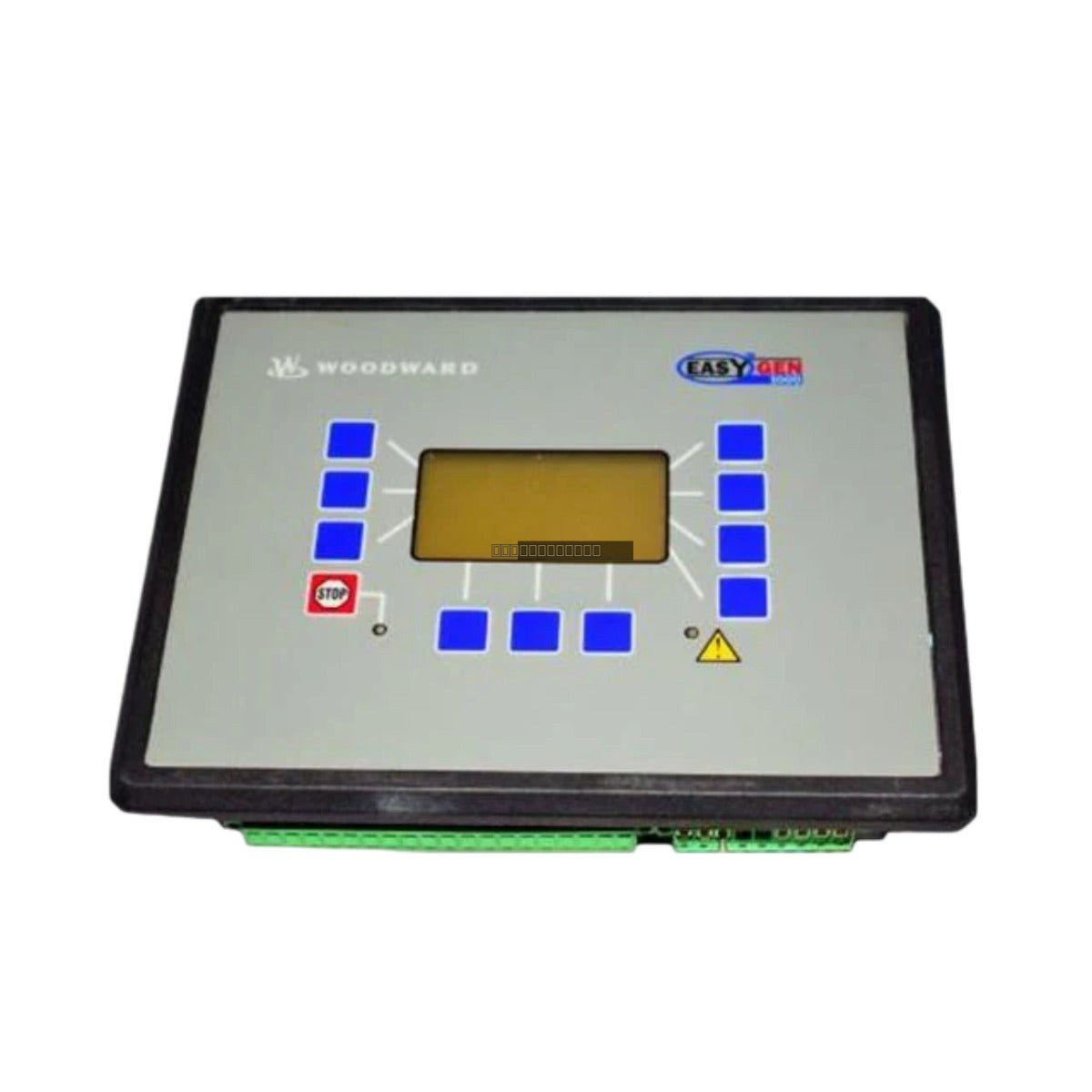

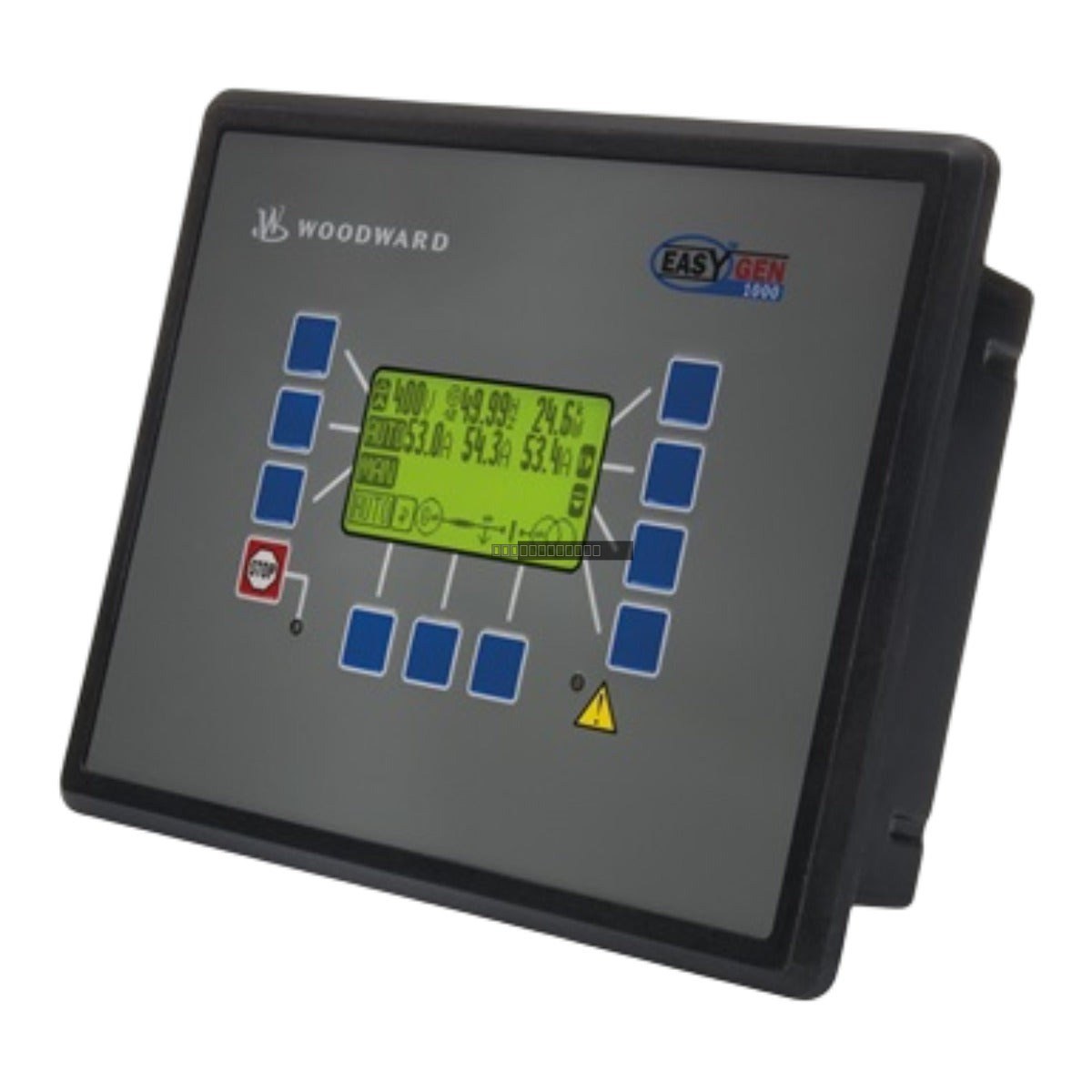

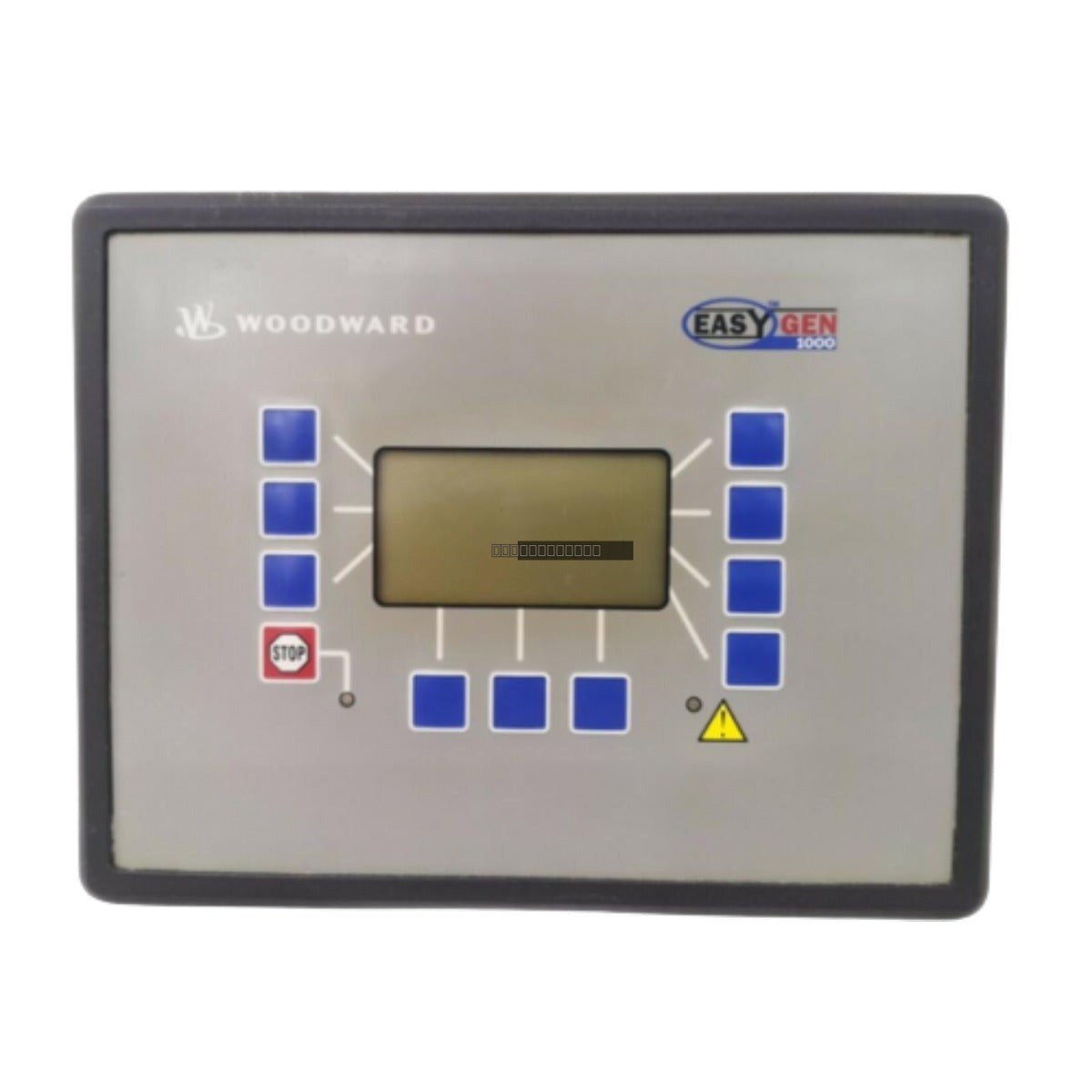

Woodward ESAYGEN-1000 Generator Control Interface

Woodward ESAYGEN-1000 Single Unit Generator Control Interface

Availability: 5 left in stock

DescriptionThe Woodward ESAYGEN-1000 is a robust, microprocessor-based control interface module designed specifically for the management of single-unit generator sets. This...

SKU: ESAYGEN-1000

Manufacturer: Woodward
Product No.: ESAYGEN-1000
Product Type: Generator Control Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1820g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Woodward ESAYGEN-1000 is a robust, microprocessor-based control interface module designed specifically for the management of single-unit generator sets. This controller integrates comprehensive engine and generator monitoring with advanced protection logic to ensure reliable power delivery in critical applications. By automating complex sequencing and synchronization tasks, the ESAYGEN-1000 provides high-resolution data visualization and real-time fault detection, significantly reducing unplanned system downtime and optimizing the operational lifespan of the prime mover.

Features

Integrated engine and generator monitoring with sophisticated protection logic.
High-performance microprocessor for simultaneous multi-phase electrical and engine telemetry processing.
Native CAN bus (J1939) support for seamless communication with engine ECUs.
RS-485 serial communication interface for remote SCADA and monitoring system integration.
Programmable I/O to support diverse sensor configurations, including oil pressure, coolant temperature, and fuel levels.
Ruggedized high-impact polycarbonate housing suitable for high-vibration engine room environments.

Applications

The ESAYGEN-1000 is widely deployed in various industrial power applications, including:

Decentralized power plants and distributed energy systems.
Emergency standby and backup power systems for hospitals and data centers.
Remote power generation for mining and oil and gas operations.
Prime power applications requiring stable voltage and frequency regulation.

Technical Specifications

Model	ESAYGEN-1000
Brand	Woodward
Controller Type	Genset Control Interface
DC Supply Voltage	12/24 VDC (8 to 40 VDC continuous)
Power Consumption	15 W (Maximum)
Generator Voltage Input	100 to 480 VAC
Current Sensing	5 A (Secondary)
Operating Temperature	-20 to 70 deg C

Installation Guidelines

Ensure the controller is mounted in a clean, dry, and vibration-dampened environment, typically within a control panel or switchgear cabinet.
Maintain proper clearance around the unit to allow for adequate ventilation and heat dissipation.
Use shielded twisted-pair cabling for all communication lines (CAN/RS-485) to minimize EMI interference.
Ensure a solid, low-impedance connection to the system ground to protect against electrical noise and transients.
Verify that all DC supply wiring is fused appropriately according to local electrical codes.
Always power down the unit before connecting or disconnecting any I/O wiring or communication cables.

FAQ

Is the ESAYGEN-1000 compatible with different engine types?

Yes, the unit features programmable I/O and supports J1939 CAN bus communication, allowing it to interface with a wide range of electronic engine control units (ECUs) and traditional sensor-based engine monitoring systems.

What is the primary communication protocol for remote monitoring?

The module utilizes an RS-485 serial interface, which is standard for integration with SCADA systems and remote monitoring software.
