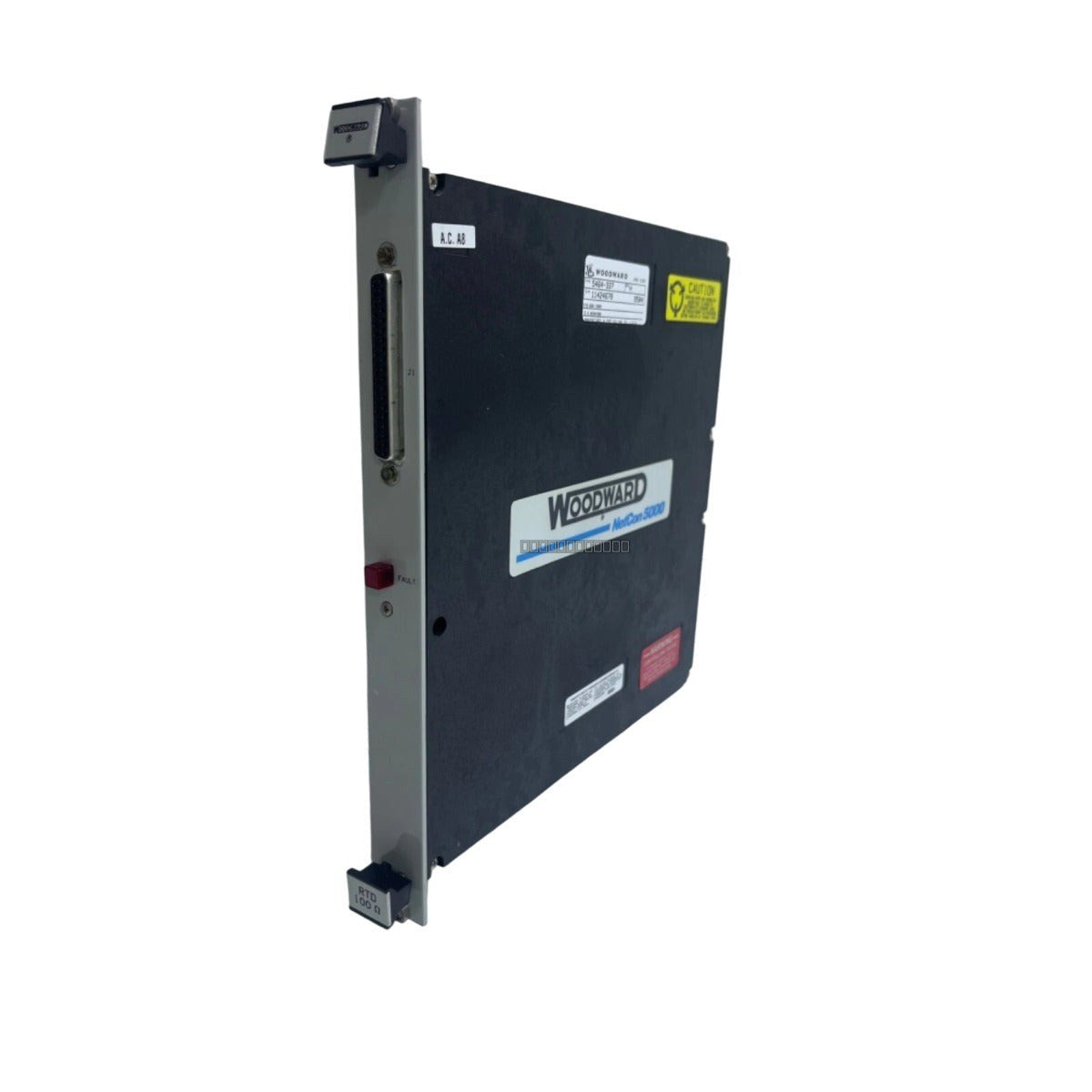

Woodward 5464-544 Actuator Control Module

Availability: 1 left in stock

DescriptionThe Woodward 5464-544 is a high-precision Actuator Control Module designed for industrial control applications. This module provides four independent channels...

SKU: 5464-544

Manufacturer: Woodward
Product No.: 5464-544
Product Type: Actuator Control Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1040g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Woodward 5464-544 is a high-precision Actuator Control Module designed for industrial control applications. This module provides four independent channels capable of delivering precise current outputs to drive actuators in critical control loops. Engineered for reliability, it ensures stable performance in demanding environments, making it suitable for power generation, turbine control, and process automation systems.

Features

Four independent output channels for multi-loop actuator control.
Output current range of 0.0 to 200.0 mA.
High accuracy performance with ±0.1 % FSR at 25 degC.
Integrated channel-to-bus isolation rated at 500 V dc.
Compact design optimized for standard industrial control cabinets.

Technical Specifications

Product Model	5464-544
Manufacturer	Woodward
Supply Voltage	24 V dc
Module Consumption	60 mA @ 24 V
Output Range	0.0–200.0 mA
Accuracy	±0.1 % FSR @ 25 degC
Isolation	500 V dc channel-to-bus
Operating Temperature	0 to +60 degC
Storage Temperature	-40 to +85 degC
Humidity	5–95 % RH non-condensing

Installation Guidelines

Ensure the control system is powered down before installing or removing the module to prevent electrical damage.
Mount the module in a clean, dry, and vibration-free environment within an industrial enclosure.
Maintain proper ventilation to ensure operating temperatures remain within the specified 0 to +60 degC range.
Use shielded cabling for actuator connections to minimize electromagnetic interference (EMI).
Ensure proper grounding of the module chassis to the system common ground to maintain signal integrity and safety.
Handle with standard ESD precautions to protect internal electronic components.

FAQ

What is the primary function of the Woodward 5464-544?

This module serves as a 4-channel actuator control unit, providing precise current output (0–200 mA) to regulate actuators in industrial automation and control systems.

What is the required supply voltage for this module?

The module operates on a 24 V dc power supply with a consumption of 60 mA.

Is this module isolated?

Yes, the 5464-544 features 500 V dc channel-to-bus isolation to protect the control circuitry from potential surges or ground loops in the field wiring.
