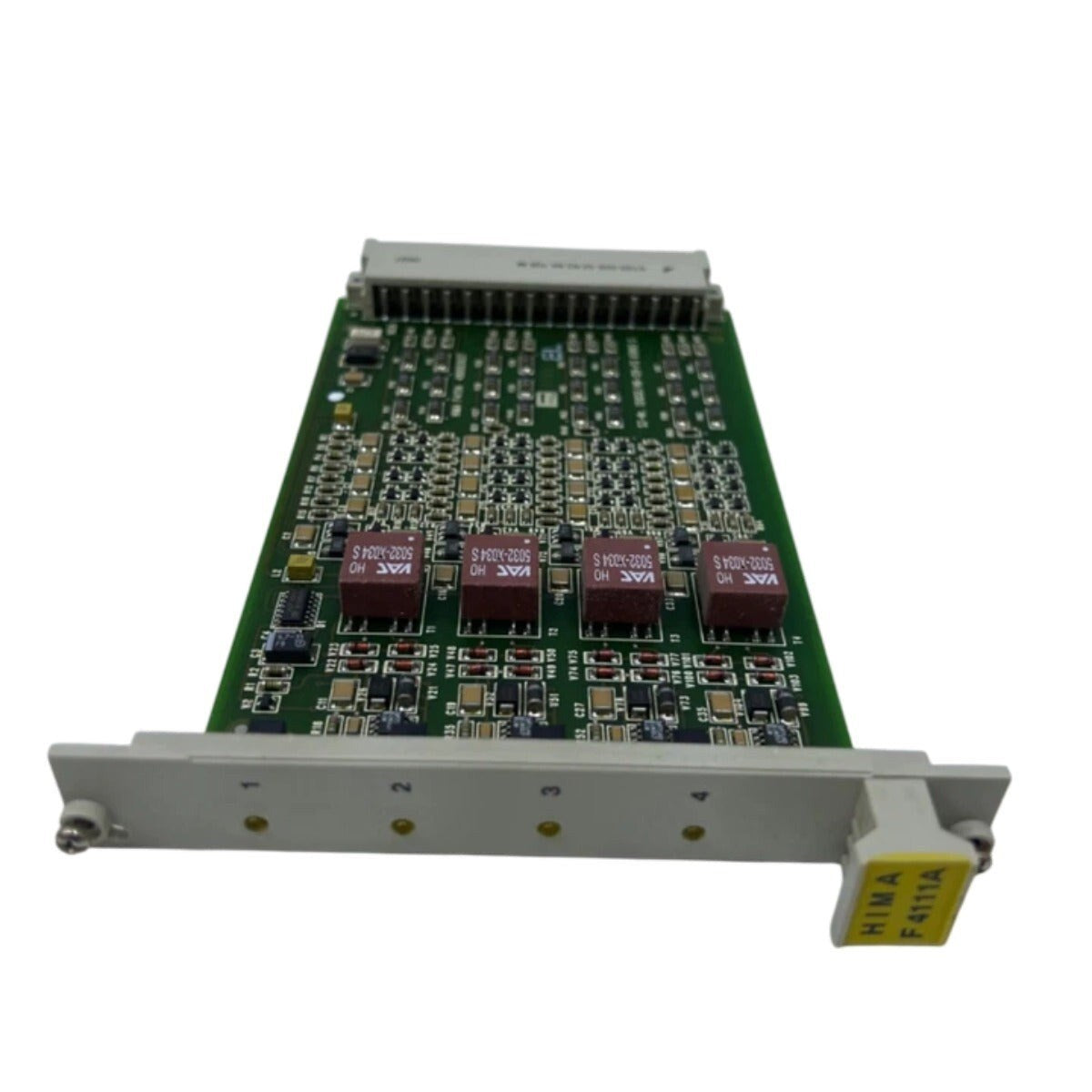

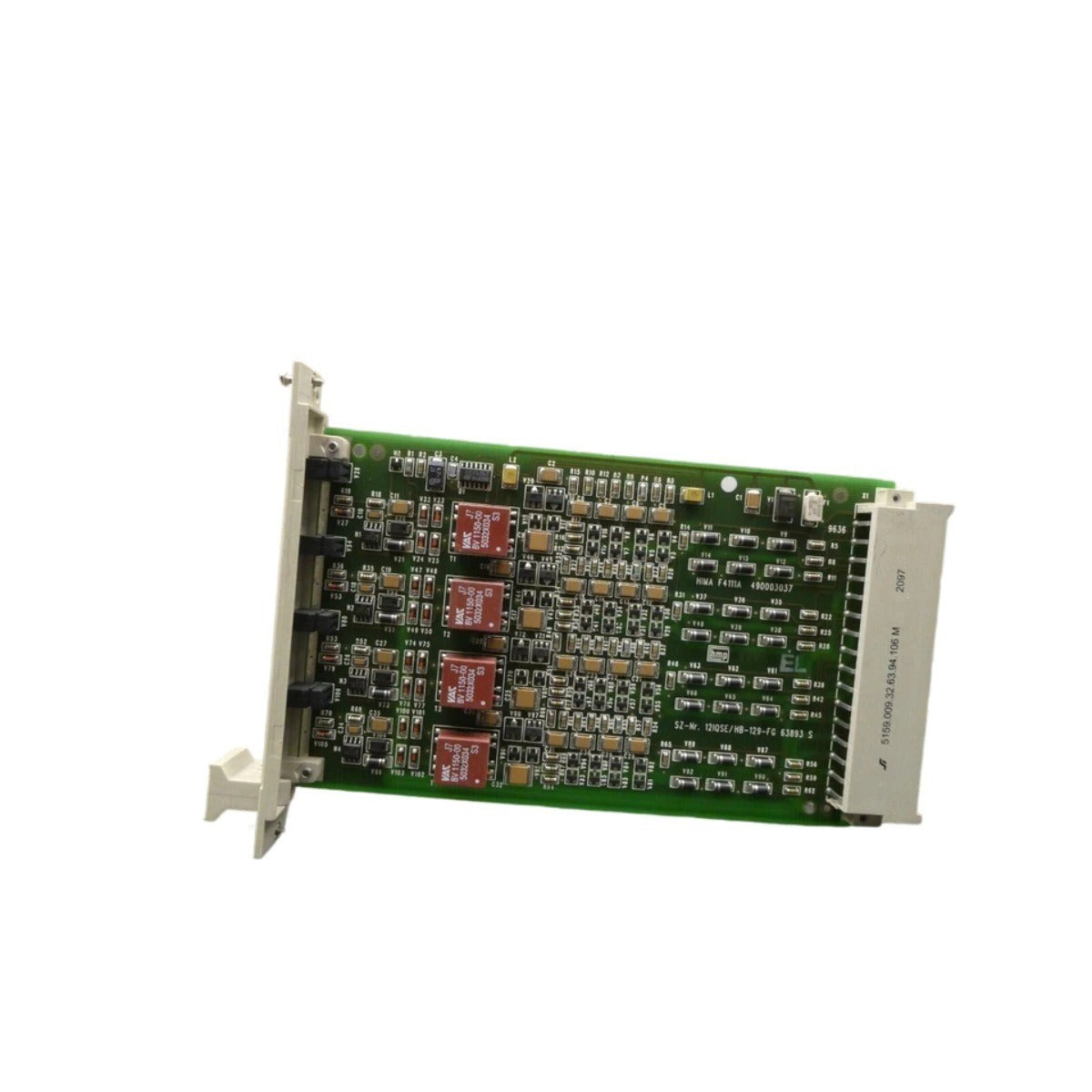

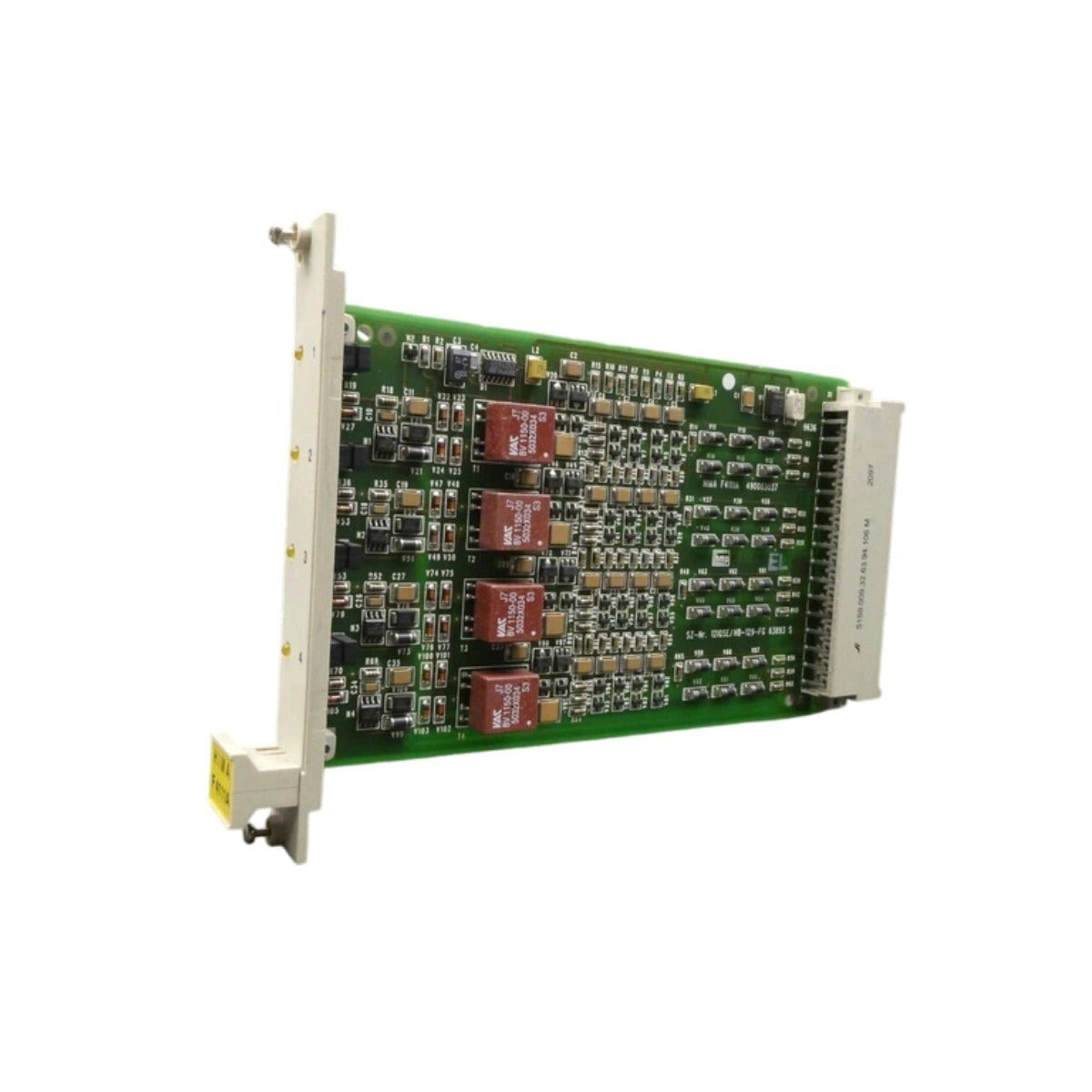

HIMA F 4111A Planar-F Fail-Safe AND Gate Module

Availability: 10 left in stock

DescriptionThe HIMA F 4111A is a 4-fold fail-safe AND gate module designed for the Planar-F safety system architecture. This hard-wired...

SKU: F 4111A

Manufacturer: HIMA
Product No.: F 4111A
Product Type: Safety Logic Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 160g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The HIMA F 4111A is a 4-fold fail-safe AND gate module designed for the Planar-F safety system architecture. This hard-wired safety controller component executes deterministic logical AND operations for high-integrity signaling in safety-critical applications. By providing hardware-based logic, the F 4111A ensures that specific safety conditions are met before allowing process execution, effectively reducing the risk of spurious trips and system downtime in demanding industrial environments.

Features

Four independent, hard-wired AND gate circuits for high-integrity safety logic.
Fail-safe design: defaults to a de-energized state upon signal loss or internal component failure.
Immune to software-based vulnerabilities and EMI-induced logic errors.
Designed for integration within the robust HIMA Planar-F safety system.
Reliable operation in high-stakes emergency shutdown (ESD) applications.

Applications

The F 4111A is primarily utilized in safety-critical sectors where deterministic logic is required, including:

Offshore drilling platforms and marine safety systems.
Petrochemical refineries and hazardous chemical processing plants.
Emergency Shutdown (ESD) systems requiring physical-layer protection.
Safety-instrumented systems (SIS) where software-independent logic is mandated.

Technical Specifications

Model	F 4111A
Brand	HIMA
Series	Planar-F
Module Type	4-Fold Fail-Safe AND Gate
Operating Voltage	24 VDC
Power Consumption	4.5 W
Operating Temperature	0 to 60 degC

Installation Guidelines

Ensure the system power is completely disconnected before inserting or removing the module from the Planar-F backplane.
Handle the module using ESD-safe practices to prevent damage to internal components.
Verify that all field wiring is properly secured to the backplane terminals to maintain signal integrity.
Ensure adequate ventilation within the cabinet to maintain the operating temperature between 0 and 60 degC.
Keep signal cabling routed away from high-voltage power lines and significant EMI sources to prevent induced noise.

FAQ

What is the primary function of the F 4111A?

The F 4111A acts as a hardware-coded AND gate. It requires all inputs to be in a high state to produce a high output, serving as a critical logic layer in safety-instrumented systems.

Is this module programmable?

No, the F 4111A is part of the Planar-F system, which utilizes a hard-wired, non-programmable architecture. Logic is determined by the physical wiring of the system backplane.

What happens if the module loses power?

The module is designed to be fail-safe; in the event of a power loss or internal component failure, the module defaults to a safe, de-energized state.
