HIMA 90100 Planar4 System

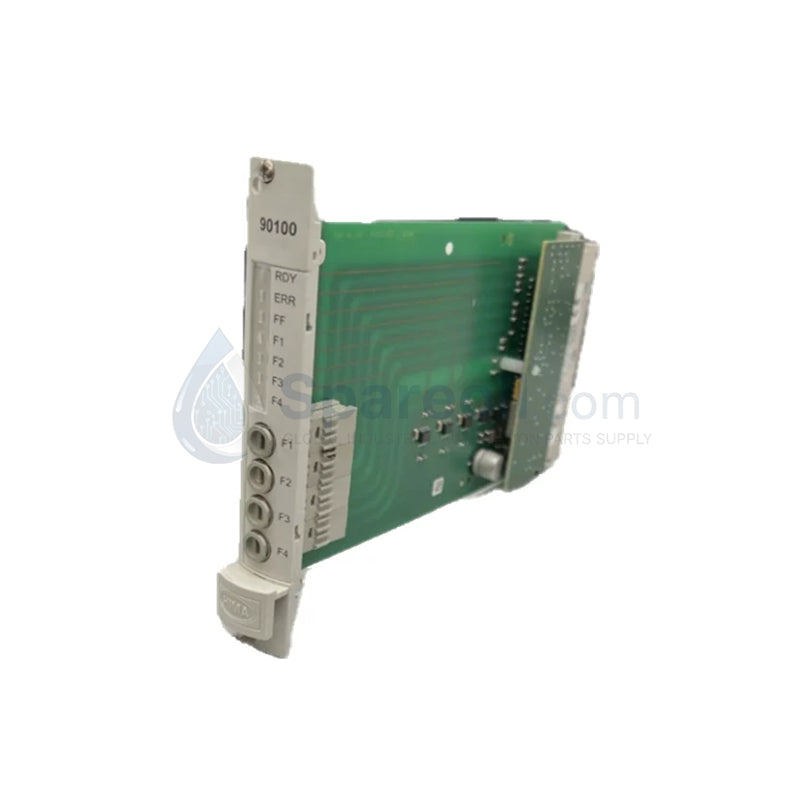

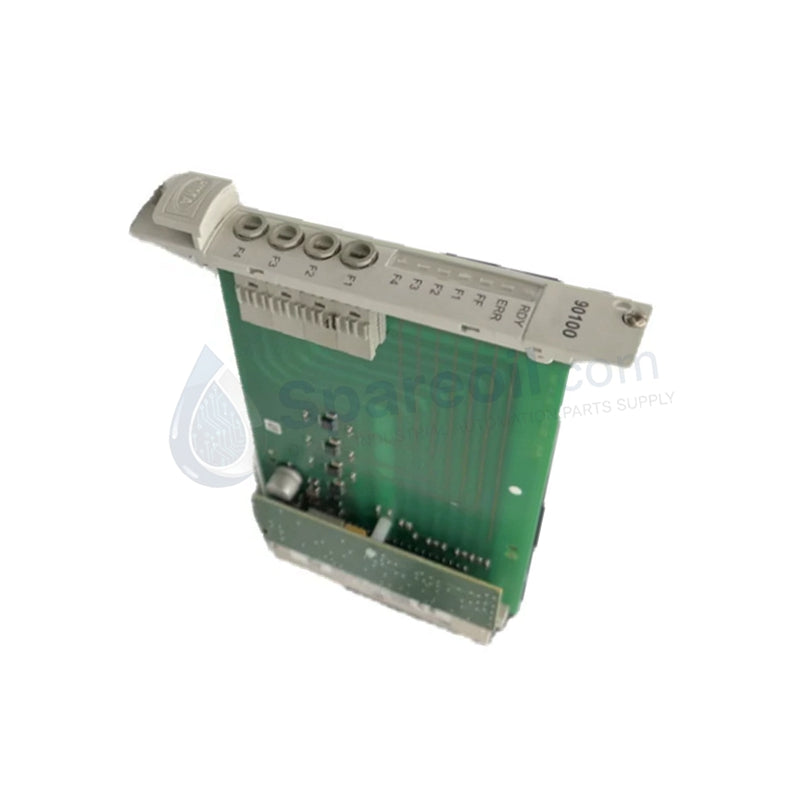

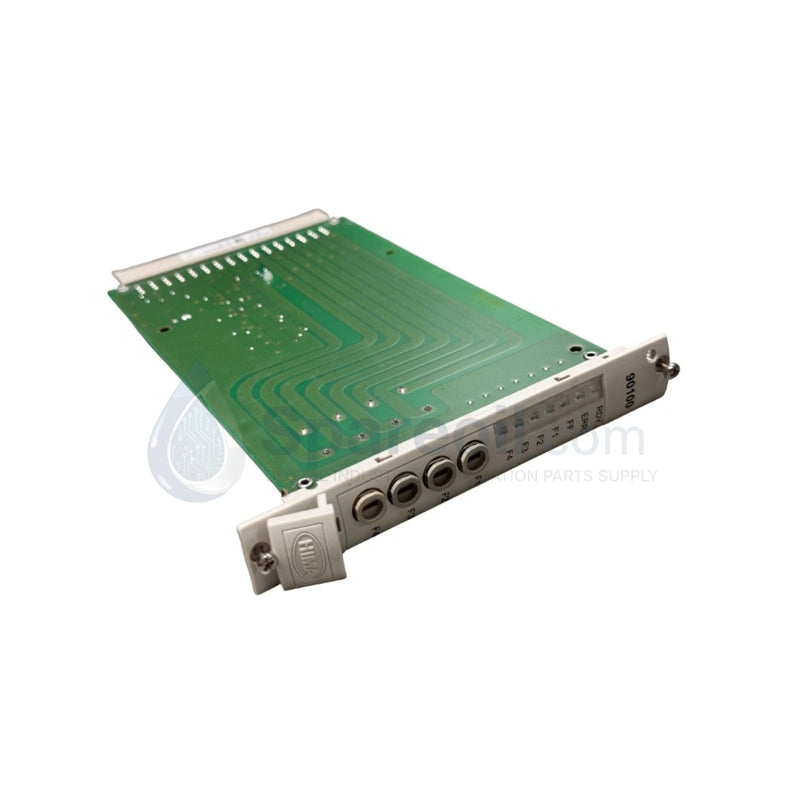

The HIMA 90100, also cataloged as the 90100 Power Supply Fuse Module, operates as a dedicated hardware component for redundant power supply and fuse protection within HIMA Planar4 System platforms.

Hardware Specifications

Parameter Specification
Model 90100 (Alternate Part No: 984090100)
Brand HIMA
Origin Germany
Weight 0.25 lbs
Dimensions Standard Planar4 module footprint
Operating Temp -20 to +70 deg C
Power Consumption / Input Voltage 24 VDC
Functionality 4-function power supply fuse management
Inputs 16 digital inputs
Outputs Multiple distribution outputs
Mounting DIN-rail or direct panel mounting
Safety Certifications Certified to IEC 61508 (SIL 3 compliant)

High Reliability Safety Control (SIS)

The module architecture is structured to support SIL3 certification criteria across safety instrumented networks. It incorporates localized dual-channel power routing combined with an integrated triple modular redundancy (TMR) 2oo3 architecture tracking loop to verify bus voltage parity and execute immediate isolation if cross-fault limits are breached. The complete galvanic isolation layer between discrete internal power distribution blocks prevents high-energy transient spikes from crossing backplane links, ensuring deterministic fail-safe state execution for all downstream safety logic components.

Frequently Asked Questions

Q: What specific protection tasks are managed by the 4-function allocation on the 90100 module?

A: The hardware logic dynamically coordinates four specialized operations: redundant DC source validation, overcurrent circuit isolation via embedded fast-acting fuses, reverse-polarity blocking, and continuous upstream fuse state diagnostics.

Q: Can the diagnostic circuits identify an isolated blown fuse without external sensing lines?

A: Yes, internal tracking networks sample the potential across the internal distribution channels, broadcasting a fault register bit directly over the system bus when a fuse path opens.

Field Installation Guidelines

Mount the module firmly onto standard DIN-rail assemblies or directly onto the structural backplane chassis, locking all retention tab clips to secure the housing against mechanical industrial vibrations. All 24 VDC power supply and digital input lines must use heavy-gauge copper wires routed through isolated cable channels, maintaining physical separation from high-current AC motor feeder lines. Connect the primary module earth terminal directly to the safety instrumented system master ground busbar using a short, low-impedance grounding strap. Maintain standard spacing envelopes to allow uniform natural airflow through the enclosure grid for thermal stabilization.
