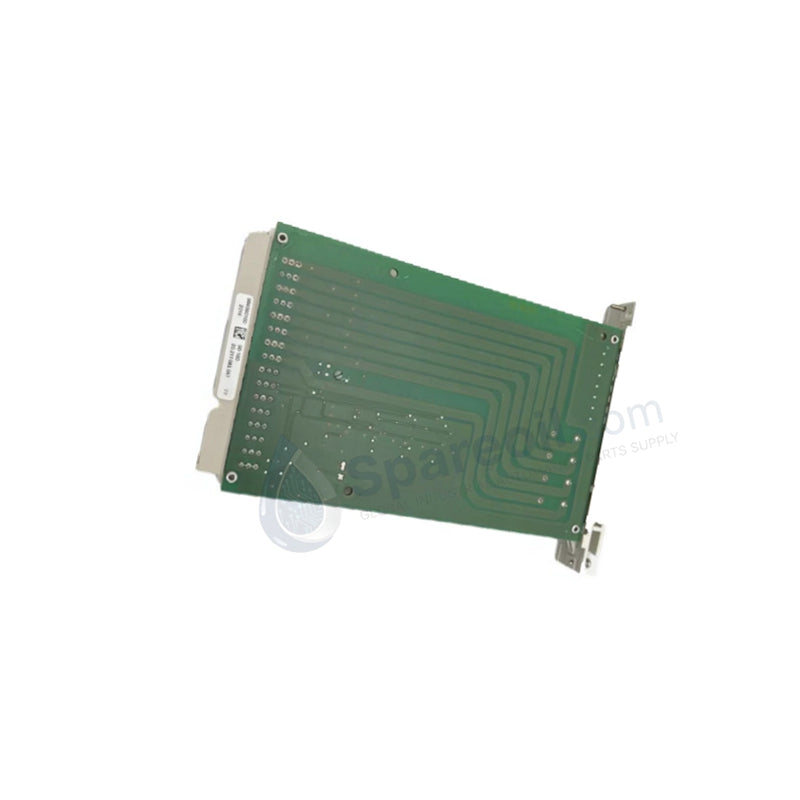

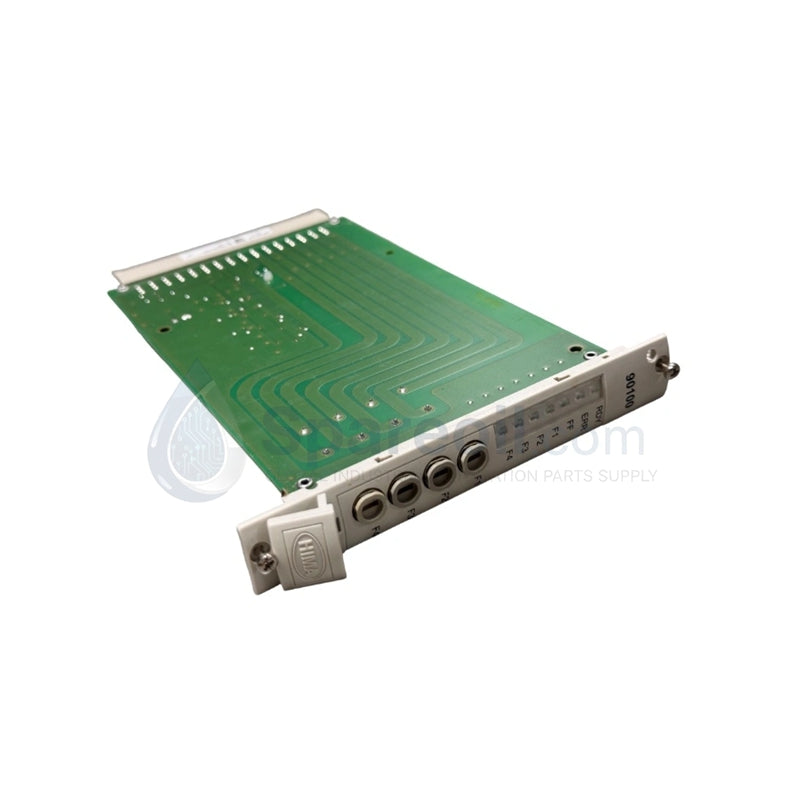

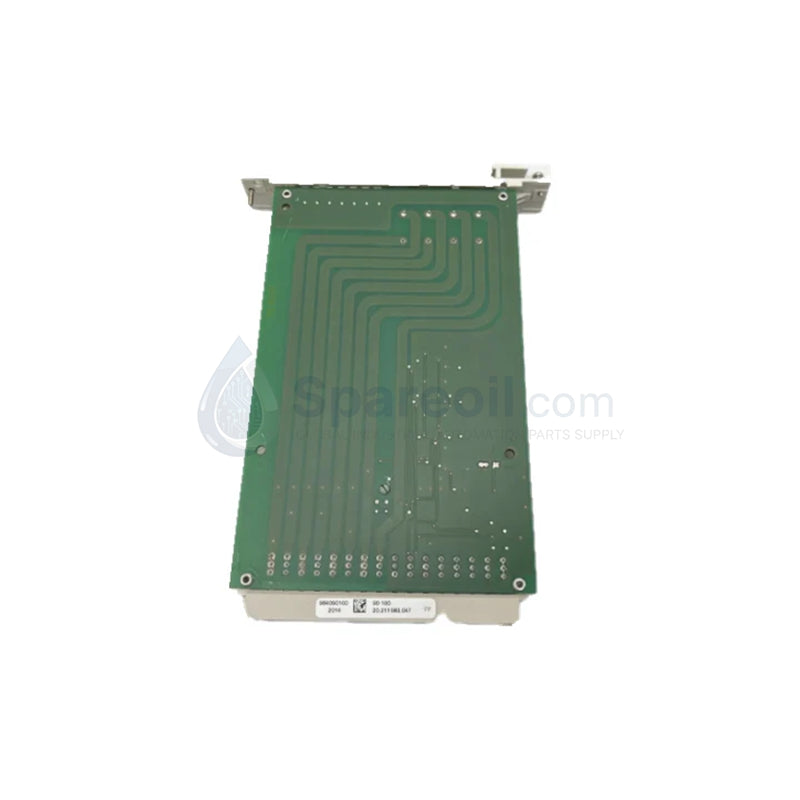

The HIMA 90900, also cataloged as the 90900 Subrack with Bus PCB, serves as the primary 90900 Subrack with Bus PCB utilized to execute module housing, power distribution, and communication routing across HIMA Planar4 System platforms.
| Parameter | Specification |
|---|---|
| Model | 90900 |
| Brand | HIMA |
| Origin | Germany |
| Weight | 1.5 kg |
| Dimensions | Width: 482.6 mm (19"), Height: 177 mm (4U), Depth: 270 mm |
| Operating Temp | -40 to +70 deg C |
| Power Supply | 24 VDC (EL+), protected by 16 A fuse or breaker |
| Module Capacity | 20 slots for modules (1-20), slot 21 reserved for communication |
| Material | Aluminium, chromated |
| Spacing Units | 84 SU (1 SU = 5.08 mm) |
| Module Compatibility | DIN 41494, 4 SU each |
| Connectors | DIN 41612, type F, rows z and d |
| Connection Type | Soldering |
| Current Capacity | Max 16 A |
| Fault Signal Loop | Pins z26-d26 link to EC terminals |
| Input / Output Voltage | 24 VDC input / 24 VDC output |
| Input / Output Current | 10 mA input current / 500 mA output current |
| Storage Temp | -40 to +85 deg C |
| Humidity Tolerance | 5-95% RH, non-condensing |
| Protection Class | IP20 |
The subrack backplane architecture conforms to SIL3 certification constraints by establishing structured trace separation for all critical safety-related logic lines. The system bus distribution supports triple modular redundancy (TMR) 2oo3 architecture integration, routing parallel fault signal loops through pins z26-d26 directly to the EC terminals to prevent localized hardware failures from compromising the safety loop. Galvanic isolation barriers built into the structural trace network minimize cross-talk and supply spikes, enforcing deterministic fail-safe state execution across all occupied module slots.
Q: How is backplane communication segregated for system management modules?
A: Slot 21 is structurally dedicated and wired exclusively to handle the communication interface module, isolating configuration data from standard logic processing slots.
Q: What power protection mechanisms are implemented on the 24 VDC distribution bus?
A: The main 24 VDC (EL+) power bus rail is designed with a total capacity of 16 A and must be coupled with an external 16 A fuse or circuit breaker to prevent overcurrent damage to the backplane traces.
Mount the 19" subrack into a standard industrial panel or cabinet enclosure using heavy-duty mounting screws to ensure mechanical stability against shock and vibration. Prior to executing any soldering or field connection wiring to the DIN 41612 connectors, completely remove the plug blocks to prevent mechanical stress transmission to the inner PCB assembly layer. Route all field sensor and actuator lines through distinct low-voltage wireways, keeping them physically separated from parallel high-voltage AC lines. Connect the chromated aluminum chassis frame directly to the master safety earth grid at a single point using a low-impedance grounding strap.
