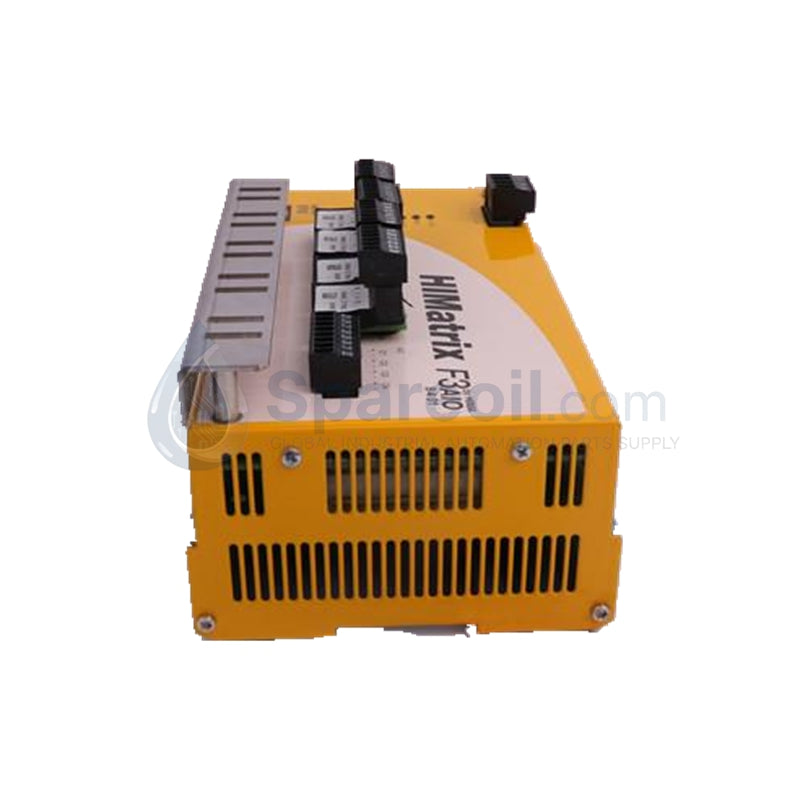

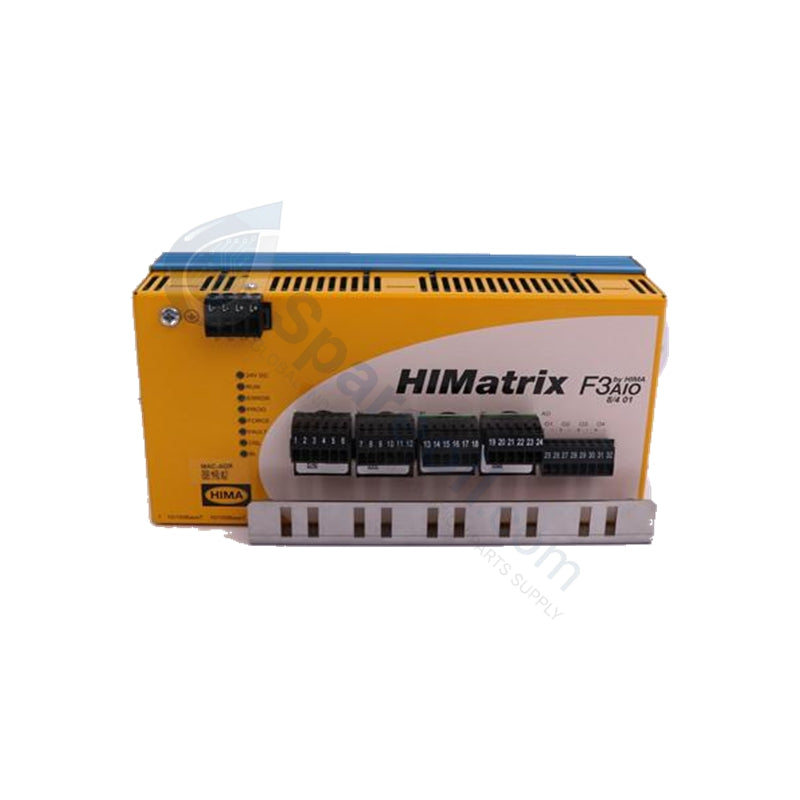

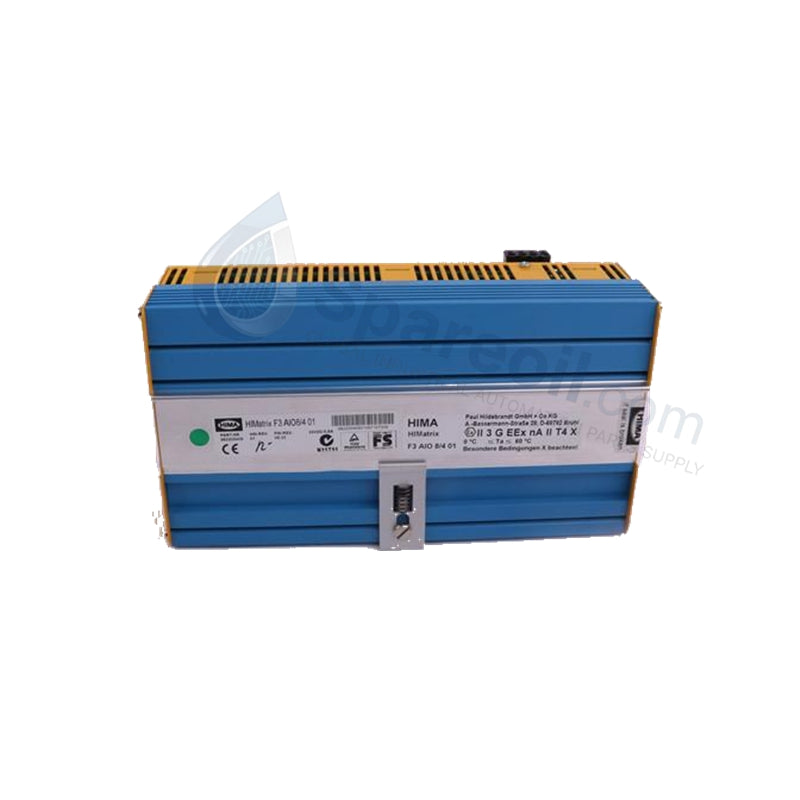

F3AIO8/401 HIMA Analog Input Output Module

F3AIO8/401 HIMA Analog Input Output Module | New Stock

Availability: 99 left in stock

HIMA F3AIO8/401 HIMatrix/HIMax Safety Series The HIMA F3AIO8/401, also cataloged as the F3 AIO 8/4 01 Remote I/O Module, serves...

SKU: F3AIO8/401

Manufacturer: HIMA
Product No.: F3AIO8/401
Product Type: Analog Input Modules
Product Origin: Germany
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

HIMA F3AIO8/401 HIMatrix/HIMax Safety Series

The HIMA F3AIO8/401, also cataloged as the F3 AIO 8/4 01 Remote I/O Module, serves as the primary F3AIO8/401 Analog Input/Output (I/O) Module utilized to execute continuous signal processing across HIMatrix and HIMax safety platforms.

Hardware Specifications

Parameter	Specification
Model	F3AIO8/401 (Part No. 982200409)
Brand	HIMA
Origin	Germany
Weight	1.0 kg
Dimensions	20.6 x 9.3 x 11.3 cm
Operating Temp	-20 to +60 deg C
Power Consumption / Voltage	24 VDC nominal
Analog Inputs	8 channels (current/voltage)
Analog Outputs	8 channels (current/voltage)
Signal Types	0-10 VDC, 4-20 mA
Resolution	12-bit or 16-bit A/D and D/A conversion
Accuracy	+-0.1% of full scale
Isolation	1500 V RMS channel-to-ground
Diagnostics	Built-in fault detection, open-loop monitoring
Sampling Rate	Up to 1000 samples per second
Response Time	<=10 ms
Storage Temp	-40 to +85 deg C
Humidity Tolerance	5-95% RH, non-condensing
Protection Class	IP20
Certifications	CE, UL, TUV approved

High Reliability Safety Control (SIS)

The module instrumentation architecture incorporates SIL 3 certification parameters to establish full loop signal integrity across concurrent input and output stages. The underlying logic framework executes a triple modular redundancy (TMR) 2oo3 architecture voting loop inside the dual A/D and D/A converter channels to prevent signal drift from corrupting safety variable values. High galvanic isolation limits common-mode electrical noise and inductive feedback surges up to 1500 V RMS channel-to-ground, enforcing immediate fail-safe state execution through the safety controller bus whenever terminal thresholds or loop diagnostics register abnormal parameters.

Frequently Asked Questions

Q: How does the module handle fault monitoring on the active 4-20 mA output loops?

A: The internal diagnostic systems perform continuous open-loop monitoring and read-back validation, comparing the commanded execution variable against the actual field current to detect broken lines instantly.

Q: Can channels be configured independently for different signal levels like 0-10 VDC and 4-20 mA?

A: Yes, individual channels are software-configurable via the system programming interface, allowing mixed voltage and current instrumentation paths on the same hardware block.

Field Installation Guidelines

Mount the module assembly onto a standard symmetrical DIN-rail profile inside an electrical cabinet ensuring that the structural mounting latch engages completely. Route all low-voltage analog input and output cables through dedicated, shielded terminal wiring ducts that are completely segregated from high-current AC motor supply circuits or switching links. Instrumentation cable shield drain wires must connect to the central safety earth ground busbar at a single connection point to avoid generating circulating ground currents. Maintain nominal vertical spacing above and below the IP20 enclosure to ensure uninhibited convection air currents for internal thermal management.
