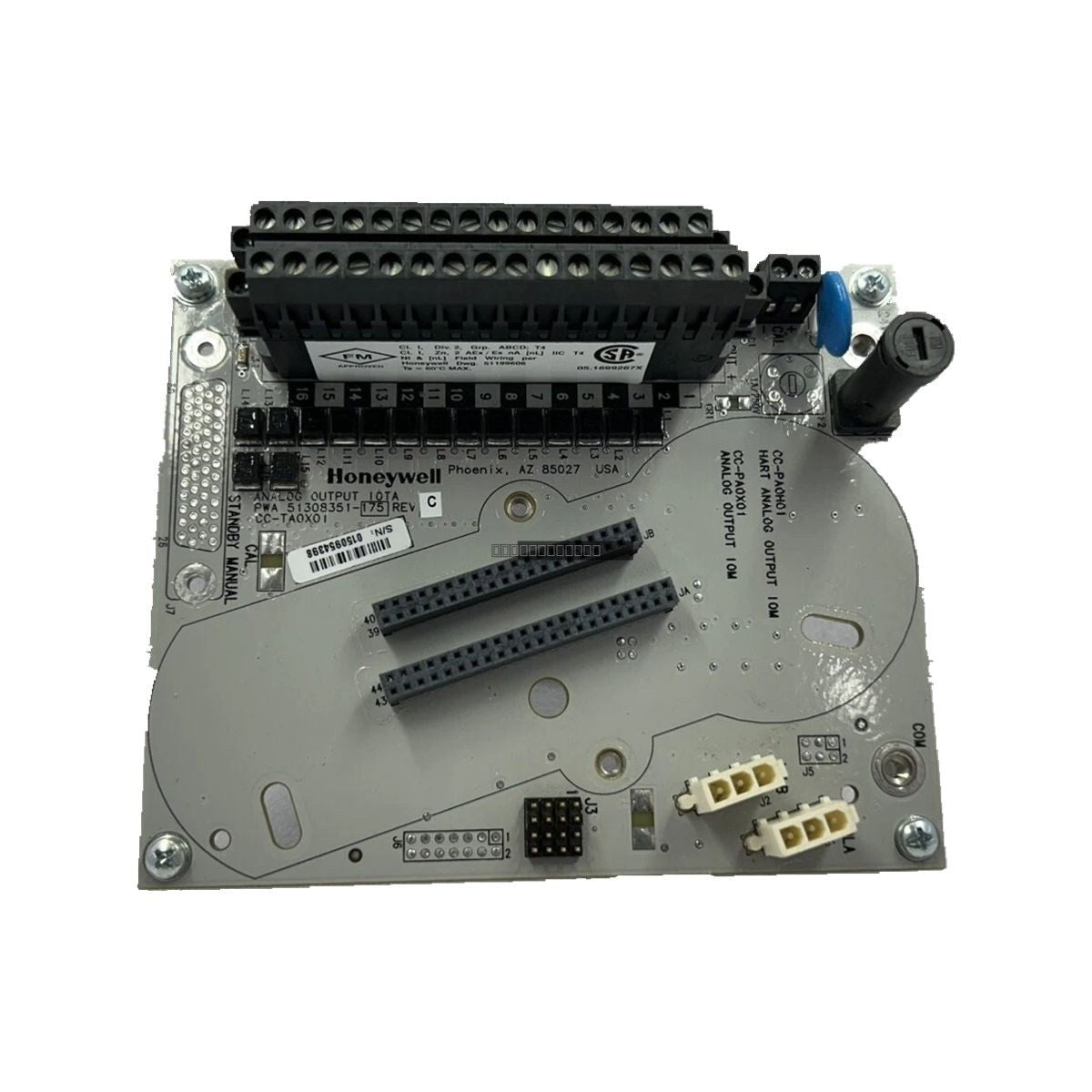

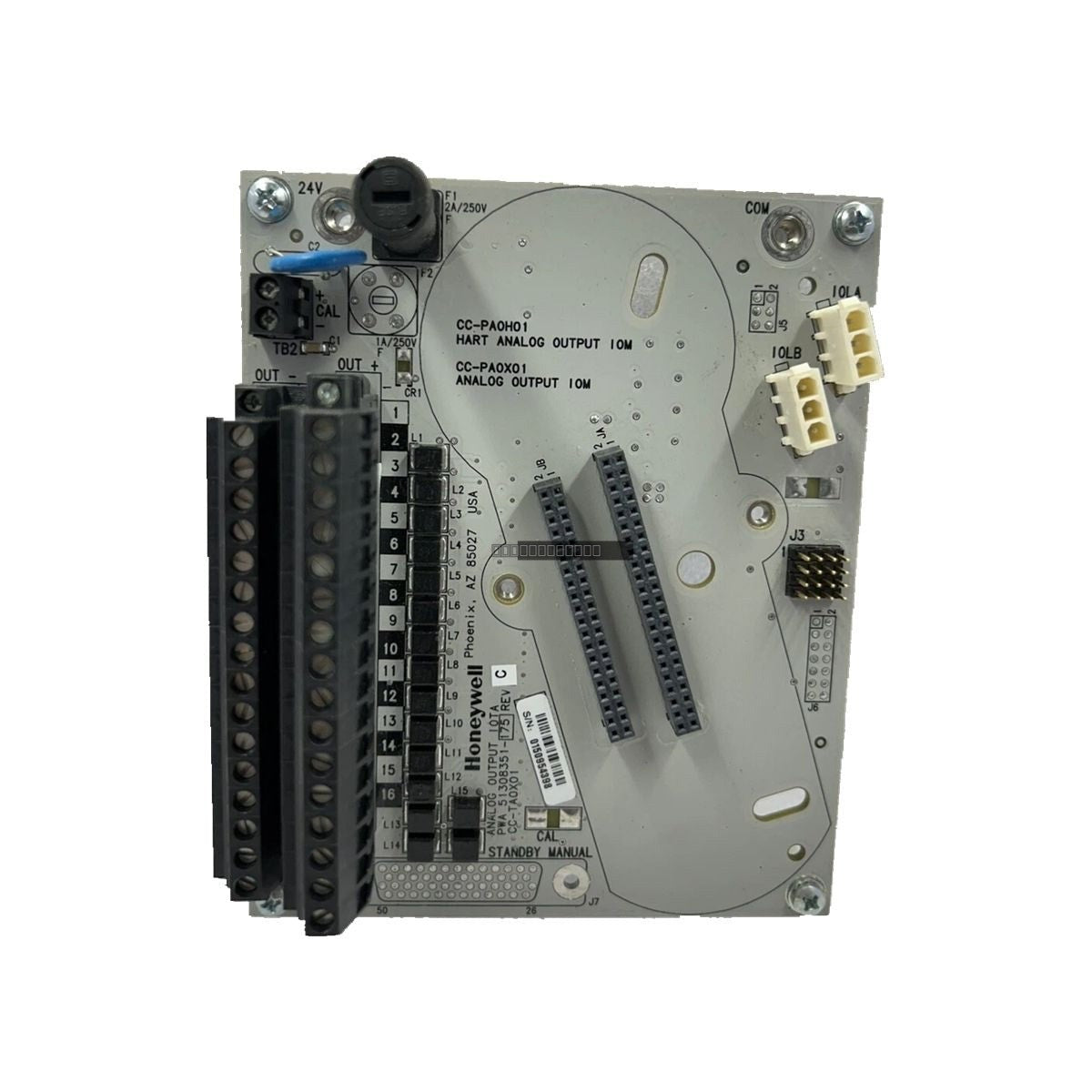

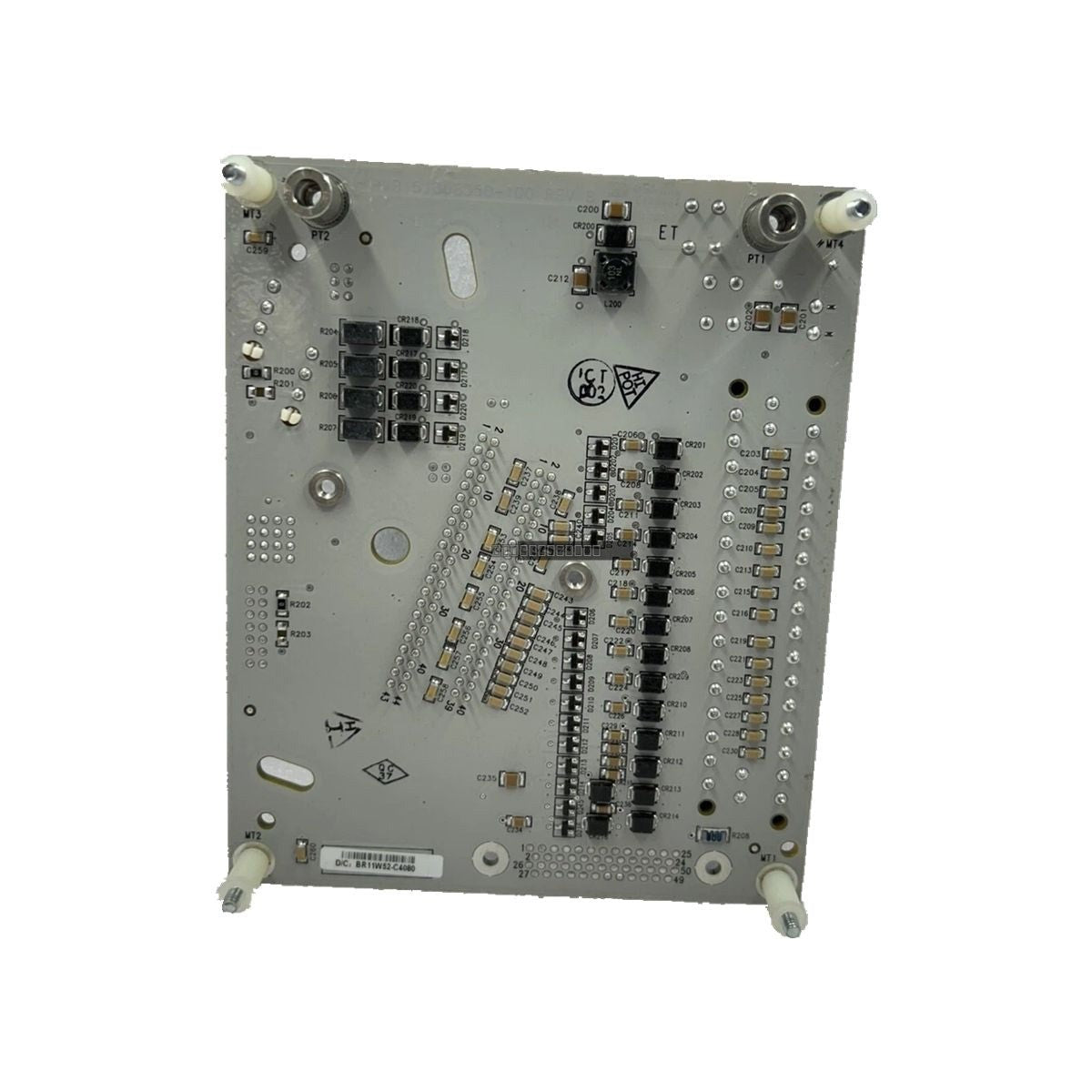

Honeywell CC-TAOX01 51308351-175 Analog Output IOTA Board

Availability: 8 left in stock

DescriptionThe Honeywell CC-TAOX01 (51308351-175) is a specialized Analog Output IOTA (Input Output Termination Assembly) board designed for use in Honeywell...

SKU: CC-TAOX01

Manufacturer: Honeywell
Product No.: CC-TAOX01
Product Type: Analog Output IOTA Board
Product Origin: USA
Payment:T/T, Western Union
Weight: 240g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell CC-TAOX01 (51308351-175) is a specialized Analog Output IOTA (Input Output Termination Assembly) board designed for use in Honeywell Distributed Control Systems (DCS). This module facilitates the reliable transmission of 4-20 mA signals to field devices, supporting non-redundant configurations in industrial automation environments. It is factory-coated to provide enhanced protection against environmental stressors, ensuring operational longevity in demanding process control applications.

Features

Supports 16 analog output channels for high-density signal distribution.
Configured for 4-20 mA output signals with a directly settable range of 2.9 mA to 21.1 mA.
Features non-redundant architecture for streamlined I/O deployment.
Conformal coating applied for improved resistance to harsh atmospheric conditions.
Maximum operating temperature rating of 60 degC.
Integrated readback functionality for enhanced diagnostic monitoring.

Technical Specifications

Model	CC-TAOX01 (51308351-175)
Output Channels	16
Output Type	4-20 mA
Voltage Rating	24 VDC
Max Resistive Load	800 ohms
Output Ripple	< 100 mV peak-to-peak (at power line frequency, 250 ohm load)
Calibrated Accuracy	± 0.35% of Full Scale (at 25 degC)
Resolution	± 0.05% of Full Scale
Max Open Circuit Voltage	22 V
Max Output Compliant Voltage	16 V

Installation Guidelines

Ensure the system power is disconnected before installing or removing the IOTA board to prevent electrical damage.
Mount the board in a clean, dry environment within the specified temperature range (up to 60 degC).
Verify that all field wiring is properly secured to the terminal assembly to maintain signal integrity.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching the board components.
Route signal cables away from high-voltage lines or sources of significant electromagnetic interference (EMI) to ensure accurate 4-20 mA transmission.

FAQ

What is the primary function of the CC-TAOX01 IOTA board?
The CC-TAOX01 is an analog output termination assembly used in Honeywell DCS systems to interface control signals with field instrumentation via 16 channels of 4-20 mA output.

Is this module suitable for redundant applications?
No, this specific model (CC-TAOX01) is designed for non-redundant operation.

What is the maximum load resistance supported?
This board supports a maximum resistive load of 800 ohms.
