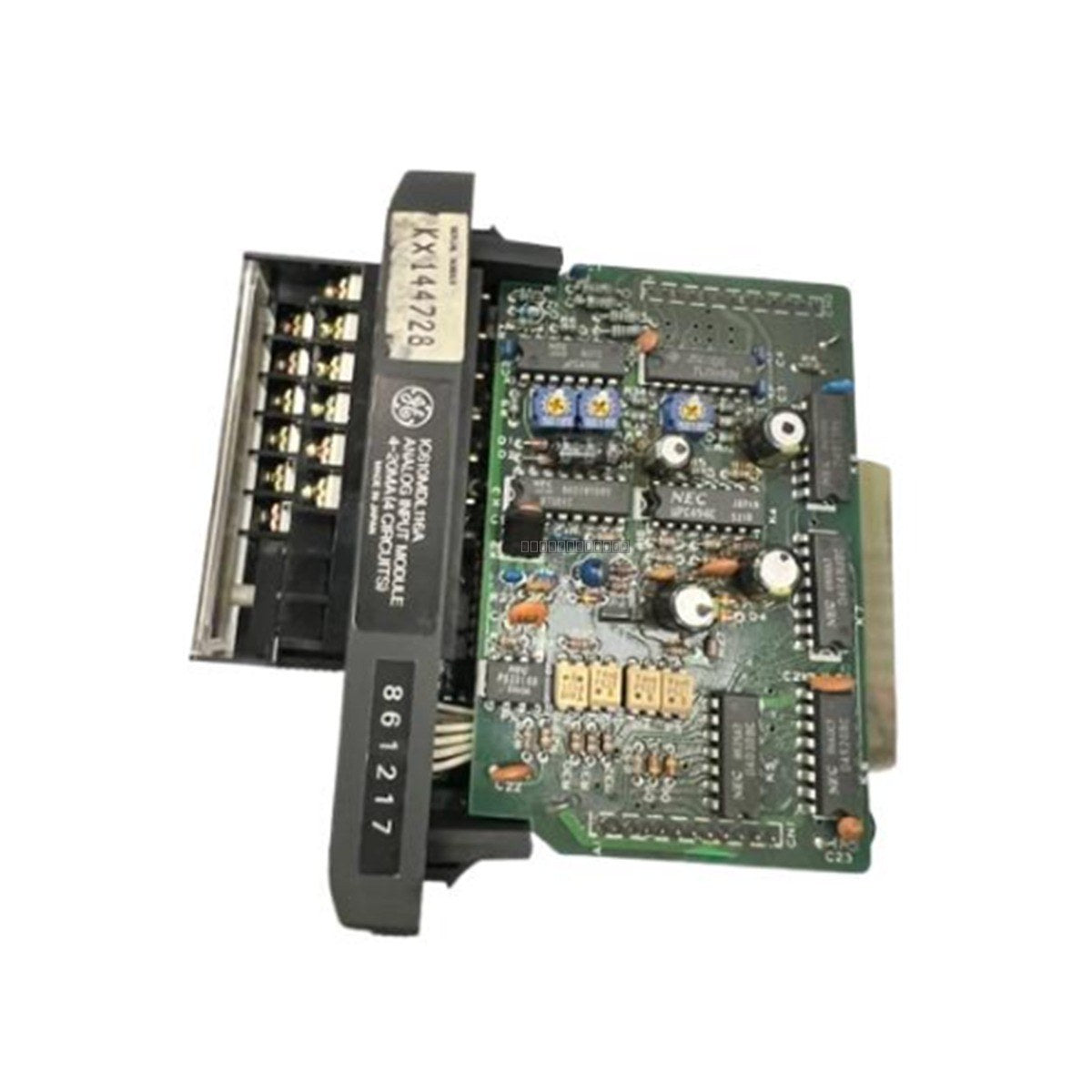

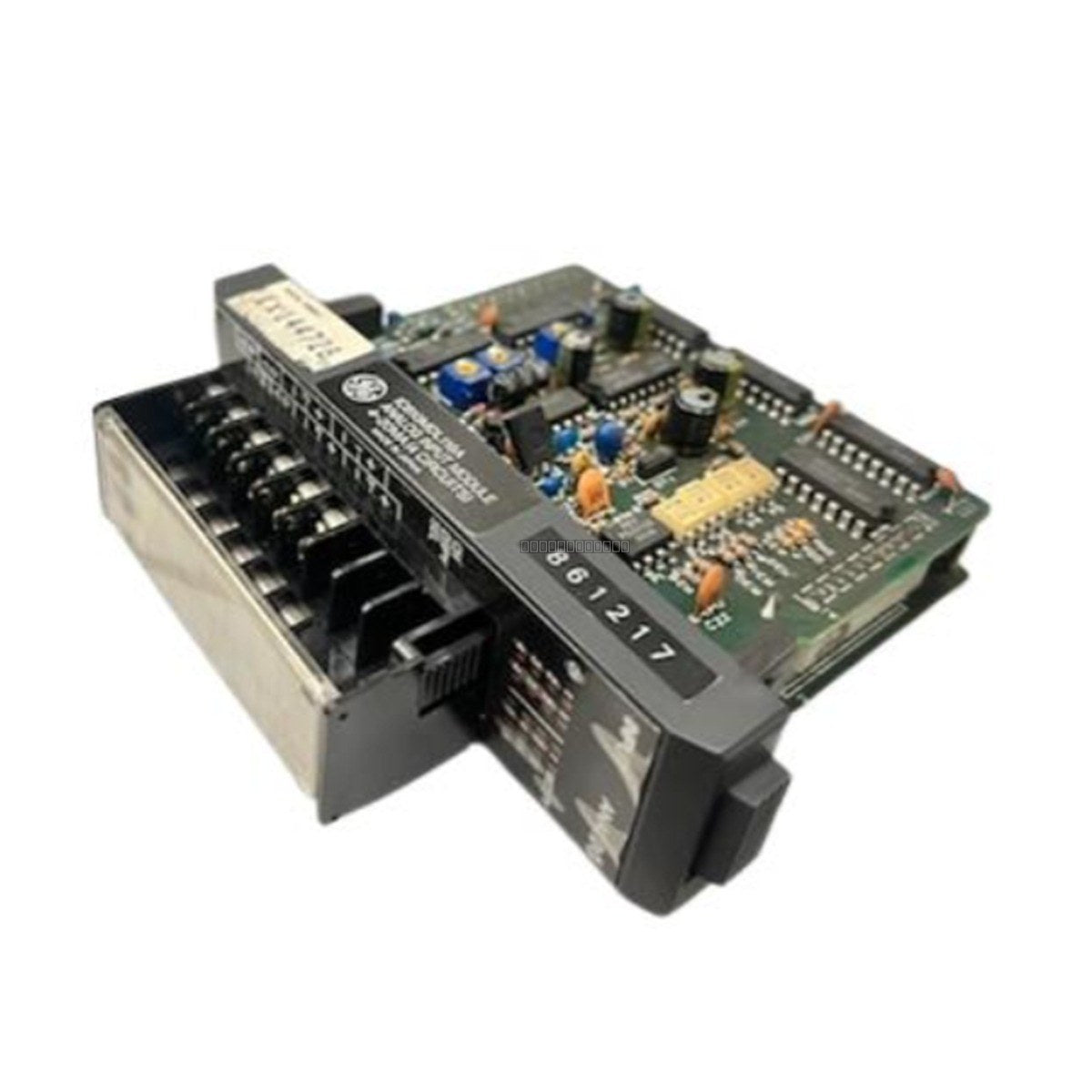

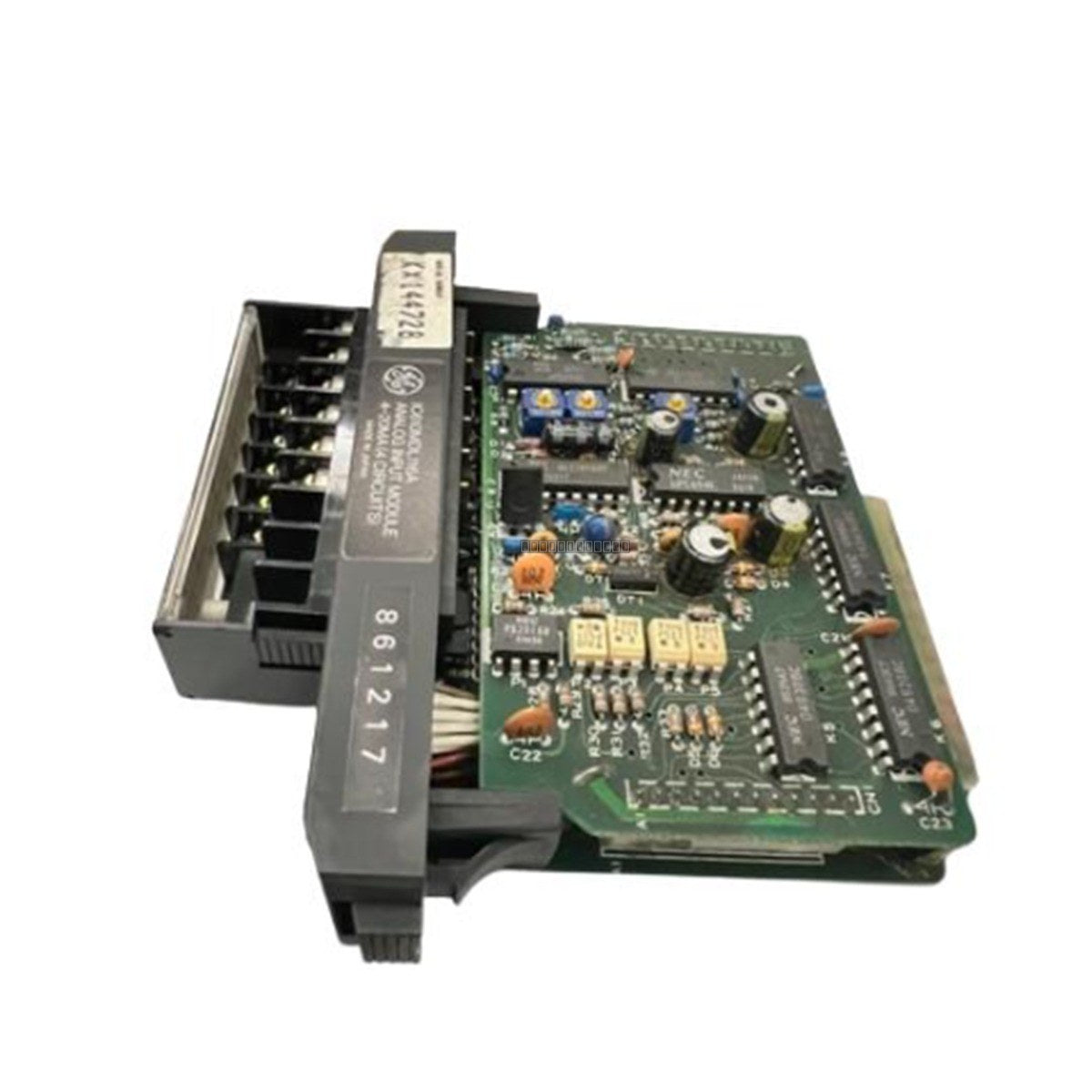

GE Fanuc IC610MDL116 Series One Analog Input Module

Availability: 5 left in stock

DescriptionThe IC610MDL116 is a high-performance analog input module engineered for the GE Fanuc Series One programmable logic controller system. This...

SKU: IC610MDL116

Manufacturer: GE FANUC
Product No.: IC610MDL116
Product Type: Analog Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 910g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The IC610MDL116 is a high-performance analog input module engineered for the GE Fanuc Series One programmable logic controller system. This module features four independent input channels capable of processing both voltage and current signals, making it an essential component for precision monitoring in industrial processes such as chemical flow regulation, temperature tracking, and pressure sensing in refinery or power plant applications. By utilizing a rapid successive approximation conversion method, the module delivers an 8-bit binary resolution in under 2 ms, ensuring high-fidelity data acquisition that facilitates real-time control adjustments and minimizes system latency to reduce operational downtime.

Features

Four independent input channels for versatile signal monitoring.
Jumper-selectable input ranges for flexible field instrumentation adaptation.
Differential input configuration to enhance signal integrity and reject common-mode noise.
High input impedance (> 1 Megaohm) for voltage signals to minimize loading effects.
Rapid 8-bit binary resolution conversion within 2 ms.
Designed for continuous duty in demanding industrial environments.

Applications

This module is designed for integration into Series One PLC systems, commonly used for process control, chemical flow regulation, temperature monitoring, and pressure sensing in industrial facilities such as refineries and power plants.

Technical Specifications

Model	IC610MDL116
Brand	GE Fanuc
Series	Series One
Module Type	4-Channel Analog Input
Resolution	8-Bit Binary
Input Voltage Range	1 to 5 VDC
Input Current Range	4 to 20 mA
Voltage Input Impedance	> 1 Megaohm
Current Input Impedance	250 Ohms
Conversion Time	2 ms (Maximum)
Conversion Method	Successive Approximation
External Power Requirements	25 VDC, 65 mA
Operating Temperature	0 to 60 deg C
Relative Humidity	5 to 95% (Non-Condensing)

Installation Guidelines

Ensure the PLC system power is disconnected before installing or removing the module from the rack.
Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
Maintain proper grounding practices for the Series One rack to ensure signal stability.
Verify that jumper settings for input ranges are correctly configured for the specific field sensors before applying power.
Ensure adequate ventilation in the control cabinet to maintain operating temperatures within the 0 to 60 deg C range.
Handle the module using standard ESD (Electrostatic Discharge) protection protocols.

FAQ

What is the primary function of the IC610MDL116?

The IC610MDL116 is an analog input module designed to convert voltage or current signals from field devices into digital data for processing by the GE Fanuc Series One PLC.

Does this module require external power?

Yes, the module requires an external power supply of 25 VDC at 65 mA for operation.

Can this module handle both voltage and current inputs?

Yes, the module supports both 1-5 VDC and 4-20 mA current loop signals, which are selectable via internal jumpers.
