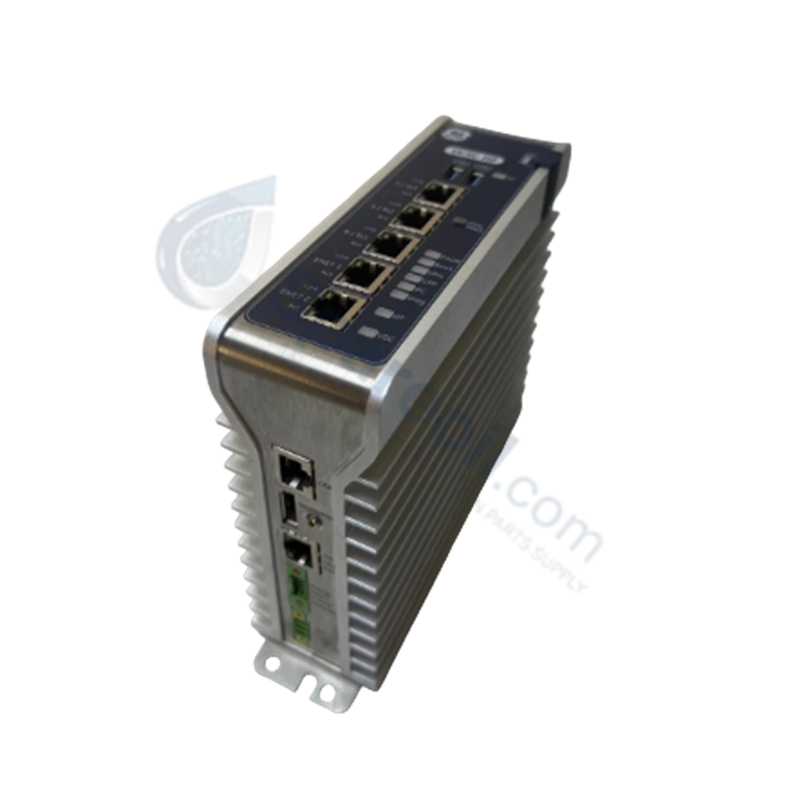

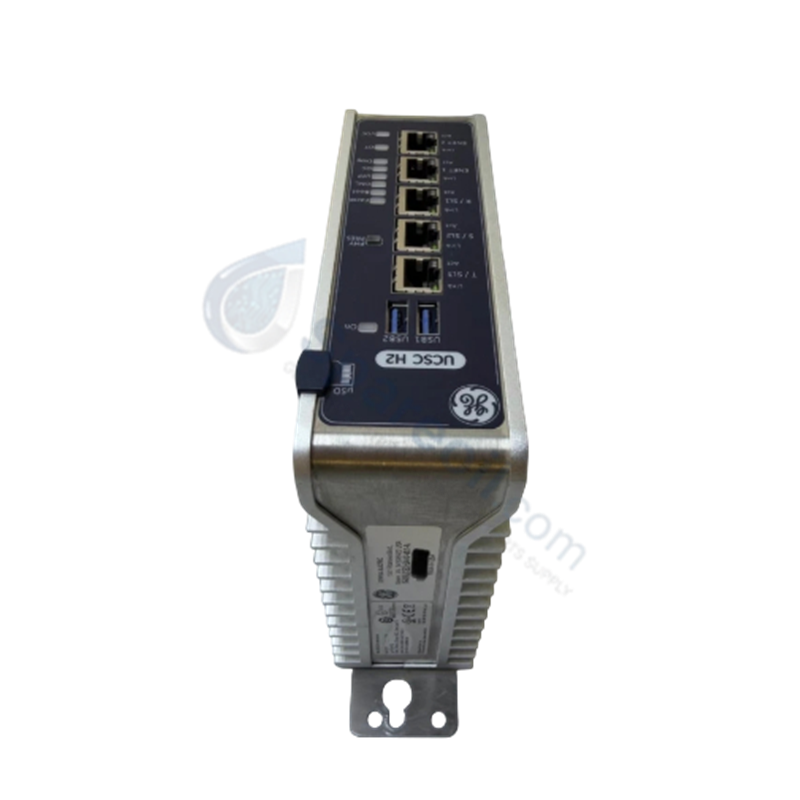

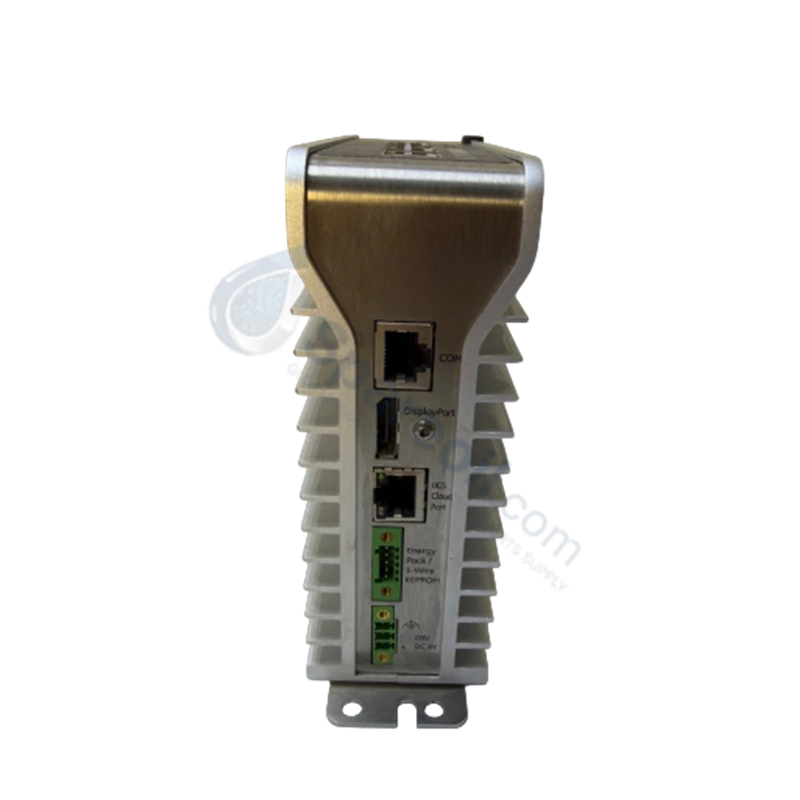

Configured for high-speed deterministic task execution and I/O data processing in Mark VIe control systems, the GE IS420UCSCH2A (IS420UCSC Controller Module) provides direct physical/electrical execution. Driven by a dual-core processor and running the real-time QNX Neutrino operating system, the unit handles multi-tasking operations across complex control loops. The front interface features five Ethernet ports dedicated to IONet communications alongside two USB ports for local maintenance access.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS420UCSCH2A |
| Brand | General Electric |
| Origin | USA |
| Weight | 1.10 kg (2.43 lbs) |
| Dimensions | 15.24 cm x 17.78 cm x 8.89 cm |
| Operating Temp | -30 to 65 deg C |
| Power Consumption | 24 VDC nominal |
| Series | Mark VIe |
| Product Type | Controller Modules |
| Functional Acronym | UCSC |
| Processor Architecture | Dual-core processor |
| Operating System | QNX Neutrino Real-Time OS |
| Communication Ports | 5 Ethernet ports (IONet interface), 2 USB ports |
| Functional Revision | Revision A |
Backplane Bus Communication and Deterministic Networks
The IS420UCSCH2A processes control logic cycles locally, managing high-throughput IONet communication across its five dedicated Ethernet ports. By offloading network frame execution from low-level device nodes, the module maintains backplane bus communication velocity and supports optimized I/O density scaling. The QNX Neutrino microkernel ensures predictable task preemption, preserving deterministic networks traffic flow and firmware flash compatibility during multi-tasking execution across redundant control nodes.
Frequently Asked Questions
Q: How does the QNX Neutrino operating system enhance execution on the IS420UCSCH2A?
A: QNX Neutrino is a real-time microkernel OS that enables priority-based multi-tasking, preventing thread blocking and ensuring strict deterministic cycle times for critical control loops.
Q: What is the primary function of the five Ethernet ports on the front panel?
A: The five Ethernet ports provide dedicated connectivity to the IONet system network, facilitating high-speed data exchange between the controller and remote I/O packs.
Q: Can local firmware and configuration updates be performed without disturbing network wiring?
A: Yes, onboard serial and USB interfaces allow field engineers to connect diagnostic tools directly to the controller front panel for maintenance without disconnecting the primary IONet network cables.
Field Installation Guidelines
- ESD Protection Protocols: Wear a grounded anti-static wrist strap during handling to shield sensitive dual-core processor circuits from electrostatic discharge.
- Cabinet Mounting Integrity: Secure the module chassis firmly to the cabinet DIN-rail or panel mounting plate to ensure continuous physical grounding.
- Ethernet Cable Routing: Route IONet network cables through designated wire trunks, ensuring RJ-45 locking tabs click firmly into all active Ethernet ports.
- Convective Thermal Clearance: Maintain at least 50 mm of unobstructed vertical clearance above and below the module chassis to allow effective heat dissipation across the ambient temperature range.
