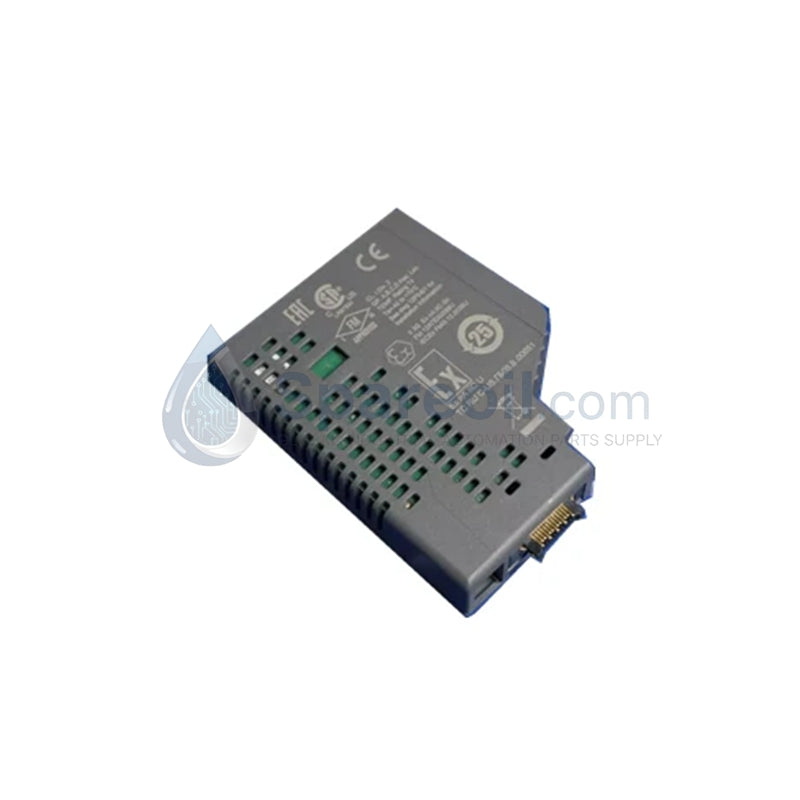

KL1604X1-BA1 Emerson | Isolated Copper Ethernet Module

Availability: 99 left in stock

Product Overview The Emerson KL1604X1-BA1 functions as a high-integrity Safety Isolation Port for DeltaV control systems. It provides a secure, galvanically isolated interface for...

SKU: KL1604X1-BA1

Manufacturer: Emerson
Product No.: KL1604X1-BA1
Product Type: Ethernet Isolation Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Emerson KL1604X1-BA1 functions as a high-integrity Safety Isolation Port for DeltaV control systems. It provides a secure, galvanically isolated interface for copper Ethernet connections, specifically designed to bridge communication in Zone 2 and Class I Div. 2 hazardous environments. We supply this module as 100% Brand New and Original, ensuring your network maintains maximum electromagnetic immunity and safety compliance in volatile processing zones.

Technical Specifications

Feature	Details
Manufacturer	Emerson Process Management
Model Number	KL1604X1-BA1
Interface Type	Copper Ethernet Port (Isolated)
Isolation Method	Per-channel Galvanic Isolation
Power Supply	30 V DC @ 100 mA
Operating Temperature	–40 °C to +70 °C
Airborne Contaminants	ISA-S71.04-1985 Class G3 Compliant
Vibration Resistance	0.7 g (13.2–150 Hz)
Hazardous Area Certs	ATEX, IECEx, FM, UKEX (Zone 2, Class I Div. 2)
Dimensions	110 × 80 × 30 mm
Weight	0.2 kg
Country of Origin	USA

Engineering Advantages

Per-Channel Galvanic Isolation: The KL1604X1-BA1 employs advanced galvanic isolation to sever physical conductive paths between network segments. This prevents ground loops and protects sensitive DeltaV controller hardware from high-voltage surges or electrical noise generated in the field.
Hazardous Area Specialization: This port carries full ATEX, IECEx, and FM certifications. It eliminates the need for expensive explosion-proof enclosures for Ethernet connectivity, allowing for direct, safe deployment in Zone 2 locations.
ISA G3 Environmental Shielding: Emerson builds this module to meet ISA-S71.04-1985 Class G3 standards. The internal circuitry resists corrosion from sulfur, chlorine, and ammonia gases, making it indispensable for wastewater treatment and petrochemical refineries.
Extended Thermal Envelope: Unlike commercial-grade Ethernet isolators, the KL1604X1-BA1 operates across a –40 °C to +70 °C range. It maintains signal integrity in unconditioned remote cabinets exposed to extreme seasonal temperatures.
Enhanced Network Determinism: By isolating copper communication paths, the module minimizes the impact of electromagnetic interference (EMI). This ensures consistent packet delivery and reduces latency for critical real-time process control data.

FAQs

Can the KL1604X1-BA1 function as a standard Ethernet switch?

No. This module serves specifically as an isolation port to ensure electrical safety and signal integrity within the DeltaV architecture. It does not provide switching or routing logic but acts as a transparent, isolated physical layer.
Is this module compatible with third-party DCS systems?

The KL1604X1-BA1 is engineered specifically for the Emerson DeltaV system architecture. While it uses standard copper Ethernet interfaces, its power requirements and mounting form factor integrate directly with DeltaV carriers.
Does this module require external power?

The unit operates on a 30 V DC supply (100 mA). In a typical DeltaV installation, the module receives power through the system's local bus or designated carrier connection.
What is the benefit of buying "Brand New" for an isolation port?

Isolation components rely on the physical integrity of their dielectric barriers. Over time, environmental stress can degrade these barriers. A 100% Brand New KL1604X1-BA1 guarantees that the galvanic isolation meets factory-tested dielectric strength, ensuring total protection for your safety-critical network.
