ADV559-P00 Yokogawa FIO Series Datasheet & Technical Manual

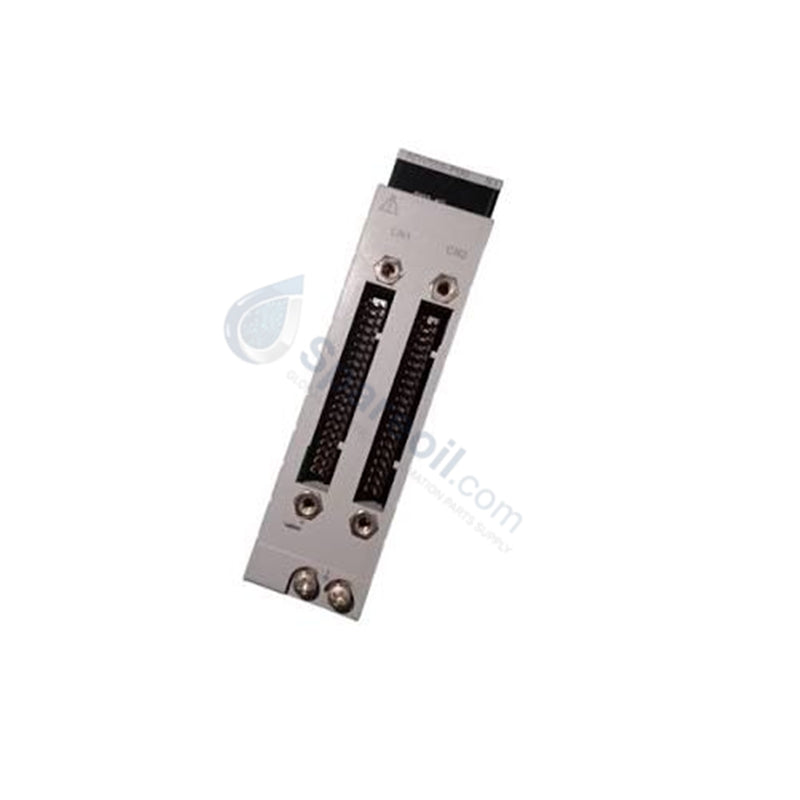

ADV559-P00 Yokogawa Digital Output Module 32-Channel FIO System

ADV559-P00 Yokogawa Digital Output Module 32-Channel FIO System

التوفر: 10 متوفر في المخزون

Yokogawa ADV559-P00 Digital Output Module The Yokogawa ADV559-P00, also cataloged as the ADV559-P00 Digital Output Module, operates as a dedicated...

رمز المنتج: ADV559-P00

Manufacturer: Yokogawa
Product No.: ADV559-P00
Product Type: Yokogawa FIO
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Yokogawa ADV559-P00 Digital Output Module

The Yokogawa ADV559-P00, also cataloged as the ADV559-P00 Digital Output Module, operates as a dedicated hardware component for high-density digital signal switching within Yokogawa FIO and CENTUM VP platforms. Configured for 32-channel discrete signal execution, this module provides direct electrical control over field actuators, solenoid valves, and interlock circuits by driving 24 VDC transistor-based outputs with integrated overload and short-circuit protection.

Hardware Specifications

Parameter	Specification
Model	ADV559-P00
Brand	Yokogawa
Origin	Japan
Weight	0.3 kg
Dimensions	5.1 cm x 12.7 cm x 12.7 cm
Operating Temp	-10 deg C to +55 deg C
Power Consumption	Not specified (Dependent on load)
Channel Capacity	32 Digital output channels
Max Current	0.3 A per channel

Process Control and DCS Signal Integrity

The ADV559-P00 implements robust channel-to-channel and channel-to-system isolation, ensuring a 1500 V AC withstand capability to protect the control bus from transient field voltage spikes. To maintain signal integrity in distributed control environments, the module supports the 4-20 mA HART loop protocol principles through high-speed switching capabilities of 1 ms response times. Each channel features independent overload detection and thermal shutdown logic, which reports fault conditions to the module-level diagnostics processor to prevent upstream system failures during output short-circuit events.

Frequently Asked Questions

Q: Does the module support hot-swapping during active operation?

A: Yes, the design permits hot-swap replacement within a powered FIO baseplate. Ensure that the system configuration software is synchronized with the new module to prevent unintended output states upon initialization.

Q: How does the module handle inductive load kickback during de-energization?

A: The output transistors include internal flyback suppression diodes designed to clamp inductive voltage transients. When controlling high-energy solenoid loads, ensure external suppression is installed if the load exceeds the transistor's clamping capacity.

Q: Are the 32 channels capable of independent switching configurations?

A: Yes, the module processes each of the 32 channels as an independent output. The controller manages individual state changes, allowing for arbitrary switching sequences across the output array.

Field Installation Guidelines

Mounting and Bonding: Secure the module into the Yokogawa FIO baseplate. Verify that the rack chassis is bonded to the cabinet earth bus to maintain the intended EMC immunity and isolation ratings.
Wiring Practice: Use shielded multi-conductor cabling for digital output runs. Terminate cable shields at the cabinet entry ground bar. Ensure that digital output loops are physically routed away from sensitive low-level analog input signals to prevent crosstalk.
Load Protection: While the module features internal short-circuit protection, install appropriately rated external fuses for each output channel to isolate specific load branches during permanent fault conditions.
Thermal Management: Maintain a 50 mm clearance above and below the module to facilitate natural convection. Avoid installation in environments where ambient temperature exceeds 55 deg C to prevent premature degradation of the internal power-switching components.
