NFAI543-S50 Yokogawa Analog Input Module

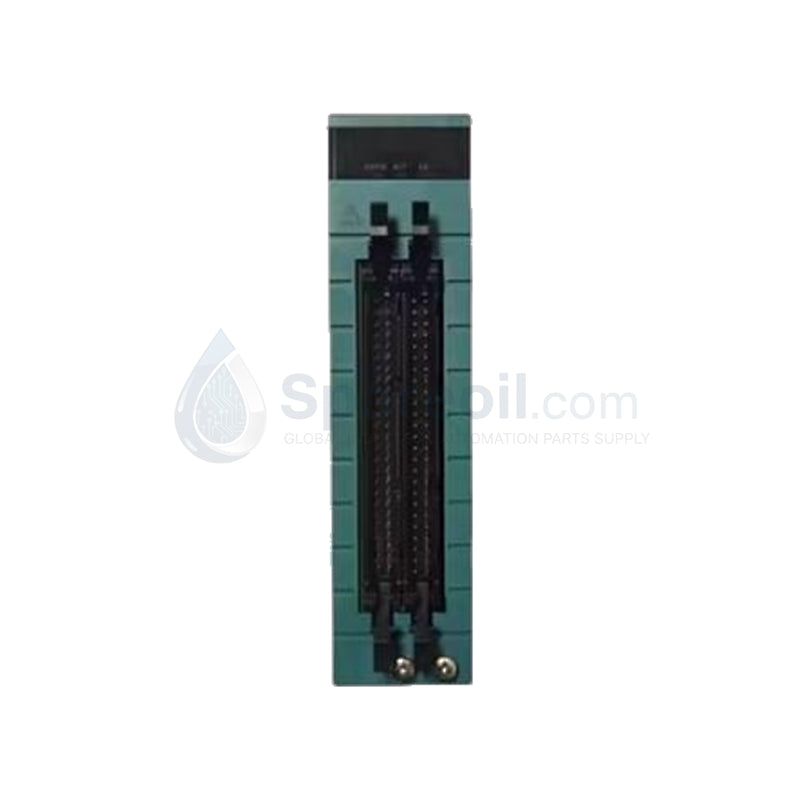

Yokogawa NFAI543-S50 Analog Input Module 16-Channel FIO System

Yokogawa NFAI543-S50 Analog Input Module 16-Channel FIO System

التوفر: 10 متوفر في المخزون

Yokogawa NFAI543-S50 Analog Input Module The Yokogawa NFAI543-S50, also cataloged as the NFAI543-S50 Analog Input Module, operates as a dedicated...

رمز المنتج: NFAI543-S50

Manufacturer: Yokogawa
Product No.: NFAI543-S50
Product Type: Analog Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Yokogawa NFAI543-S50 Analog Input Module

The Yokogawa NFAI543-S50, also cataloged as the NFAI543-S50 Analog Input Module, operates as a dedicated hardware component for high-density signal acquisition within STARDOM and CENTUM VP platforms. Configured for high-speed process monitoring, this module executes 16-bit analog-to-digital conversion across 16 fully isolated channels, supporting standard 4-20 mA current and 1-5 V voltage input ranges to ensure precise data ingestion for distributed control and safety instrumented systems.

Hardware Specifications

Parameter	Specification
Model	NFAI543-S50
Brand	Yokogawa
Origin	China
Weight	0.5 kg
Dimensions	130 mm x 130 mm x 32 mm
Operating Temp	0 deg C to +55 deg C
Power Consumption	24 V DC (via backplane)
Channel Capacity	16 Isolated channels
Accuracy	+/- 0.1% of full scale

Process Control and DCS Signal Integrity

The NFAI543-S50 maintains process stability through channel-to-channel and channel-to-system galvanic isolation, which mitigates common-mode noise propagation in complex field networks. This module supports the 4-20 mA HART loop protocol, enabling digital overlay diagnostics for connected smart field transmitters. To ensure measurement precision, the unit employs sophisticated input impedance matching—250 ohms for current loops and 1 M ohm for voltage inputs—paired with advanced self-test routines that provide real-time channel health monitoring and fault detection status.

Frequently Asked Questions

Q: Can the module detect an open-circuit fault on a 4-20 mA loop?

A: Yes, the module incorporates diagnostic routines that monitor current loop levels. If the input falls below the threshold, the channel triggers a fault flag for detection by the control system.

Q: Is this module compatible with live insertion or hot-swapping?

A: The module is designed for mounting on an NF-series baseplate. Verify system-level controller support for hot-swap operations in your specific FIO subsystem revision prior to installation.

Q: How should the input mode be configured for different sensor types?

A: Input configuration is managed via the Yokogawa engineering software. Ensure that the physical wiring matches the software channel assignment to prevent electrical damage to the input circuitry.

Field Installation Guidelines

Mounting and Bonding: Secure the module onto the NF-series rack using the provided retention mechanisms. Ensure the backplane is properly bonded to the cabinet chassis ground to minimize EMI and support the module's EMC immunity profile.
Wiring and Shielding: Use shielded, twisted-pair cabling for all analog signals. Terminate the shield drain wire at the designated cabinet grounding bar at the point of cable entry to prevent ground loops.
Environmental Constraints: Maintain adequate vertical clearance around the module to allow for natural convection cooling. Do not install the module in areas where ambient temperatures exceed 55 deg C, as this may reduce component lifespan.
Signal Segregation: Maintain physical separation between analog input loops and AC power conductors or high-frequency drive output cables to maintain the module's 16-bit conversion precision and prevent signal jitter.
