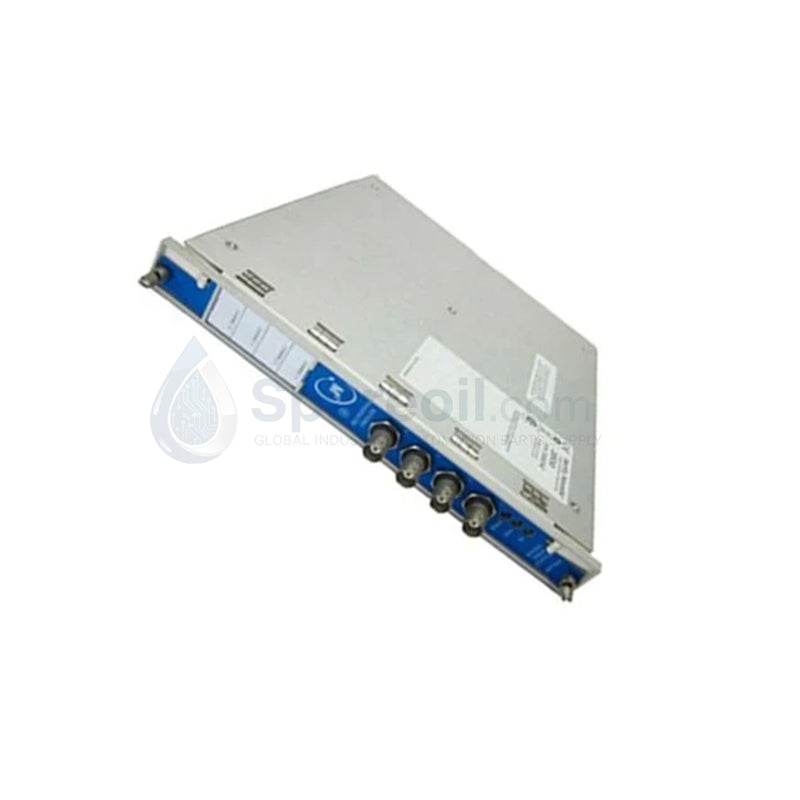

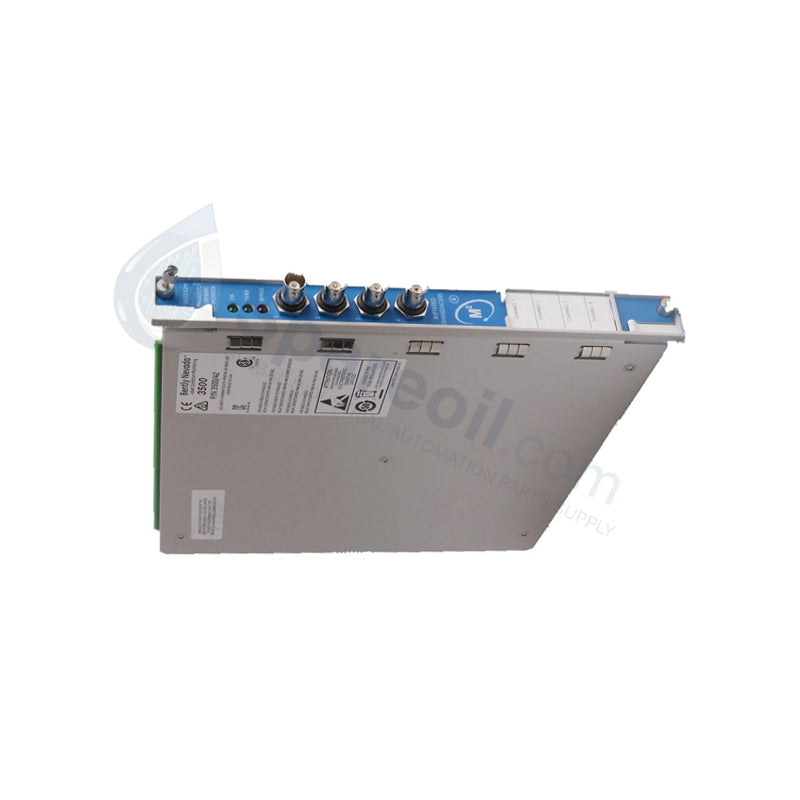

Bently Nevada 3500/72M 140734-08 Position Monitor Module

140734-08 Bently Nevada 3500/72M Position Monitor | New Stock

140734-08 Bently Nevada 3500/72M Position Monitor | New Stock

Availability: 10 left in stock

Bently Nevada 3500/72M 140734-08 Position Monitor The Bently Nevada 140734-08, also cataloged as the 3500/72M Position Monitor, operates as a...

SKU: 3500/72M 140734-08

Manufacturer: Bently Nevada
Product No.: 3500/72M 140734-08
Product Type: Condition Monitoring Modules
Payment:T/T, Western Union
Weight: 910g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Bently Nevada 3500/72M 140734-08 Position Monitor

The Bently Nevada 140734-08, also cataloged as the 3500/72M Position Monitor, operates as a dedicated hardware component for continuous static and dynamic position tracking within the 3500 Machinery Protection System. Configured to interface with field-mounted proximity transducers, the module provides direct physical/electrical execution to compute rod drop, rod position, and piston location parameters across four independent channels.

Hardware Specifications

Parameter	Specification
Model	3500/72M (Part Number: 140734-08)
Brand	Bently Nevada (Baker Hughes)
Origin	USA
Weight	0.91 kg (2.0 lbs)
Dimensions	241.3 mm x 24.4 mm x 241.8 mm
Operating Temp	-30 to +65 deg C (-22 to +149 deg F)
Power Consumption	7.7 Watts (Typical)
Number of Channels	4 independent channels
Input Signal Support	Proximity Transducers (Proximitors)
Frequency Response	Static (DC) and dynamic position measurements
Accuracy	+-1% of full-scale range
Internal Isolation	500 Vrms
Storage Temperature	-40 to +85 deg C (-40 to +185 deg F)
Humidity	0% to 95% non-condensing

Machinery Monitoring & Eddy-Current Probe Calibration

The monitoring hardware relies on incoming analog telemetry from proximity transducers to determine real-time mechanical alignment. Proper data acquisition requires precise eddy-current probe scaling configurations within the software interface to match the physical properties of the installed tip diameter and target material. Field verification steps require a gap voltage validation targeting a nominal -10 VDC baseline, centering the proximity probe within its linear conversion zone. This tight electrical calibration optimizes internal cross-talk suppression, ensuring the module can isolate micro-strains in rod dynamics from background industrial noise.

Frequently Asked Questions

Q: Can the 140734-08 module capture transient data during a machine trip event?

A: Yes. The module integrates with the 3500/22M Transient Data Interface (TDI). When a transient event or alarm occurs, the module streams high-resolution dynamic waveforms across the rack backplane for complete mechanical diagnosis inside System 1 software.

Q: What function does the 500 Vrms internal isolation serve on this module?

A: The 500 Vrms electrical isolation barrier uncouples the internal rack logic and backplane communication paths from external field wiring loops. This protection prevents common-mode voltage surges or field ground loops from disrupting adjacent monitoring channels inside the 3500 chassis.

Field Installation Guidelines

Chassis Guide Alignment: Align the module with the front-plane card guides of the 3500 rack. Slide the hardware inward until the edge connectors mate completely with the passive backplane. Secure the card by fully tightening the two captive panel screws to establish frame ground connection.
Transducer Cable Shielding: Terminate the outer shields of all proximity transducer extension cables at the designated instrumentation ground rail within the marshalling cubicle. Do not earth the shield at both ends, as circulating currents will induce noise errors in the DC position measurements.
Proximitor Tuning: Prior to locking down the transducer mounting assembly, use a digital multimeter to measure the raw gap voltage. Adjust the physical position of the probe until the reading hits the specific target calibration point, normally -10 VDC for standard non-ferrous configurations.
Conduit Isolation Separation: Enclose all proximity sensor field cabling in dedicated low-voltage wireways. Maintain appropriate clearance between these measurement lines and heavy alternating current (AC) power lines or variable frequency drive cables to eliminate high-frequency inductive coupling.
