Product Overview

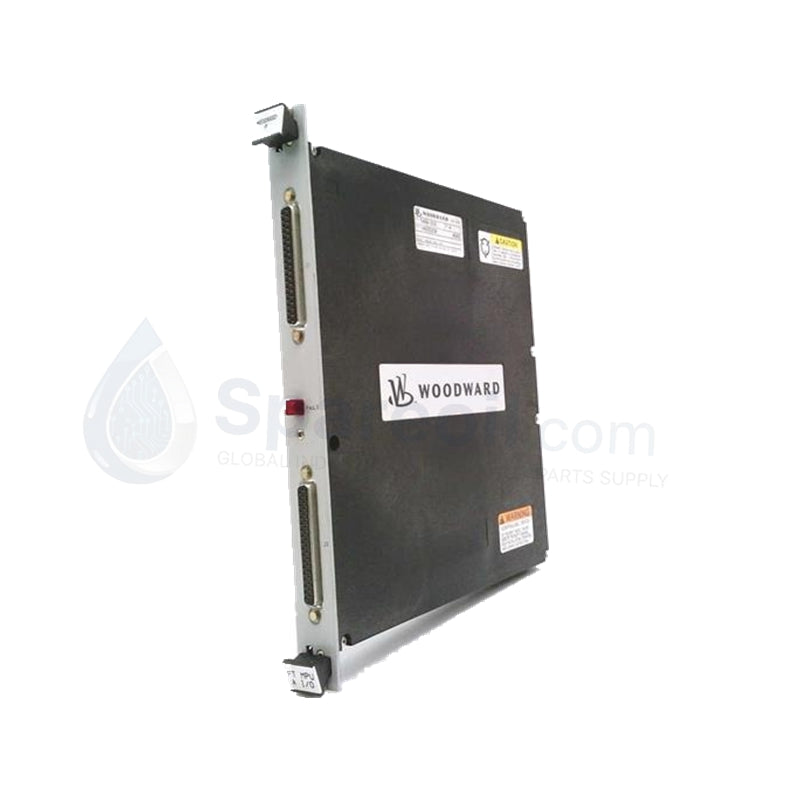

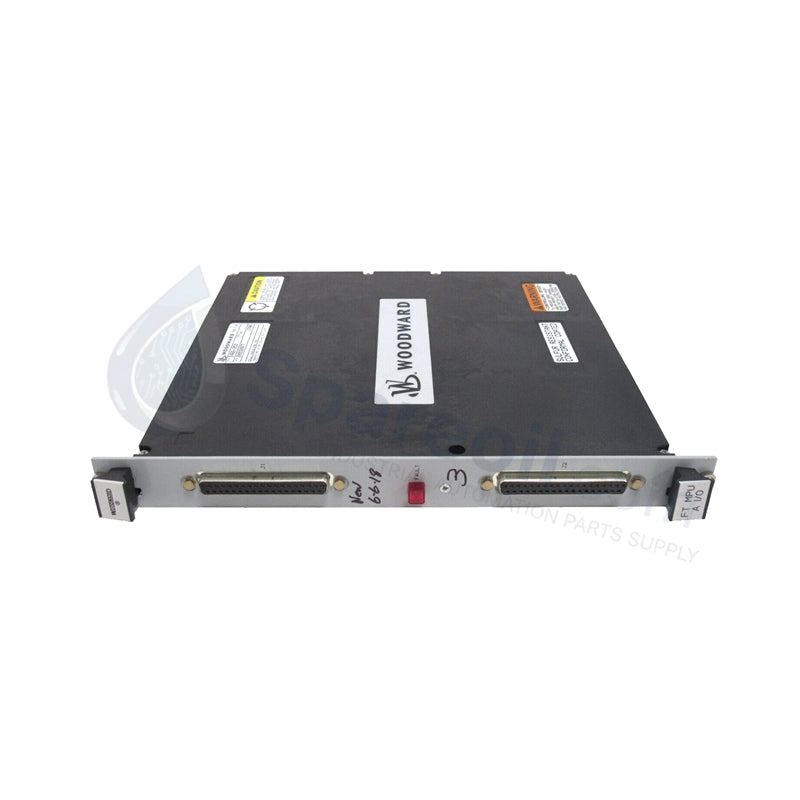

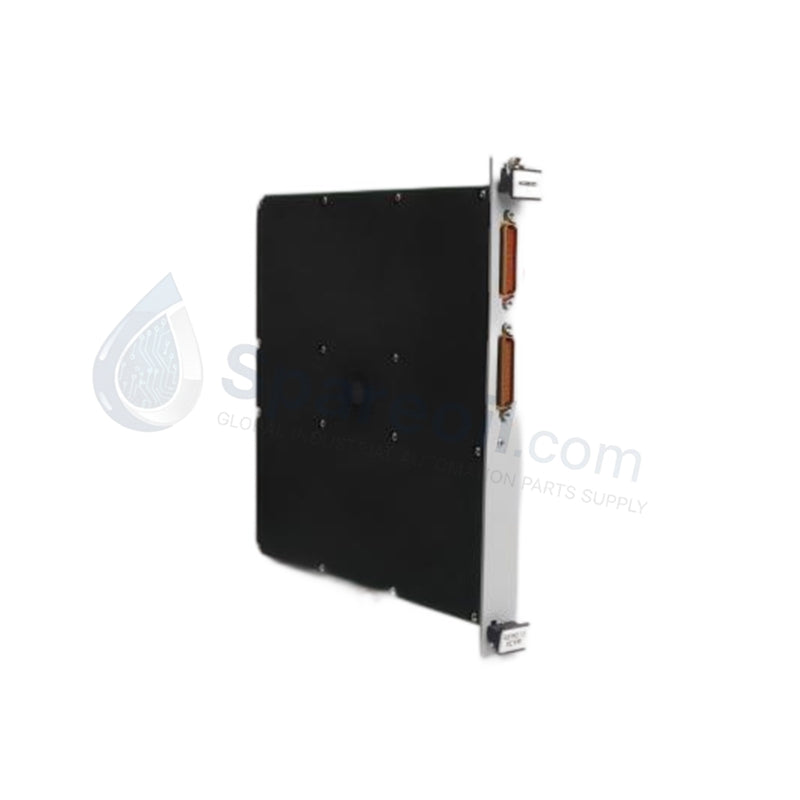

The Woodward 5466-253 (Revision H) is a high-density, multifunctional Analog Combo module designed for the MicroNet Plus and MicroNet HD (High Density) control platforms. This board serves as the primary I/O interface for Triple Modular Redundant (TMR) architectures, ensuring fault-tolerant operation for critical steam and gas turbine governors. By consolidating speed sensing, analog inputs/outputs, and proportional actuator drivers onto a single VME-based card, the 5466-253 optimizes rack density without sacrificing the deterministic control required for high-speed industrial prime movers.

Condition: This unit is 100% Brand New, original Woodward factory stock.

Technical Specifications

The 5466-253 Rev H utilizes high-resolution conversion and advanced galvanic isolation to maintain signal integrity in electrically harsh power generation environments.

Engineering Advantages

• Fault-Tolerant TMR Integration: The module hardware supports Triple Modular Redundant voting logic. This design ensures that a single component failure on one board does not cause a turbine trip, providing the highest level of availability for Emergency Shutdown (ESD) systems.

• All-in-One Control Node: Consolidating speed sensing and actuator driving into one slot reduces backplane traffic and latency. This integration allows for tighter PID loop control over fuel and steam valves, improving turbine transient response.

• Superior Galvanic Isolation: Advanced isolation barriers protect the MicroNet CPU from field-side electrical surges and ground loops. This prevents localized field faults from propagating through the system bus and crashing the controller.

• Software-Defined Flexibility: Engineers can configure the 8 analog input channels for either voltage or current loops via software. This flexibility simplifies spare parts management, as one 5466-253 can serve multiple roles across different turbine configurations.

• Revision H Performance: Revision H incorporates updated filtering circuitry that effectively rejects high-frequency noise from modern variable frequency drives (VFDs) and nearby high-voltage switchgear.

FAQs

• Can I use the 5466-253 in a non-TMR (Simplex) system?

  Yes. While Woodward optimized the 5466-253 for TMR applications, it functions perfectly in Simplex or Duplex MicroNet Plus configurations where high-density I/O and speed sensing are required.

• Does this module support both Magnetic Pickups (MPU) and Proximity Probes?

  The four speed input channels accommodate both passive MPUs and active proximity probes. You must configure the jumpers or software settings correctly to match the sensor's voltage levels and frequency range.

• Is the Rev H board backward compatible with older 5466-253 revisions?

  Yes, Revision H maintains full backward compatibility with previous revisions. It replaces older boards directly in the MicroNet rack without requiring software changes, though it offers improved noise immunity.

• What type of actuators can the driver channels control?

  The two proportional actuator driver channels specifically target steam and fuel valve positioners. They provide the necessary current and dither to drive Woodward TM-type actuators or third-party I/P converters.
