5SHY3545L0020 ABB | Asymmetric IGCT with 5SXE05-0154 Driver

5SHY3545L0020 ABB | Asymmetric IGCT with 5SXE05-0154 Driver

Availability: 10 left in stock

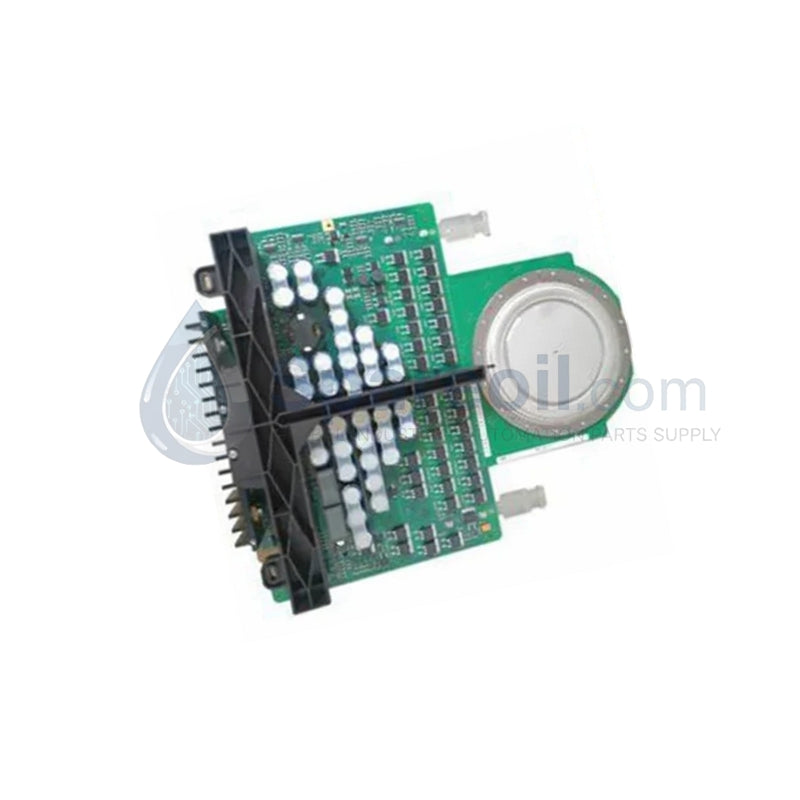

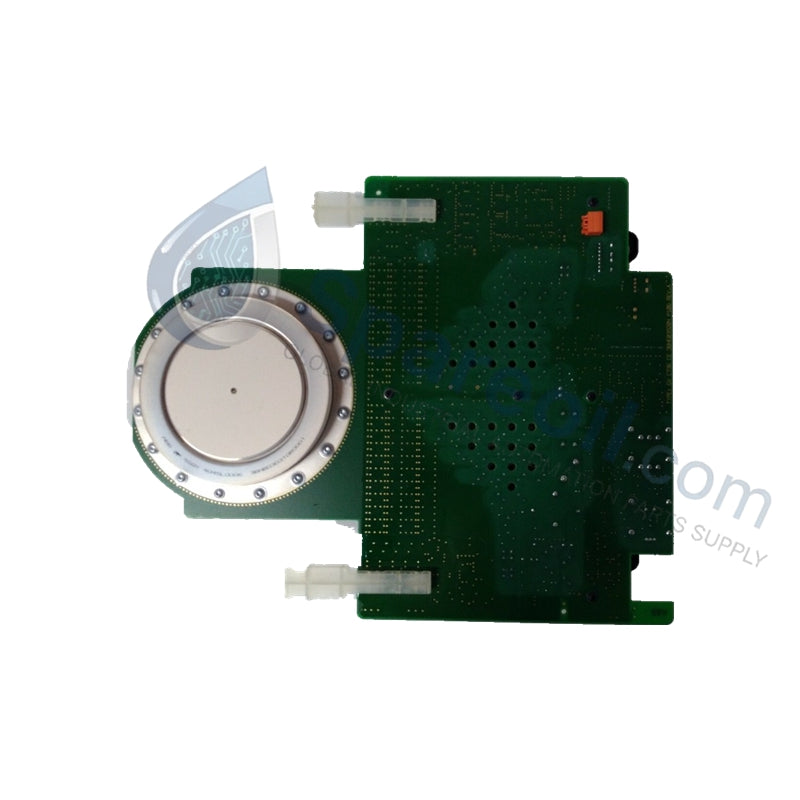

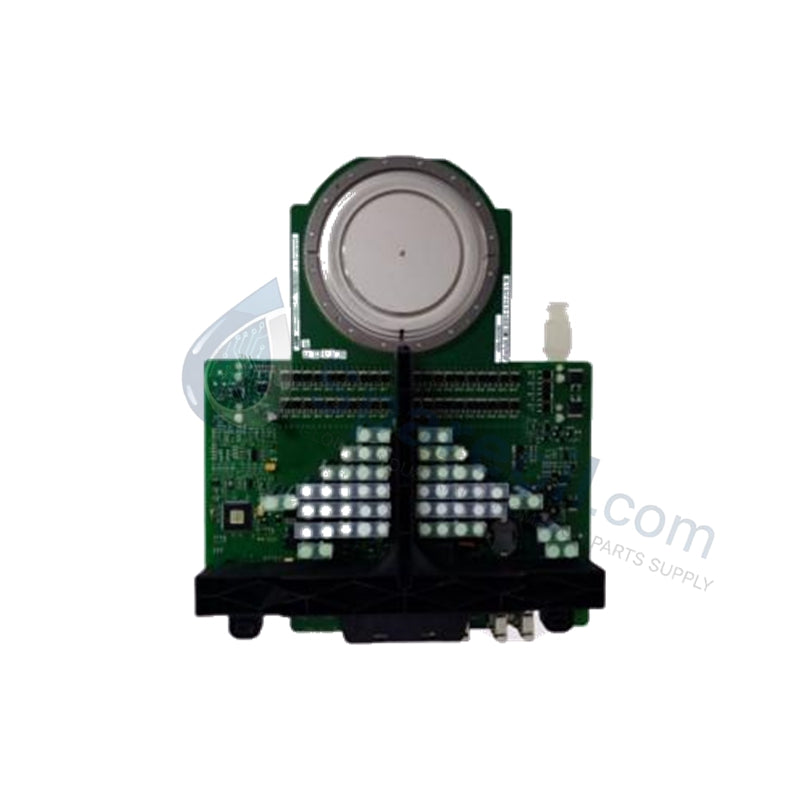

Product Overview The ABB 3BHE014105R0001 is a high-performance power semiconductor assembly that integrates the 5SHY3545L0020 IGCT with the 5SXE05-0154 gate driver unit. This asymmetric Integrated...

SKU: 3BHE014105R0001 5SHY3545L0020 5SXE05-0154

Manufacturer: ABB
Product No.: 3BHE014105R0001 5SHY3545L0020 5SXE05-0154
Product Type: IGCT Power Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 2900g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The ABB 3BHE014105R0001 is a high-performance power semiconductor assembly that integrates the 5SHY3545L0020 IGCT with the 5SXE05-0154 gate driver unit. This asymmetric Integrated Gate-Commutated Thyristor (IGCT) combines the low conduction losses of a thyristor with the fast switching dynamics of a transistor. Specifically engineered for megawatt-scale power conversion, this module facilitates snubberless operation in medium-voltage drives, traction propulsion, and grid-connected converters. We supply this unit as 100% Brand New and Original, ensuring peak reliability for mission-critical industrial infrastructures.

Technical Specifications

Parameter	Specification
Complete Assembly ID	3BHE014105R0001
IGCT Element	5SHY3545L0020 (Asymmetric)
Gate Driver Unit	5SXE05-0154
Voltage Rating	4500 V
Current Rating	3545 A RMS (Up to 4500 A Peak)
Conduction Loss	Typical 1.5–2.5 V voltage drop
Package Style	Press-pack (High-integrity thermal contact)
Dimensions	439 mm × 173 mm × 41 mm
Cooling Requirement	Double-sided (Liquid or Forced-air)
Operating Weight	2.9 kg – 3.0 kg

Engineering Advantages

Snubberless Operation: The advanced gate commutated architecture eliminates the need for bulky and expensive snubber circuits. This reduces the total converter footprint and simplifies the mechanical design of multi-level stacks.
Superior Thermal Management: The press-pack construction provides robust double-sided cooling. By applying controlled mechanical pressure, the module maintains minimal thermal resistance ( $R_{th}$ ), allowing for continuous high-current operation in harsh steel rolling mills or mining compressors.
Matched Gate Drive Precision: The integrated 5SXE05-0154 gate driver optimizes the turn-off transient. This factory-matched pairing ensures uniform current distribution across the semiconductor wafer, preventing localized hotspots and extending the module’s operational lifespan to over 20 years.
High-Efficiency Performance: With typical system efficiencies exceeding 98%, this IGCT significantly lowers energy waste in HVDC and FACTS transmission networks. The low on-state voltage drop (1.5–2.5V) minimizes heat generation during high-duty cycles.
Fatigue-Resistant Construction: Designed to withstand cyclic electrical and thermal loading, the module maintains structural integrity under the constant vibration levels found in marine propulsion and locomotive traction systems.

FAQs

What is the benefit of the asymmetric design in the 5SHY3545L0020?

The asymmetric configuration optimizes the device for unidirectional conduction while maintaining high bidirectional voltage blocking. This makes it specifically effective for voltage source converters (VSC) where a neutral-point-clamped (NPC) or multi-level topology is utilized.

How critical is the clamping pressure during installation?

The press-pack design requires precise mechanical clamping to ensure electrical contact and thermal dissipation. Insufficient pressure increases contact resistance and leads to immediate thermal runaway, while excessive pressure can damage the semiconductor wafer. Always follow ABB’s specified torque and force parameters.

Is this 3BHE014105R0001 unit a refurbished part?

No. We guarantee this product is 100% Brand New and Original. Given the critical nature of megawatt-scale power electronics, we only provide factory-sealed units to ensure the gate driver and IGCT meet original Swiss/German manufacturing tolerances.

Does the module include fault protection?

Yes. The 5SXE05-0154 gate driver includes integrated diagnostics for fault detection and short-circuit protection. It communicates status signals back to the main controller to initiate safety shutdowns before hardware failure occurs.
