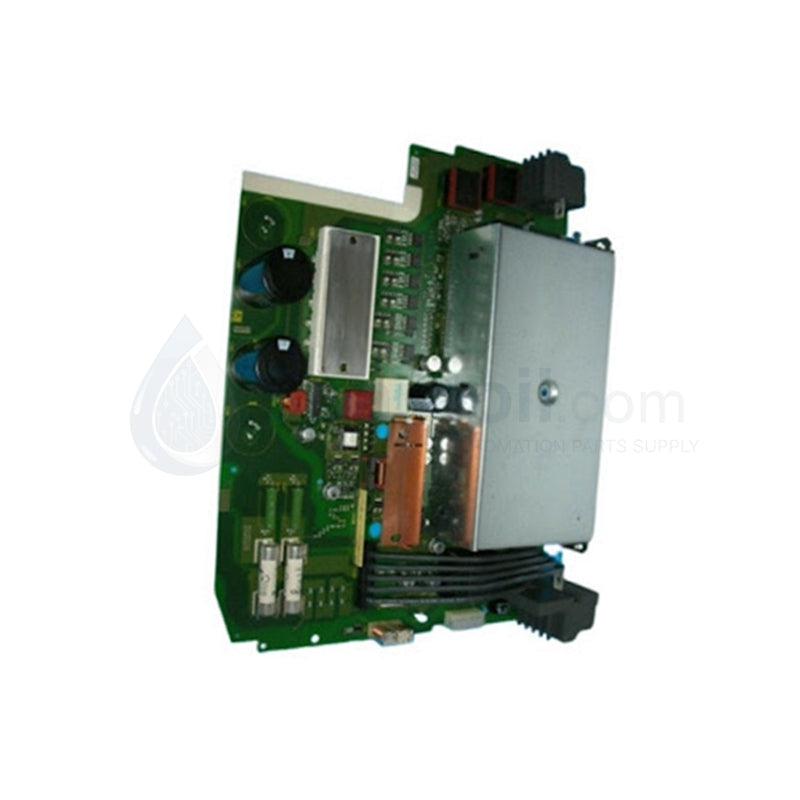

Siemens 6SE7016-1TA84-1HF3 SIMOVERT Masterdrives Power Module PEU5

The Siemens 6SE7016-1TA84-1HF3, also cataloged as the 6SE7016-1TA84-1HF3 Power Output Module PEU5, operates as a dedicated hardware component for inverter stage switching within SIMOVERT Masterdrives networks. Configured for direct execution in Vector Control (VC) and Motion Control (MC) drive frames, the module samples the common 510 to 620 V DC link rail and switches internal insulated-gate bipolar transistors (IGBTs) to feed variable-frequency AC power to connected motor windings. Local gating commands are transferred directly via an integrated control board interface to maintain phase-current alignment.

Hardware Specifications

V/Hz and Field-Oriented Vector Control

The Siemens 6SE7016-1TA84-1HF3 executes high-frequency pulse-width modulation (PWM) routines to drive precise V/Hz and field-oriented vector control loops. The internal silicon layout responds natively to gating pulses generated by the master drive processor, maintaining sub-microsecond turn-on and turn-off propagation delays across the multi-phase switching matrix.

The module incorporates precise harmonic distortion suppression properties by optimization of its internal stray inductance paths. This physical configuration prevents high dV/dt transient spikes from inducing premature insulation breakdown in 1FT/1FK servo motor windings, while the thermal heat sink dissipation profiles match continuous 6.1 A commutation cycles without causing thermal saturation in the power stage substrate layers.

Frequently Asked Questions

Q: What structural issues occur if the internal cooling fan array fails while the module is supplying a continuous 6.1 A load? A: A failure in forced air circulation disrupts the calculated thermal heat sink dissipation profiles. The IGBT junctions will experience rapid thermal loading, which trips the drive's internal temperature monitoring algorithms and inhibits output gating before the module sustains localized thermal damage.

Q: Does the 6SE7016-1TA84-1HF3 require a specific firmware flash compatibility step when mounted as a spare part? A: No. The PEU5 module functions as a physical power stage containing gate drivers and power semiconductors. It operates independently of software versions, though the master control card (such as a CUVC or CUMC board) must be calibrated to match the specific 6.1 A current scaling definitions of this hardware.

Q: Can this power output module be operated on a 380 V AC line without an intermediate DC link distribution block? A: No. The input architecture of the 6SE7016-1TA84-1HF3 lacks a dedicated front-end rectifier bridge. It requires direct physical termination to a stabilized 510 to 620 V DC bus supply derived from a centralized rectifier or regenerative input line.

Field Installation Guidelines

• Discharge the main DC link capacitor banks completely and verify with a calibrated voltmeter that the voltage between the positive and negative bus bars is 0 V before commencing installation.
• Seat the PEU5 power module into its designated location inside the Masterdrives chassis, ensuring all mechanical guide tracks align to avoid stress on the internal control board interface.
• Torque all DC link bus bars and output motor terminal screws to the manufacturer-specified nominal ratings to prevent high-resistance connection points.
• Verify the integrity of the thermal interface material between the power module base and the internal heatsink fins to maintain expected convective heat transfer.
• Route all low-voltage gate signal ribbons and sensor lines through dedicated tracks, separated from the primary DC link and AC motor lines to suppress electromagnetic noise cross-coupling.
