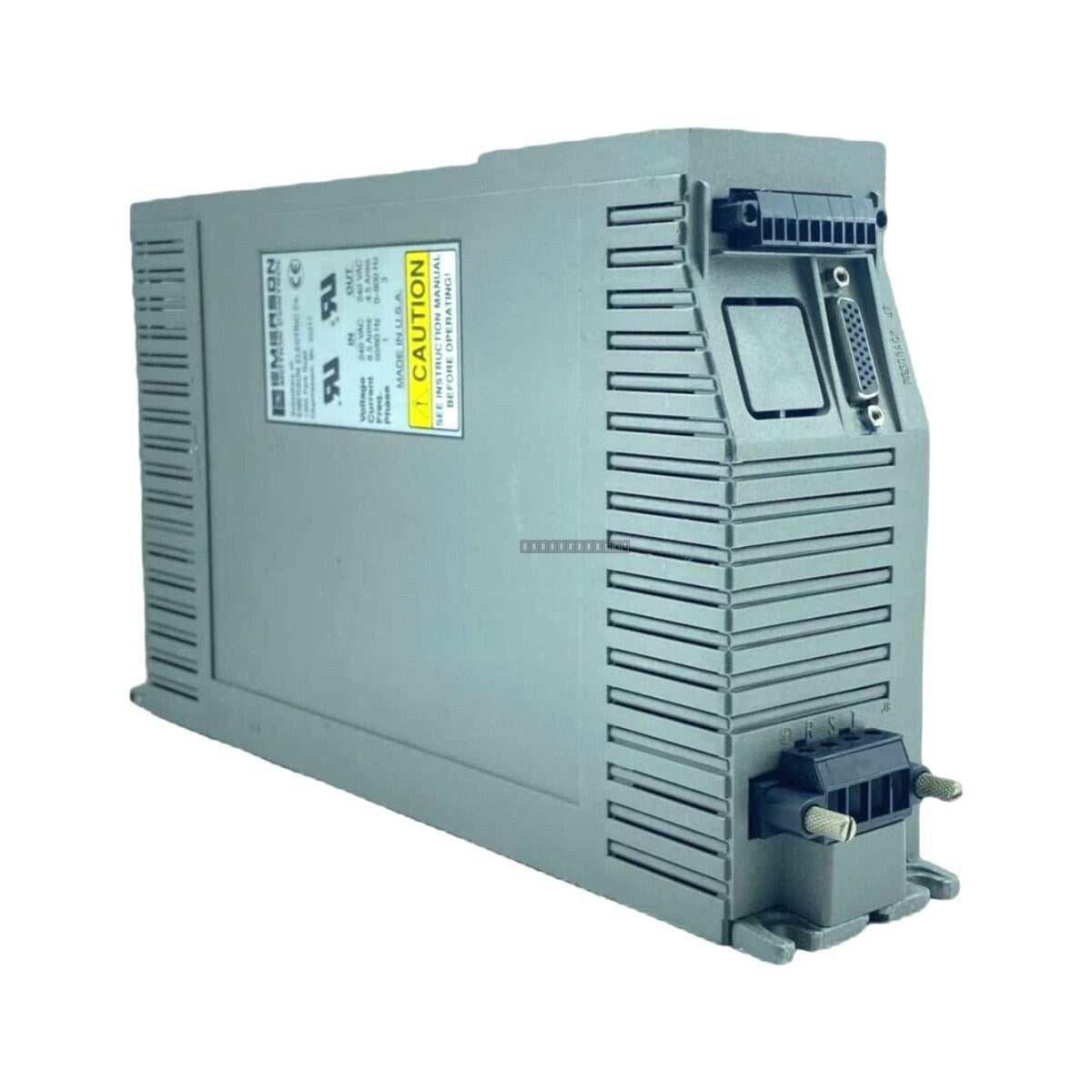

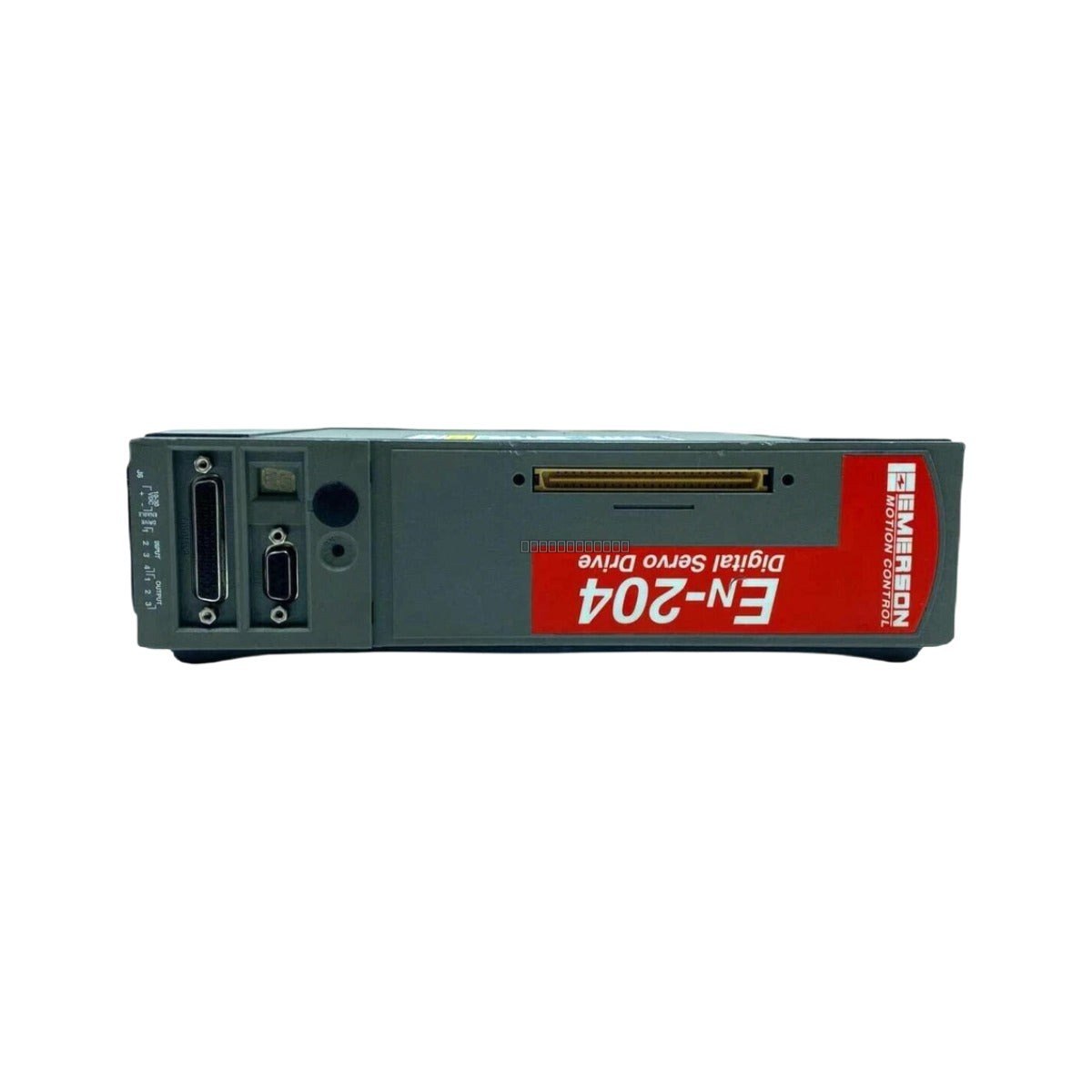

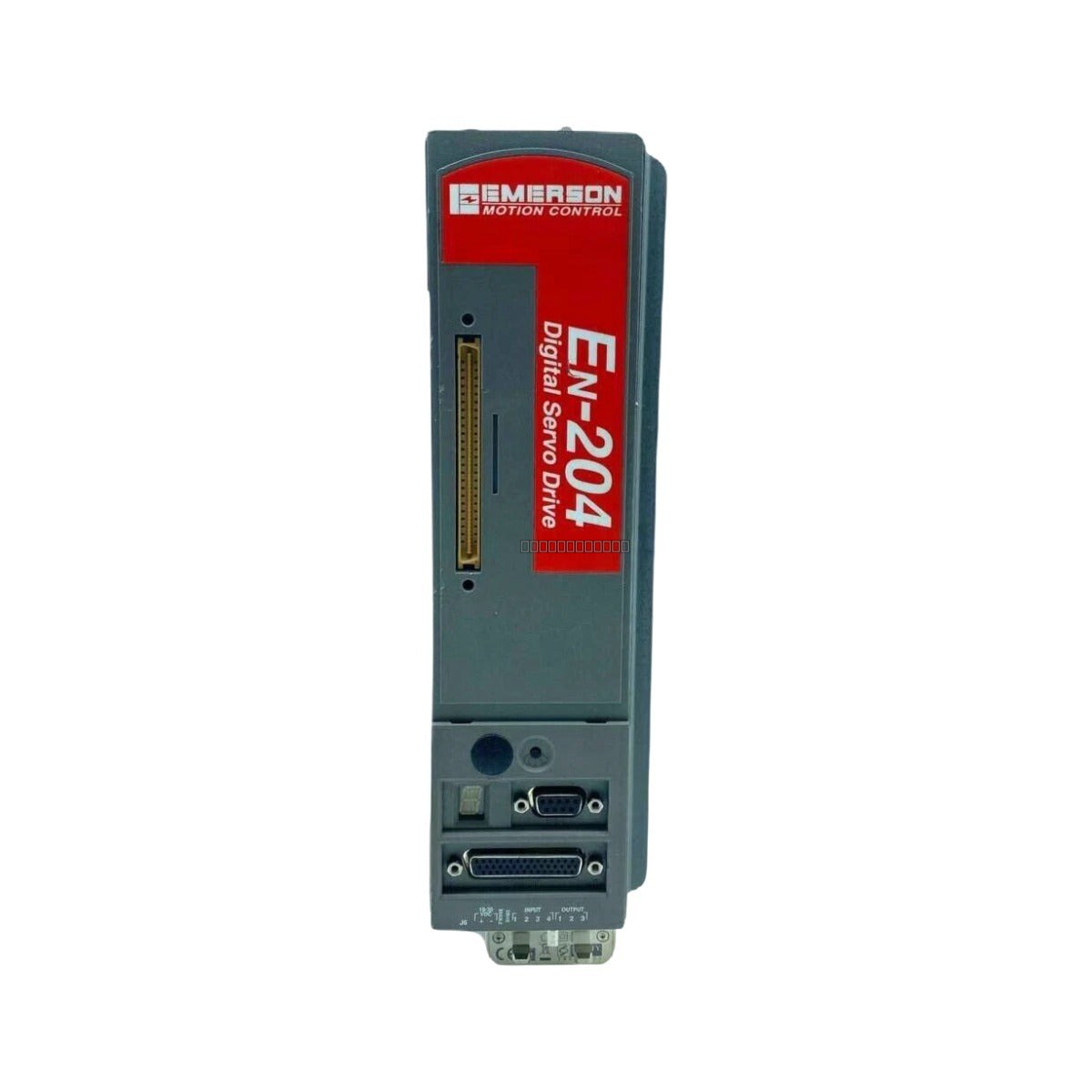

Emerson Motion Control EN-204-00-000 Servo Drive

Emerson Motion Control EN-204-00-000 Servo Drive

Availability: 0 left in stock

DescriptionThe Emerson Motion Control EN-204 (EN-204-00-000) is a high-performance digital servo drive engineered for precision motion control applications. As part...

SKU: EN-204 EN-204-00-000

Manufacturer: Emerson
Product No.: EN-204 EN-204-00-000
Product Type: Servo Drive
Product Origin: USA
Payment:T/T, Western Union
Weight: 1800g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Emerson Motion Control EN-204 (EN-204-00-000) is a high-performance digital servo drive engineered for precision motion control applications. As part of the Control Techniques product family, this compact, standalone drive provides advanced torque, velocity, and position control for brushless servo motors. It is specifically designed to meet the demands of high-speed packaging, automated assembly, and CNC machining, utilizing high-speed digital signal processing to ensure bandwidth and accuracy. The 00-000 configuration represents the standard base model, optimized for reliable core drive functionality in sophisticated industrial automation environments.

Features

Digital signal processing for high-bandwidth motion control.
Supports multiple control modes: Torque, Velocity, and Position.
Programmable I/O for flexible integration with PLCs and motion controllers.
Internal firmware support for complex motion profiles, including electronic gearing and camming.
Integrated protection circuits for over-voltage, over-current, and thermal monitoring.
Front-panel diagnostic LEDs for real-time status and fault code reporting.

Applications

High-speed automated packaging machinery.
Precision CNC machining centers.
Automated assembly and robotics.
Material handling and conveyor systems.

Technical Specifications

Parameter	Specification
Model	EN-204 (EN-204-00-000)
Drive Type	Digital Brushless Servo Drive
Continuous Output Current	4 A (RMS)
Peak Output Current	8 A (RMS)
Input Voltage	100 - 240 VAC (Single Phase)
Input Frequency	50 / 60 Hz
Feedback Support	Encoder (Incremental/SinCos), Resolver (via adapter)
Operating Temperature	0 to 50 deg C
Ingress Protection	IP 20
Communication	RS-232 / RS-485

Installation Guidelines

Ensure the drive is mounted in a clean, dry environment with adequate clearance for natural convection cooling.
Use shielded cables for motor and feedback connections to minimize EMI interference.
Verify that the input power supply matches the 100-240 VAC range before applying power.
Ensure proper grounding of the drive chassis to a common earth point to prevent noise issues.
Always power down the unit and wait for internal capacitors to discharge before performing wiring or maintenance.
Handle with standard ESD precautions to protect internal logic components.

FAQ

What does the 00-000 suffix indicate?

The 00-000 suffix denotes the standard base configuration of the EN-204 drive, which includes the core control functionality without additional factory-fitted expansion modules or customized hardware options.

Is this drive compatible with my existing PLC?

The EN-204 features programmable I/O and standard communication interfaces (RS-232/RS-485), allowing it to interface with most industrial PLCs and motion controllers capable of standard digital or serial communication protocols.
