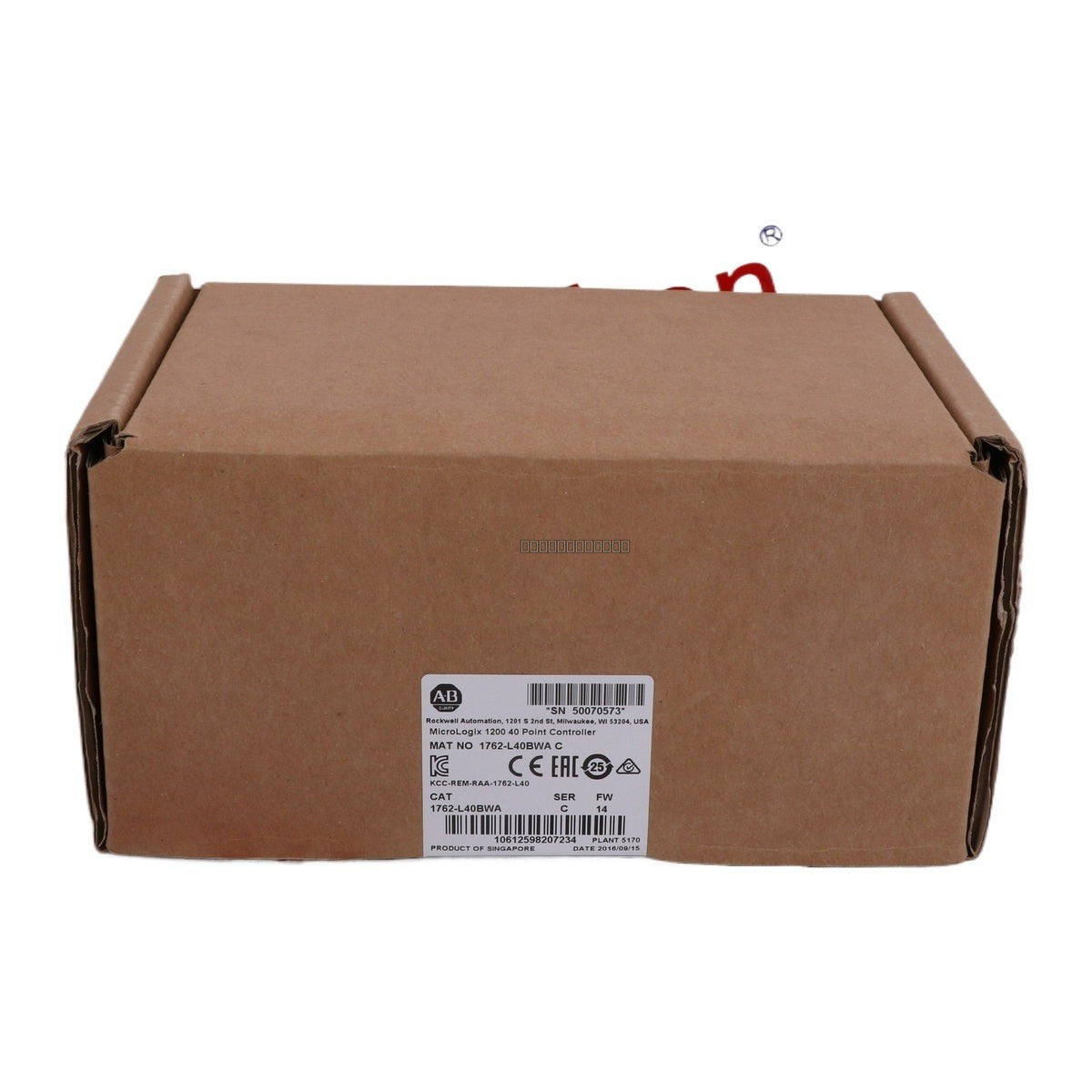

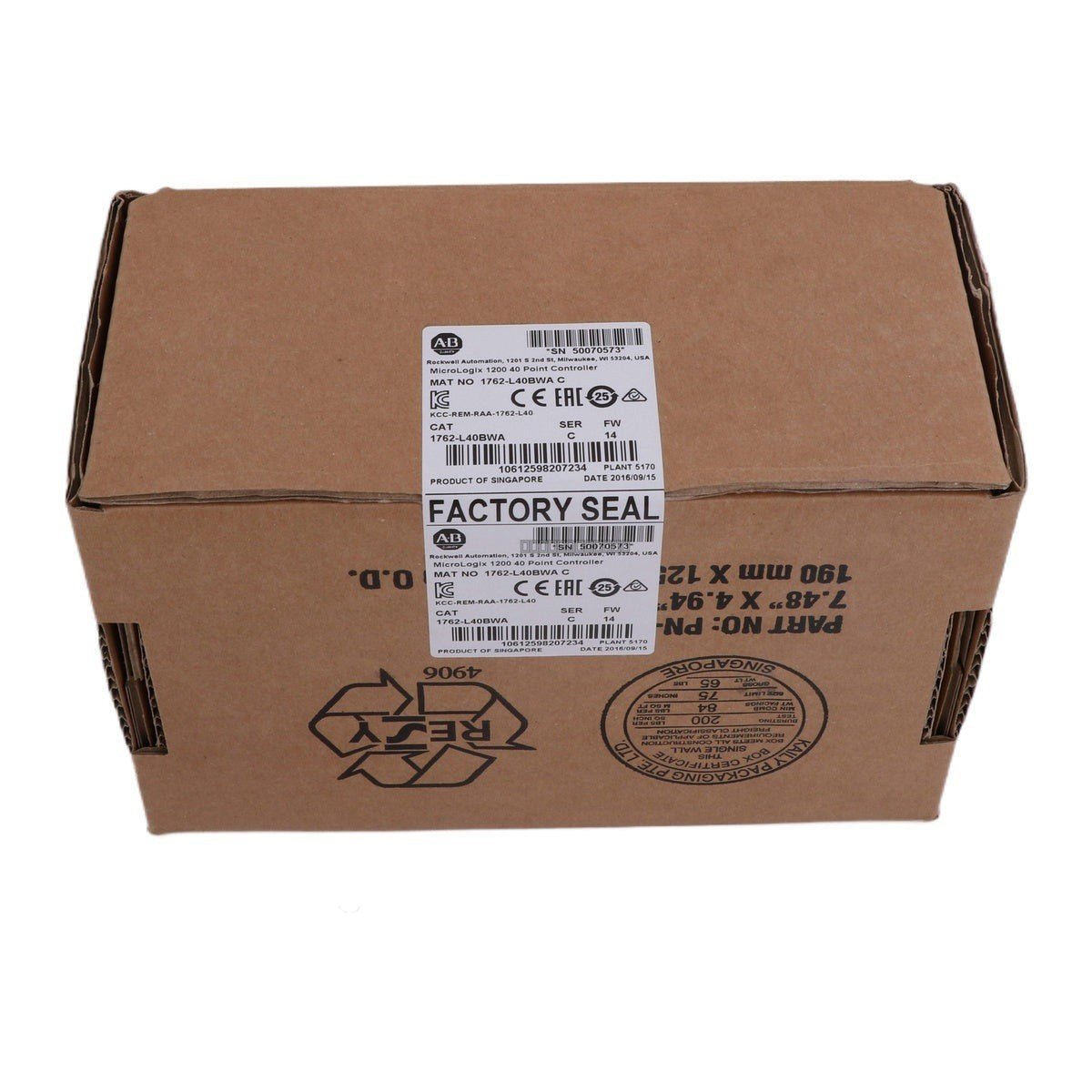

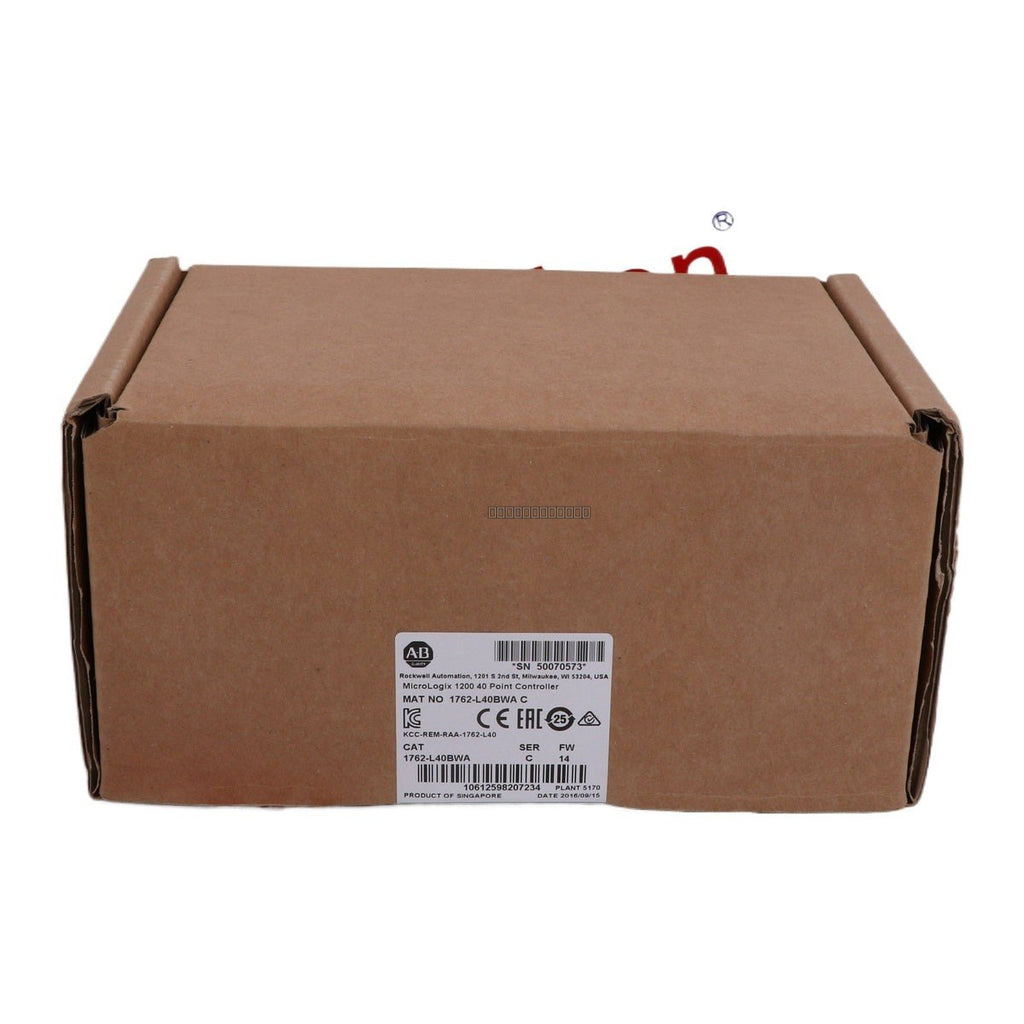

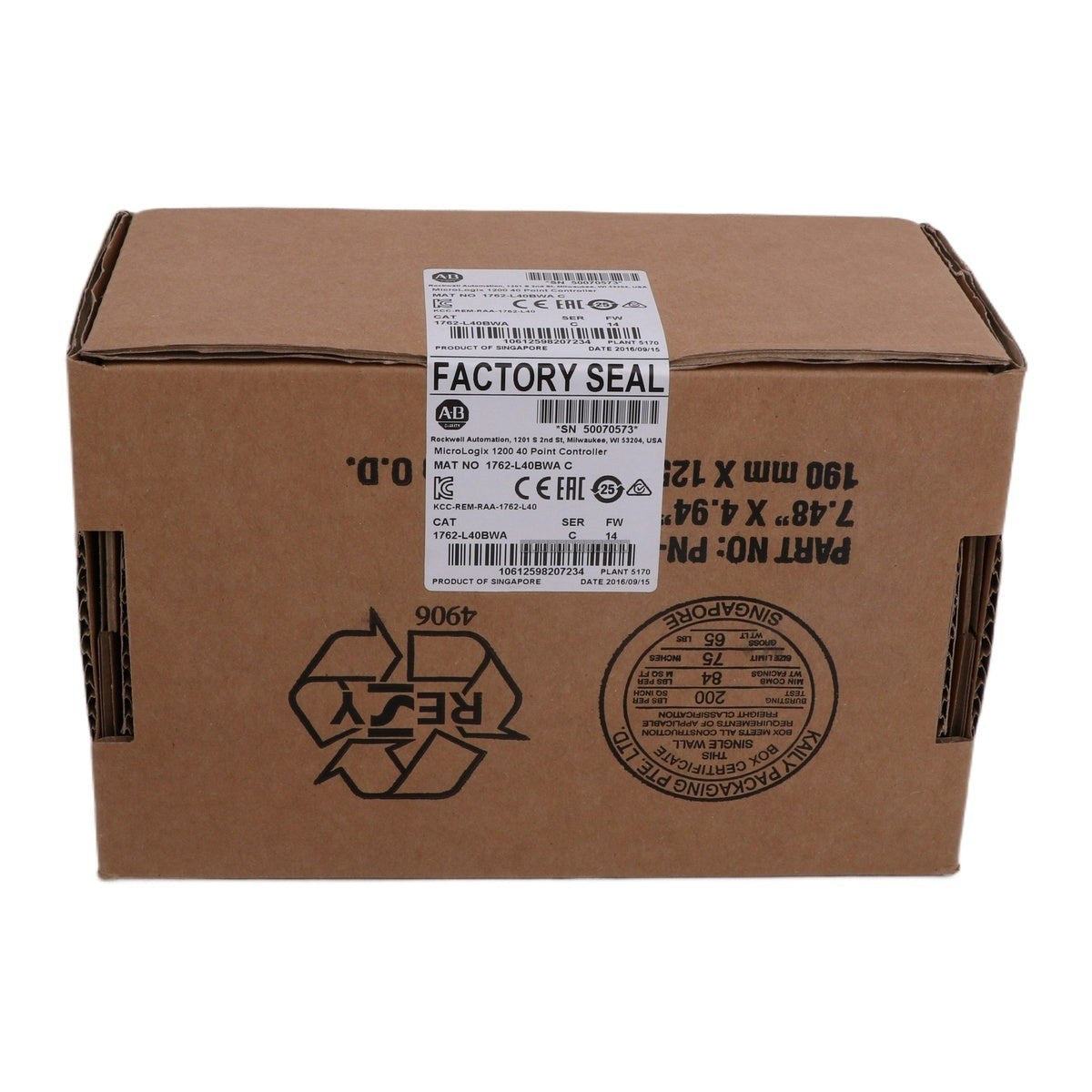

Allen-Bradley 1762-L40BWA MicroLogix 1200 40-Point Controller

Availability: 3 left in stock

The Allen-Bradley 1762-L40BWA is a high-performance MicroLogix 1200 programmable logic controller designed for small to mid-sized industrial automation applications. This...

SKU: 1762-L40BWA

Manufacturer: Allen-Bradley
Product No.: 1762-L40BWA
Product Type: PLC Controller
Product Origin: USA
Payment:T/T, Western Union
Weight: 900g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Allen-Bradley 1762-L40BWA is a high-performance MicroLogix 1200 programmable logic controller designed for small to mid-sized industrial automation applications. This 40-point controller features an integrated 100-240V AC power supply, 24 digital inputs, and 16 relay outputs, providing a flexible and robust solution for machine control and process automation.

Features

MicroLogix 1200 architecture with 40 integrated I/O points.
24V DC digital inputs, including 4 high-speed inputs for precise counting and timing applications.
16 relay outputs suitable for switching a wide range of AC and DC loads.
Integrated RS-232 communication port supporting DF1, DH-485, Modbus, and ASCII protocols.
Supports up to 6 additional 1762 expansion I/O modules for system scalability.
Flexible mounting options via DIN rail or panel mounting.

Applications

Industrial machinery and manufacturing automation.
Material handling systems, including conveyors and sorting equipment.
Process control for sensors, solenoids, and motor starters.
Packaging and food/beverage processing lines.
Building automation and localized control systems.

Technical Specifications

Model	1762-L40BWA
Power Supply	100-240V AC
Total I/O	40 Points (24 In / 16 Out)
Input Type	24V DC Sinking/Sourcing
Output Type	Relay
Power Usage	82 VA
Heat Dissipation	22.0 W
Operating Temperature	0 degC to 55 degC
Communication	RS-232 (8-pin Mini DIN)

Installation Guidelines

Mounting: Mount the unit horizontally. Maintain at least 50 mm (2 inches) of clearance on all sides for adequate ventilation, except for the right side where expansion modules are connected.
Debris Protection: Keep the protective debris strip on top of the unit during installation to prevent foreign objects from entering the circuitry. Remove only after wiring is complete.
Wiring: Ensure all wiring complies with local electrical codes. Disconnect all power before installing or removing expansion modules to prevent electrical damage.
Grounding: Proper chassis grounding is essential for electromagnetic compatibility and operational safety.
Environment: Install in an enclosure rated for the operating environment. Use climate control (fans or heaters) to maintain the specified operating temperature range.

FAQ

What is the 1762-L40BWA?

It is a 40-point Allen-Bradley MicroLogix 1200 controller with a 100-240V AC power supply, 24-point 24V DC inputs (including 4 fast inputs), and 16 relay outputs.

What are the expansion options?

The 1762-L40BWA supports up to 6 expansion modules, including analog, high-speed counter, and additional digital I/O modules.

What is the maximum load output of the 1762-L40BWA relay?

The relay outputs are rated for 25-125V DC or 120-240V AC, with a maximum control load capacity of 1440 VA.
