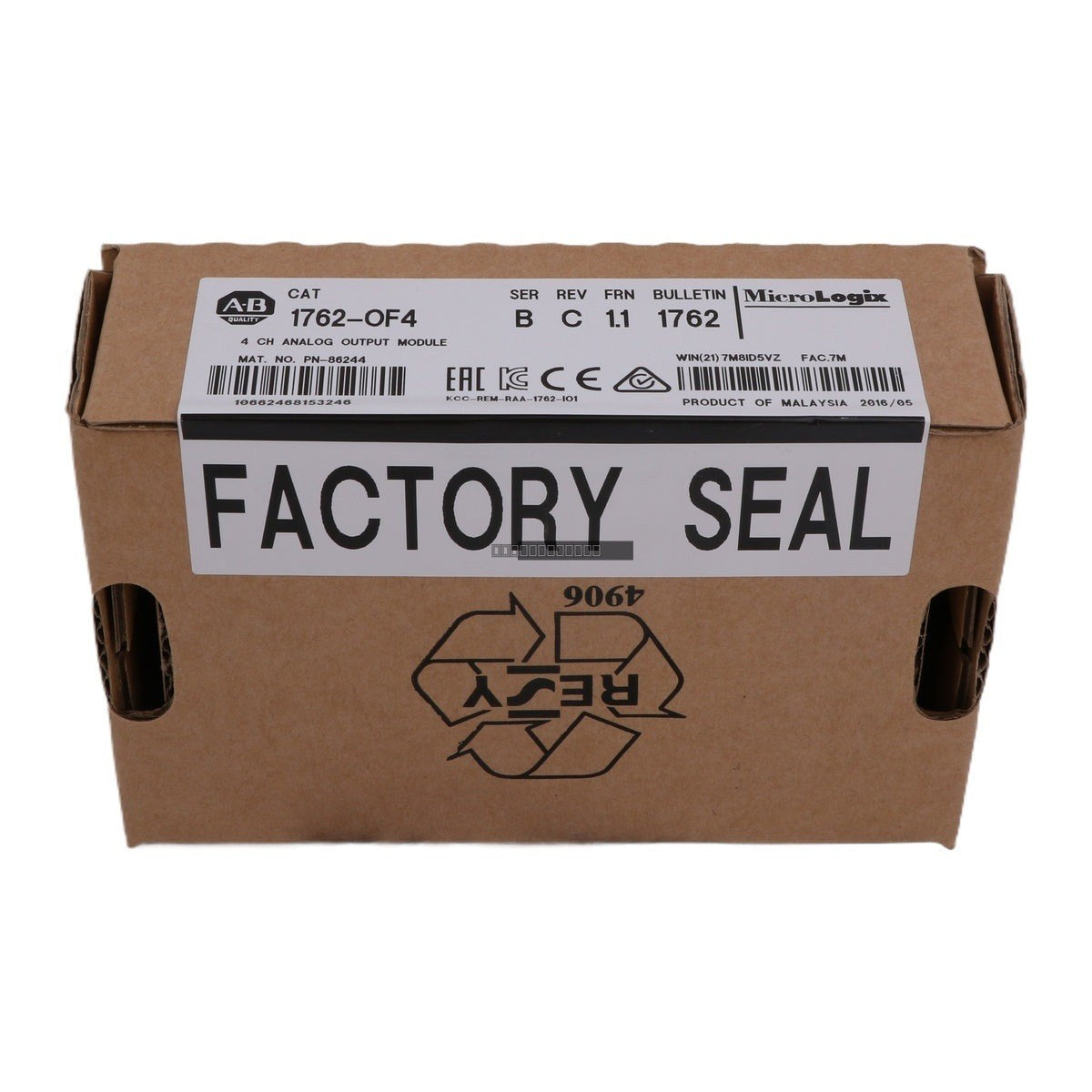

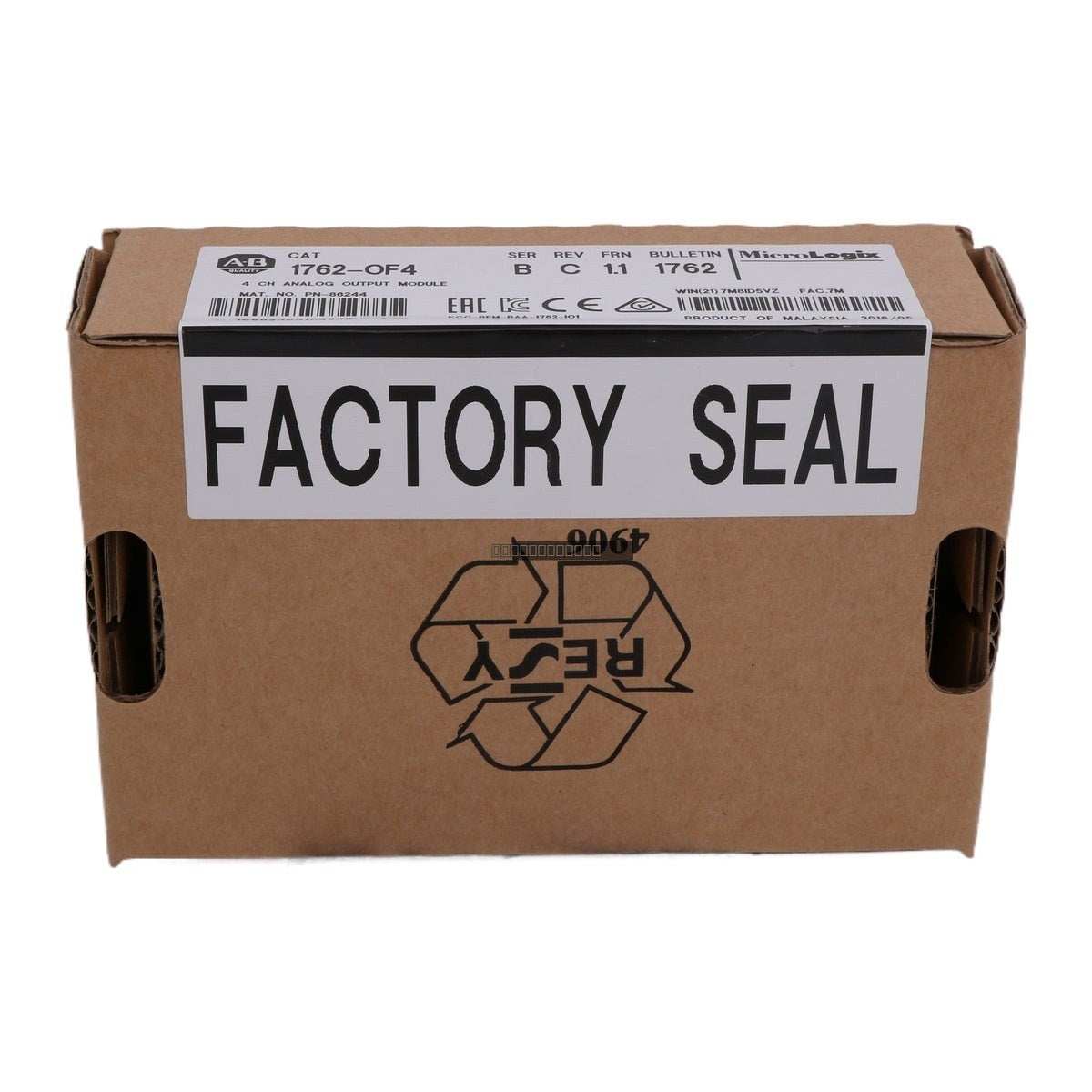

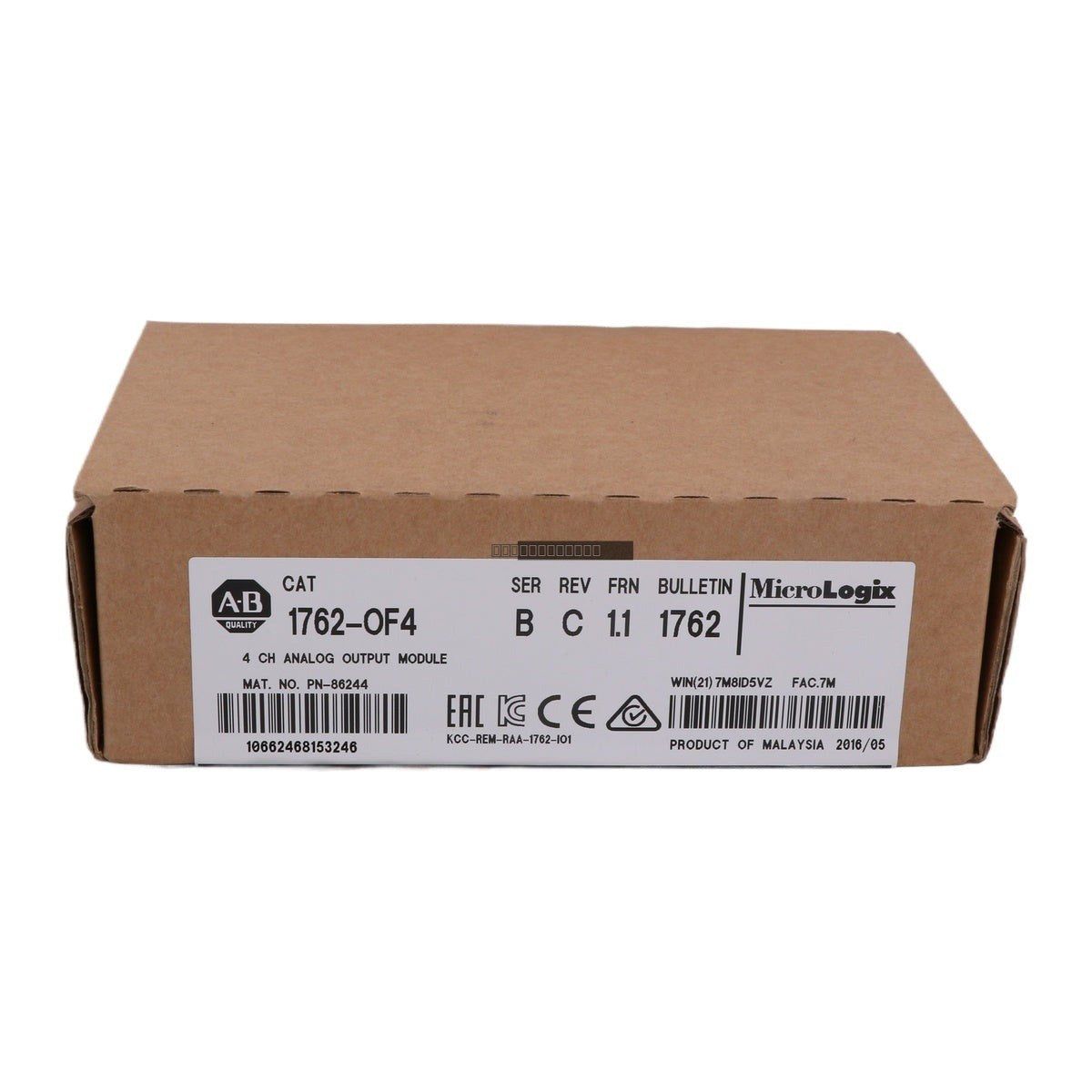

Allen-Bradley 1762-OF4 MicroLogix 1200 Analog Output Module

Availability: 6 left in stock

DescriptionThe Allen-Bradley 1762-OF4 is a high-performance analog output module designed for use with the MicroLogix 1200 programmable logic controller (PLC)...

SKU: 1762-OF4

Manufacturer: Allen-Bradley
Product No.: 1762-OF4
Product Type: Analog Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Allen-Bradley 1762-OF4 is a high-performance analog output module designed for use with the MicroLogix 1200 programmable logic controller (PLC) system. This module provides four single-ended analog output channels, allowing for precise control of external devices such as variable frequency drives, actuators, or proportional valves. It supports both voltage and current output modes, providing versatility for various industrial automation applications.

Features

Four (4) single-ended analog output channels.
Configurable output ranges: 0 to 10 VDC or 4 to 20 mA.
Full-scale analog ranges up to 10.5 VDC and 21 mA.
Designed for seamless integration with the MicroLogix 1200 expansion I/O bus.
Requires 24 VDC input power for operation.

Applications

This module is typically utilized in industrial control environments requiring analog signal generation for process regulation. Common applications include speed control for motor drives, positioning for hydraulic or pneumatic valves, and signal transmission to remote instrumentation or chart recorders within a MicroLogix-based control architecture.

Technical Specifications

Model	1762-OF4
Number of Outputs	4 Single-ended
Output Range (Voltage)	0 to 10 VDC
Output Range (Current)	0 to 20 mA / 4 to 20 mA
Full Scale Range	10.5 VDC / 21 mA
Input Power	24 VDC
Series	MicroLogix 1200

Installation Guidelines

Ensure the PLC system power is disconnected before installing or removing the 1762-OF4 module to prevent electrical damage.
Mount the module securely to the MicroLogix 1200 expansion bus using the provided connector interface.
Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
Ensure proper grounding of the cable shields at one end to prevent ground loops.
Maintain adequate clearance around the module to ensure proper ventilation and prevent overheating.
Handle the module using ESD-safe practices to protect internal circuitry from electrostatic discharge.

FAQ

What output ranges does the 1762-OF4 support?

The module supports 0-10 VDC voltage output and 0-20 mA or 4-20 mA current output, with full-scale capabilities up to 10.5 VDC and 21 mA.

Is this module compatible with other MicroLogix series?

The 1762-OF4 is specifically designed for the MicroLogix 1200 series expansion I/O bus. Please consult your specific controller hardware manual to verify compatibility with other MicroLogix models.
