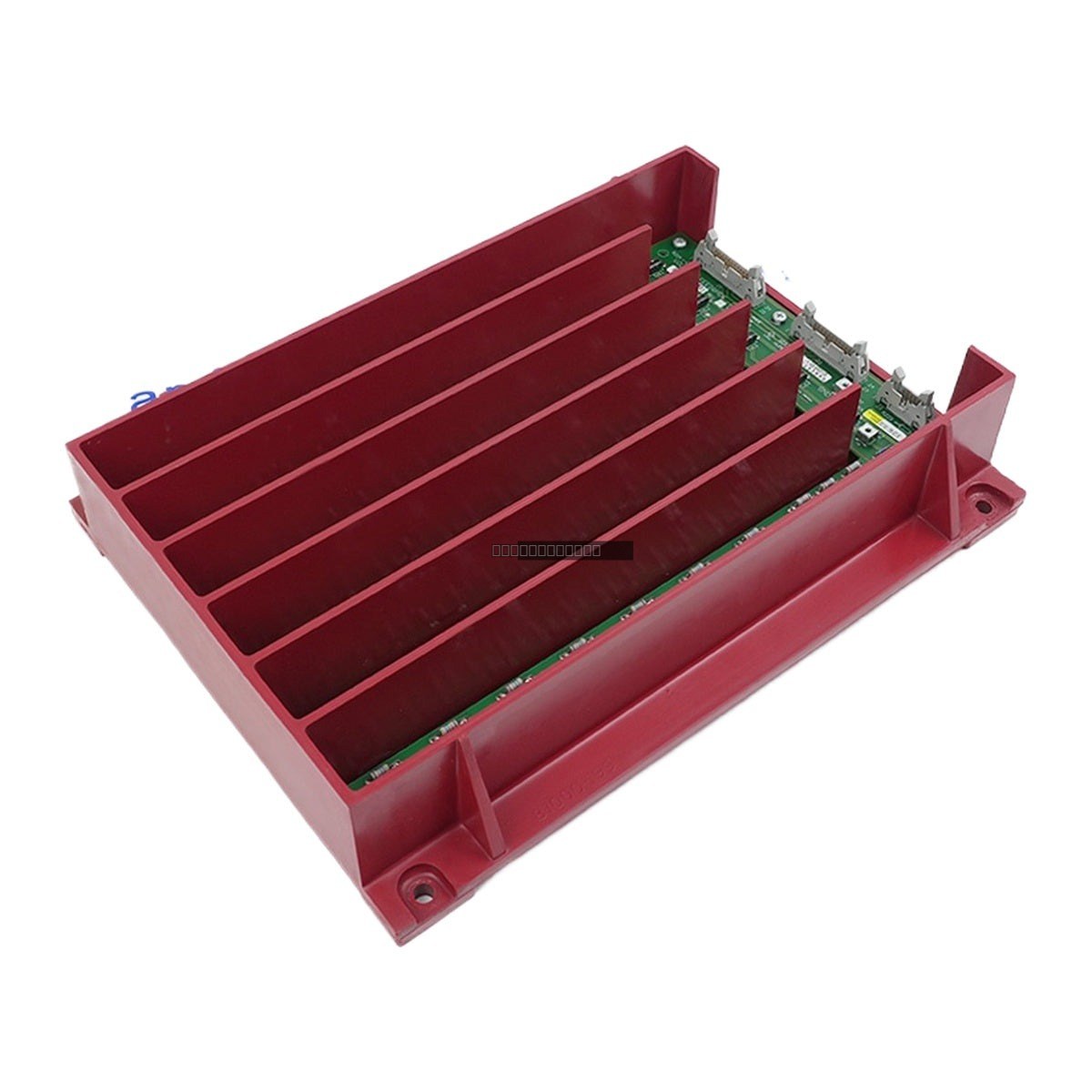

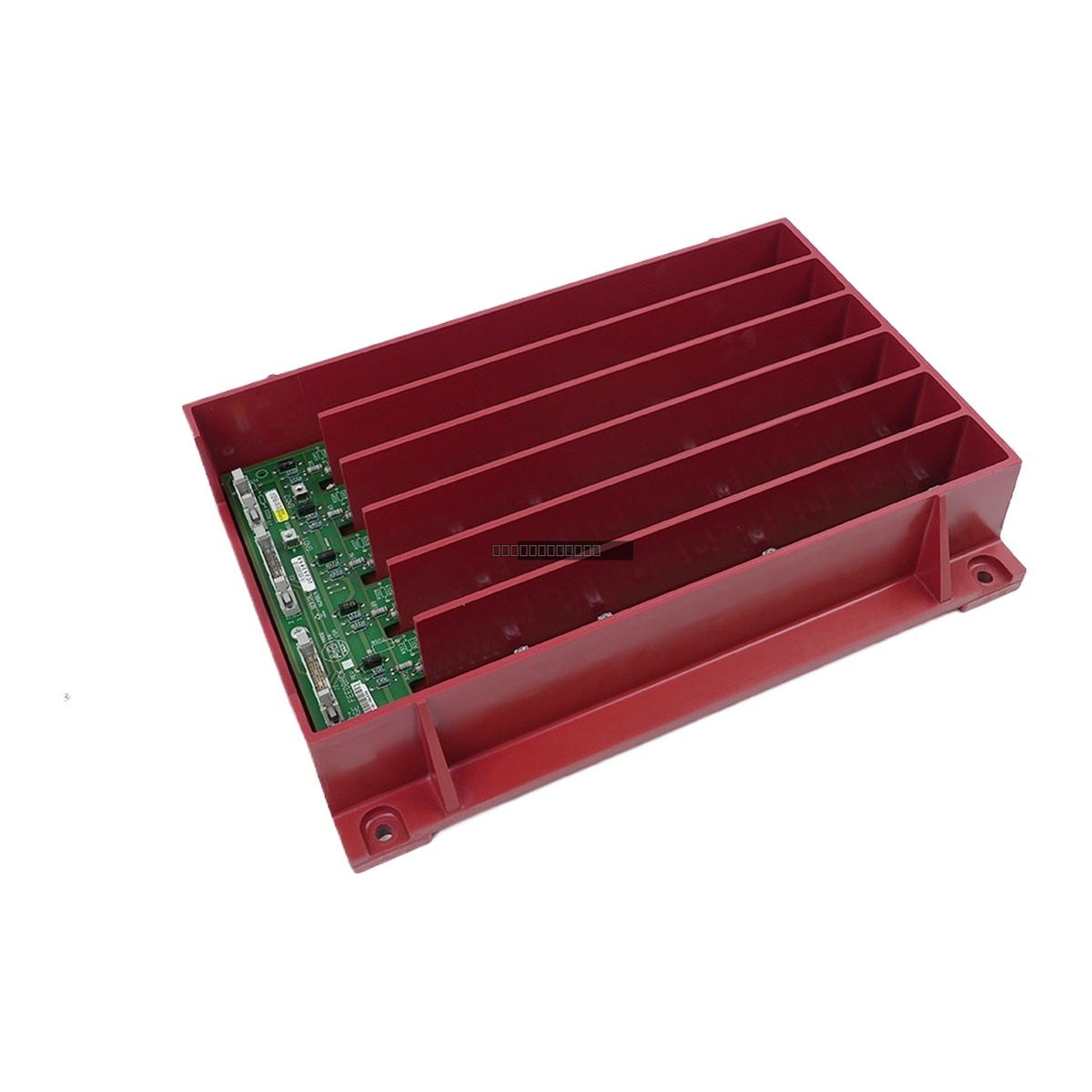

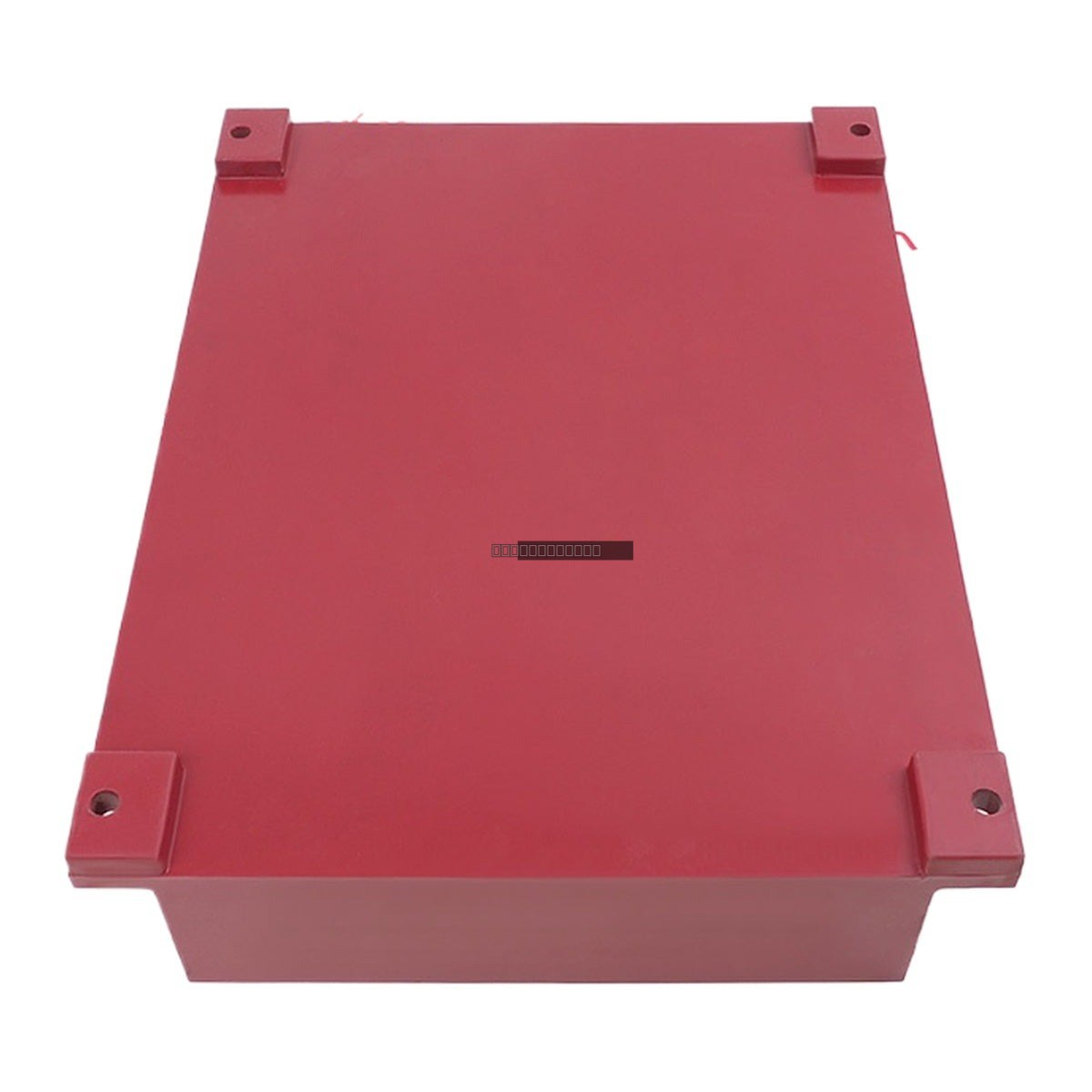

Allen-Bradley 81000-199-53-R Voltage Feedback Interface Board

Availability: 10 left in stock

DescriptionThe Allen-Bradley 81000-199-53-R is a high-performance Voltage Feedback Interface Board designed for use within the PowerFlex 7000 series medium voltage...

SKU: 81000-199-53-R

Manufacturer: Allen-Bradley
Product No.: 81000-199-53-R
Product Type: Voltage Feedback Interface Board
Product Origin: USA
Payment:T/T, Western Union
Weight: 3600g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Allen-Bradley 81000-199-53-R is a high-performance Voltage Feedback Interface Board designed for use within the PowerFlex 7000 series medium voltage AC drive systems. This module serves as a critical component for voltage detection and acquisition, providing precise feedback to the drive control system to ensure stable and efficient machinery operation in demanding industrial environments.

Features

Designed specifically for Allen-Bradley PowerFlex 7000 series medium voltage drives.
Provides high-precision voltage monitoring and signal feedback.
Robust construction suitable for heavy-duty industrial applications.
Integrated diagnostic capabilities for system monitoring.

Applications

Energy and Power: Motor drive control for auxiliary systems in power generation facilities.
Petroleum and Natural Gas: Voltage acquisition and feedback control for electric drive systems.
Mining and Metallurgy: High-voltage drive systems for large-scale hoists, crushers, and conveyor belts.
Water Treatment: High-voltage drive control systems for large-scale pump stations.

Technical Specifications

Model	81000-199-53-R
Manufacturer	Allen-Bradley
Function	Voltage Feedback Interface
Input Voltage Range	±10V DC
Input Impedance	1MΩ
Isolation Voltage	1500V AC
Overvoltage Protection	±15V continuous
Operating Temperature	0 degC to +55 degC
Storage Temperature	-40 degC to +85 degC
Humidity	5-95% (non-condensing)

Installation Guidelines

Power Down: Always disconnect all input power and verify the DC bus voltage is at zero before attempting installation or removal.
Static Safety: Use a properly grounded ESD wrist strap to prevent damage to sensitive electronic components.
Optical Safety: Never look directly into fiber-optic ports (J4, J5) as they may emit invisible radiation.
Environment: Ensure the installation site is free from excessive vibration, dust, and corrosive gases. Maintain adequate clearance for ventilation.
Diagnosis: Use the drive's built-in LCD or HMI to monitor voltage and displacement power factor. If an F46 Control Loss fault occurs, verify the 24V DC power supply to the interface board is stable and within specified limits.

FAQs

What is the primary function of the 81000-199-53-R?

The 81000-199-53-R is a voltage detection and interface board used in PowerFlex 7000 drives to provide accurate voltage feedback to the control system.

What should I check if I encounter an F46 fault?

An F46 Control Loss fault typically indicates an issue with the interface board power. Verify that the 24V DC power supply to the board is stable and within the required operating range.

Is this board compatible with other drives?

This board is specifically engineered for the Allen-Bradley PowerFlex 7000 series. It is not intended for use in other drive families.
