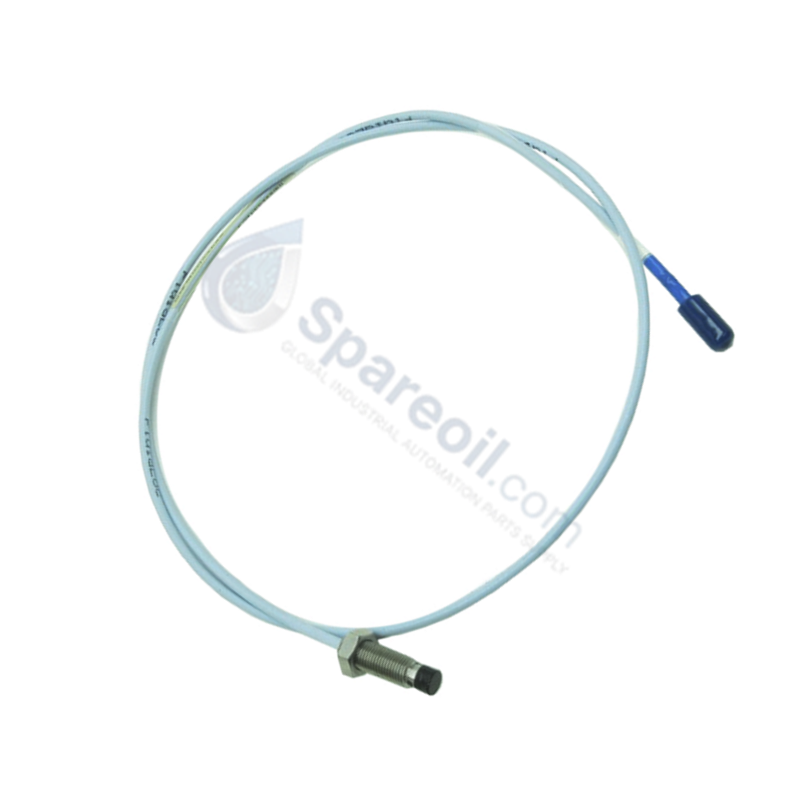

Bently Nevada 330173-00-06-10-02-00 3300 5mm Proximity Probe

Bently Nevada 330173-00-06-10-02-00 3300 5mm Proximity Probe

Availability: 10 left in stock

Configured for physical displacement measurement in 3300 XL transducer networks, the Bently Nevada 330173-00-06-10-02-00 (330173 Proximity Probe) provides direct physical/electrical...

SKU: 330173-00-06-10-02-00

Manufacturer: Bently Nevada
Product No.: 330173-00-06-10-02-00
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Configured for physical displacement measurement in 3300 XL transducer networks, the Bently Nevada 330173-00-06-10-02-00 (330173 Proximity Probe) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

The part number 330173-00-06-10-02-00 designates specific physical properties based on the Bently Nevada ordering matrix:

330173: Base designator for 3300 5mm Proximity Probe with M8 x 1 thread.
00: Unthreaded length option designating 0 mm.
06: Overall case length option designating 60 mm.
10: Total length option specifying 1.0 meter (3.3 feet).
02: Connector option specifying a miniature coaxial ClickLoc connector, standard cable (without armor).
00: Agency approval option specifying no hazardous area approvals are required.

Hardware Specifications

Parameter	Specification
Model	330173-00-06-10-02-00
Brand	Bently Nevada
Origin	USA
Probe Tip Diameter	5.0 mm
Thread Type	M8 x 1 metric thread
Unthreaded Length	0 mm
Overall Case Length	60 mm
Total Probe Length	1.0 meter (3.3 feet)
Cable Type	Standard coaxial (without armor)
Connector Type	Miniature coaxial ClickLoc
Agency Approval	None (Option 00)
Operating Temp	-51 to +177 deg C
Physical Weight	0.200 kg
Shipping Weight	1.20 kg
Power Consumption	Passive transducer sensor (0 W)

Eddy-Current Probe Scaling & Gap Voltage Validation

This transducer operates via eddy-current physics, generating a dynamic electromagnetic field at the 5.0 mm probe tip to monitor target proximity. To establish matched electrical impedance, this 1.0-meter probe must connect to its paired Proximitor sensor using a compatible extension cable to achieve a completed 5.0-meter or 9.0-meter loop configuration. Correct mechanical alignment of the M8 thread is necessary to execute gap voltage validation, targeting a nominal -10 VDC baseline at the midpoint of the linear range. Maintaining these precise electrical parameters limits signal attenuation and ensures high cross-talk suppression during high-frequency shaft displacement and rotor dynamics monitoring.

Frequently Asked Questions

Q: What is the main difference between the 5mm probe (330173) and the standard 8mm probe (330171)?

A: The 5mm probe has a physically smaller tip diameter and an M8 x 1 thread, allowing it to be installed in tighter spaces or smaller threaded ports where standard 3/8-24 or larger probes cannot fit. However, it has a smaller linear range than standard 8mm probes.

Q: Can this unarmored standard cable be run directly through open cable trays in high-temperature environments?

A: Yes, the fluoropolymer-insulated coaxial cable is rated for up to +177 deg C. However, because it lacks a flexible stainless steel armor conduit, it should be protected from sharp physical edges, pinch hazards, and direct mechanical strain inside the routing pathways.

Field Installation Guidelines

Thread Mounting and Torque: Mount the probe using standard metric brackets. Do not exceed 4.5 N-m (40 in-lb) of torque when tightening the mounting locknuts on the M8 x 1 threads to avoid case deformation.
Gap Voltage Adjusting: Thread the probe toward the target surface while monitoring the Proximitor output with a digital multimeter until the gap voltage reads -10.0 VDC (the nominal electrical center of the linear calibration curve).
Connector Integrity: Connect the miniature coaxial ClickLoc terminals finger-tight to preserve core isolation. Ensure no moisture, oil, or conductive contaminants enter the connection housing prior to assembly.
