330710-000-060-10-02-00 Bently Nevada Extension Cable

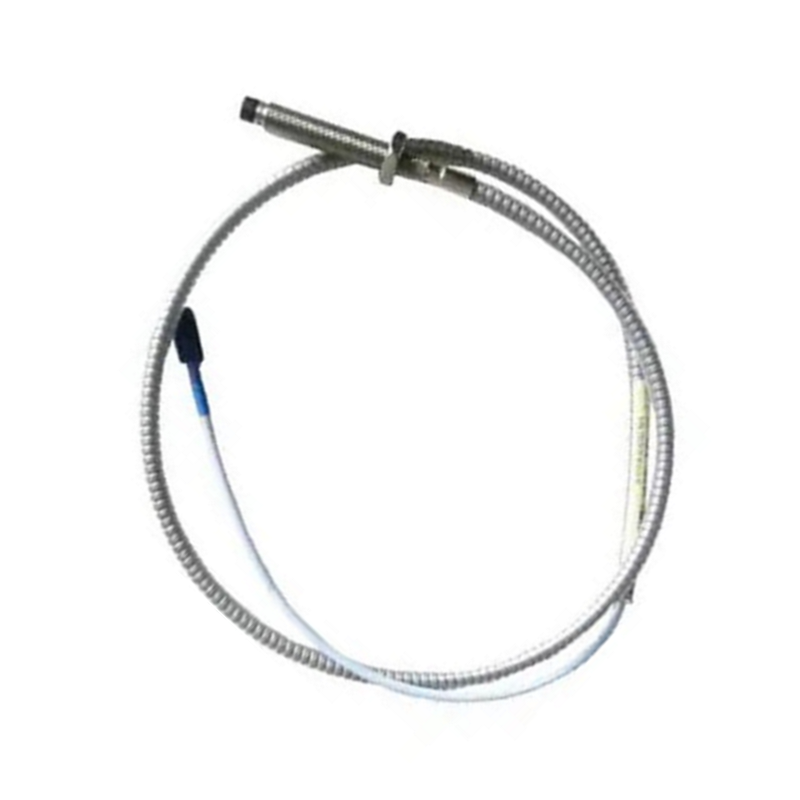

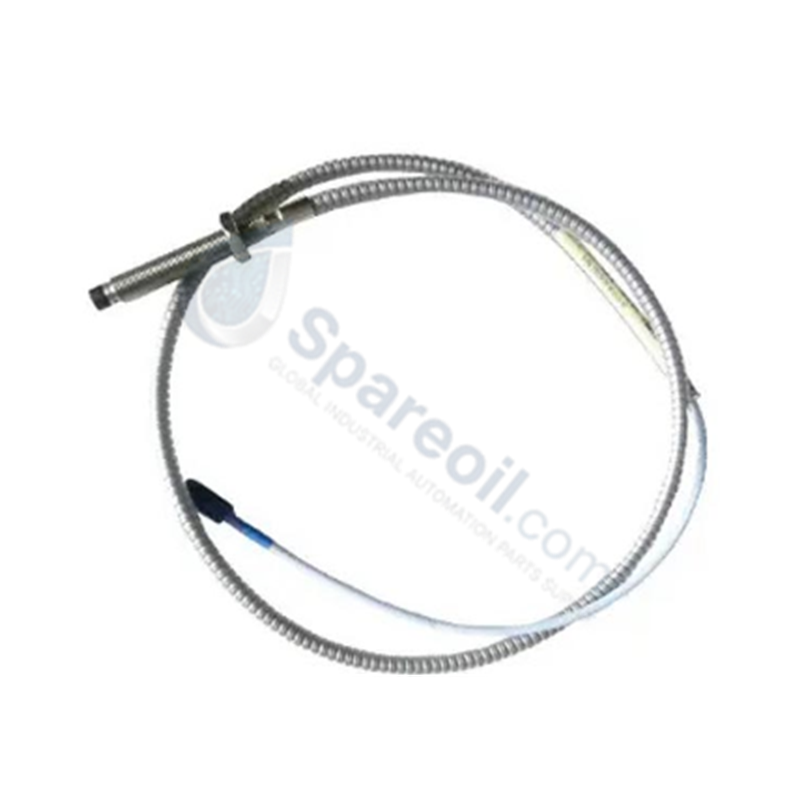

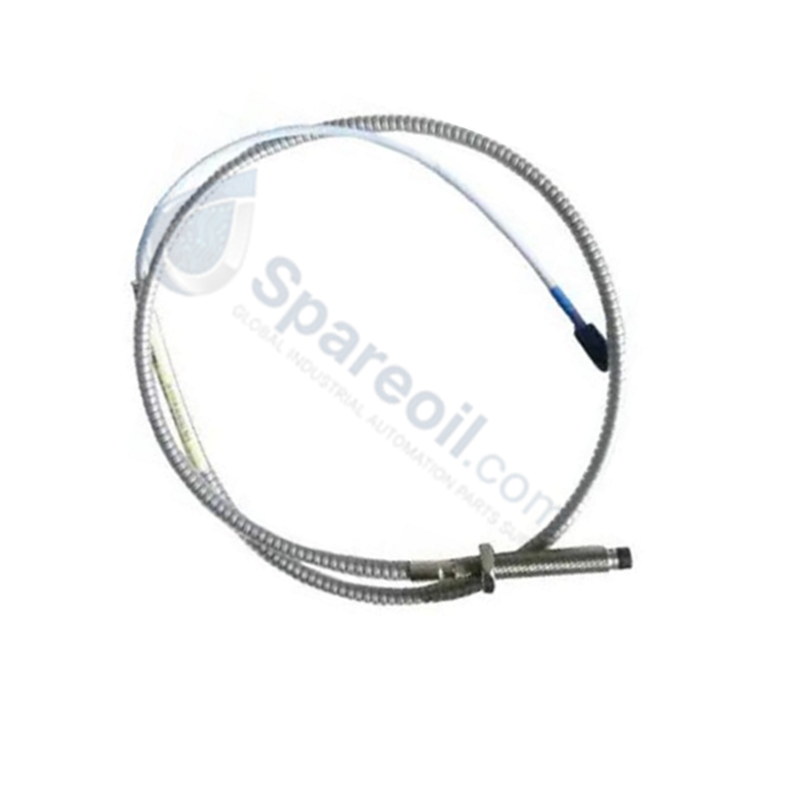

Bently Nevada 330710-000-060-10-02-00 3300 XL Series Extension Cable

Bently Nevada 330710-000-060-10-02-00 3300 XL Series Extension Cable

Availability: 10 left in stock

The Bently Nevada 330710-000-060-10-02-00, also cataloged as the 330710 Extension Cable, operates as a dedicated hardware component for physical signal...

SKU: 330709-000-070-10-02-00

Manufacturer: Bently Nevada
Product No.: 330709-000-070-10-02-00
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Bently Nevada 330710-000-060-10-02-00, also cataloged as the 330710 Extension Cable, operates as a dedicated hardware component for physical signal transmission between proximity probes and Proximitor sensors within 3300 XL vibration monitoring platforms.

Hardware Specifications

Parameter	Specification
Model	330710-000-060-10-02-00
Brand	Bently Nevada
Origin	United States
Weight	0.25 kg
Dimensions	20.5 x 22.5 x 3.5 cm
Operating Temp	-51 to +177 deg C
Power Consumption	Passive component (0 W)
Cable Type	Standard coaxial cable
Connector Type	Miniature coaxial ClickLoc connectors

Eddy-Current Probe Scaling & Signal Path Integrity

This 3300 XL extension cable maintains strict impedance and capacitance matching across the high-frequency analog signal path. The cable is calibrated to preserve standard eddy-current probe scaling of 3.94 V/mm (100 mV/mil) when paired with an 11 mm proximity probe and the corresponding Proximitor sensor. During loop commissioning, field technicians must conduct a gap voltage validation to ensure the overall electrical system length matches the Proximitor’s tuning. Proper signal pathway impedance prevents radio-frequency interference and optimizes cross-talk suppression when multiple transducer systems are installed in close proximity near machine rotor dynamics components.

Frequently Asked Questions

Q: Can this 330710 extension cable be coupled with an 8 mm proximity probe system?

A: No. The electrical capacitance and impedance characteristics of the 330710 cable are specifically tuned for 11 mm sensor systems. Intermixing with 8 mm components disrupts the calibration curve and introduces scale factor errors.

Q: What is the impact of altering the physical length of this extension cable in the field?

A: Cutting, splicing, or altering the length of the coaxial cable is strictly prohibited. The total electrical length is critical to the bridge circuit calibration; any physical length deviation changes the total system impedance and invalidates the linear range calibration.

Field Installation Guidelines

Connector Protection: Always ensure that the ClickLoc coaxial connections are protected using connector sleeves or silicone self-fusing tape. These connections must remain dry, clean, and isolated from physical contact with machine ground.
Shield Grounding and Isolation: Prevent multiple ground pathways by isolating the coaxial cable shield from the industrial machine housing. The cable shield must only connect to ground at the Proximitor sensor terminal block.
Routing and Bend Radius Limits: Route the cable through a dedicated metal conduit to mitigate external electromagnetic interference. Maintain a minimum bend radius of 25.4 mm (1.0 inch) along the routing path to prevent permanent structural damage to the internal coaxial dielectric layers.
